Tilt Wheel Handle: Service and Repair
Adjustment handle,
steering wheel
To remove
1.

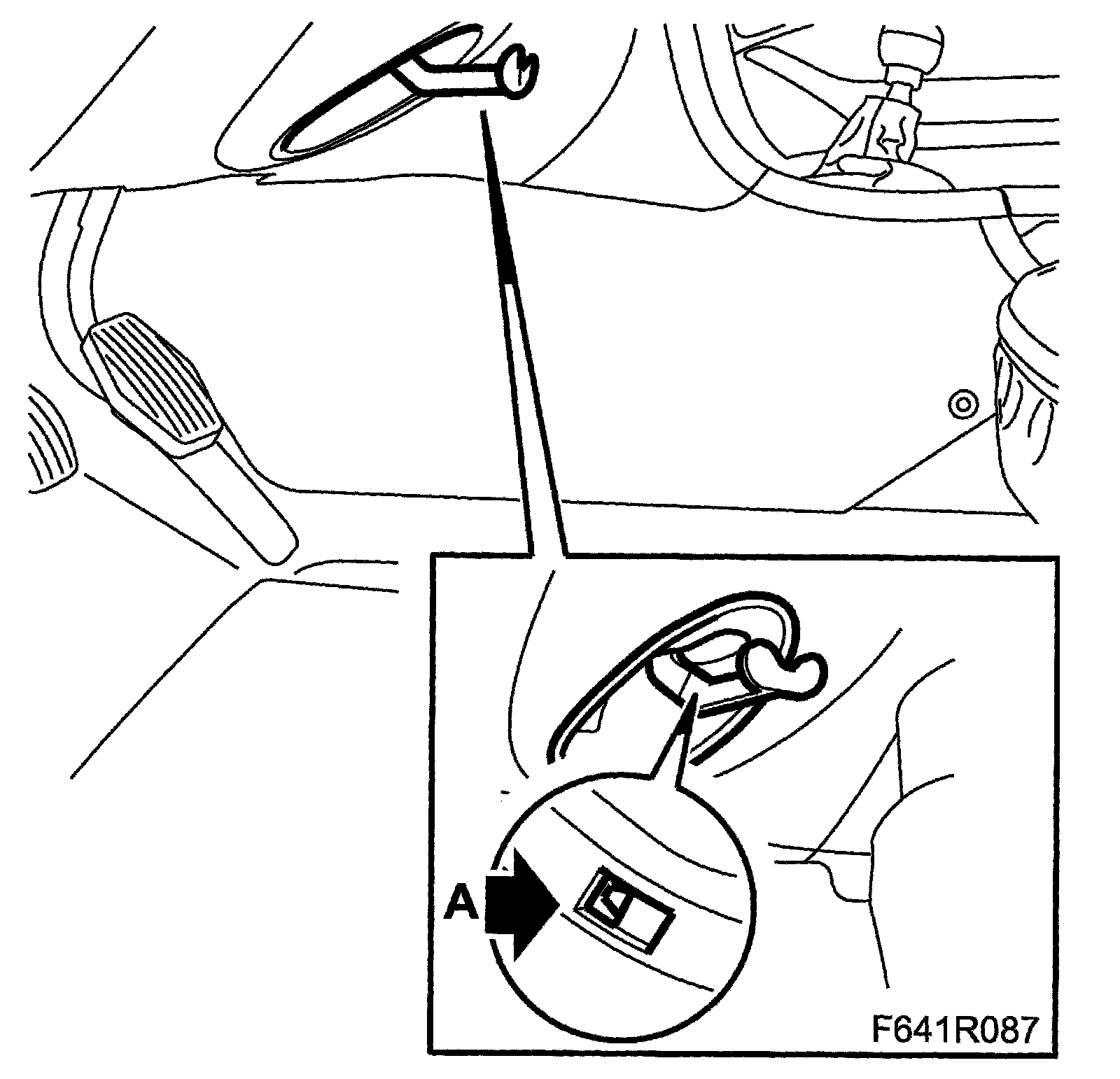

Press in the catch (A) on the handle and remove the handle.
To fit
1.
Fit the handle to the adjusting arm by pressing until the catch (A) locks.
