Home >> Saab >> 2009 >> 9-3 XWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Malfunction Lamp / Indicator >> Locations >> Indicator Lamp, Passenger Airbag OFF (612b)

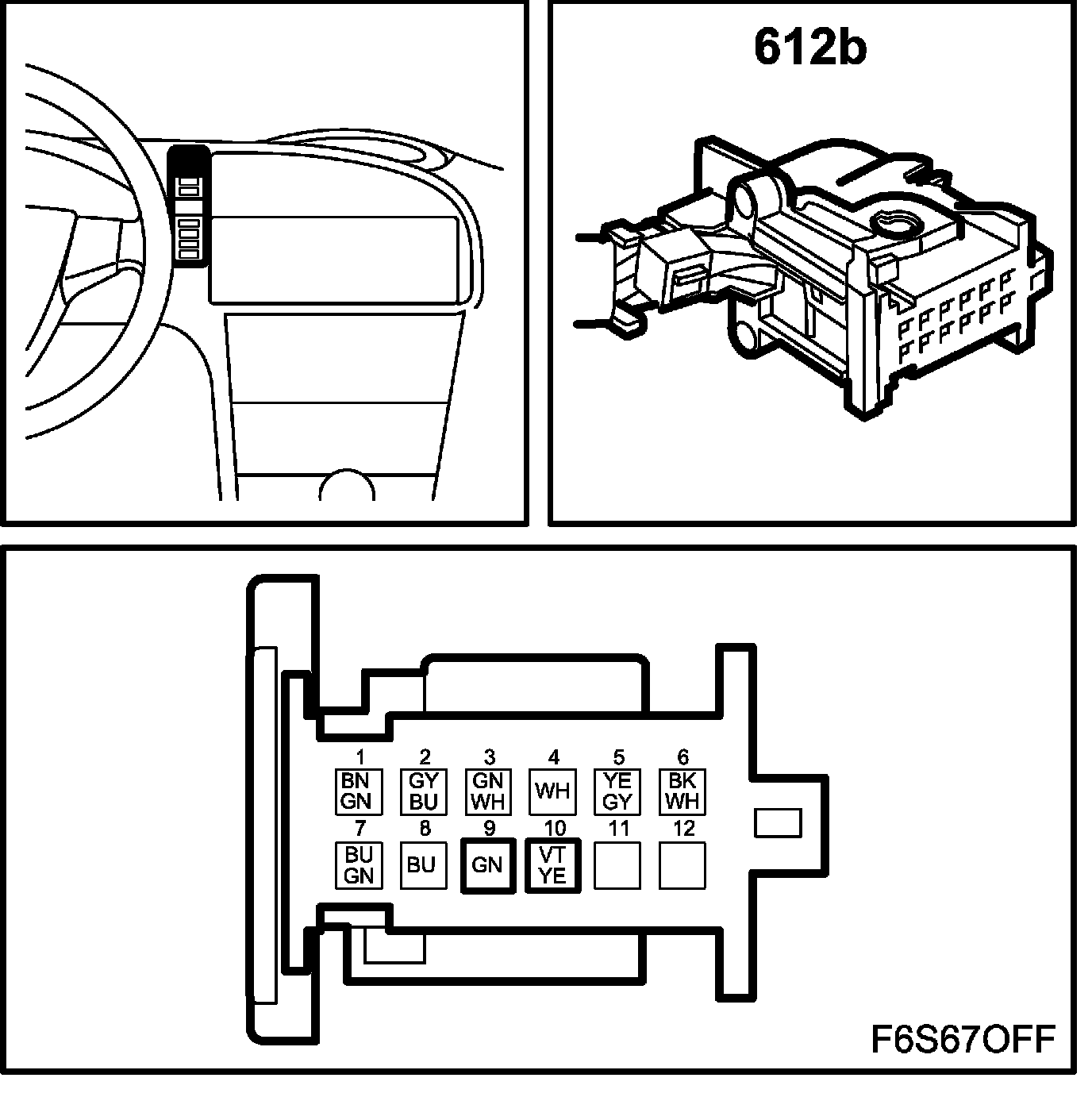

Indicator Lamp, Passenger Airbag OFF (612b)



Location: in SID control panel

Indicator Lamp, Passenger Airbag OFF (612b):
