Differential Lock Hydraulic Fluid Filter: Service and Repair

Filter, differential clutch, replacement

Warning: The hydraulic pressure in the differential clutch is very high. Wait or at least 10 minutes before removing any parts from the differential clutch.

To remove
1. Remove cover, differential clutch.

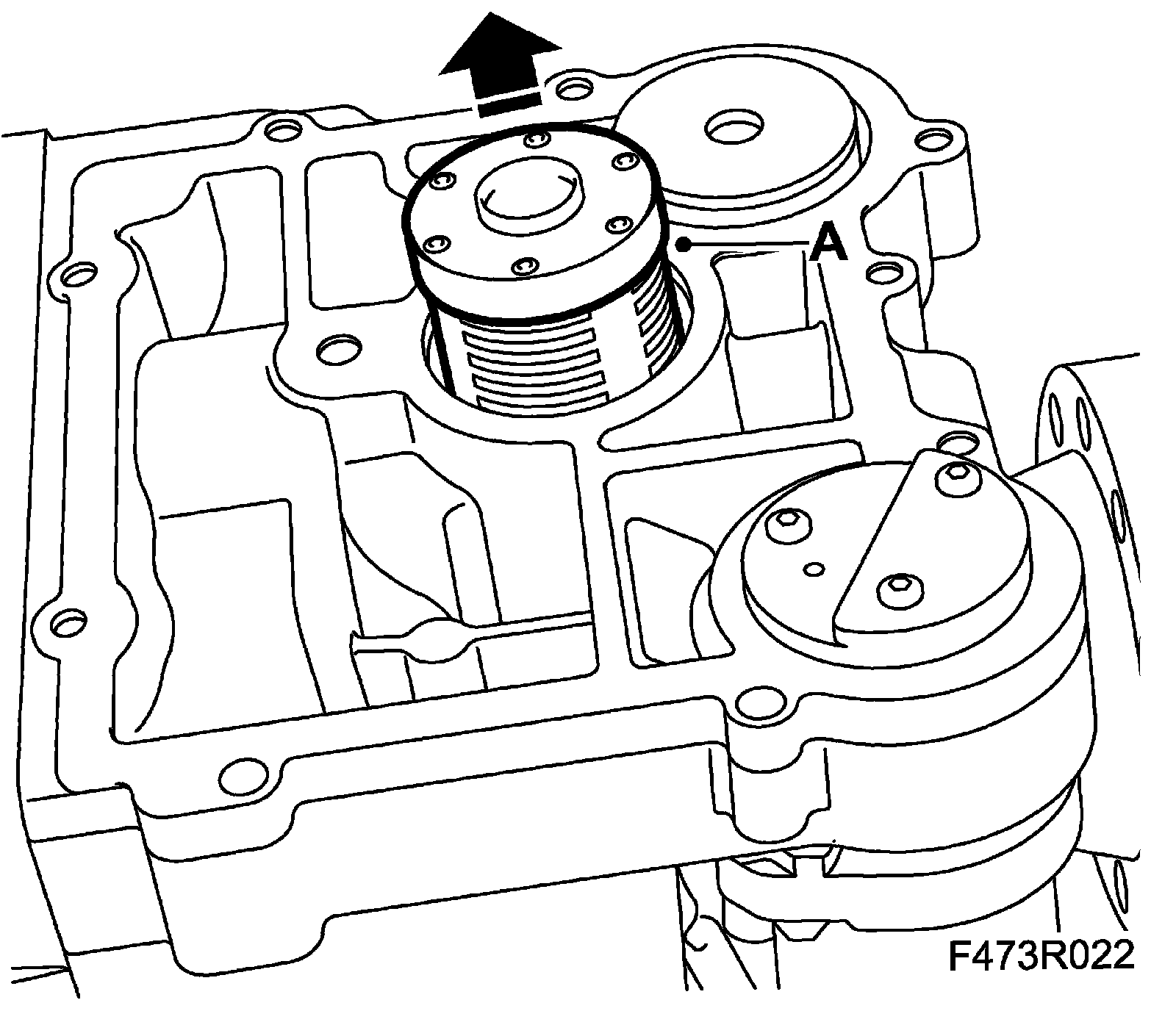

2. Remove the filter (A).





To fit

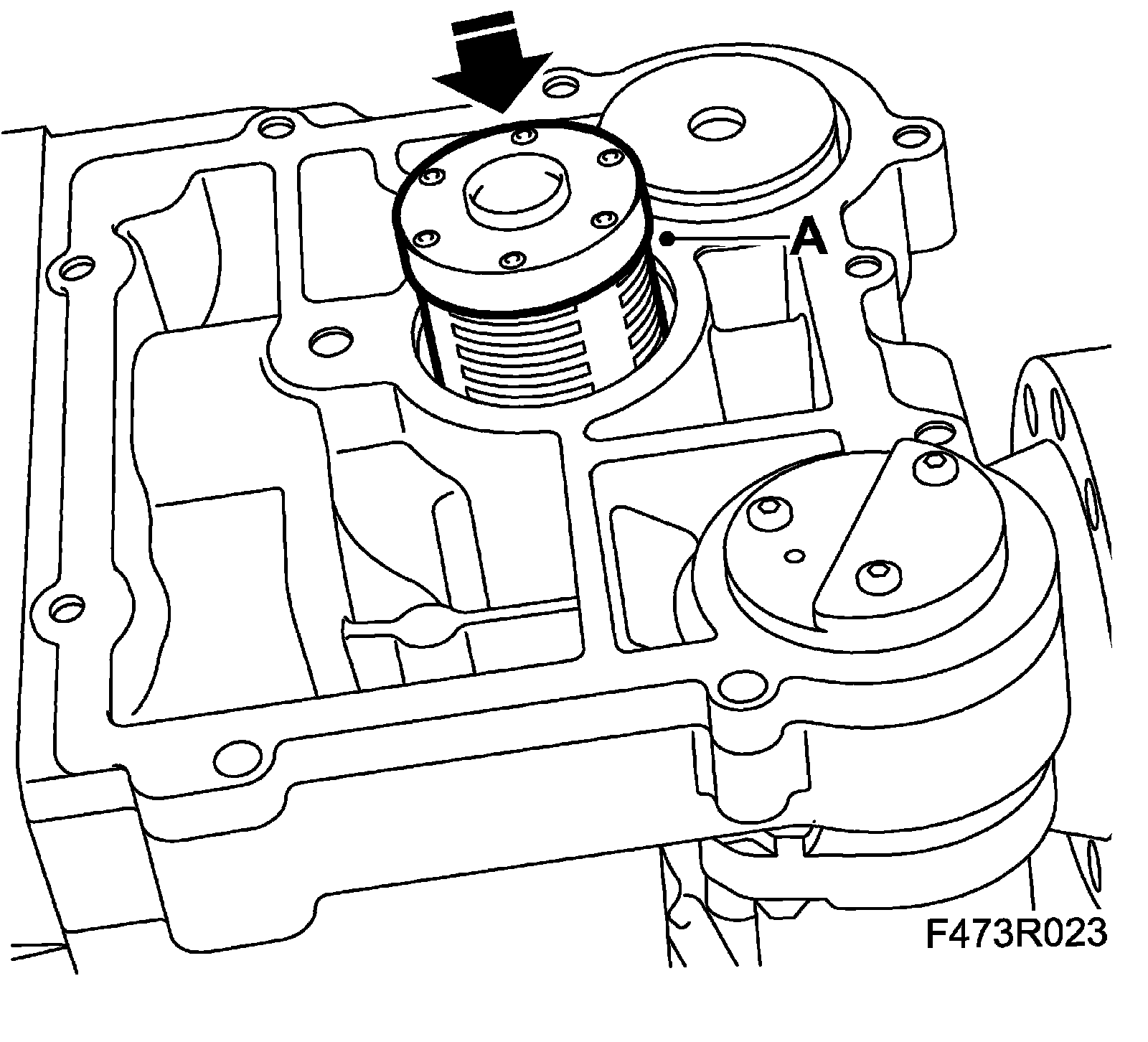

1. Fit the filter (A).





2. Fit cover, differential clutch.
