Home >> Saab >> 2009 >> 9-3 XWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transfer Case

Transfer Case

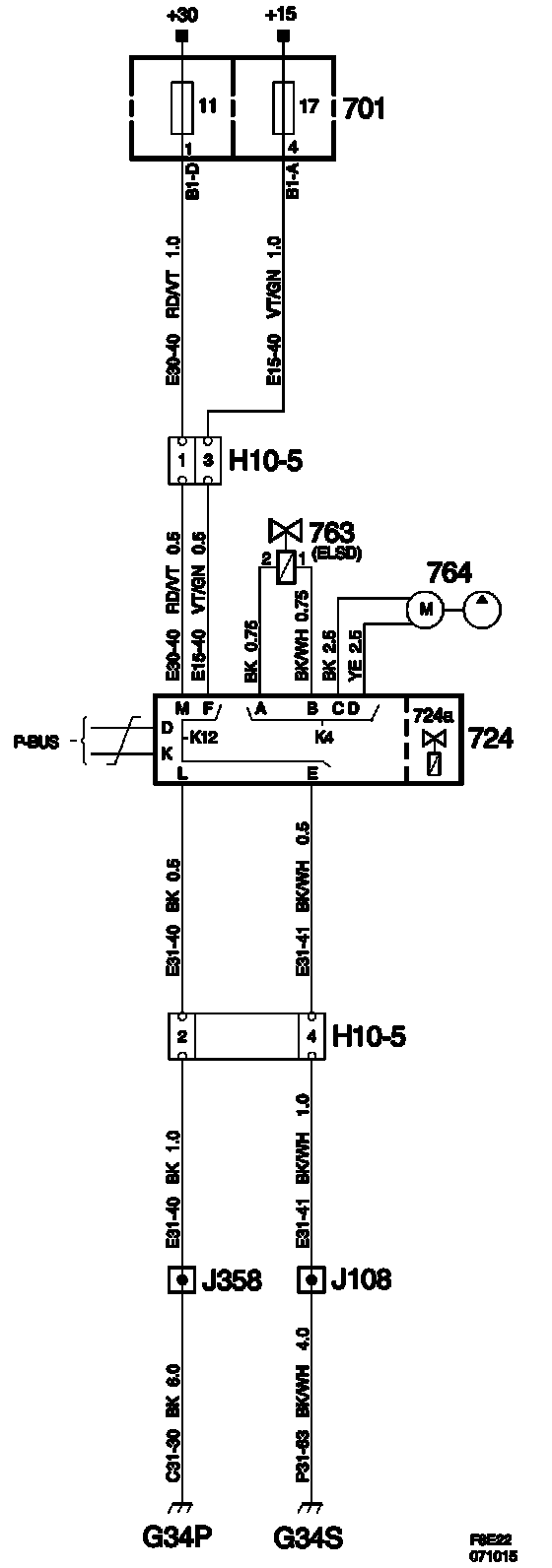

All-wheel Drive:

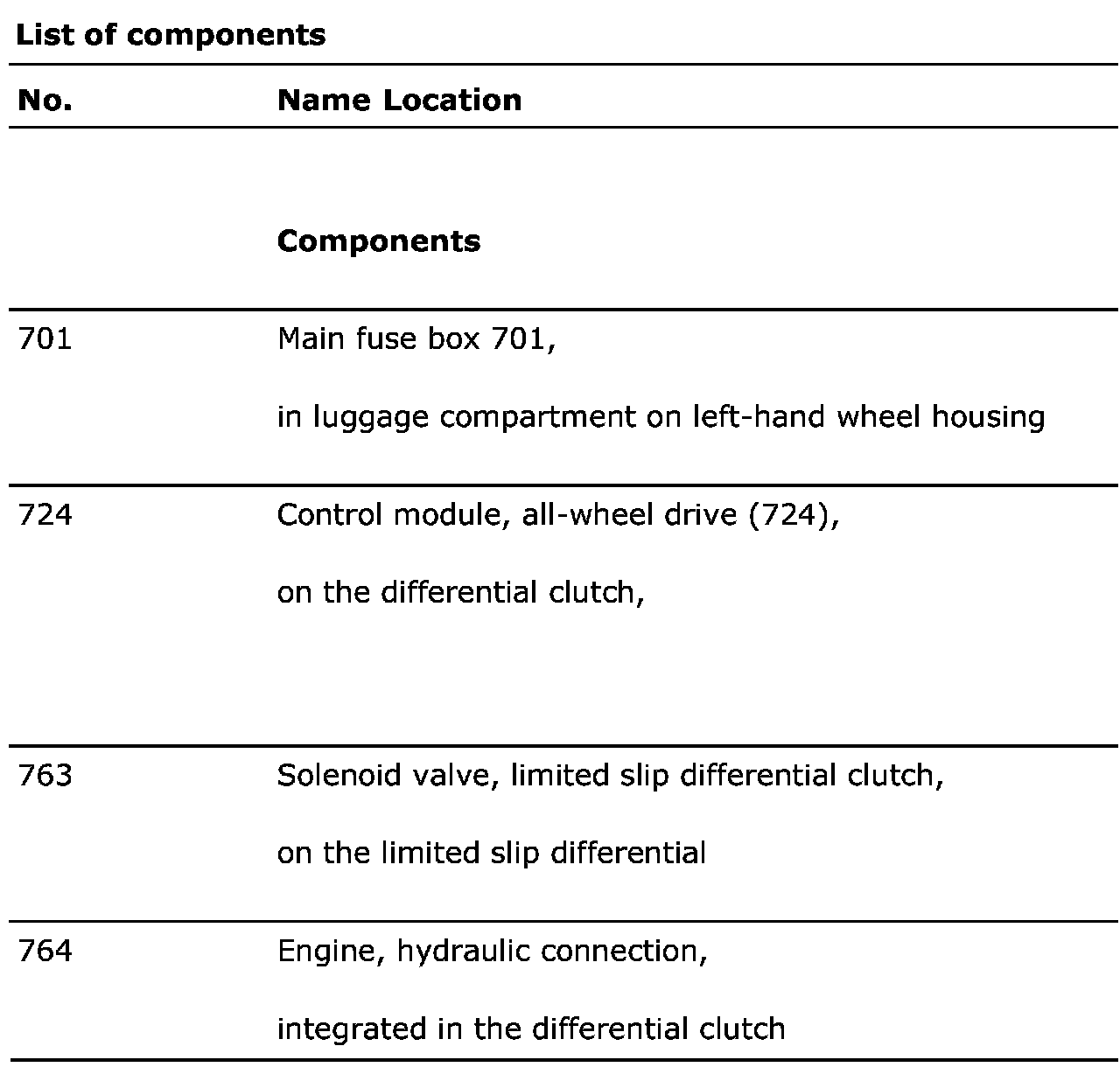

List Of Components (Part 1):

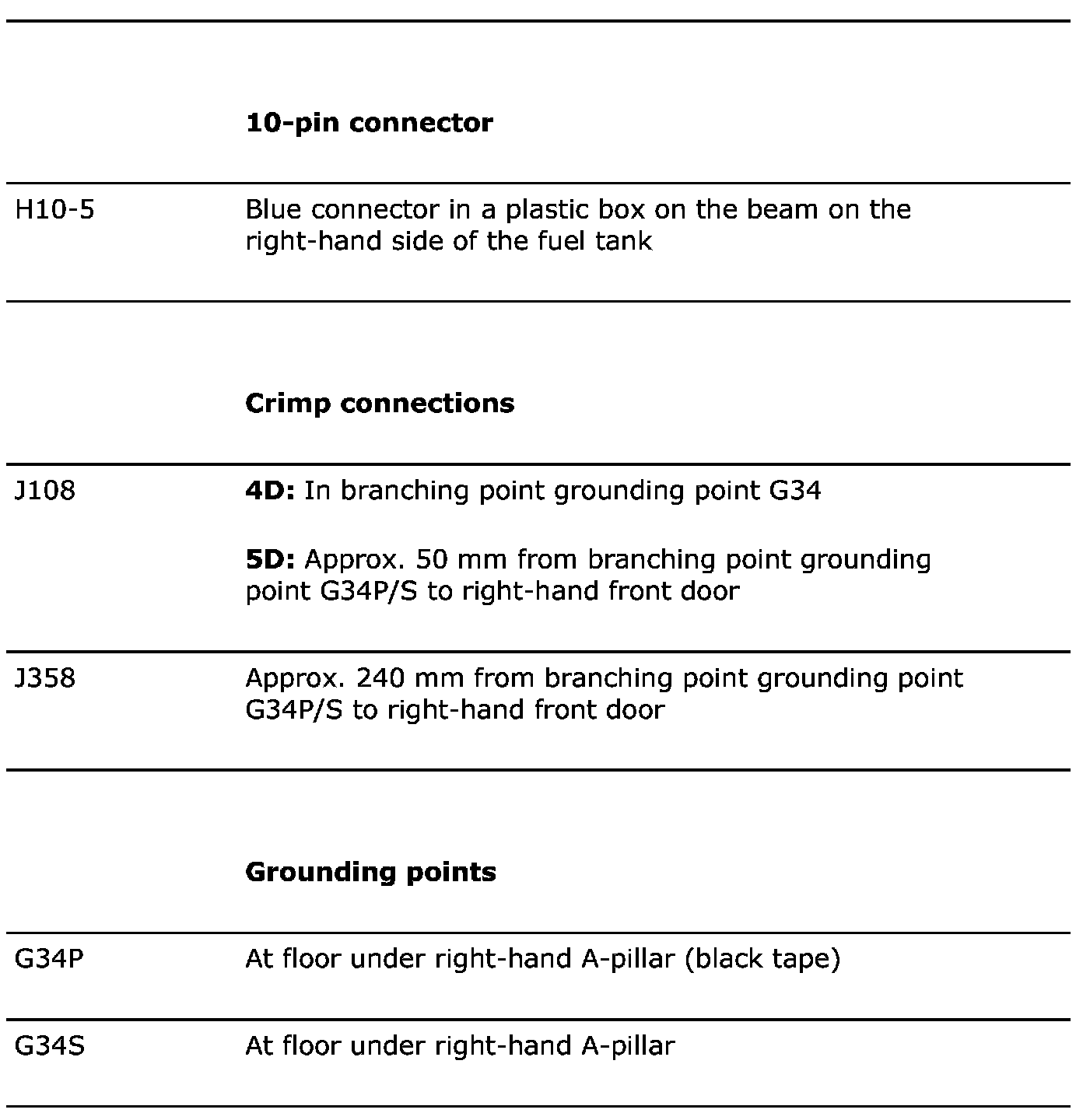

List Of Components (Part 2):
