CV

Speakers, Woofer, Rear (266 RCW), CV

To remove
1. Remove Rear seat backrest, CV.

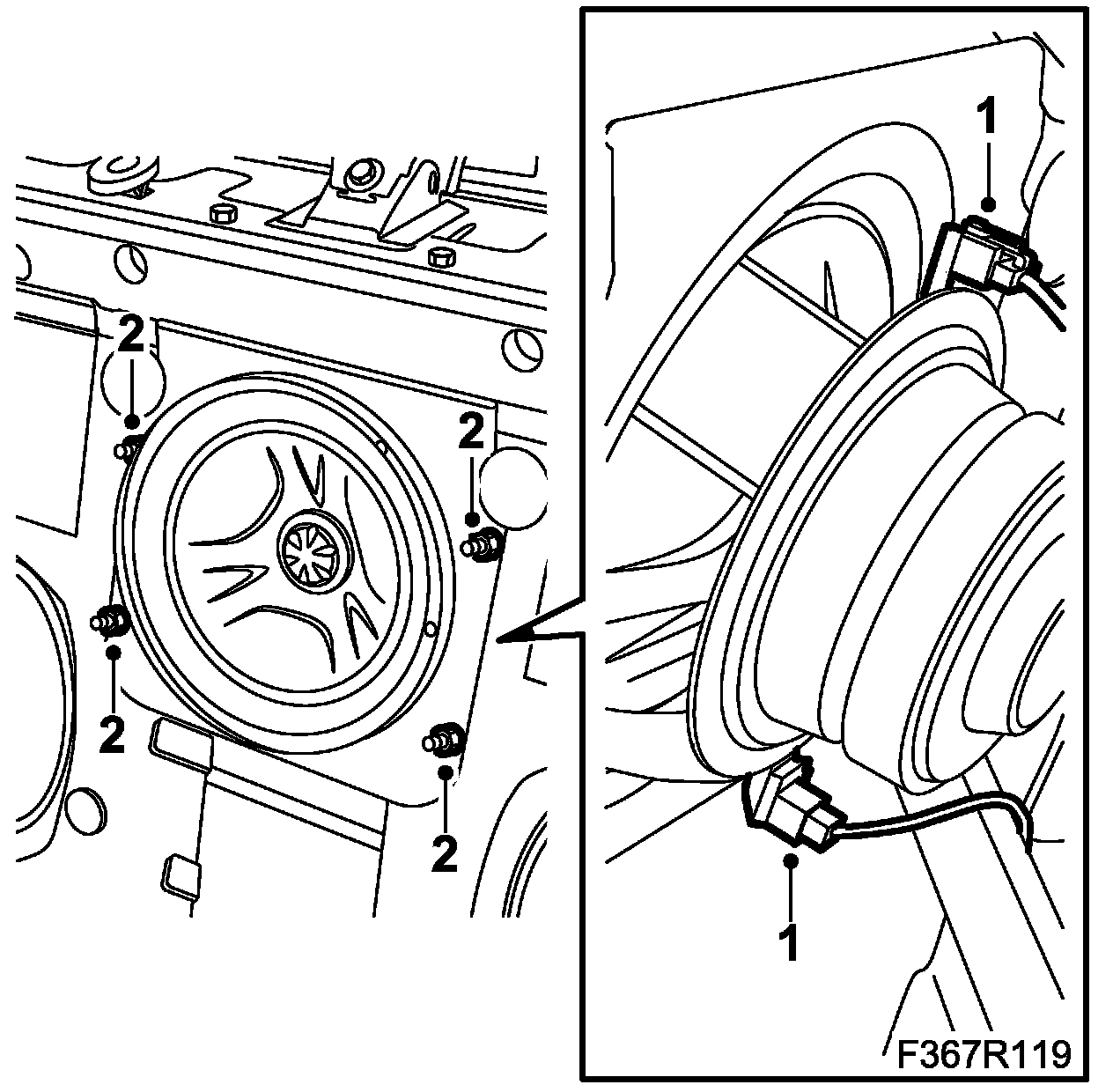

2. Remove the nuts.
3. Carefully lift out the speaker and unplug the connectors.





To fit
1. Plug in the speaker connectors and fit the speaker in place.





2. Fit the nuts.

IMPORTANT: Make sure no cables or connectors are pinched.

3. Install Rear seat backrest, CV.
