5D

Speakers, Woofer, Rear (266RCW), 5D

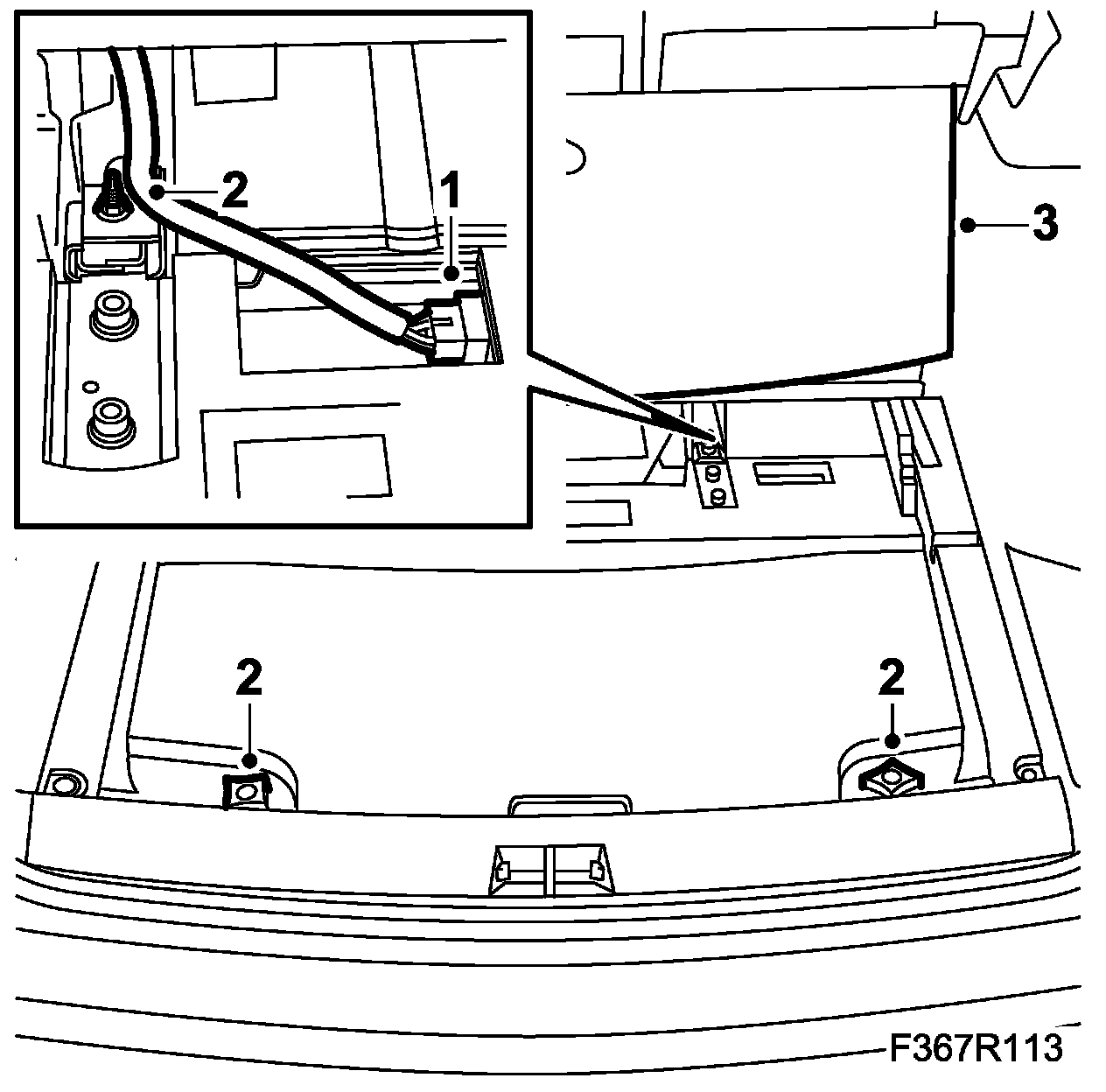

To remove
1. Lift up the floor.





2. Unplug the connector.
3. Remove the speaker.

To fit
1. Plug in the speaker's connector.





2. Fit the speaker.

IMPORTANT: Make sure no cables or connectors are pinched.

3. Close the floor.
