Speaker, Tailgate, 5D

Speaker, Tailgate, 5D

To remove
1. Open the tailgate.
2. Remove Tailgate trim.

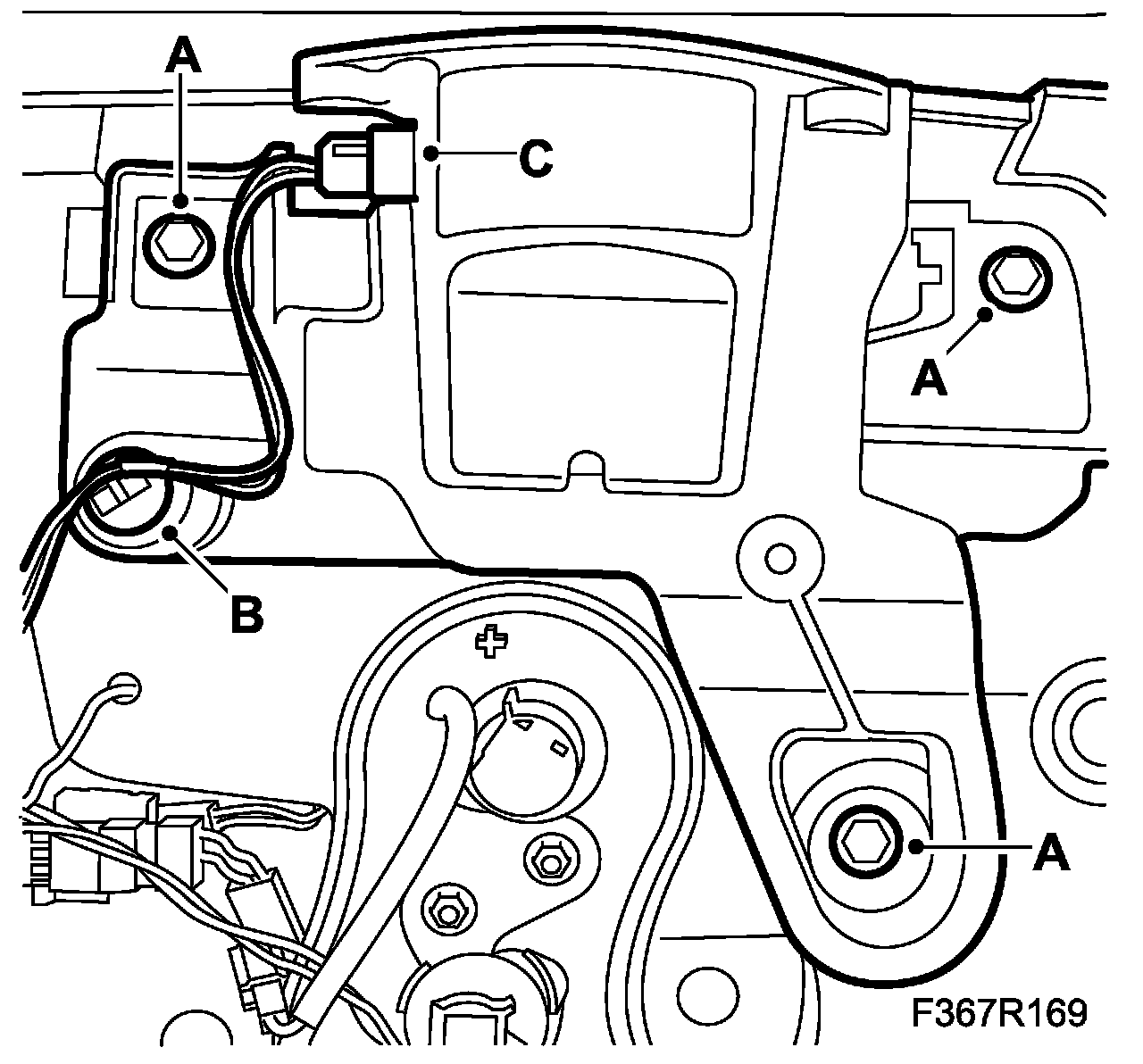

3. Remove the speaker's screws (A), the cable tie (B) and unplug the connector (C).

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.





To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

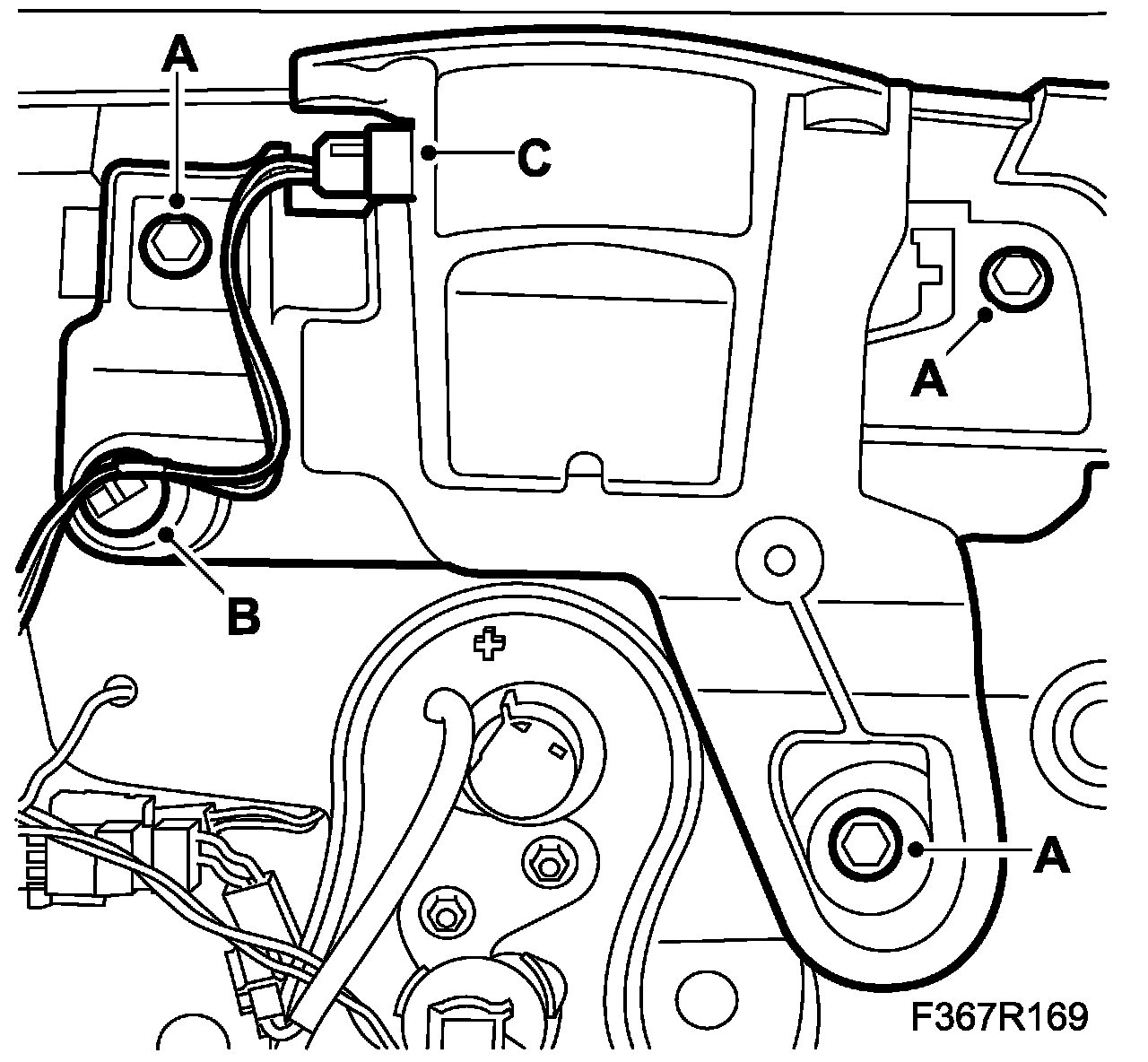

1. Position the speaker, fit the screws (A), plug in the connector (C) and fit a new cable tie (B).





2. Fit Tailgate trim.

IMPORTANT: Make sure no cables or connectors are pinched.

3. Close the tailgate.
