Speaker (266RP), Rear Door, Bose (R) Centerpoint (R) Surround System

Speaker (266RP), Rear Door, Bose (R) Centerpoint (R) Surround System

To remove
1. Remove the Door trim, rear.

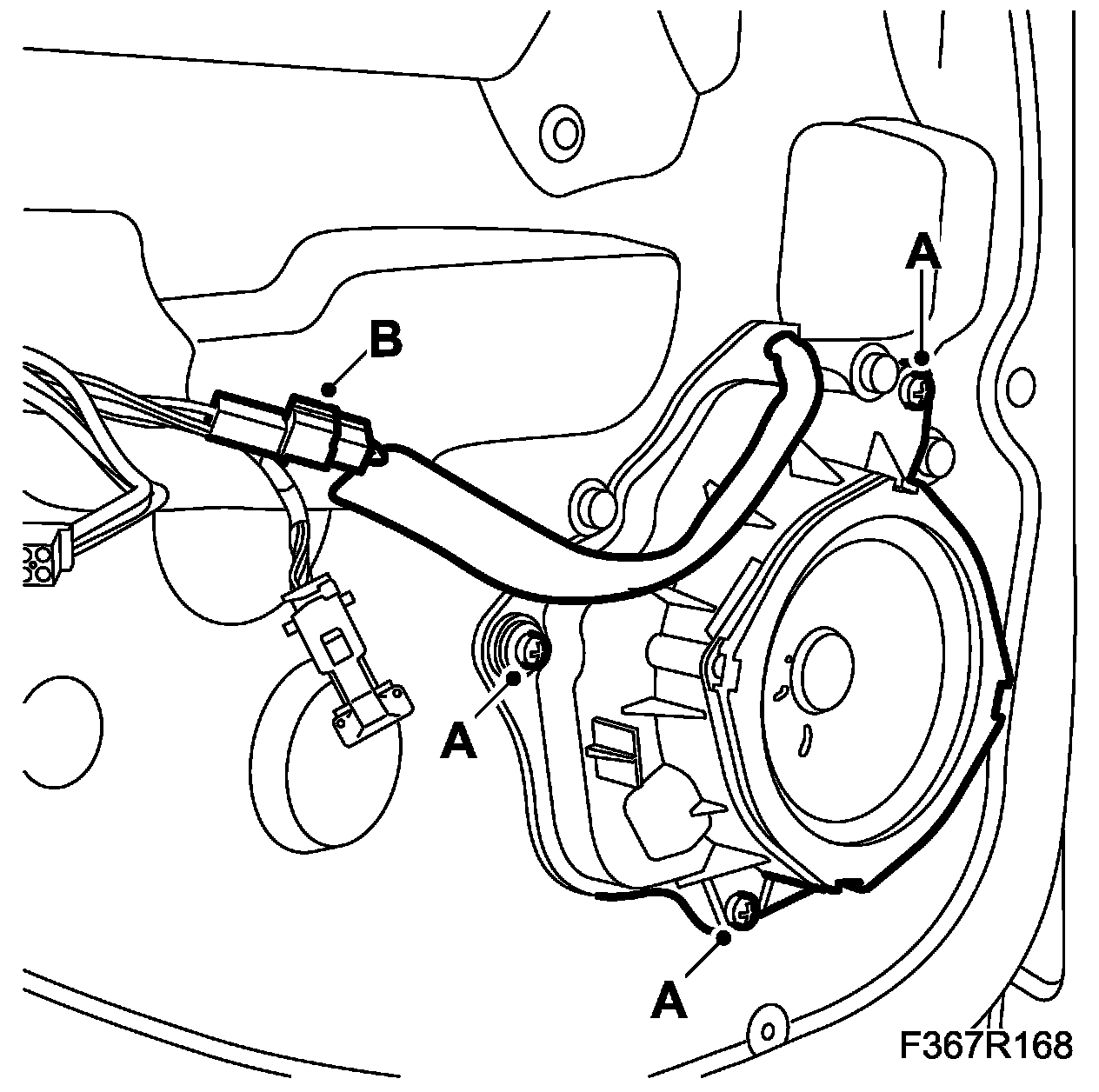

2. Remove the screws (A) and unplug the connector (B).





To fit

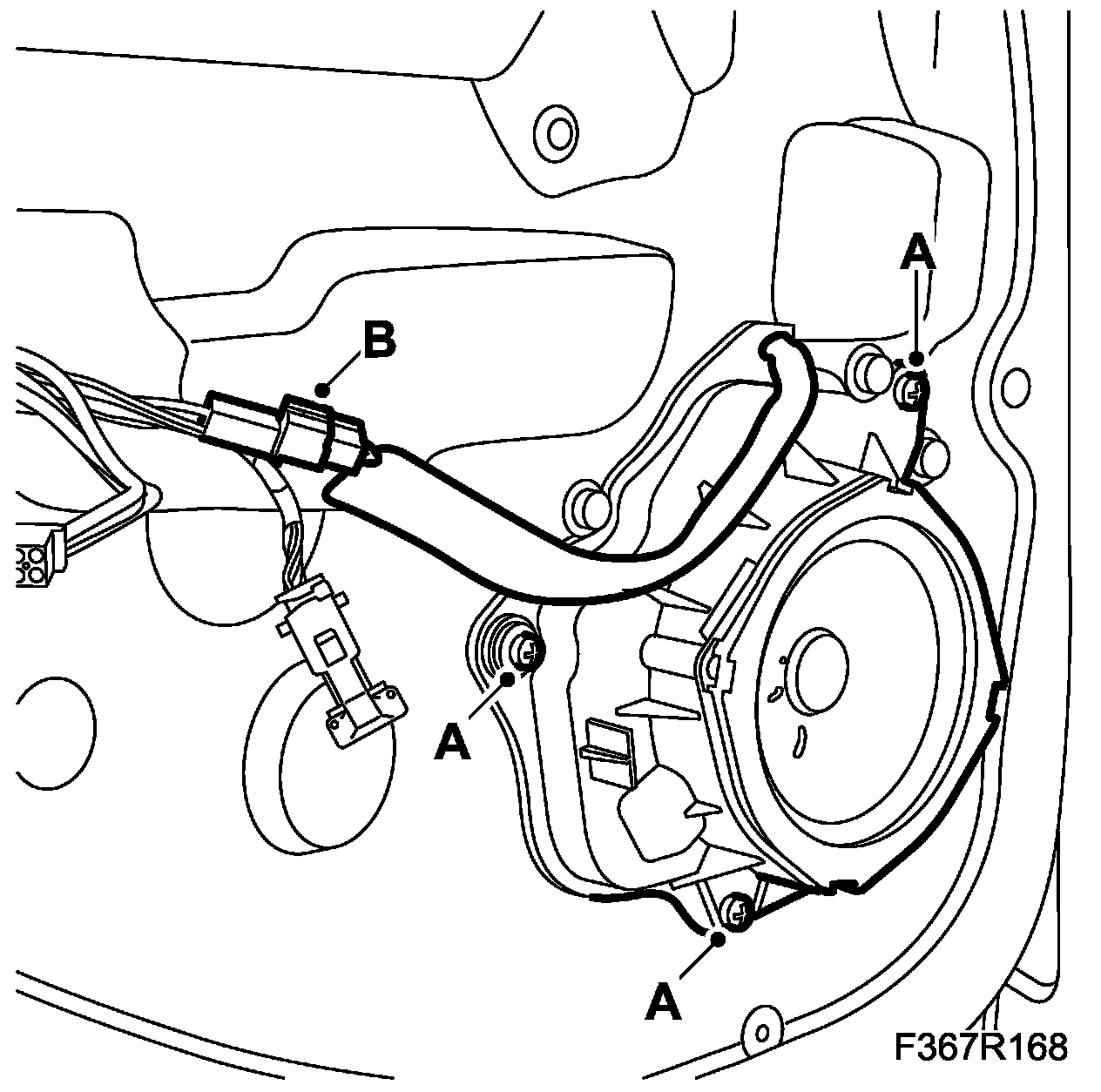

1. Plug in the connector (B), align the speaker in the correct position and fit the screws (A).





2. Fit the Door trim, rear.

IMPORTANT: Make sure no cables or connectors are pinched.
