Rear Woofer, Bose (R) Sound System (266)

Rear Woofer, Bose (R) Sound System (266)

To remove
1. Remove the Parcel shelf trim.
2. Remove the C-pillar trim.

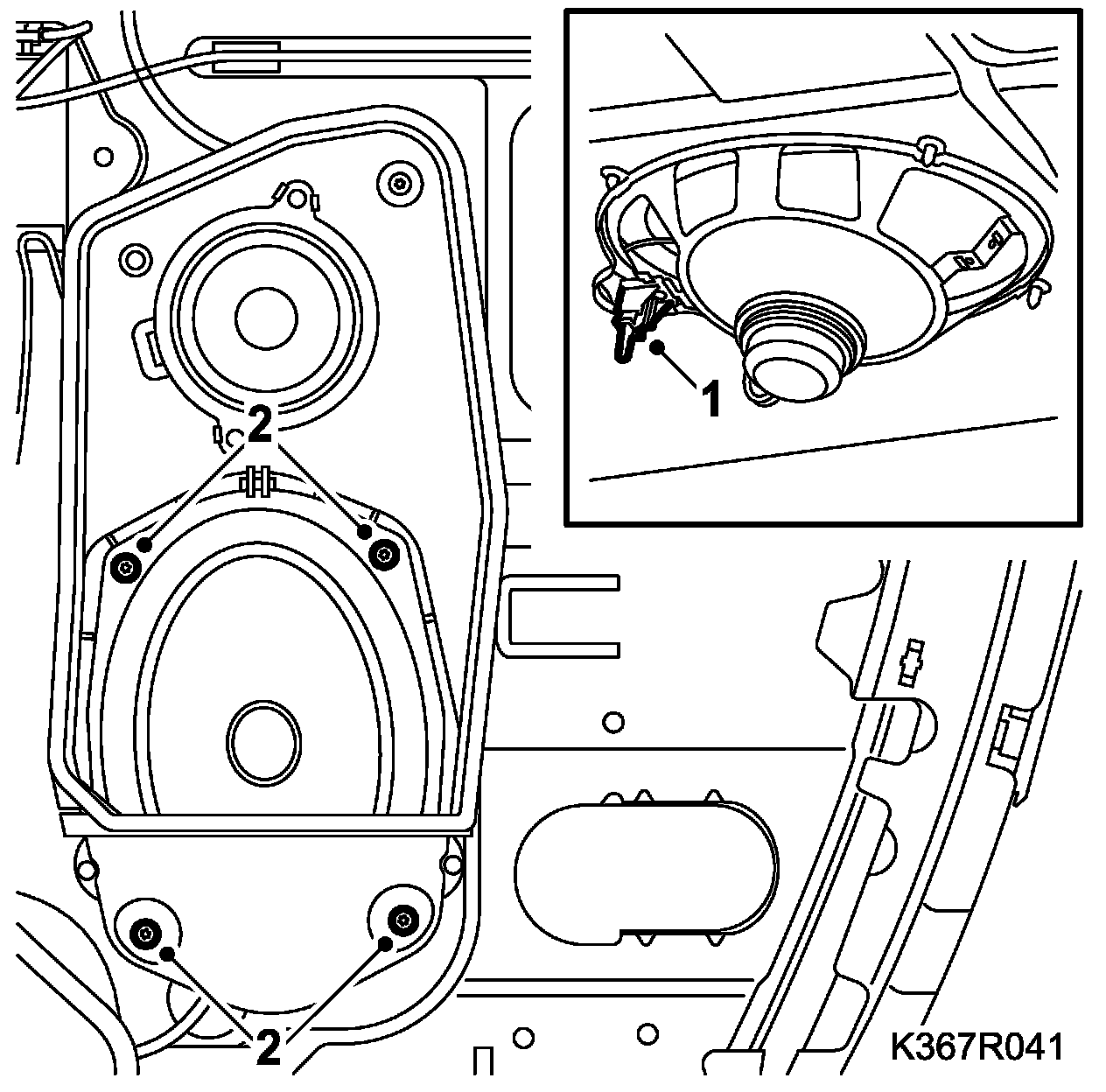

3. Remove the speaker screws.





4. Lift up the speaker and detach the connector.

To fit
1. Plug in the speaker's connector.
2. Position the speaker. Fit the speaker's screws.

IMPORTANT: Make sure no cables or connectors are pinched.





3. Fit the C-pillar trim.
4. Fit the Parcel shelf trim.
