Rear Speaker, Bose (R) Sound System (266)

Rear Speaker, Bose (R) Sound System (266)

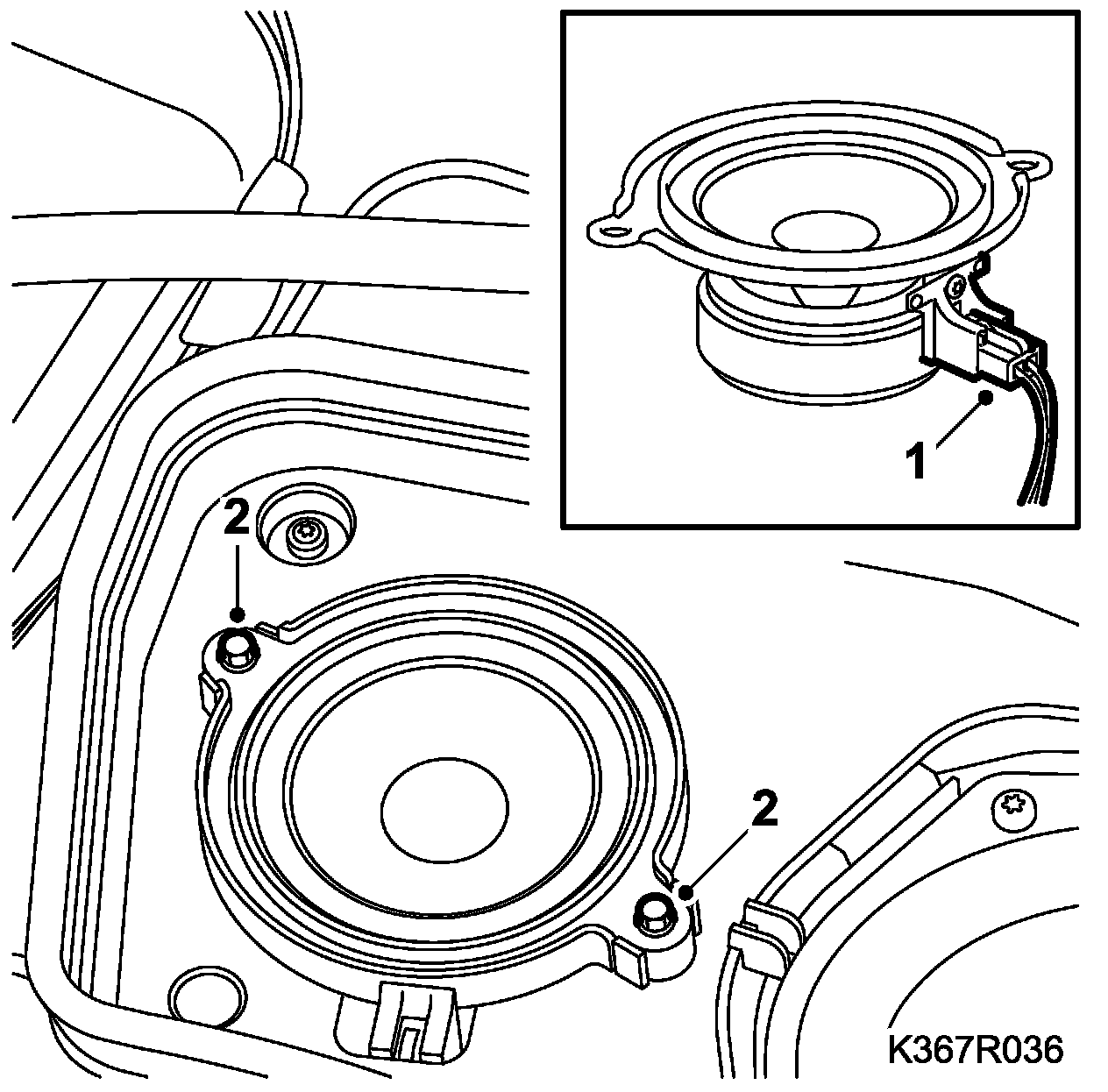

To remove
1. Remove the Parcel shelf trim.
2. Remove the speaker screws.





3. Lift up the speaker and detach the connector.

To fit
1. Plug in the speaker connector.





2. Properly position the speaker and fit the bolts.

IMPORTANT: Make sure no cables or connectors are pinched.

3. Plug in the connector.
4. Fit the Parcel shelf trim.
