Rear Speaker (266), 4D

To remove
1. Remove the Parcel shelf trim.

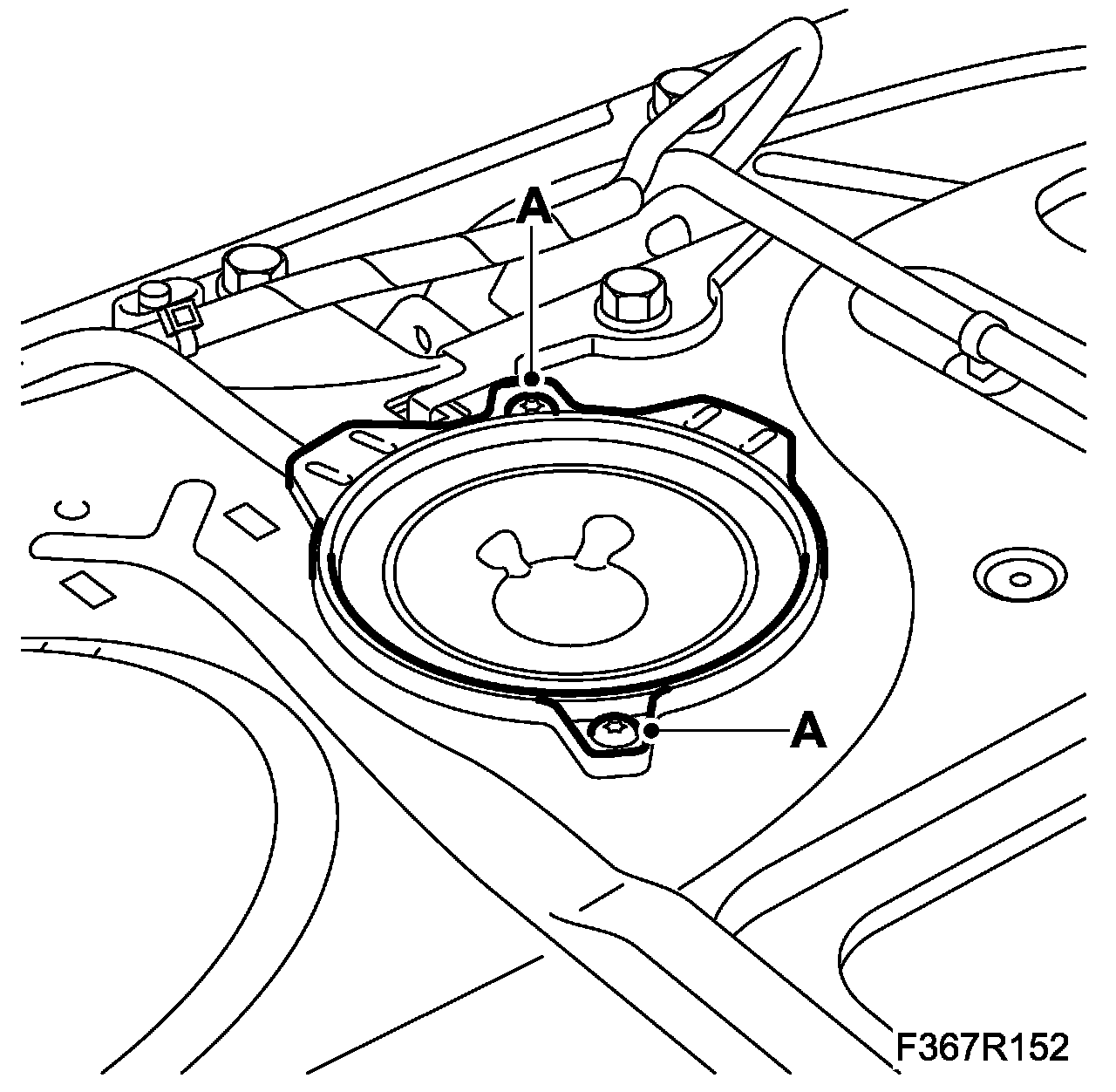

2. Remove the speaker bolts (A).

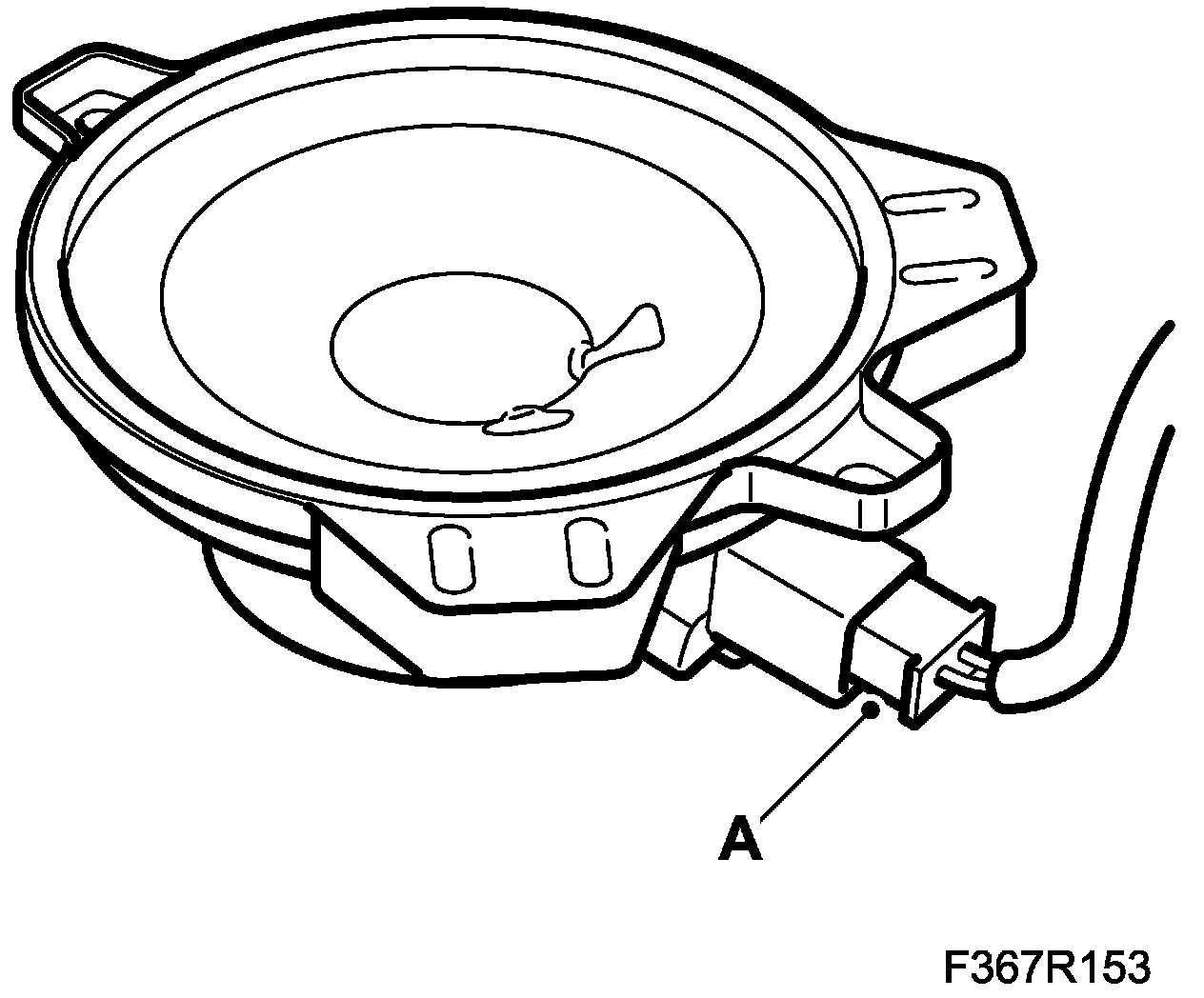

3. Lift up and unplug the connector (A).





To fit

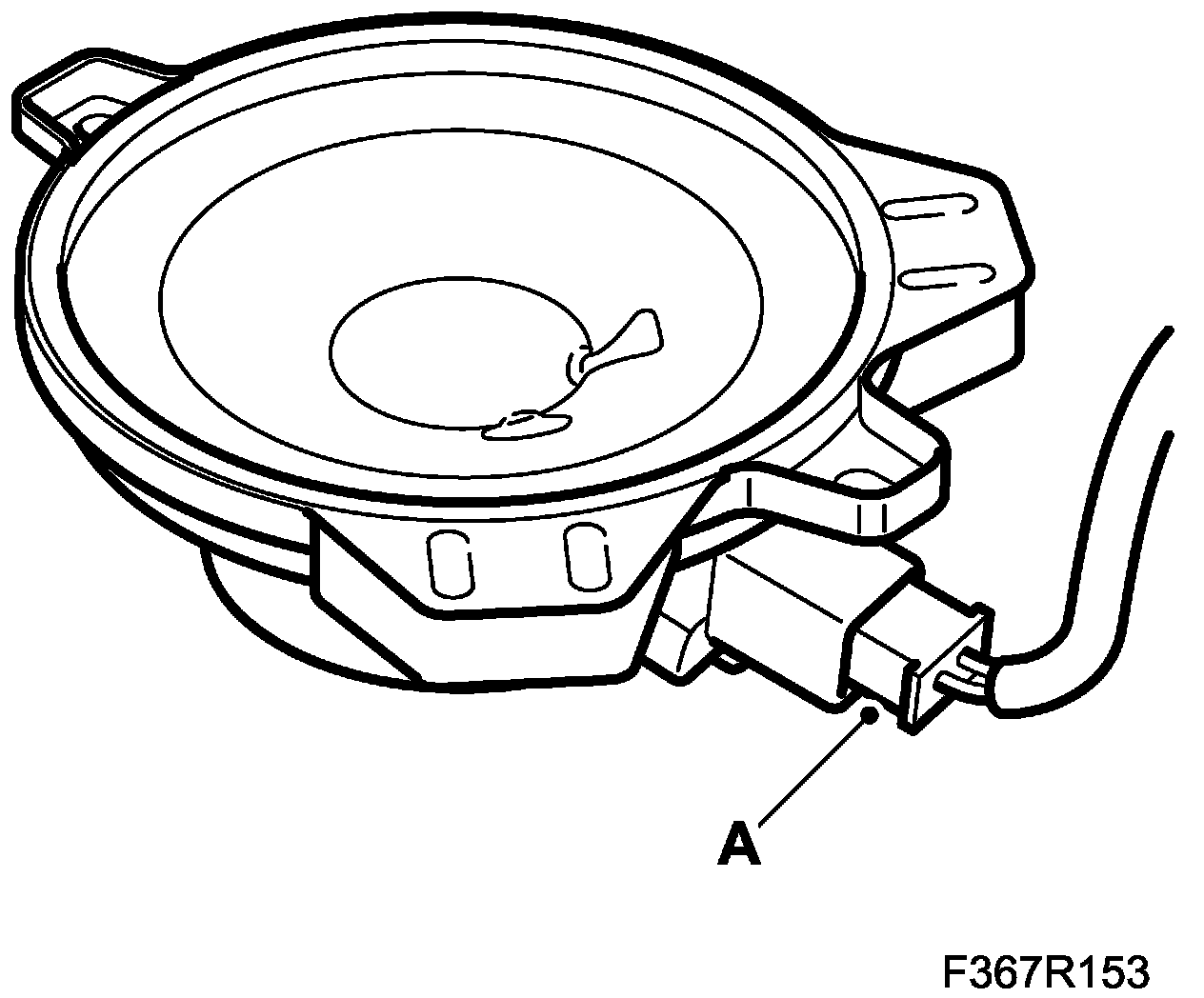

1. Plug in the speaker's connector (A).





2. Position the speaker. Fit the speaker's bolts (A).

IMPORTANT: Make sure no cables or connectors are pinched.





3. Fit the Parcel shelf trim.
