Center Dashboard Speaker (266)

Center Dashboard Speaker (266)

To remove

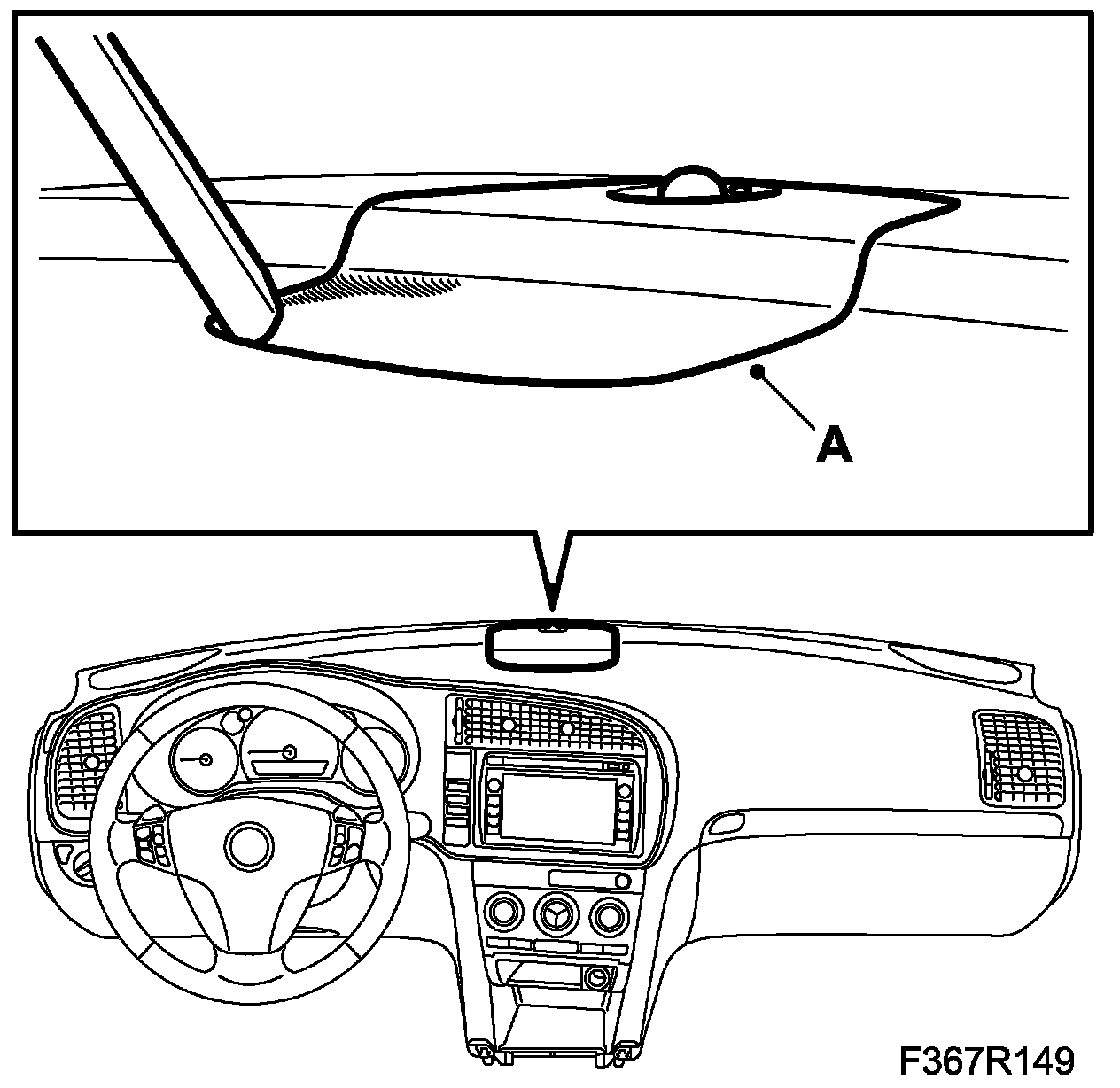

1. Remove the speaker grille (A) using 82 93 474 Removal tool.

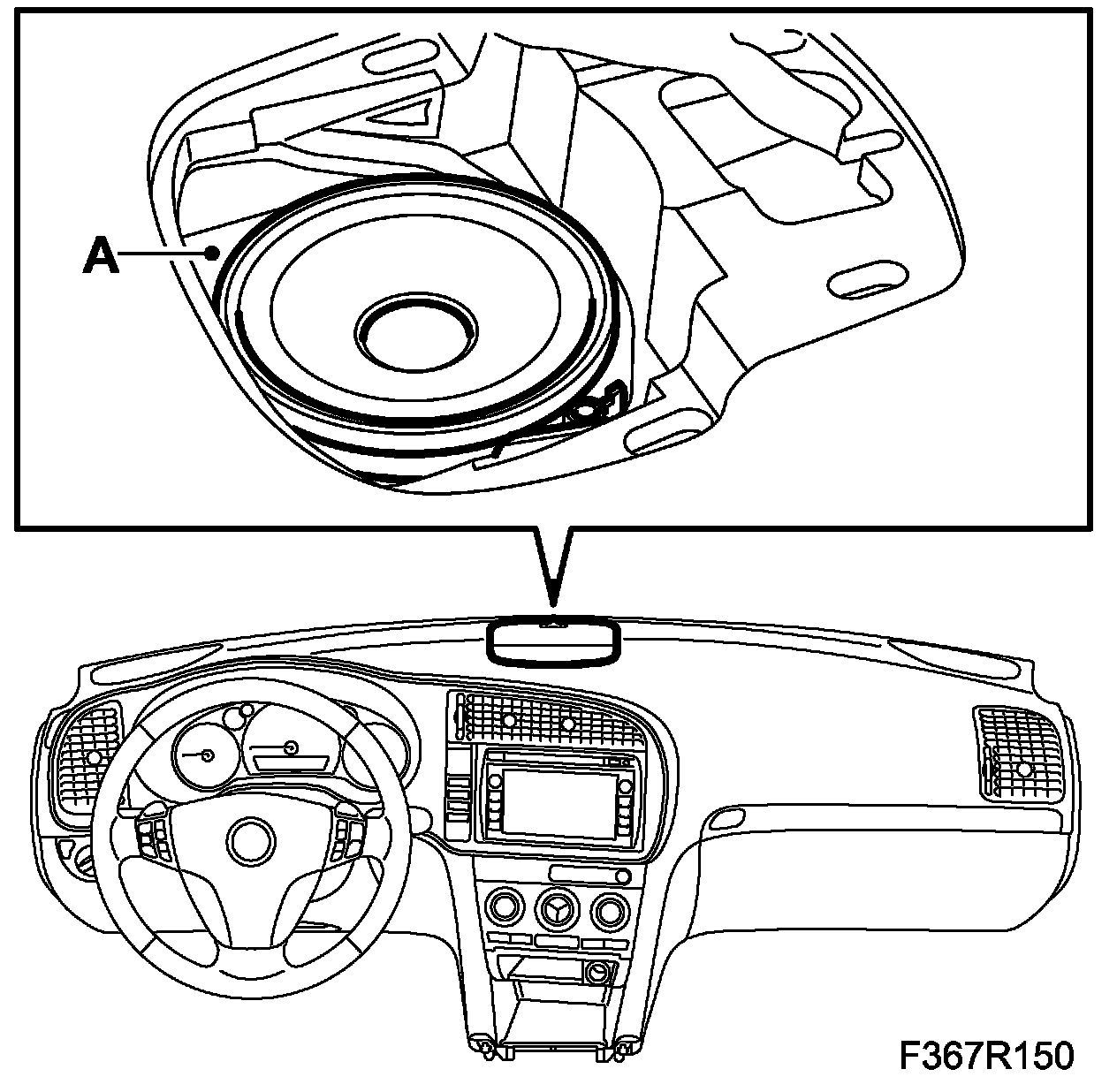

2. Use a screwdriver to carefully press in the 3 clips of the speaker. Remove the speaker (A).

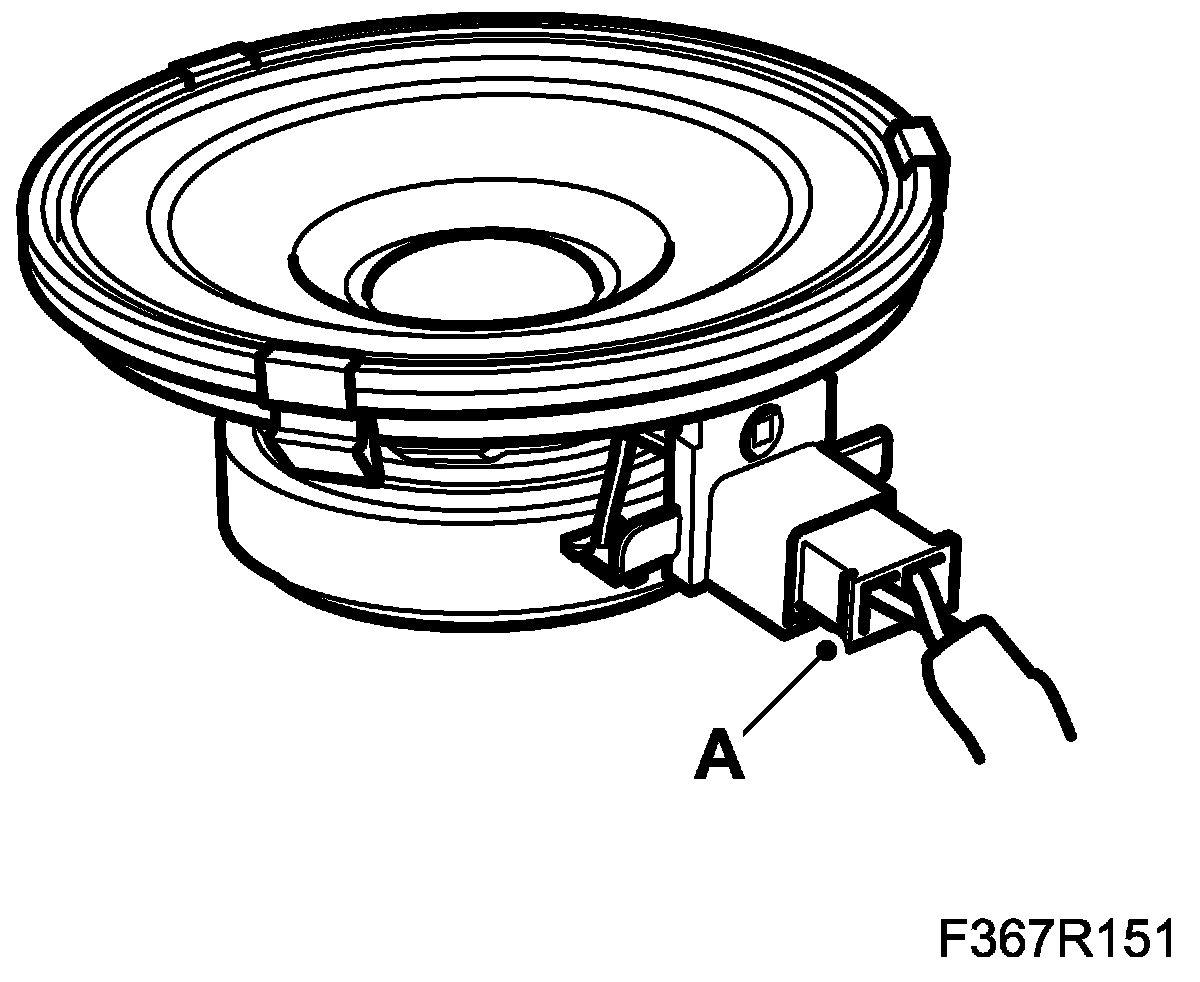

3. Unplug the speaker's connector (A).





To fit

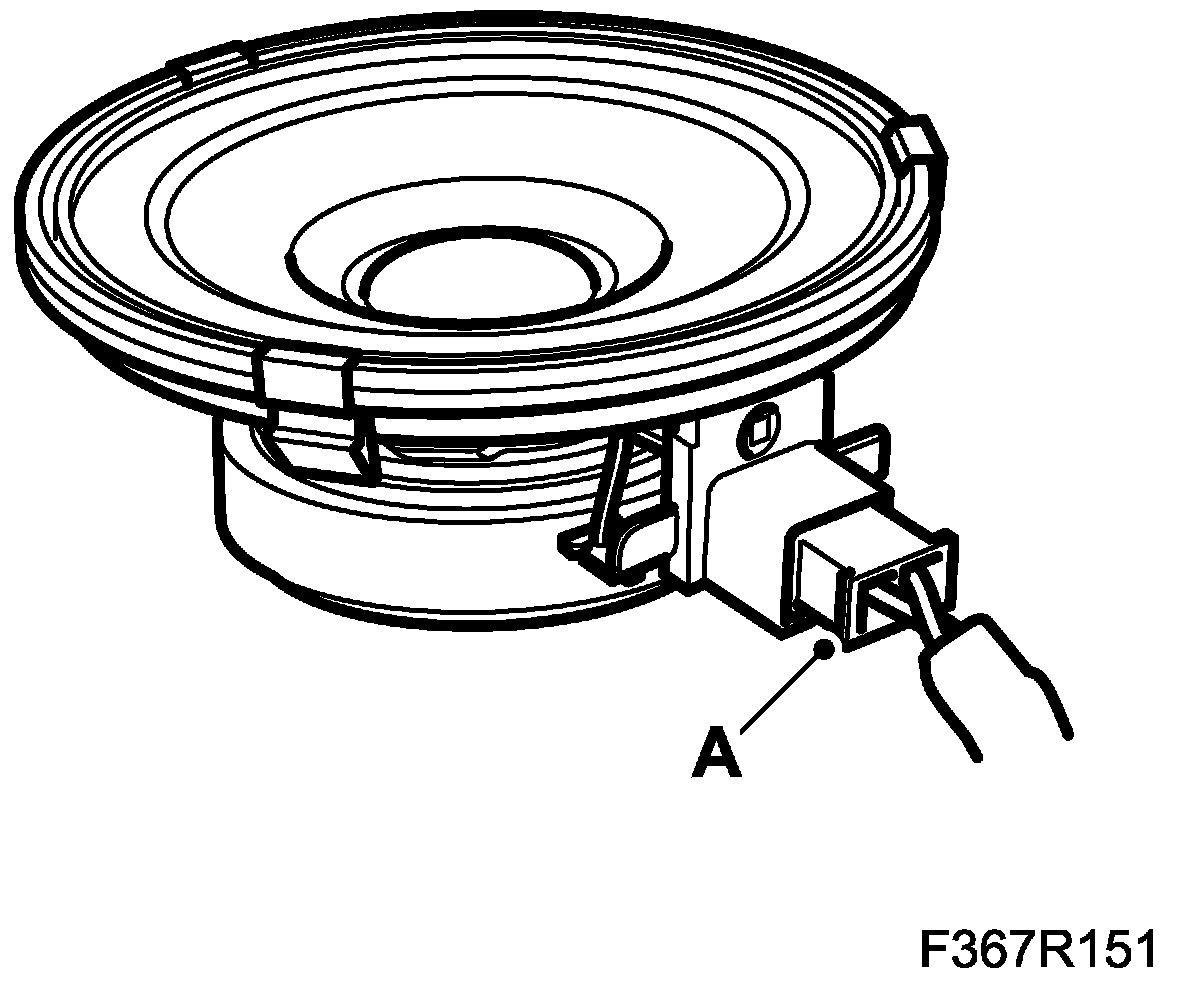

1. Plug in the speaker's connector (A).

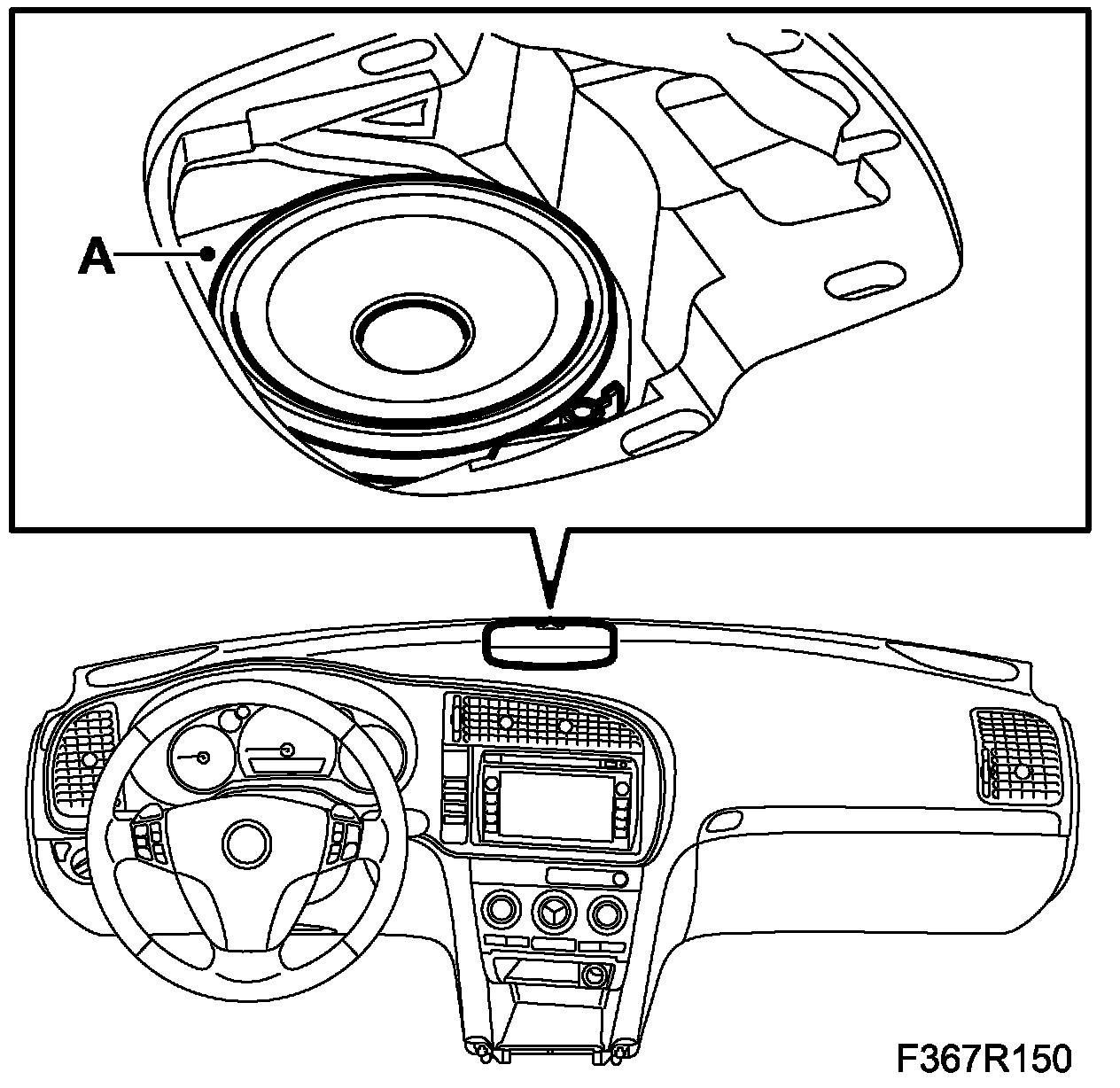

2. Fit the speaker (A).





3. Fit the speaker grille (A).
