Speaker: Description and Operation

Speaker (266)

Location
Centre dashboard speaker (266FC)
Left dashboard speaker (266FL)
Right dashboard speaker (266FR)
Front left door speaker (266LH)
Front right door speaker (266RH)
Speaker, rear door, left (266RPL)
Speaker, rear door, right (266RPR)
Subwoofer (266RCW)
Speaker, rear, left (266RL)
Speaker, woofer, rear, left (266RLW)
Speaker, rear, right (266RR)
Speaker, woofer, rear, right (266RRW)

Main task
To convert electric impulses to sound from the audio system in the car.

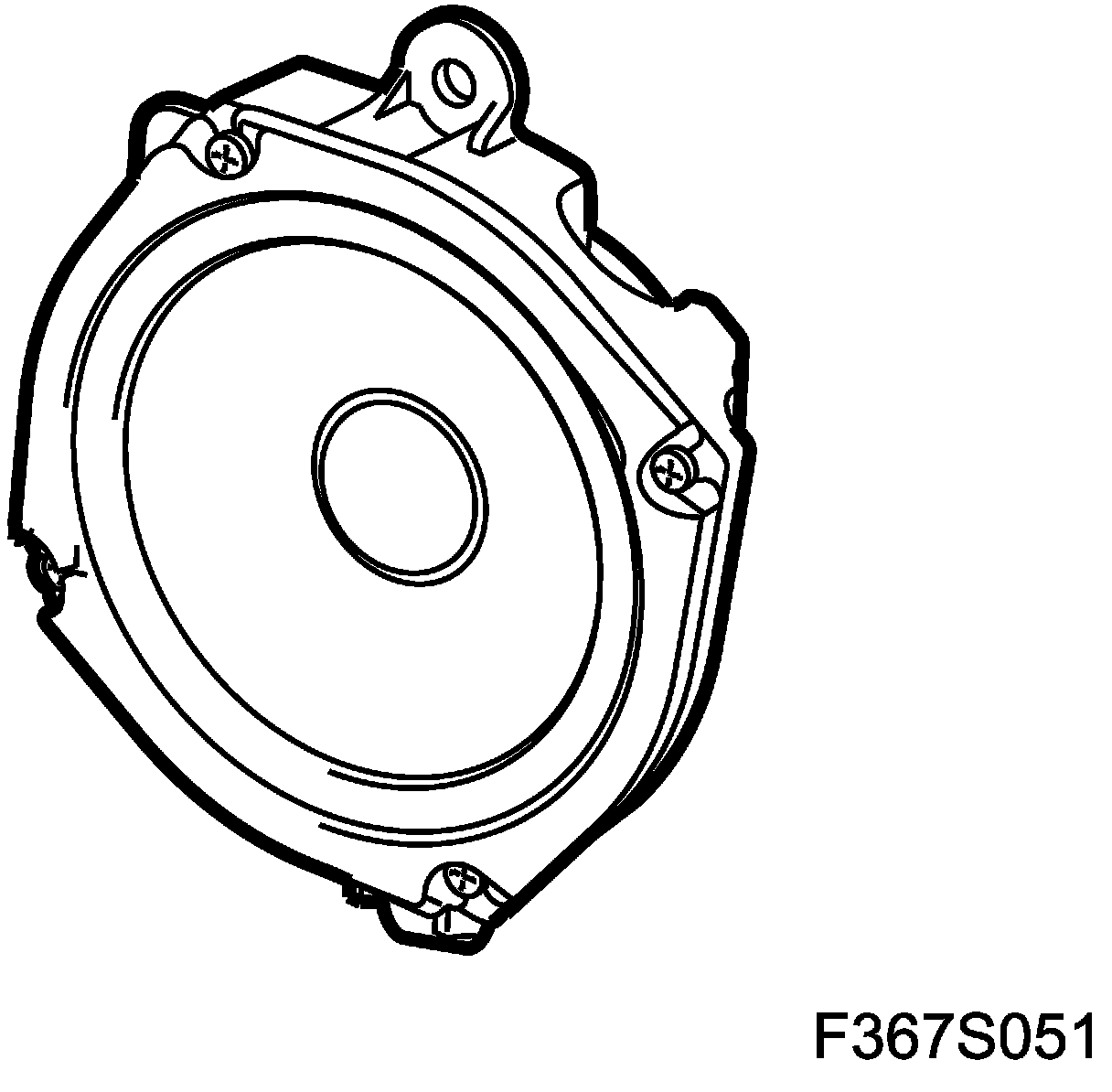

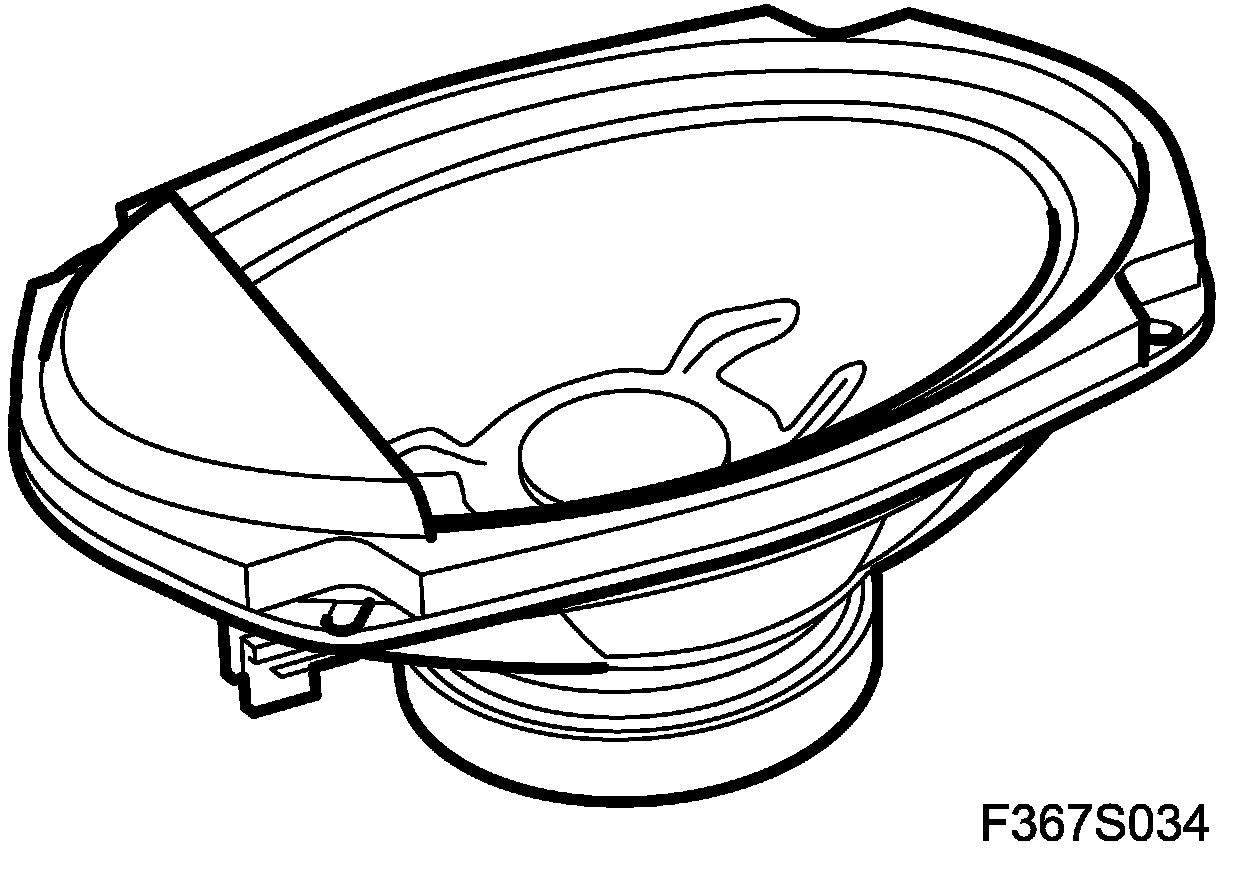

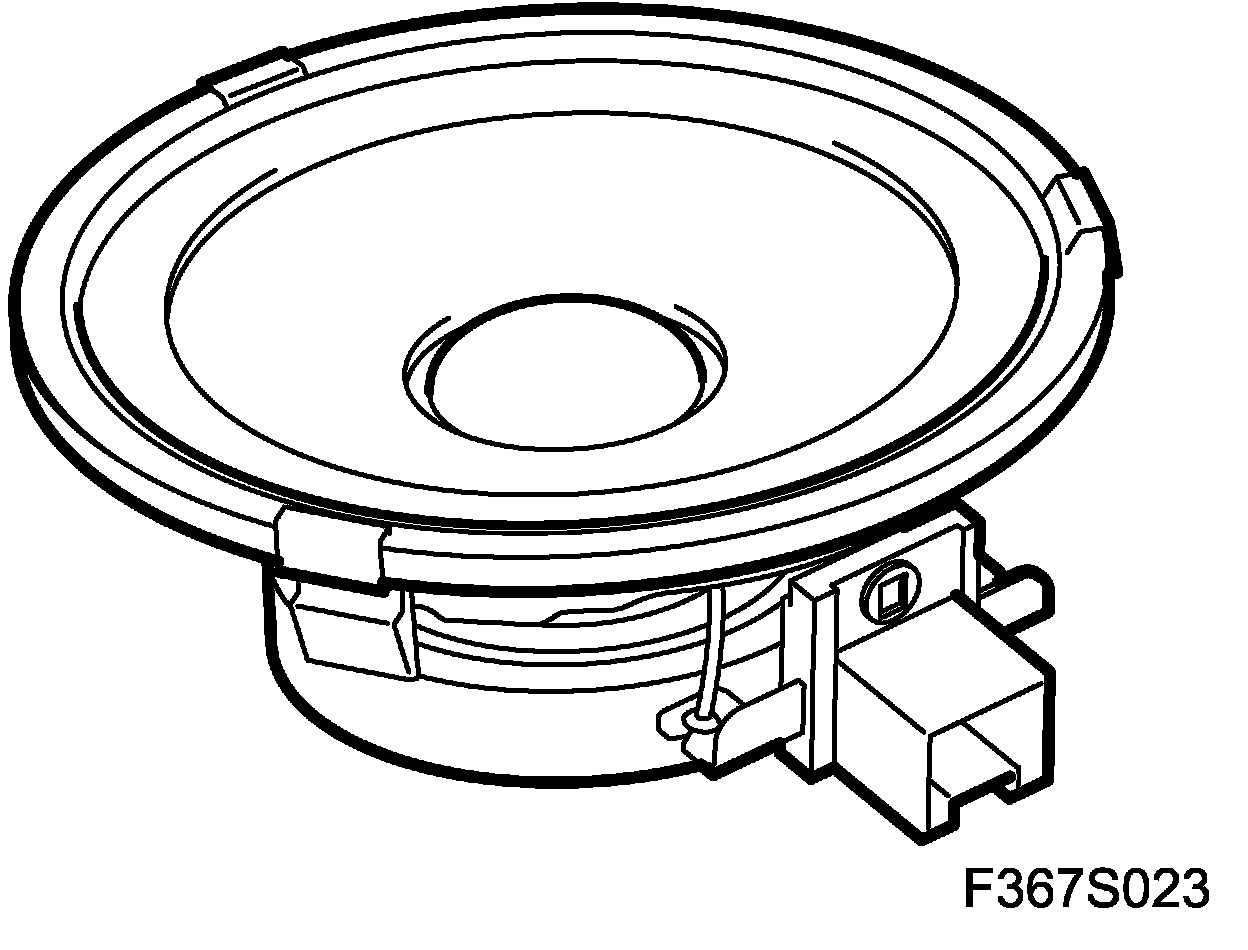

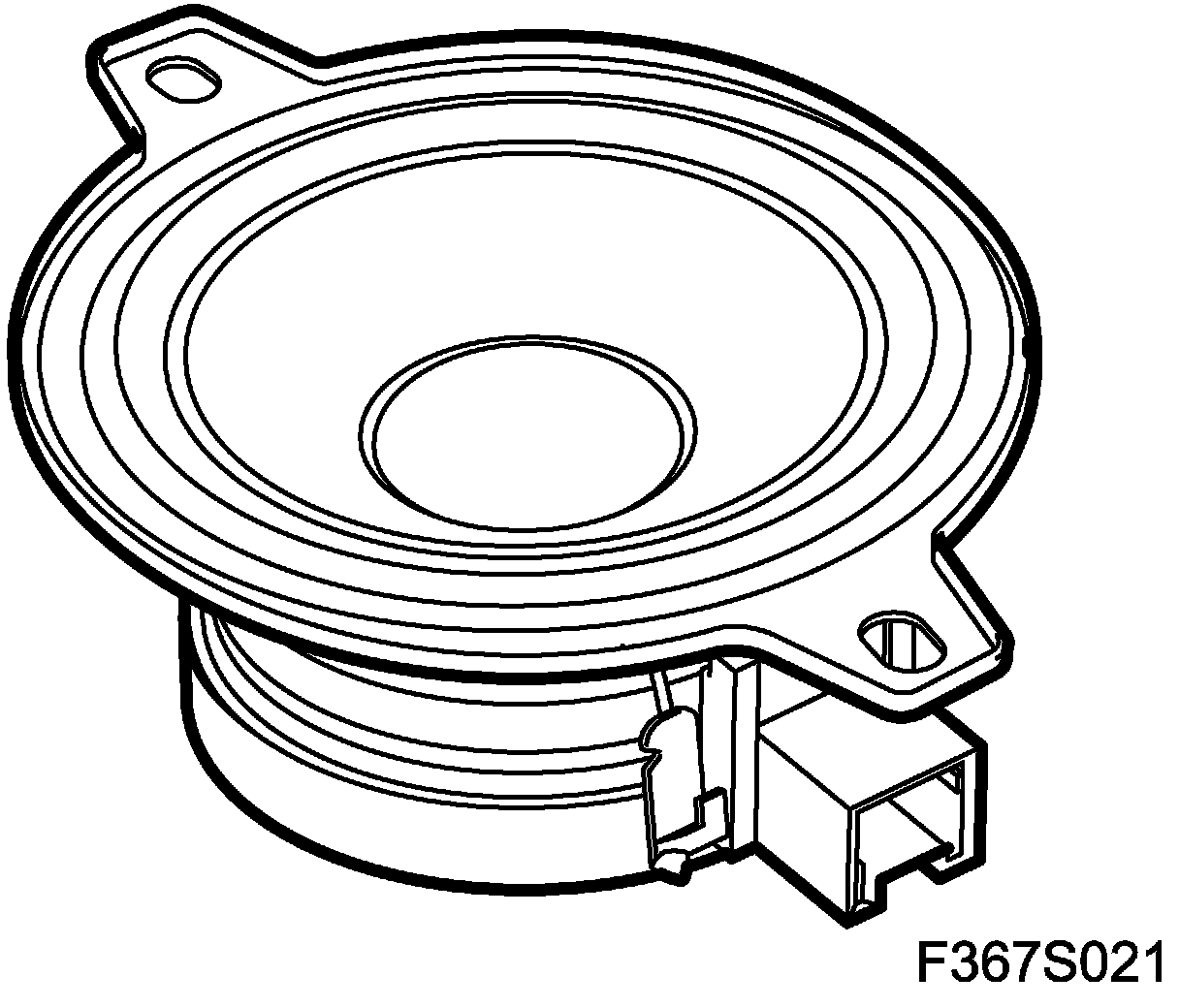

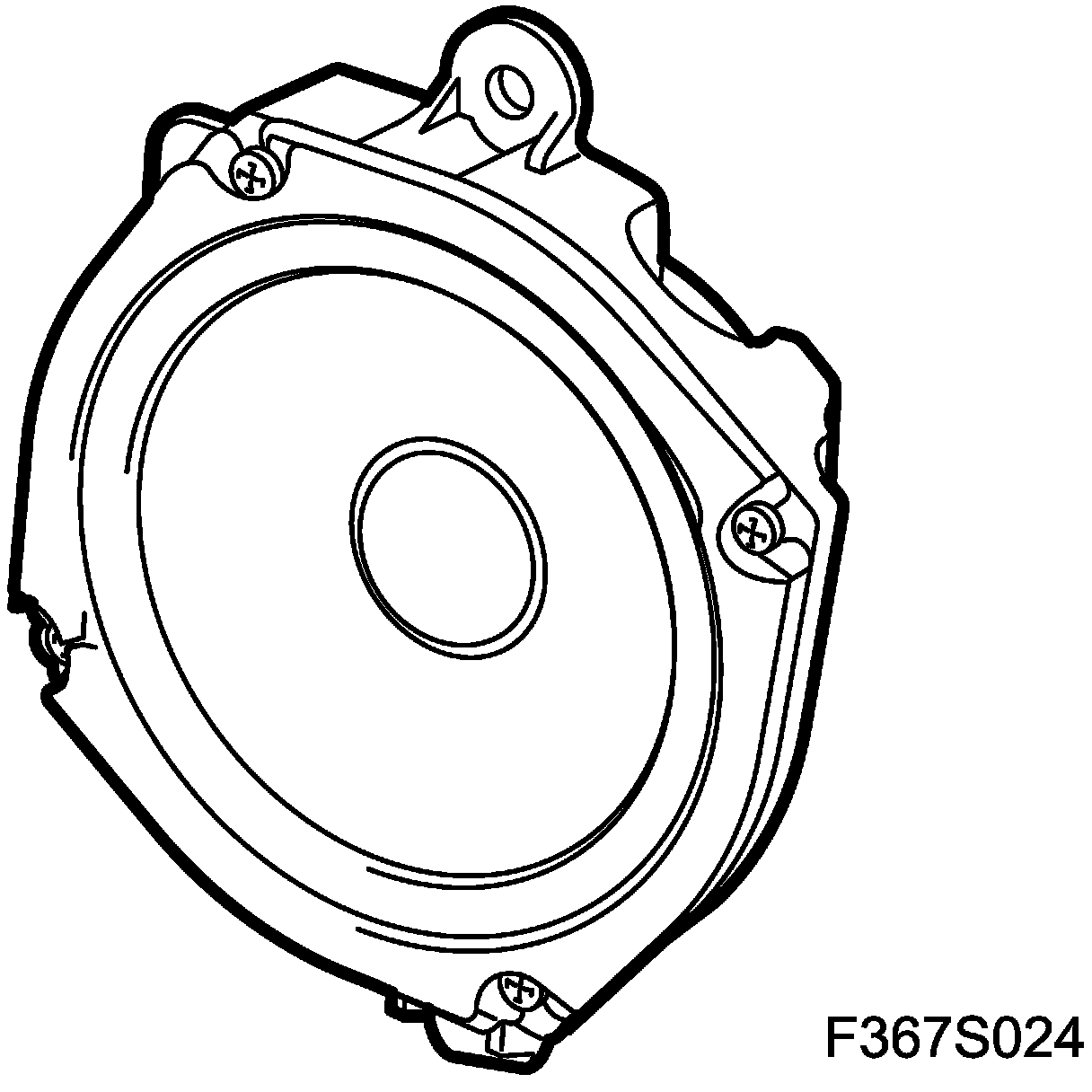

Type

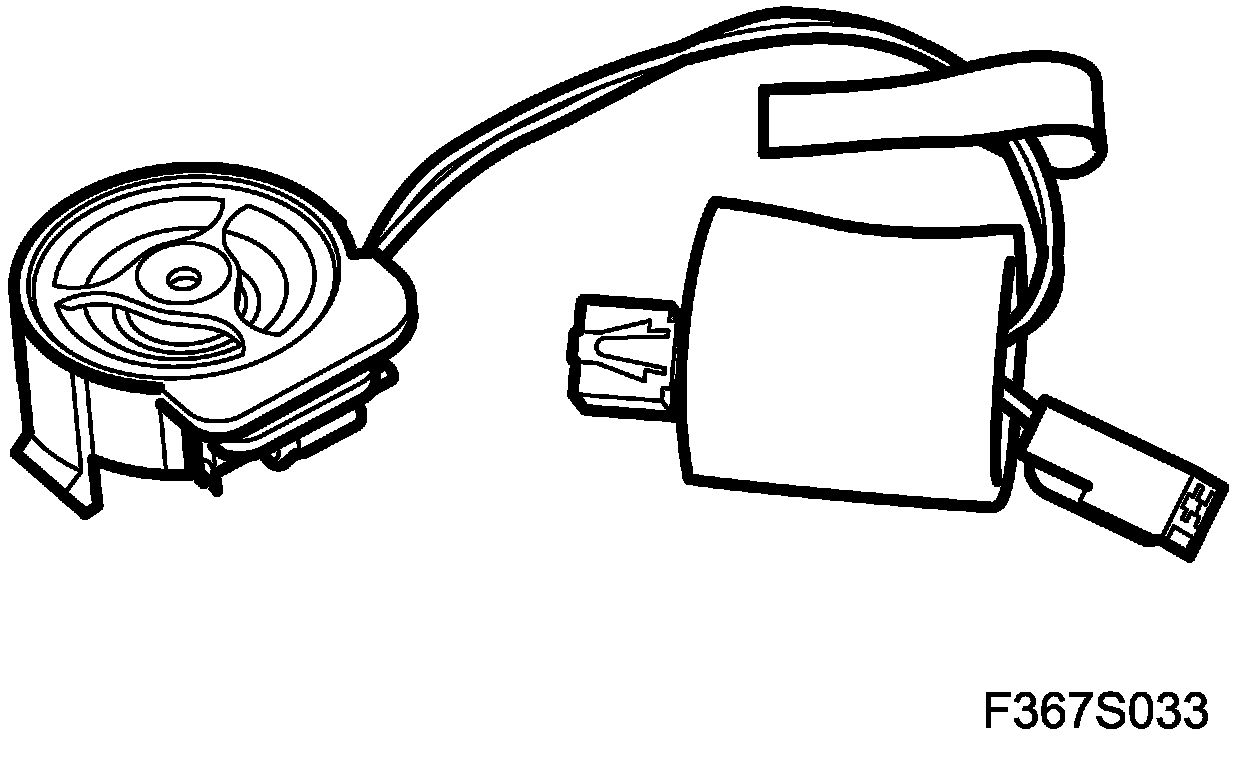

Tweeter







Mid-range speaker











Bass speaker







Speaker, bass/mid-range







Bass speaker/woofer







The car has four different equipment levels:
Speakers, Premium 70
Speakers, Premium 150
Speakers, Prestige 300
Speakers, Bose(R) Centerpoint(R) Surround System

Connection
Speaker connection:
+ to pin 2
- to pin 1

Subwoofer connection
right channel: - to pin 1, + to pin 2
left channel: - to pin 3, + to pin 4

Wiring diagram, connection:
Audio amplifier (354)
Audio amplifier, bass speaker (354S)
Audio, Bose(R) Centerpoint(R) Surround System (part 1/2)
Audio, Bose(R), Centerpoint(R) Surround System (part 2/2)
