Amplifier (354SM), Bose(R) Centerpoint(R) Surround System



Amplifier (354SM), Bose(R) Centerpoint(R) Surround System

Location

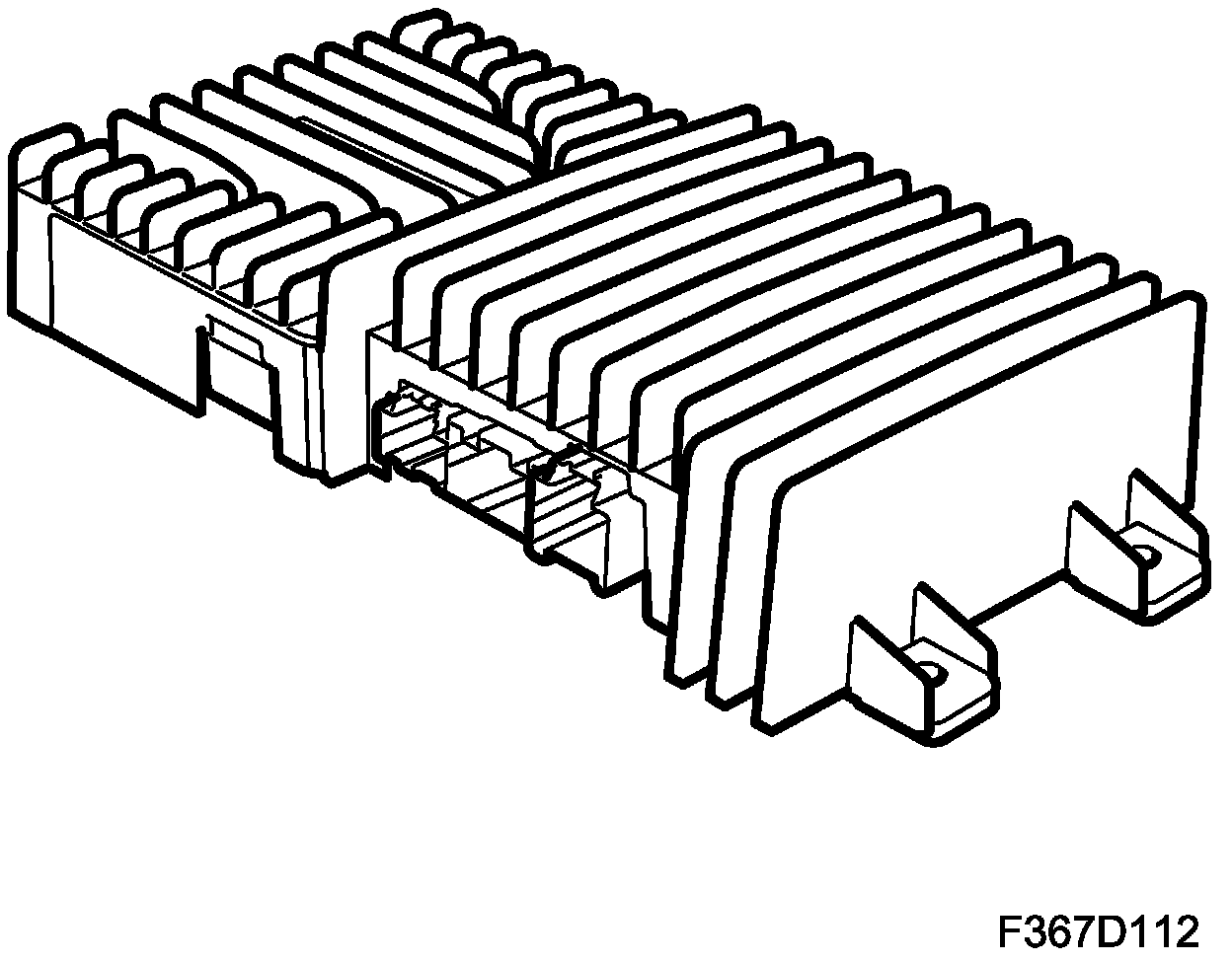

Amplifier (354SM)

Main purpose
Amplify and distribute sound to the all speakers.

Type
10 channel amplifier.

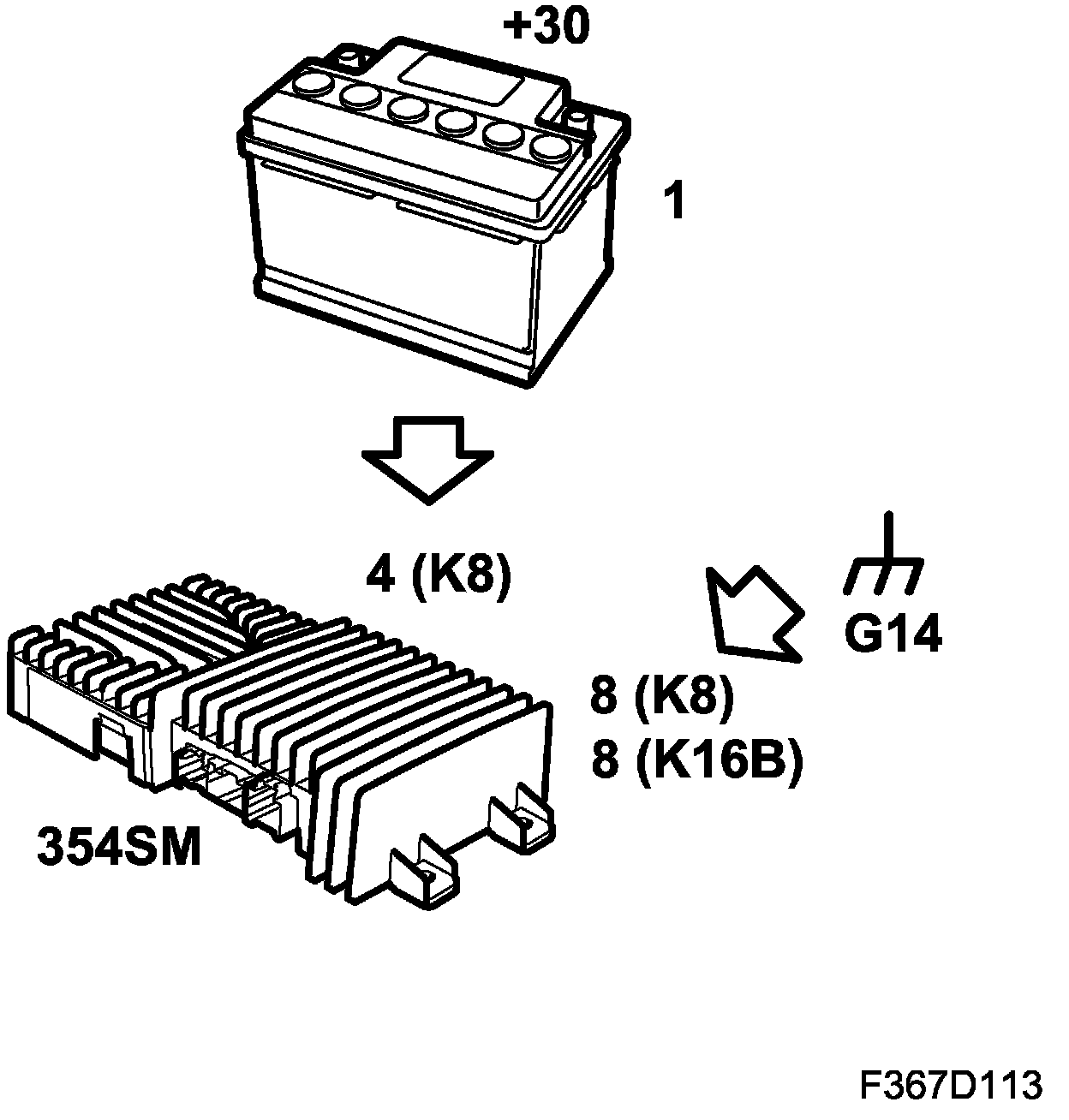

Connection

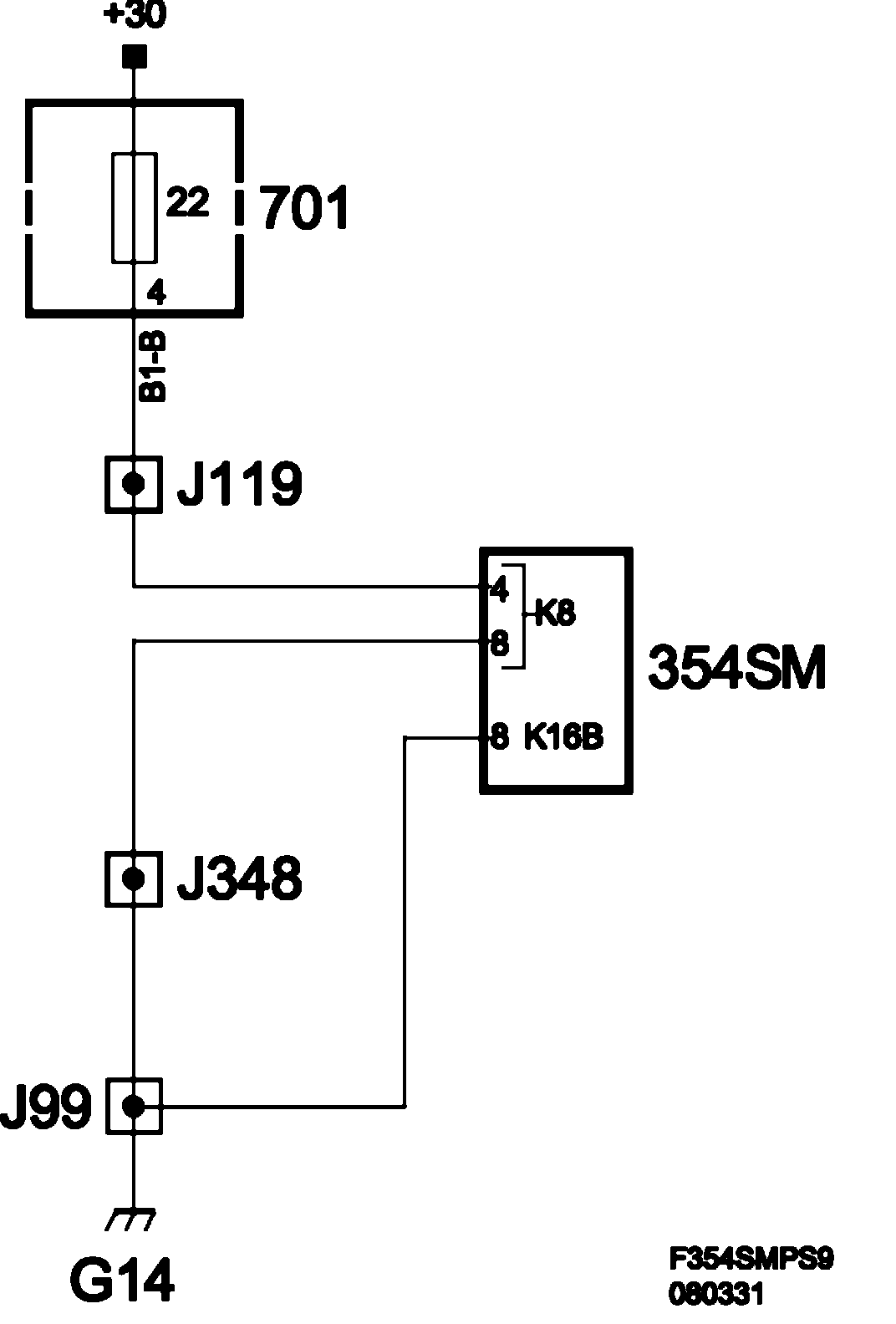

Wiring diagram, power supply
