Amplifier (354SM), Bose (R) Centerpoint (R) Surround System, 5D

To remove
1. Open the tailgate.
2. Remove the luggage compartment floor.
3. Remove the amplifier:

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.

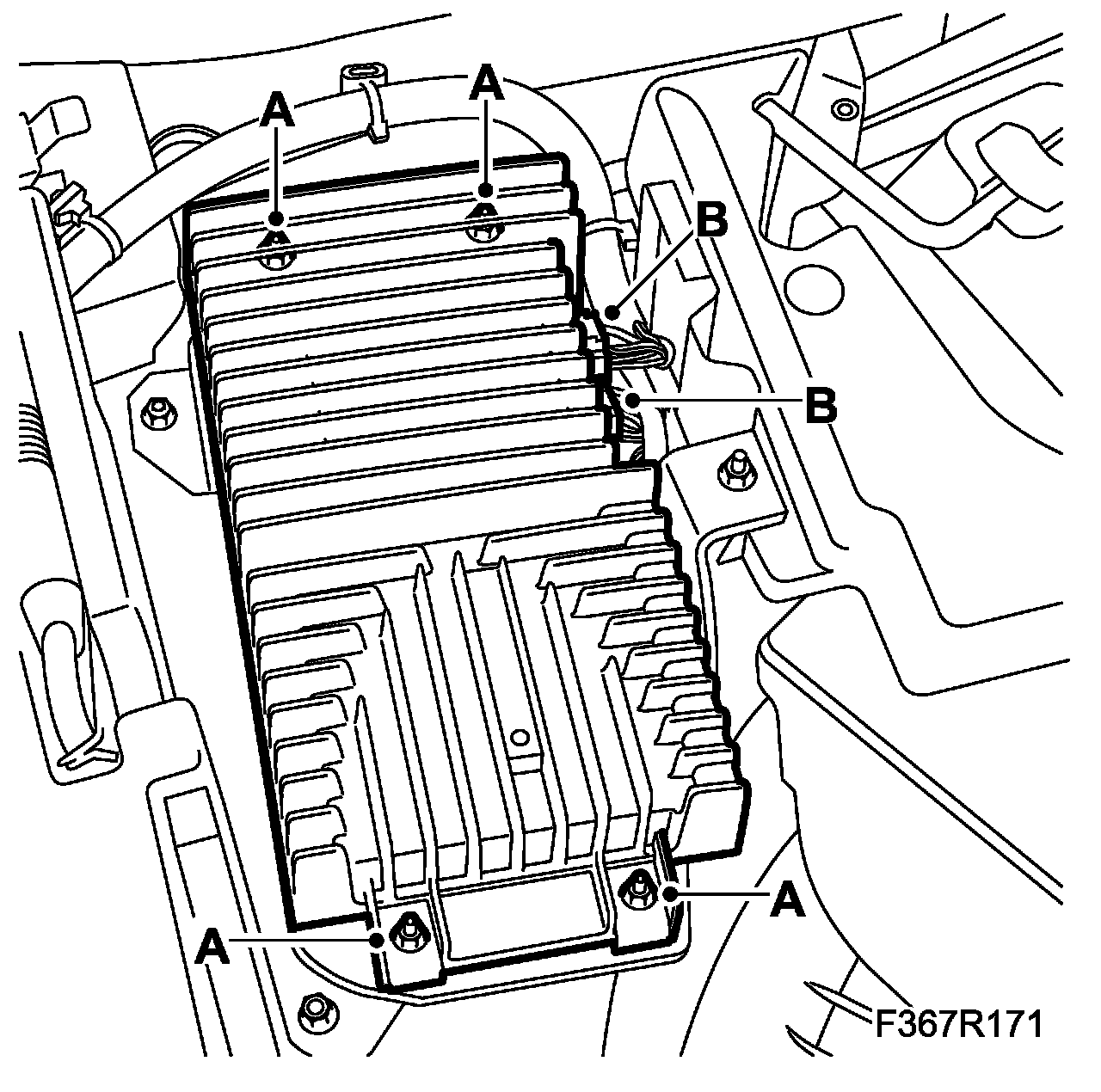

^ Remove the nuts (A) that secure the amplifier to the console.





^ Lift up the amplifier and unplug the connectors (B).

To fit
1. Fit the amplifier:

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.

^ Position the amplifier and fit the nuts (A).





^ Plug in the connectors (B).

2. Fit the luggage compartment floor.
3. Close the tailgate.
4. Check the function.
