Antenna, Boot Lid, CV

Antenna, Boot Lid, CV

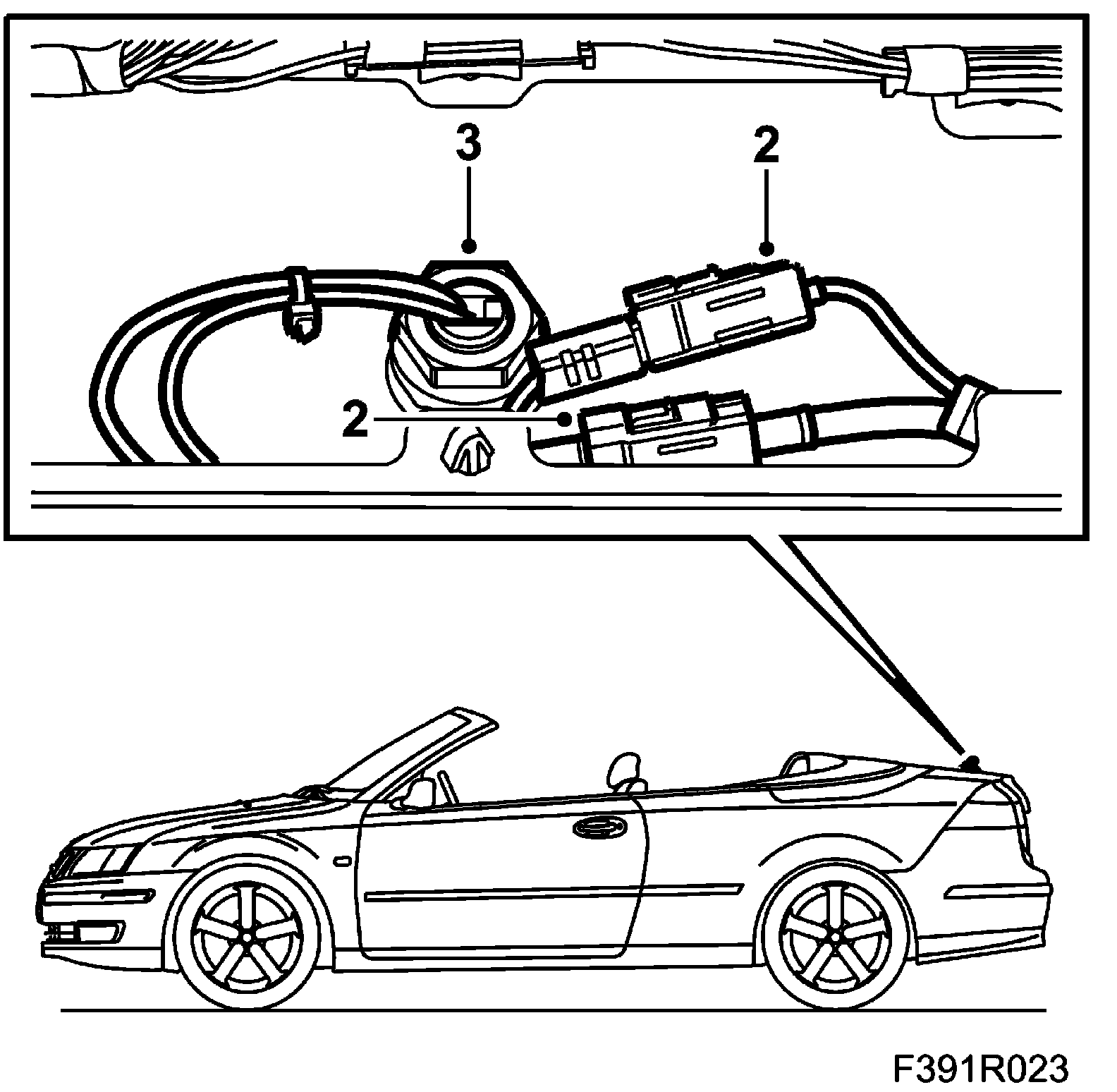

To remove
1. Remove the boot lid trim.
2. Unplug the connectors.





3. Remove the nut and the antenna.

To fit
1. Place the antenna in fitting position and fit the nut.





2. Plug in the connector.
3. Fit the boot lid trim.
