5D

Roof Antenna, 5D

To remove

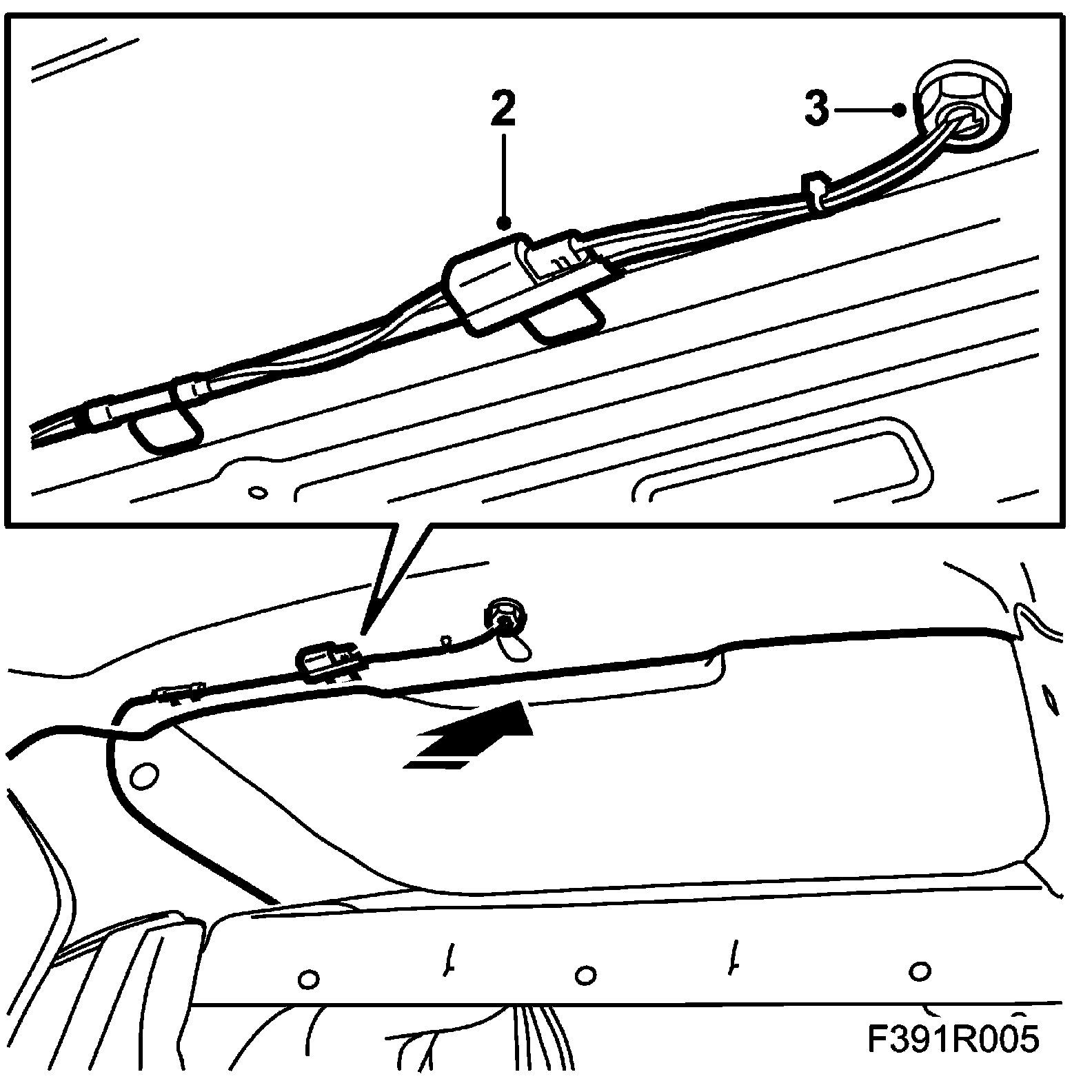

1. Remove the inner roof lining.
2. Remove the antenna:





^ Remove the nut (A) securing the antenna.
^ Unplug the connectors (B) with the help of a small screwdriver.

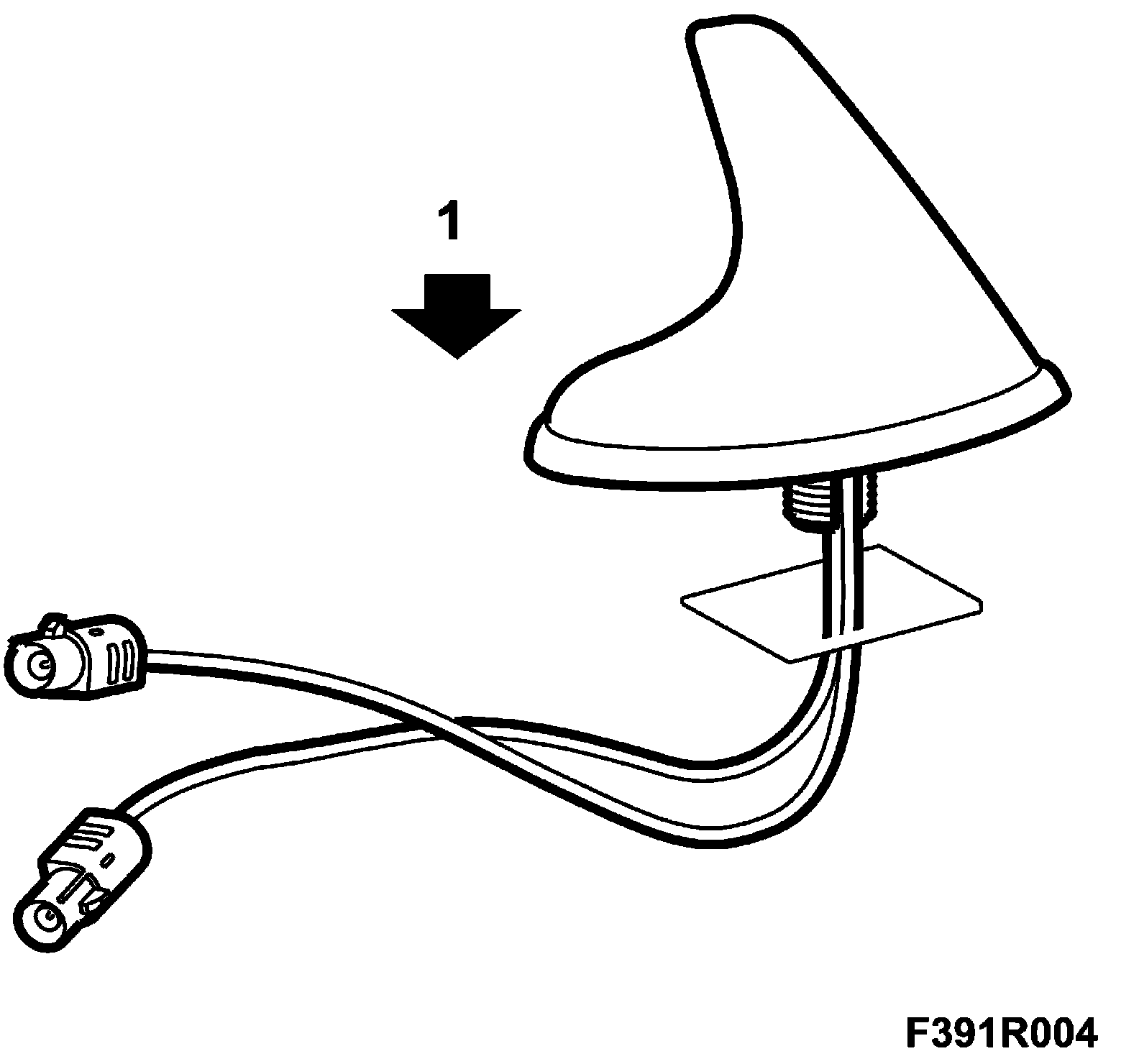

^ Remove the antenna (C) by carefully coaxing it up.





To fit
1. Fit the antenna:

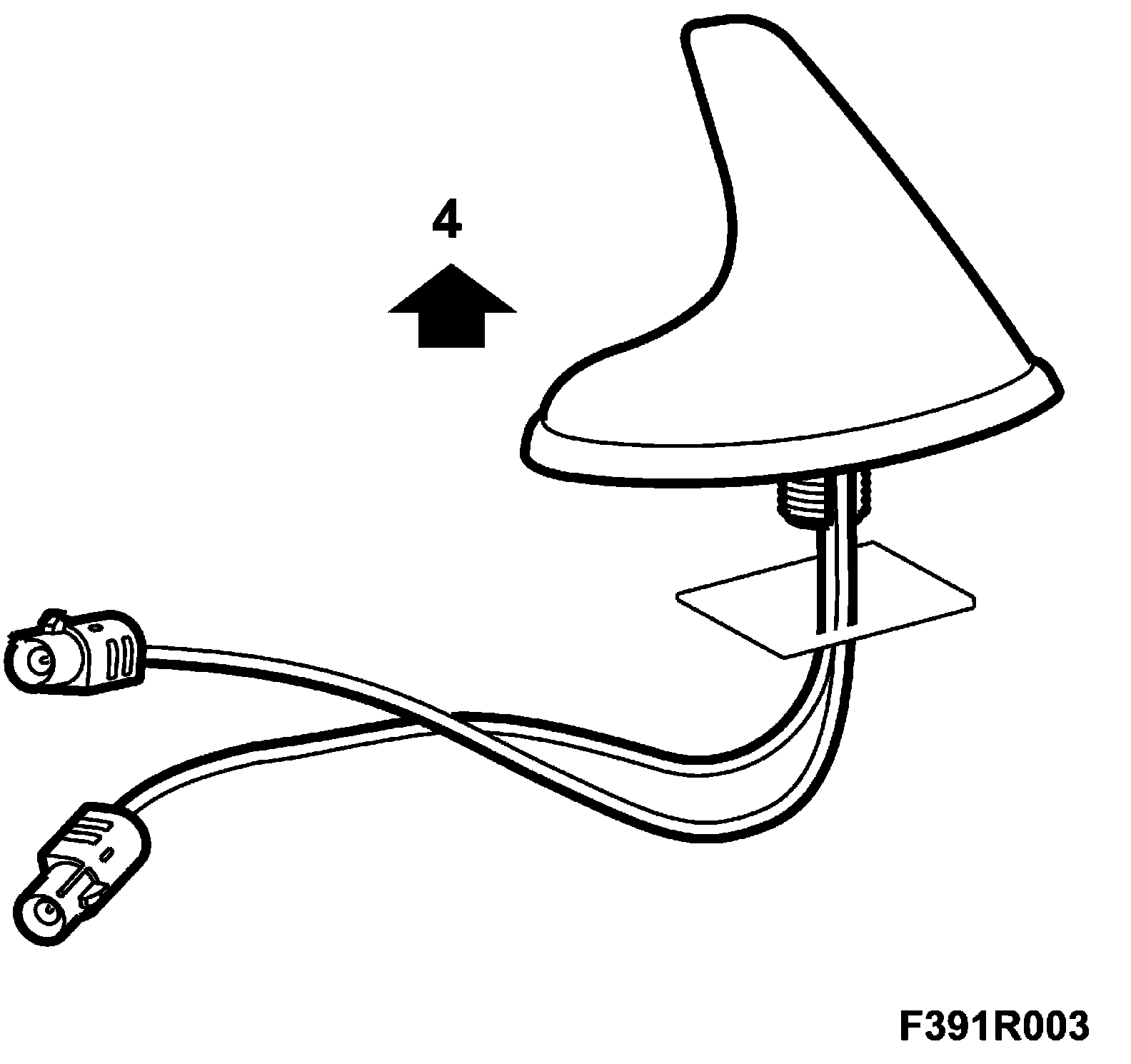

^ Position the antenna (C)





^ Plug in the connectors (B)





^ Fit the nut (A) securing the antenna.

2. Fit the inner roof lining.
