Torque and Power Curves

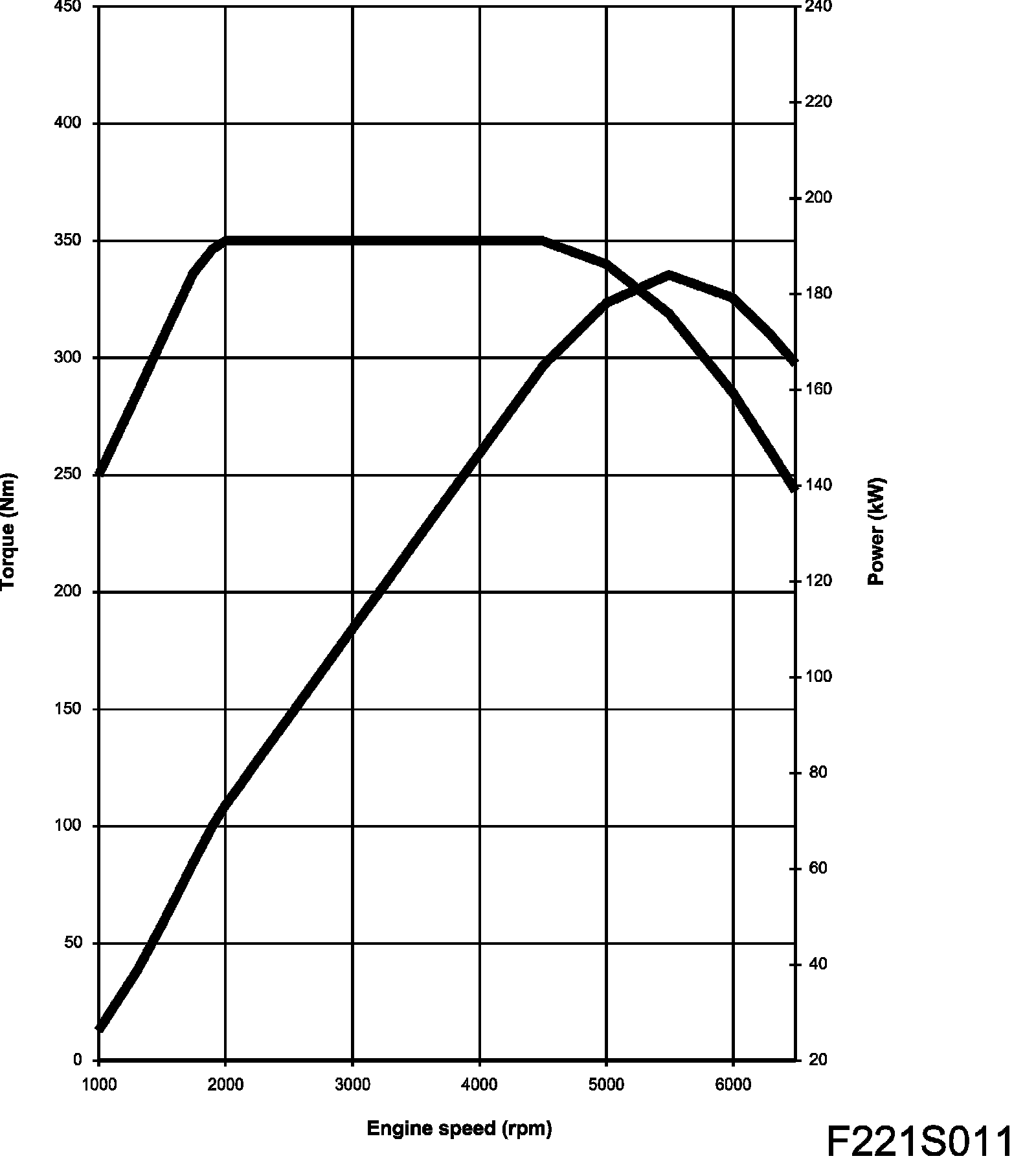

Torque and power curves





B284L
Power, 255 hp (188 kW)

Torque: 350 Nm





B284R
Power: 280 hp (209 kW)

Torque: 400 Nm
