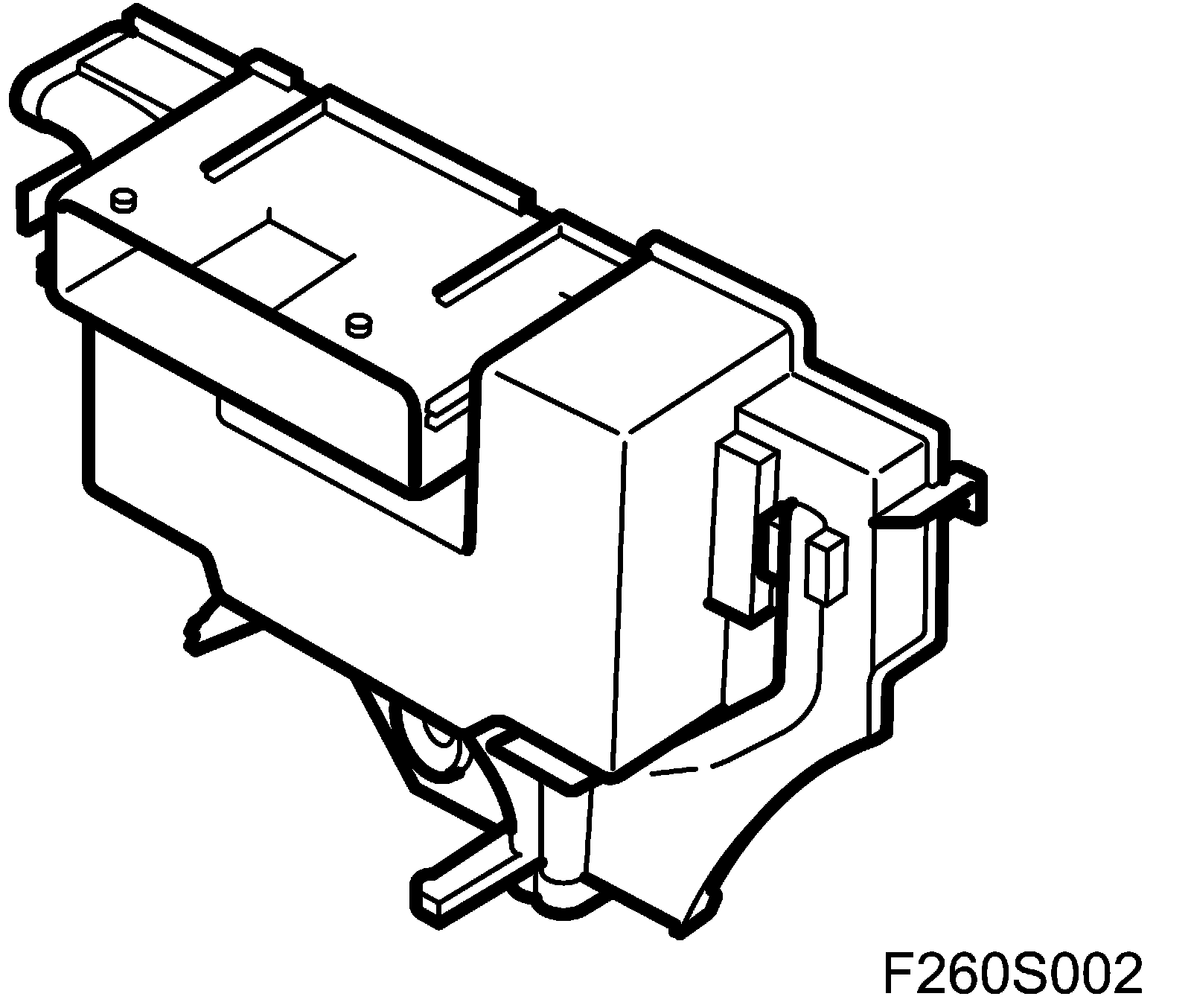

Relay Unit, Radiator Fans (706A)

Relay Unit, Radiator Fans (706a), B284

Location
Relay unit, radiator fans (706)

Main task
To control the radiator fans.

Type







Relay box containing relays and resistors.

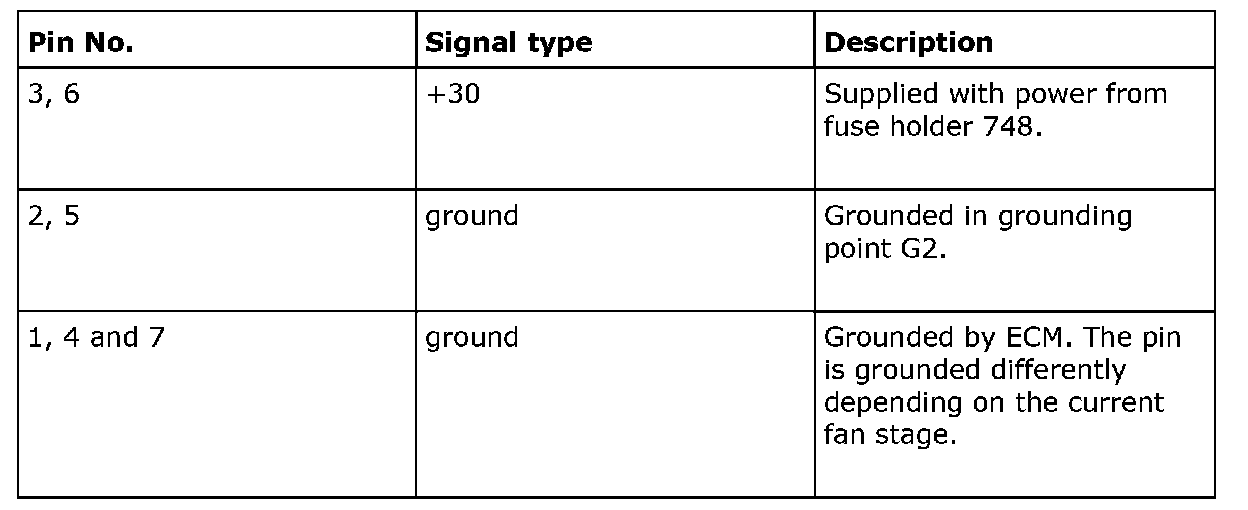

Connection

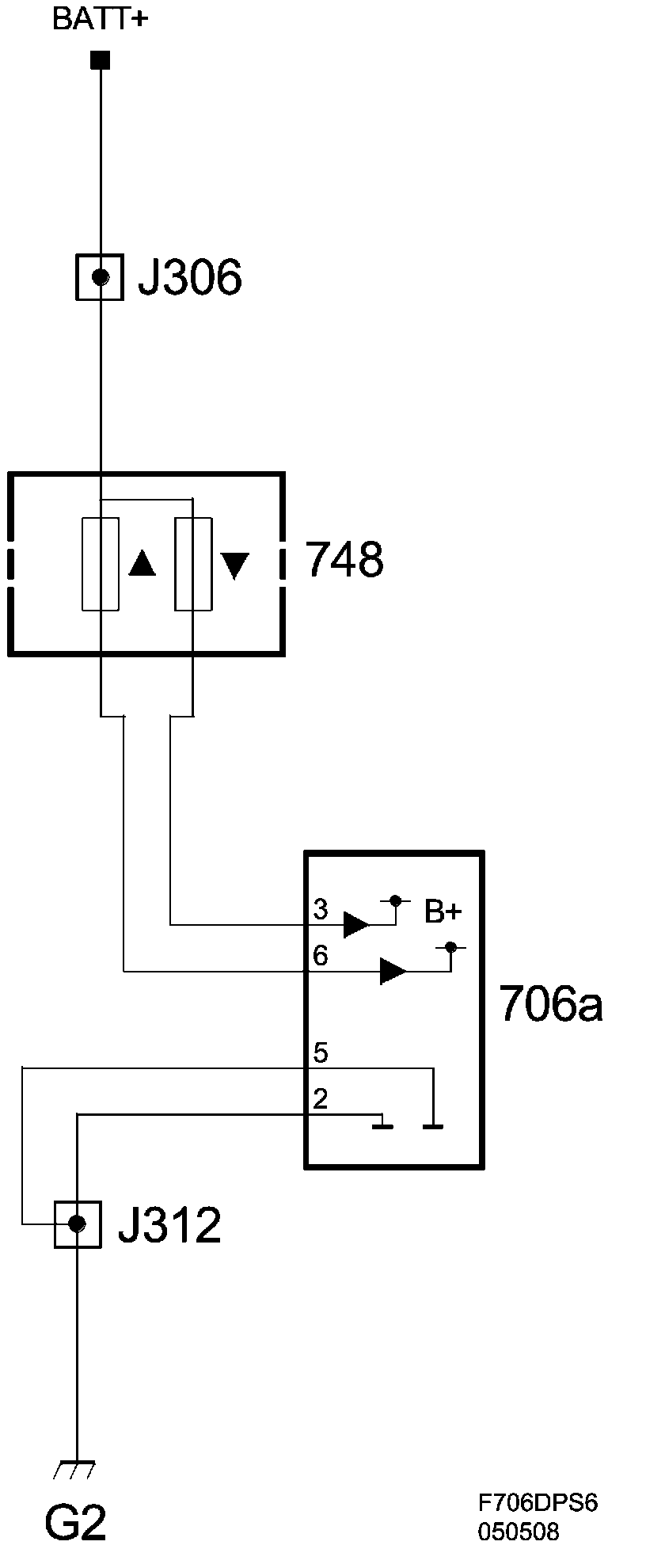

power supply

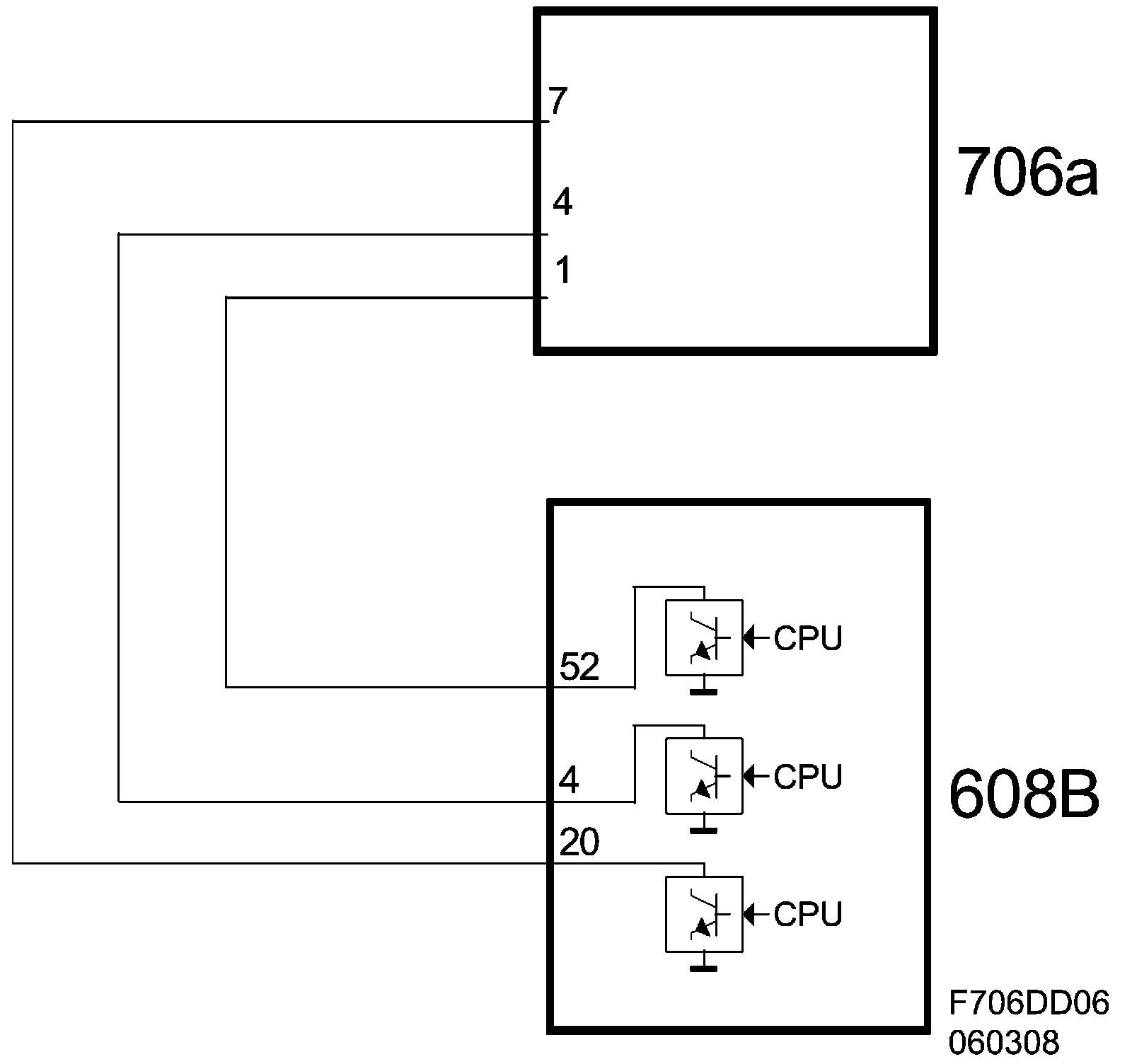

control
