Oil Pan: Service and Repair

Oil sump

To remove
1. Remove the Power train or Power train, to remove, 4WD.
2. Remove Camshaft covers, removed engine
3. Remove Timing cover.

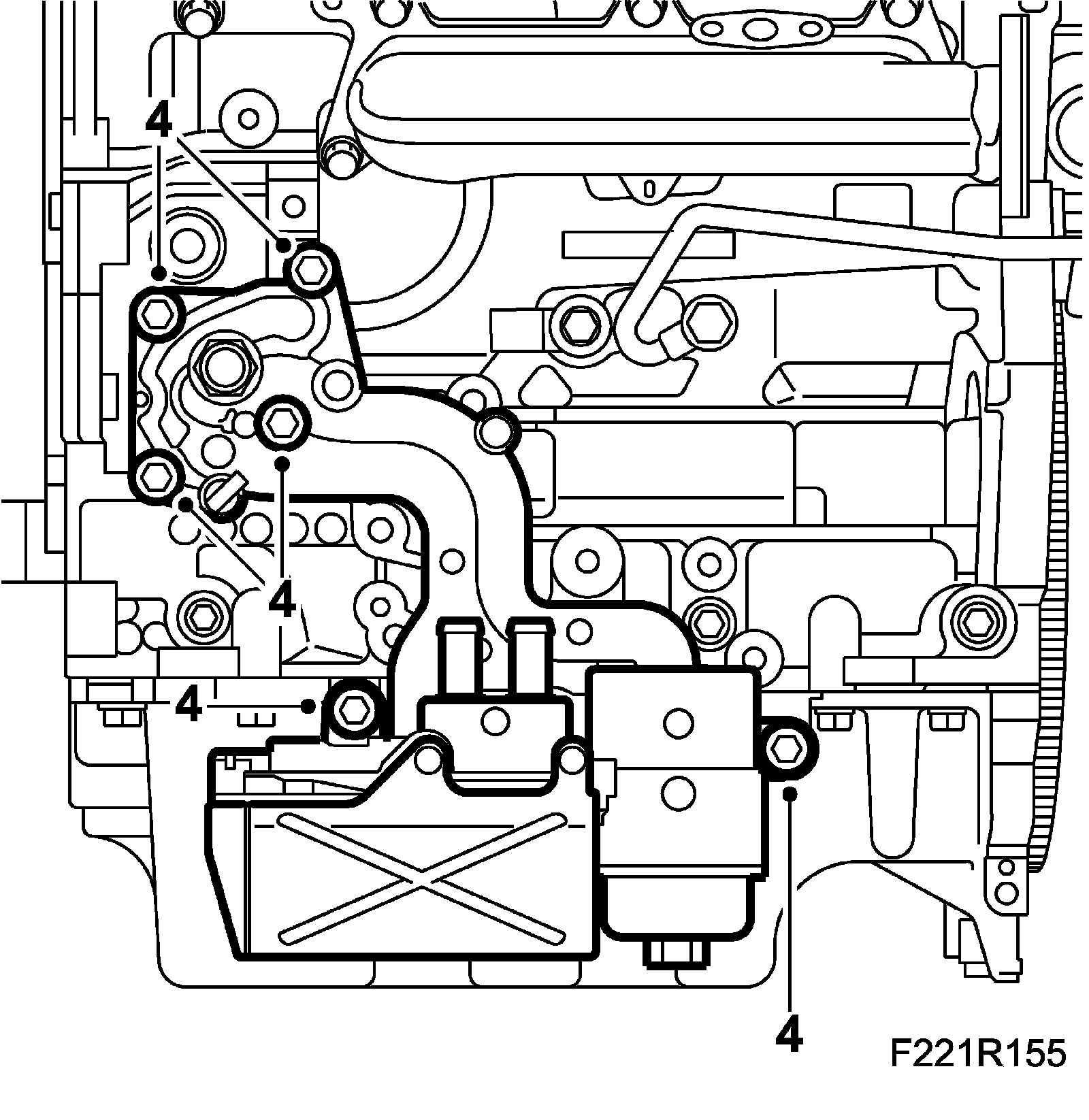

4. Remove the oil cooler assembly from the cylinder block. Remove the gasket.

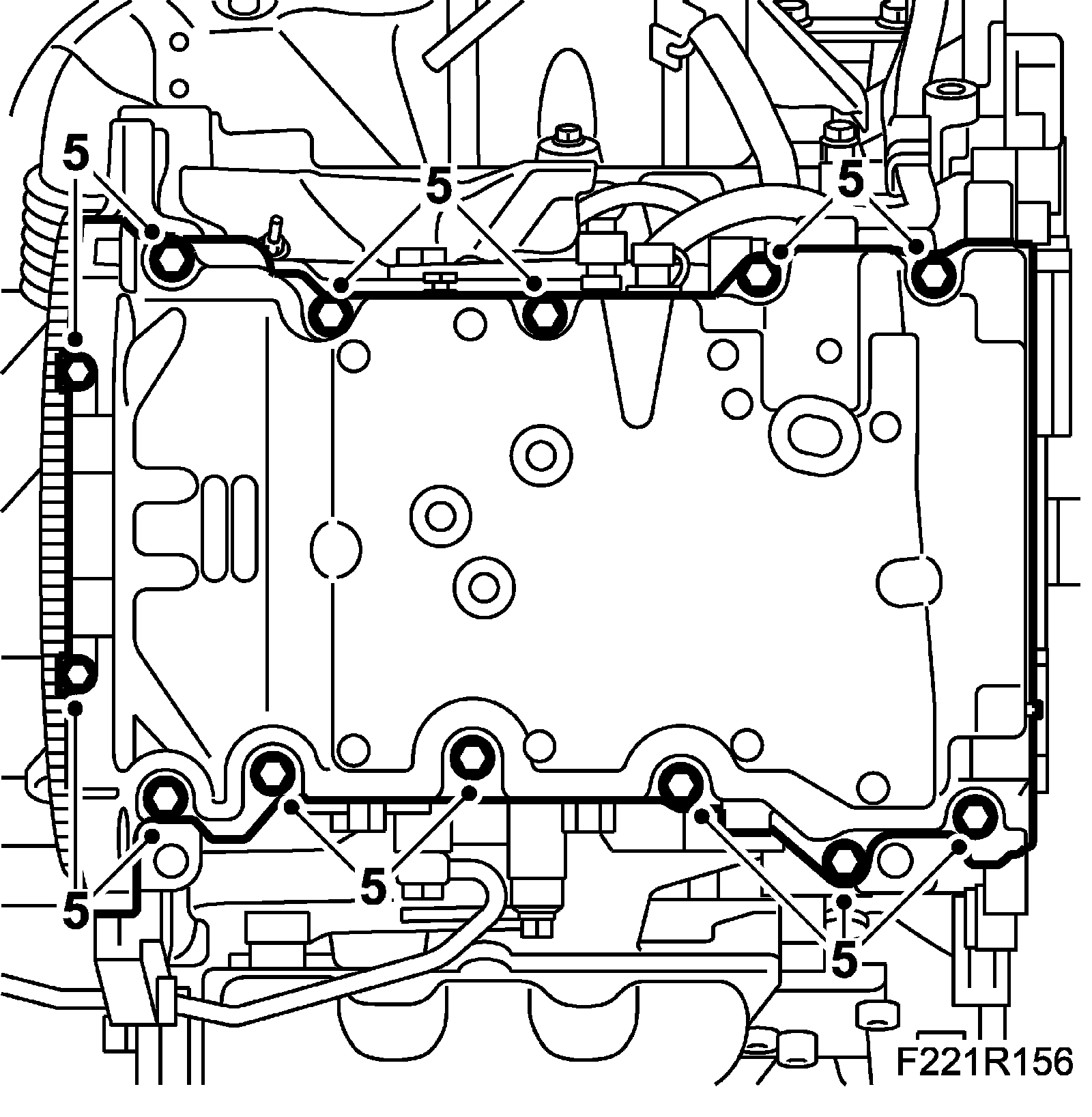

5. Remove the oil sump. pry carefully with a pry bar.





6. Clean the sealing surfaces from gasket residue and the like.

To fit

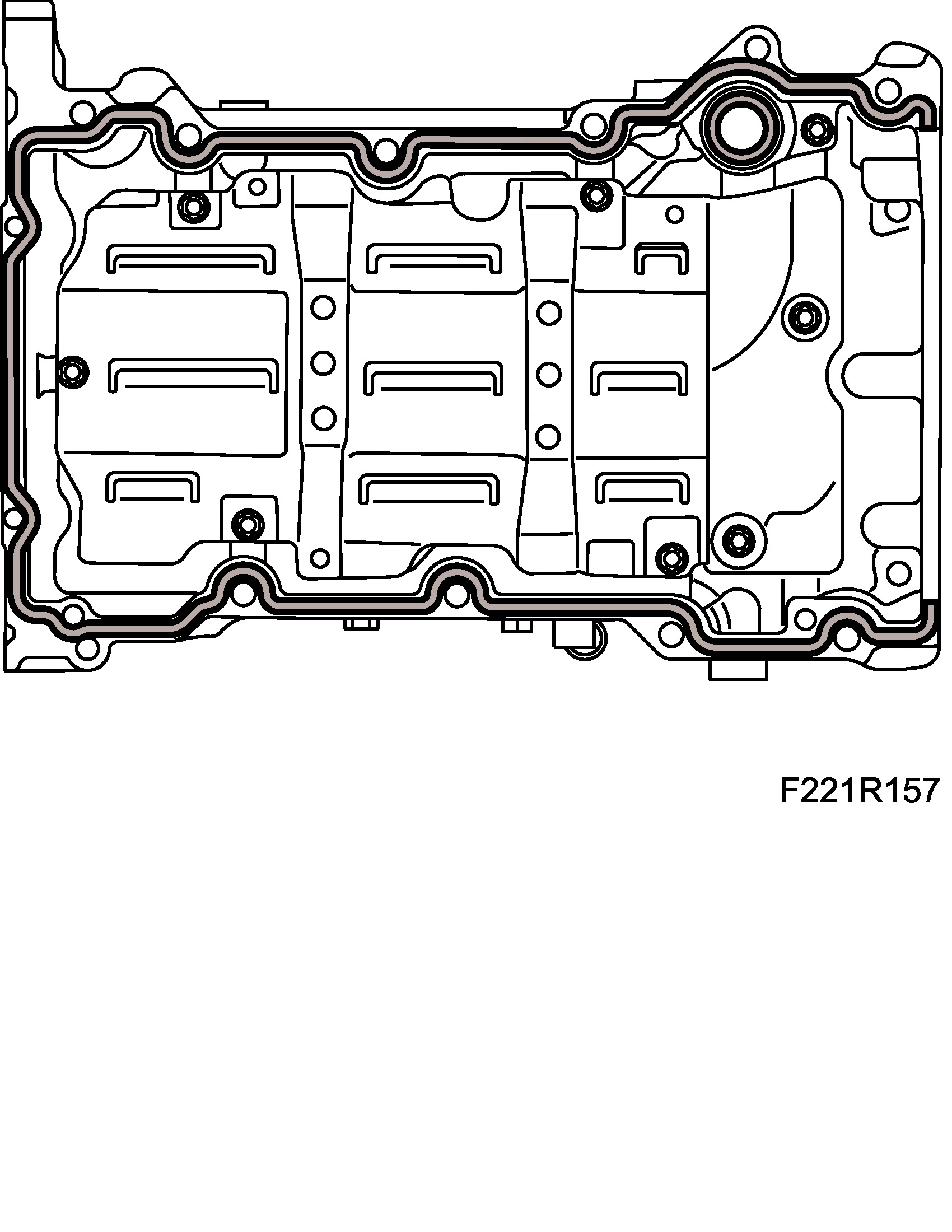

1. Apply a 2 mm thick bead of 93 160 951 Flange sealant on the oil sump sealing surface and fit a new seal on the oil strainer induction pipe.

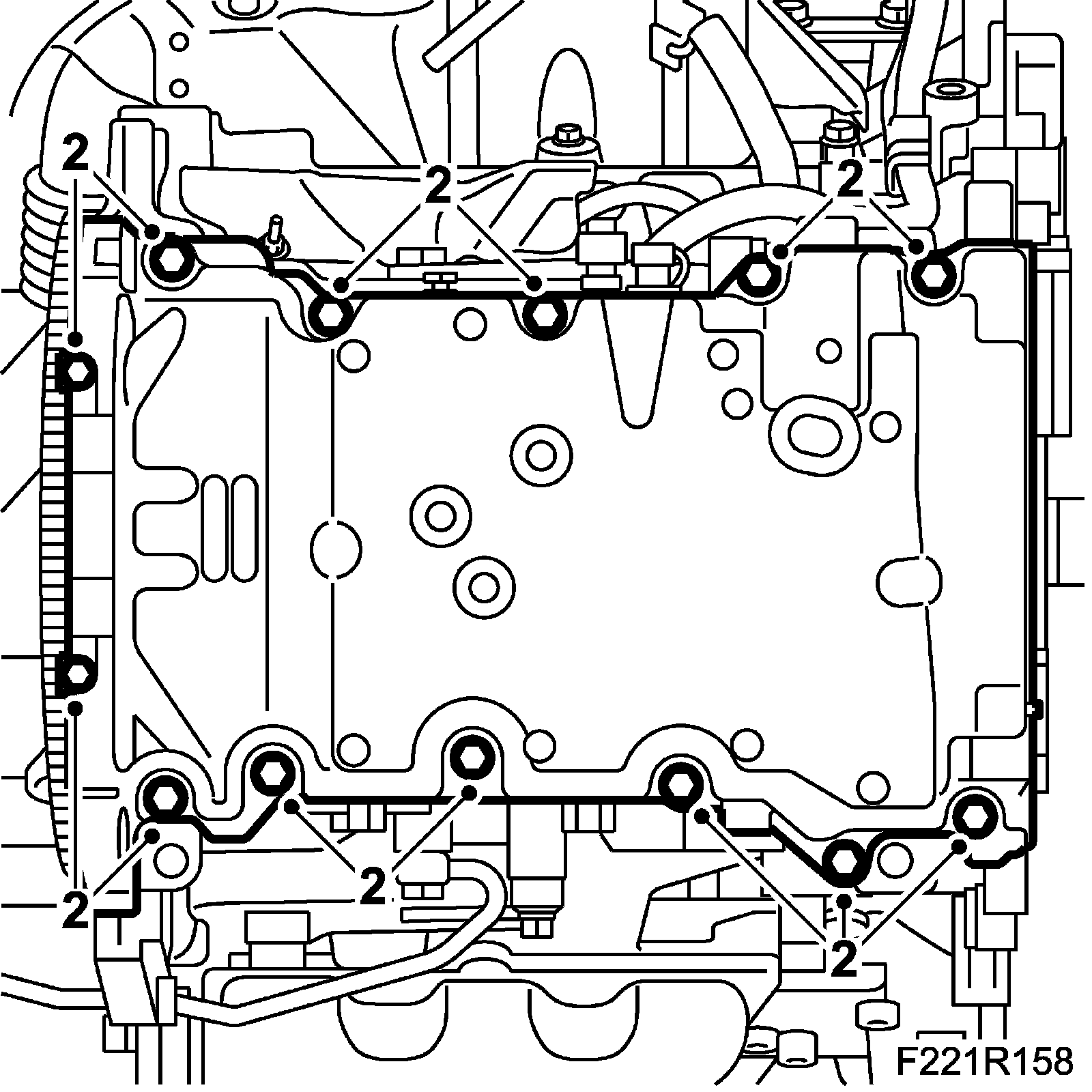

2. Fit the oil sump.
Tightening torque, M6 bolts: 10 Nm (7 lbf ft)
Tightening torque, M8 bolts, 25 Nm (18 lbf ft).

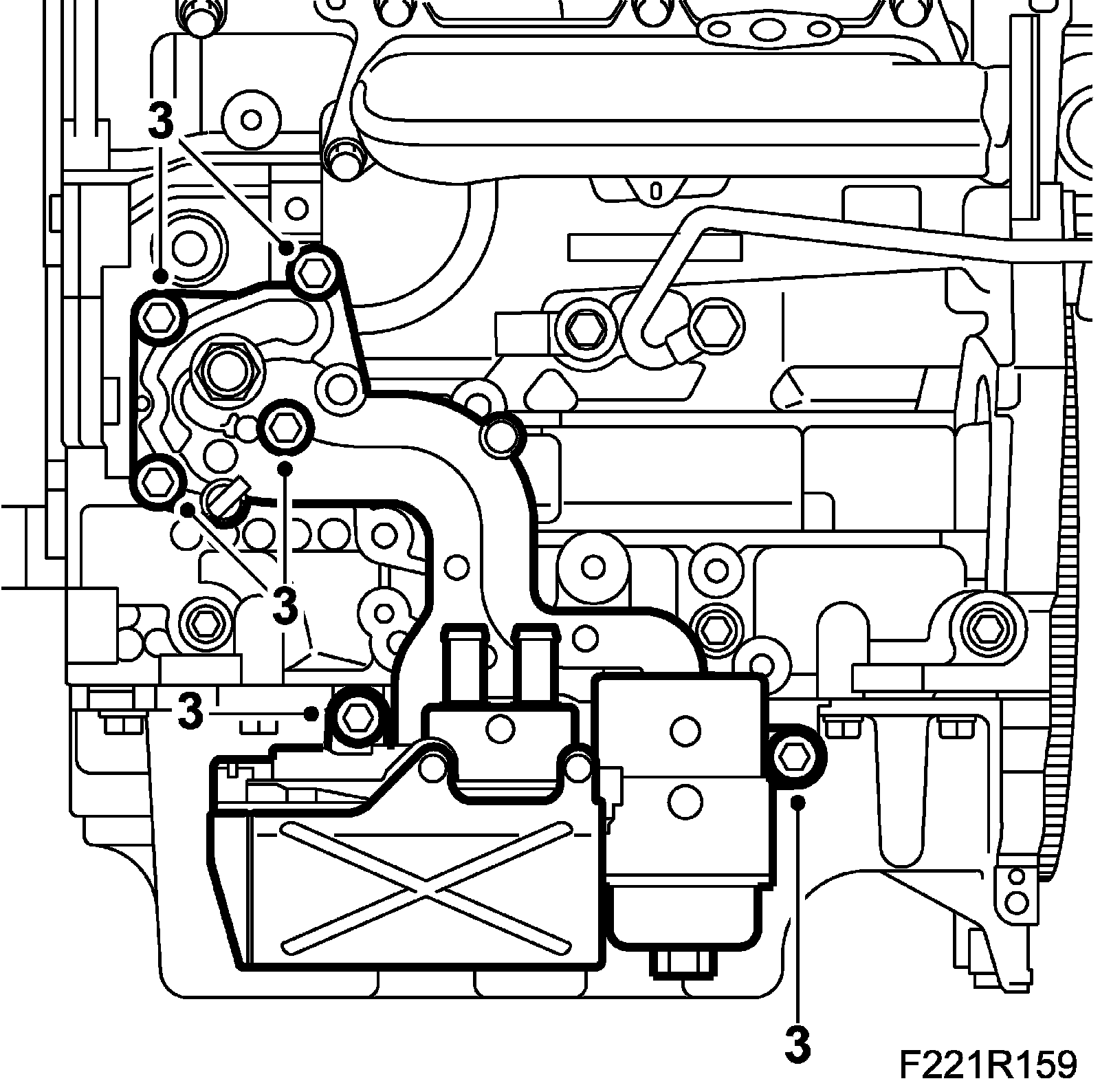

3. Position a new gasket and fit the oil cooler to the cylinder block.
Tightening torque 25 Nm (18 lbf ft)





4. Fit Timing cover.
5. Fit Camshaft covers, removed engine.
6. Fit Power train or Power train, to fit, 4WD.
