Main Components, Radiator Fan System

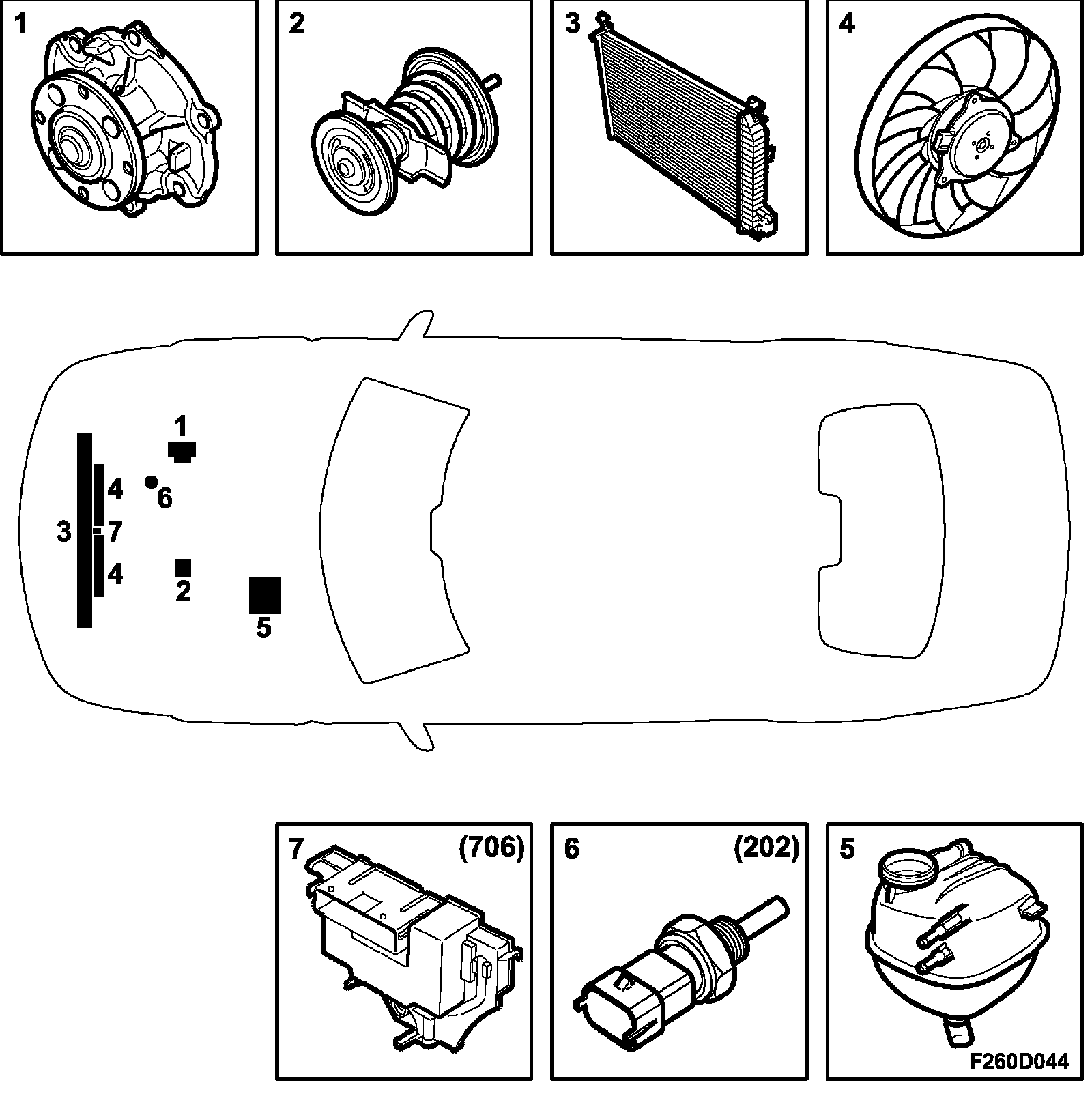

Main components, radiator fan system





Components
1. Coolant pump
2. Thermostat housing
3. Radiator
4. Engine, radiator fan (37LH, 37RH)
5. Expansion tank
6. Coolant temperature sensor (202)
7. Radiator fan relay unit (706)
