Rear-Window Wiper Motor (62R)

Rear-window Wiper Motor (62R)

Location

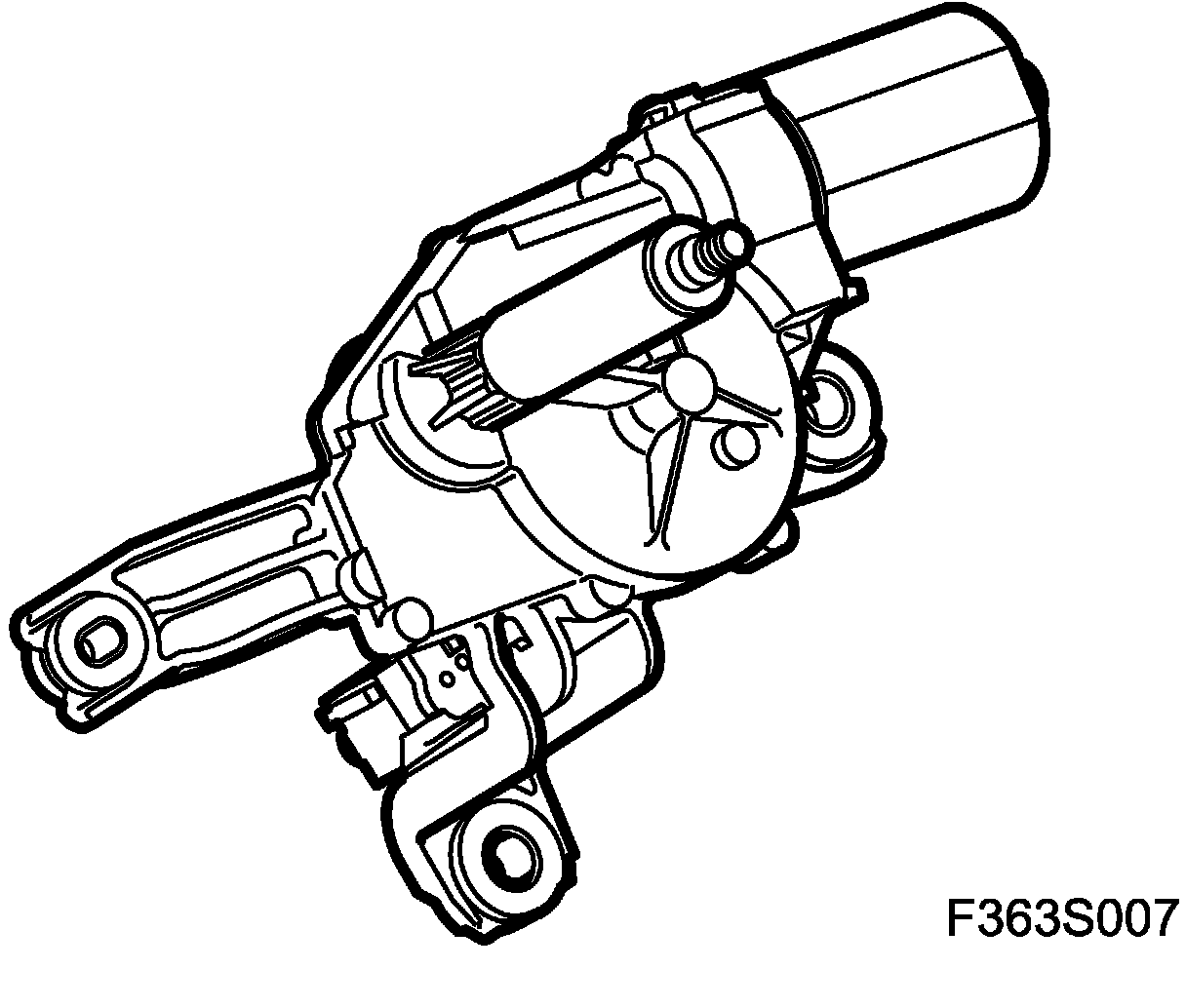

Rear-window wiper motor (62R)







Main task
The motor drives the wiper arm.

Type
DC motor with thermal overload protection. Overload protection will trigger if the stalk is activated while the blade is blocked.

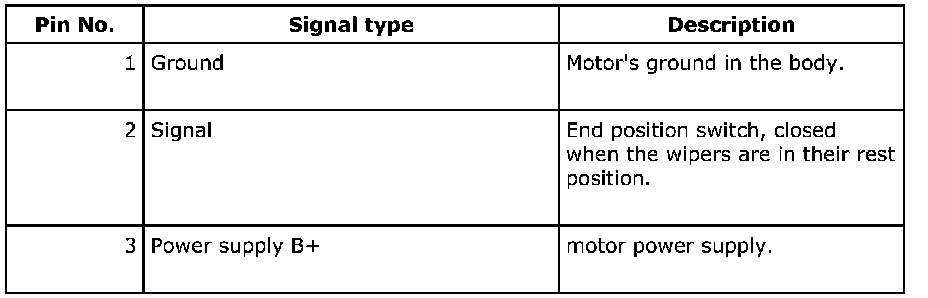

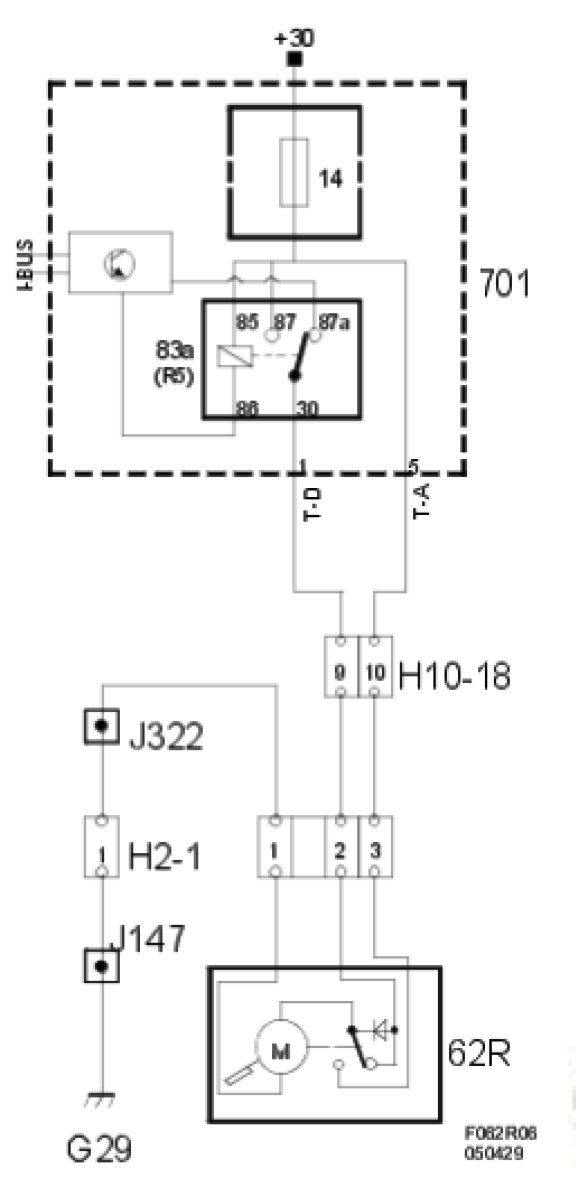

Connection
