Motor, Windscreen Wipers (62F)

Motor, Windscreen Wipers (62F)

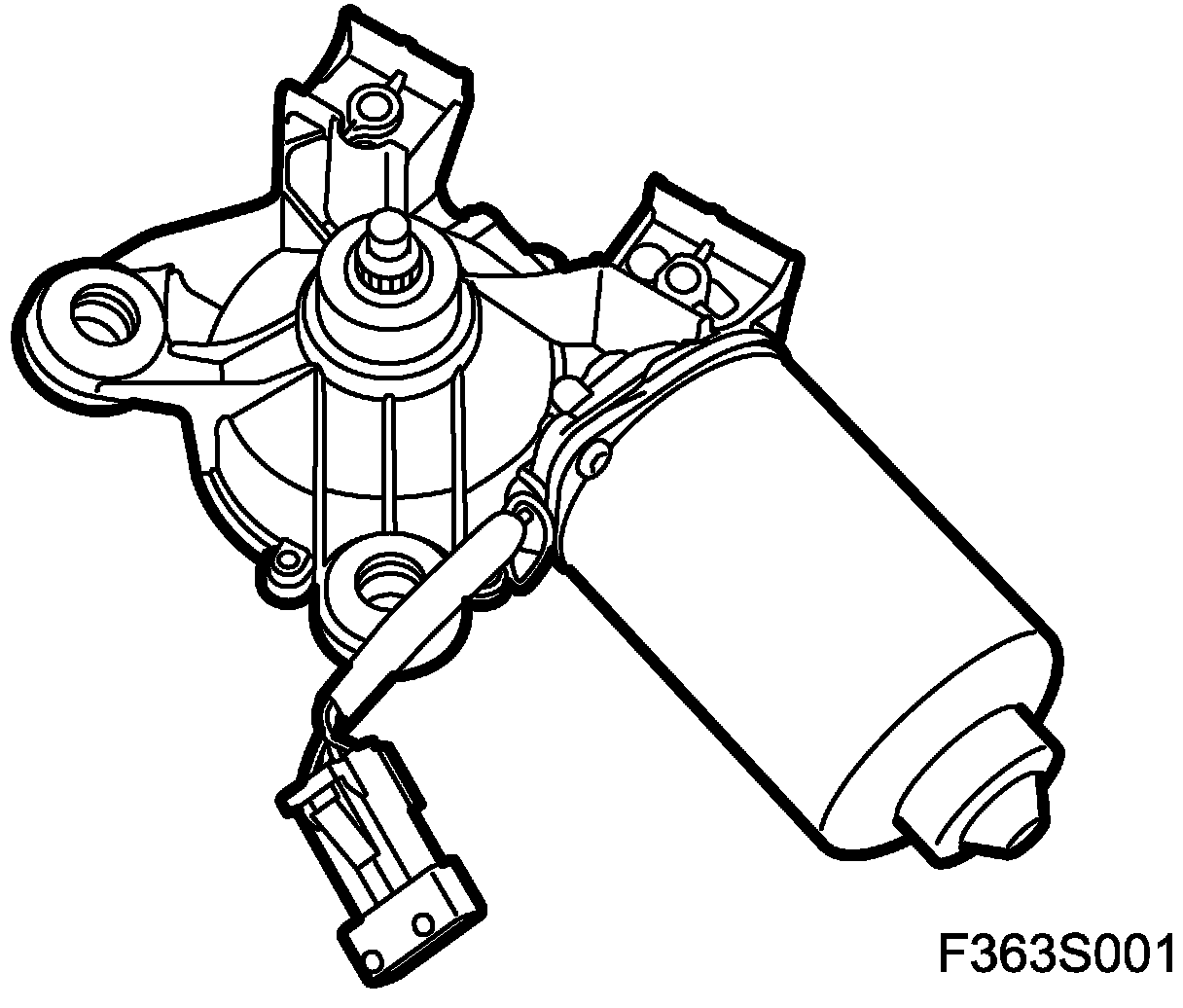

Location
Motor, windscreen wipers (62F)











Main task
The motor operates the wiper arms via an arm construction that translates motor rotation into wiper movements.

Type
DC motor with thermal overload protection. The overload protection triggers if the lever is activated and the blade is blocked.

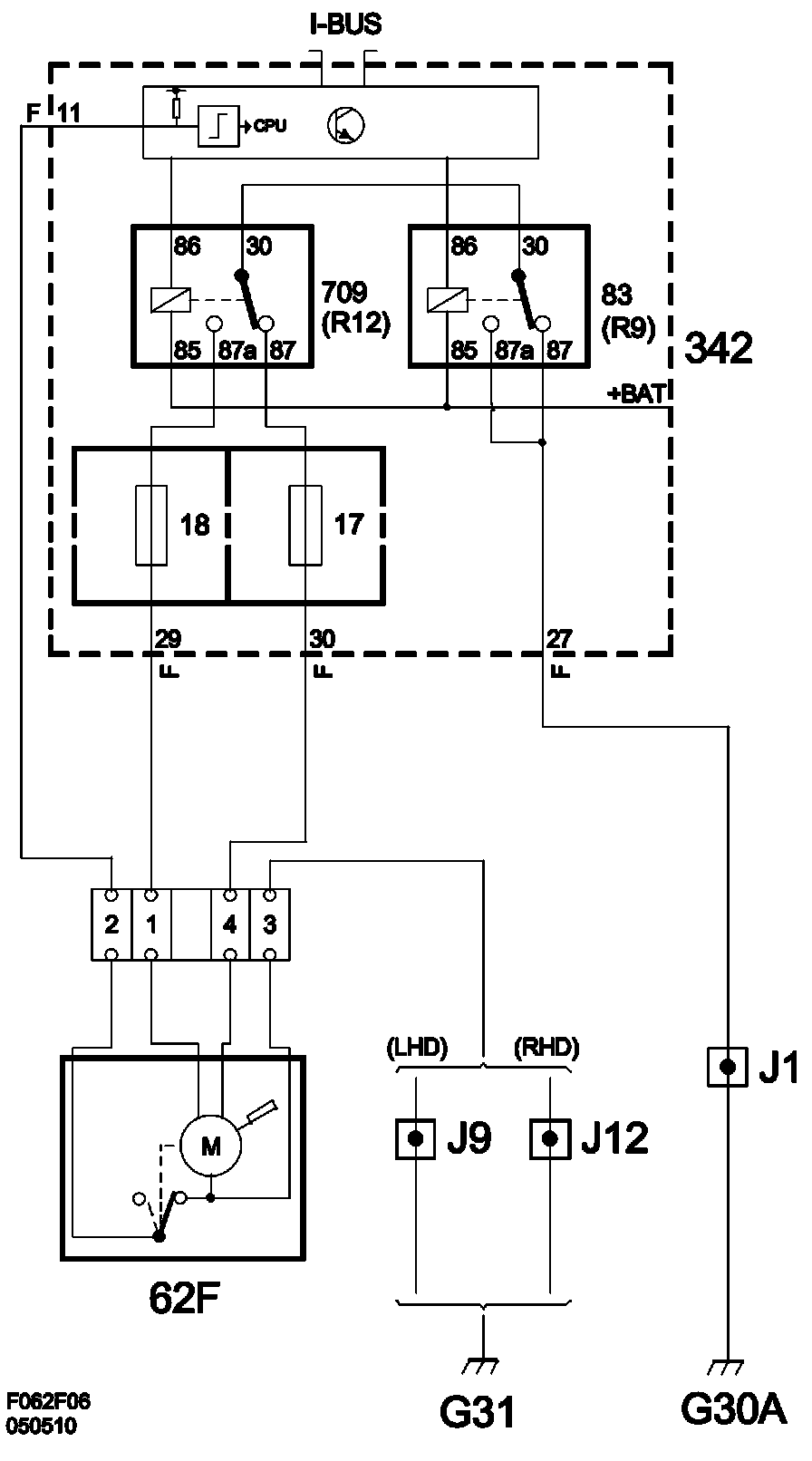

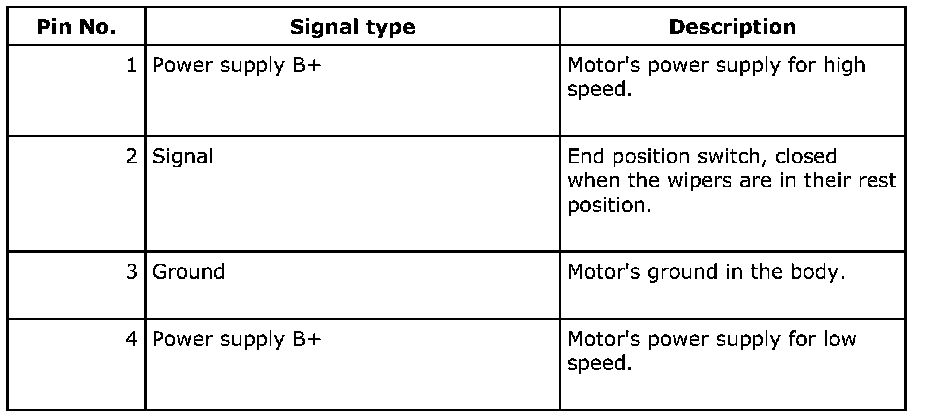

Connection
