Headlamp Washer Motor: Description and Operation

High Pressure Headlamp Pump Motor (668)

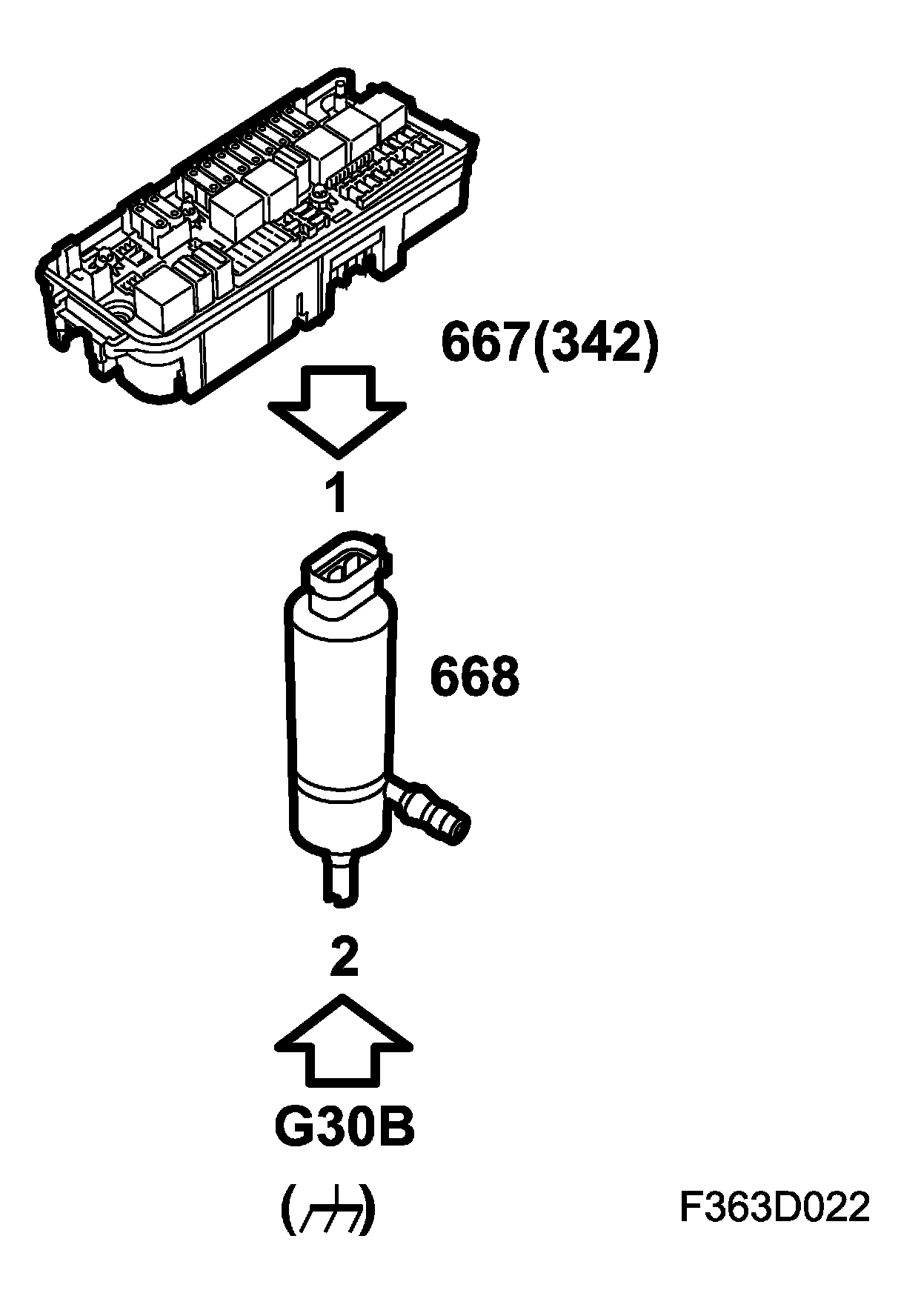

Location
High pressure headlamp pump motor (668)







Main task
The washer pump pumps washer fluid in the hoses to the nozzles that direct the streams to the headlamps.

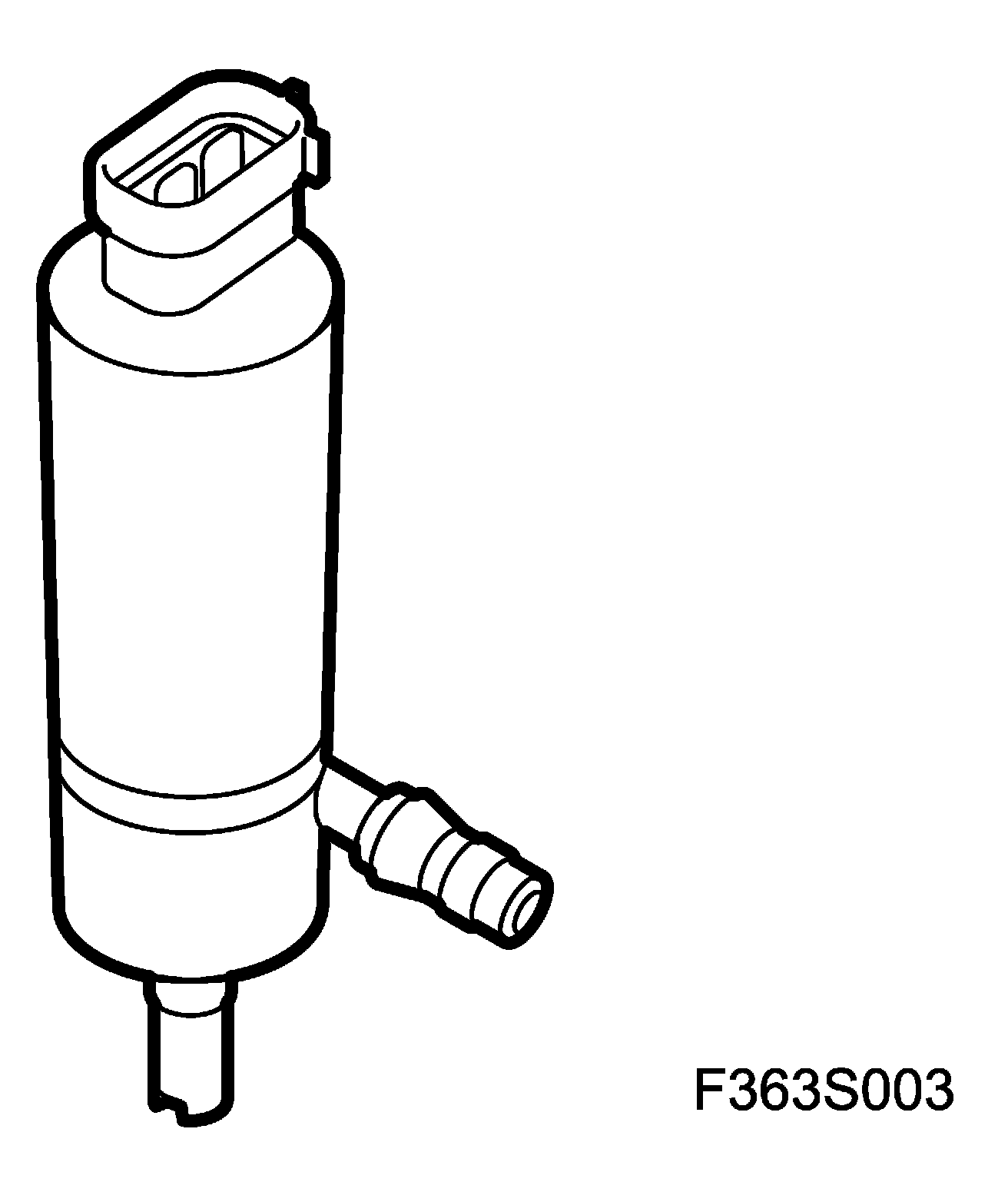

Type
DC motor with centrifugal pump.

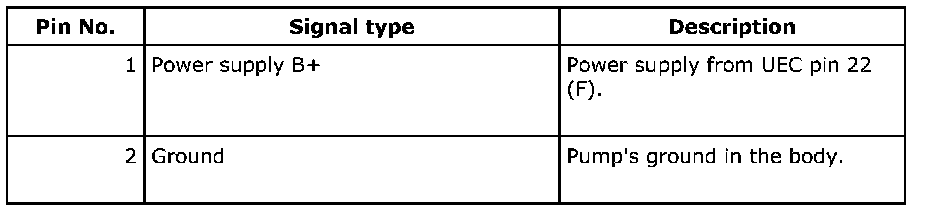

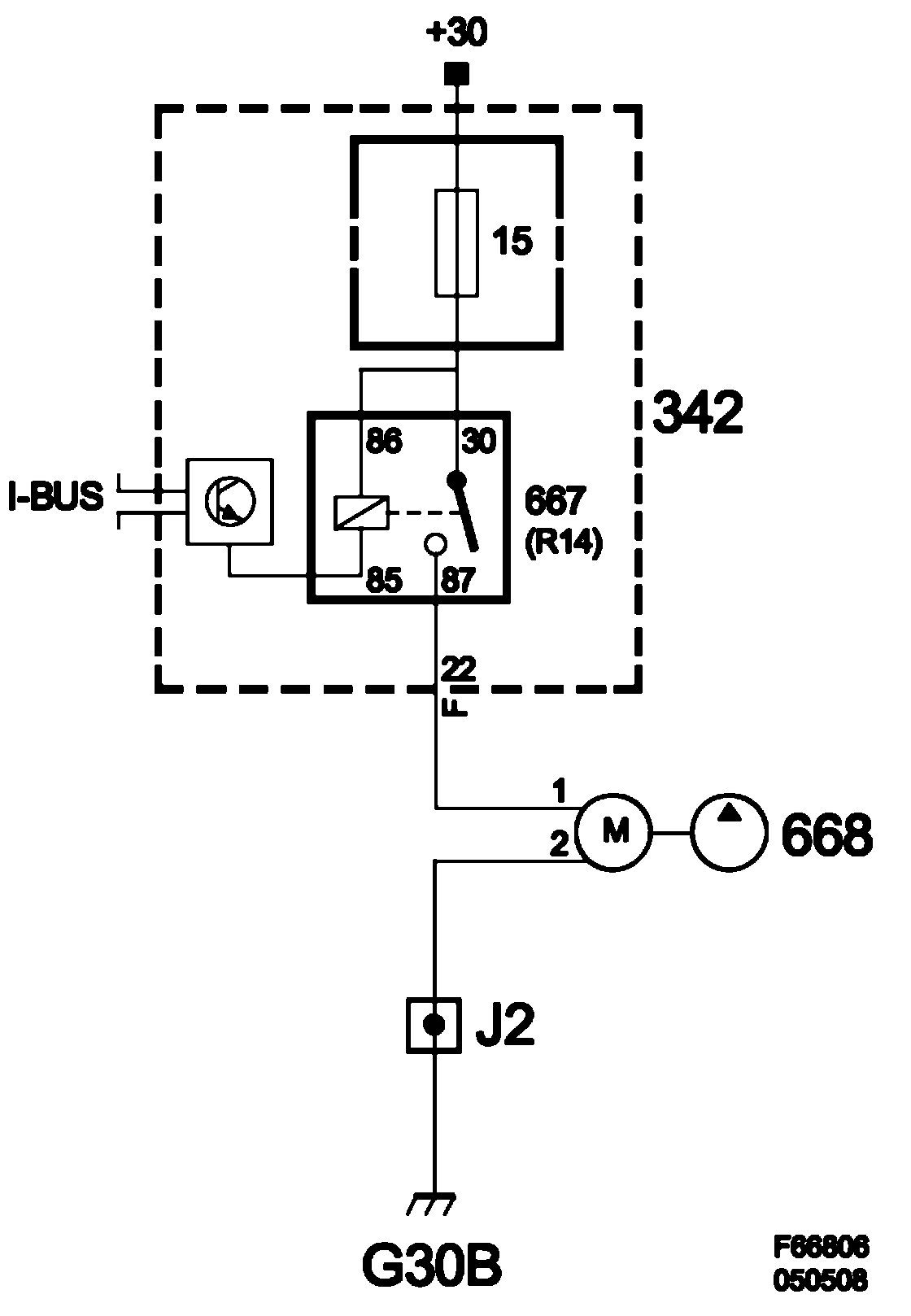

Connection
