Wash Systems Including Headlamp Washers
Wash Systems Including Headlamp Washers

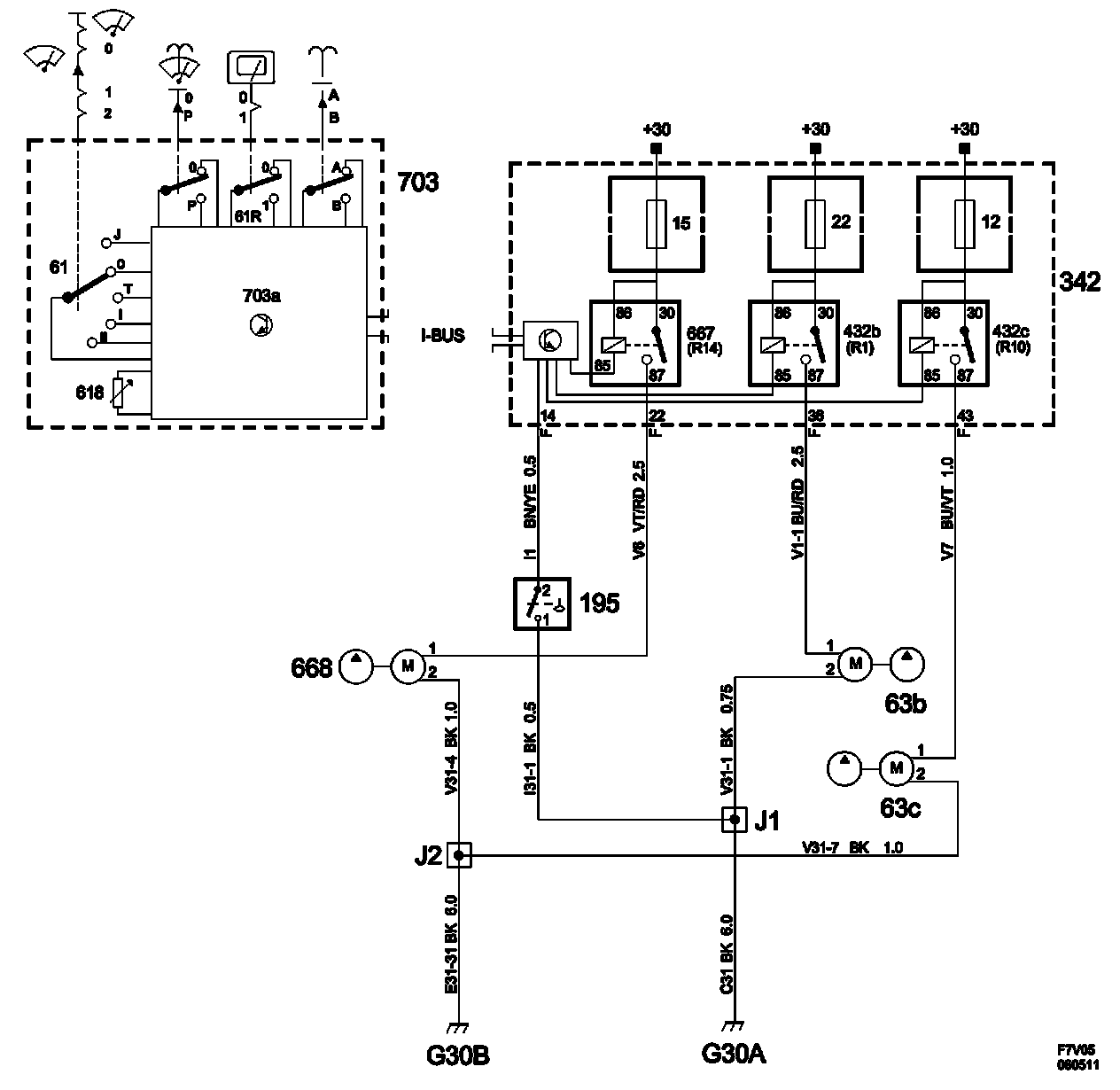

Wash Systems Including Headlamp Washers:

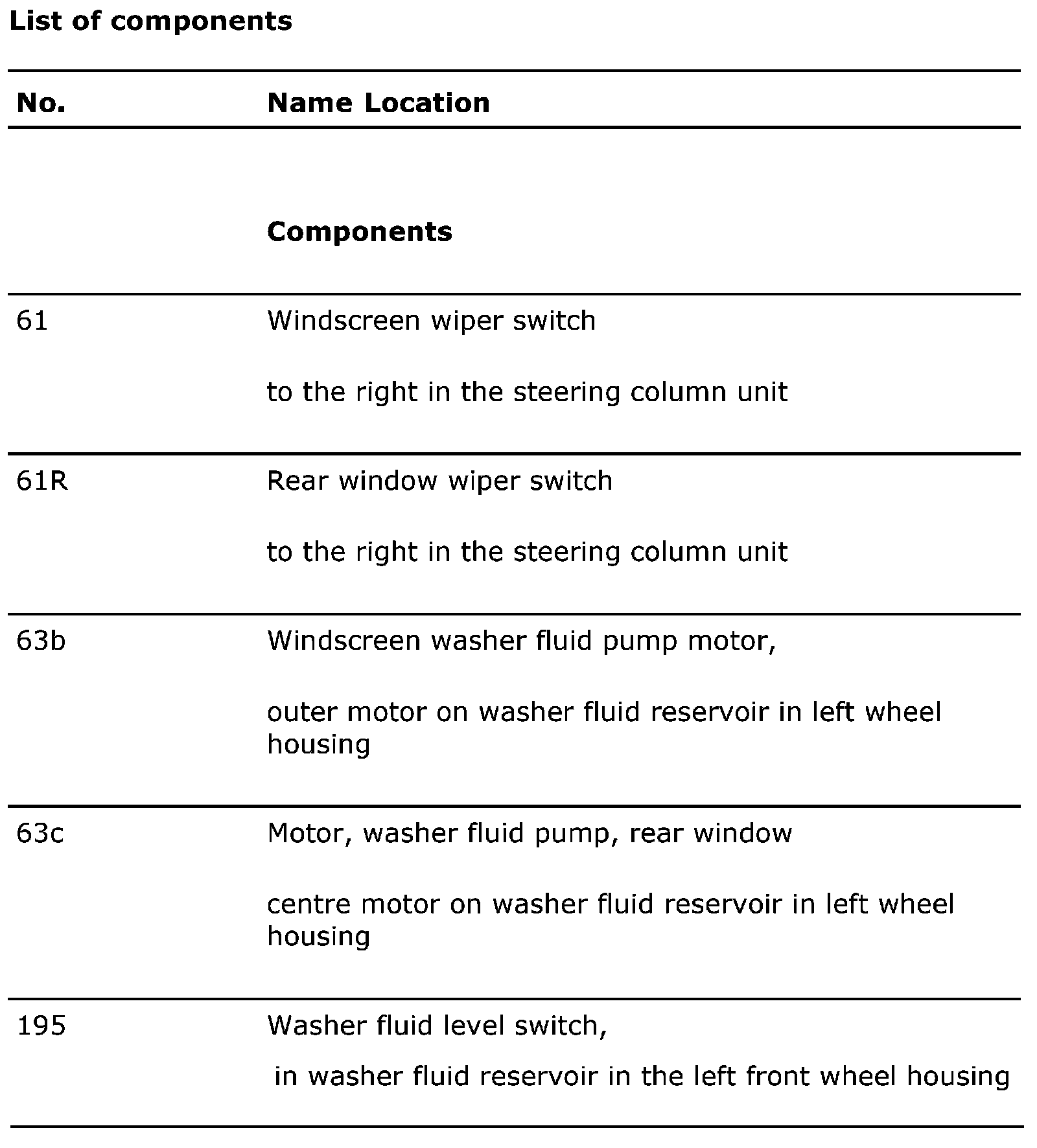

List Of Components (Part 1):

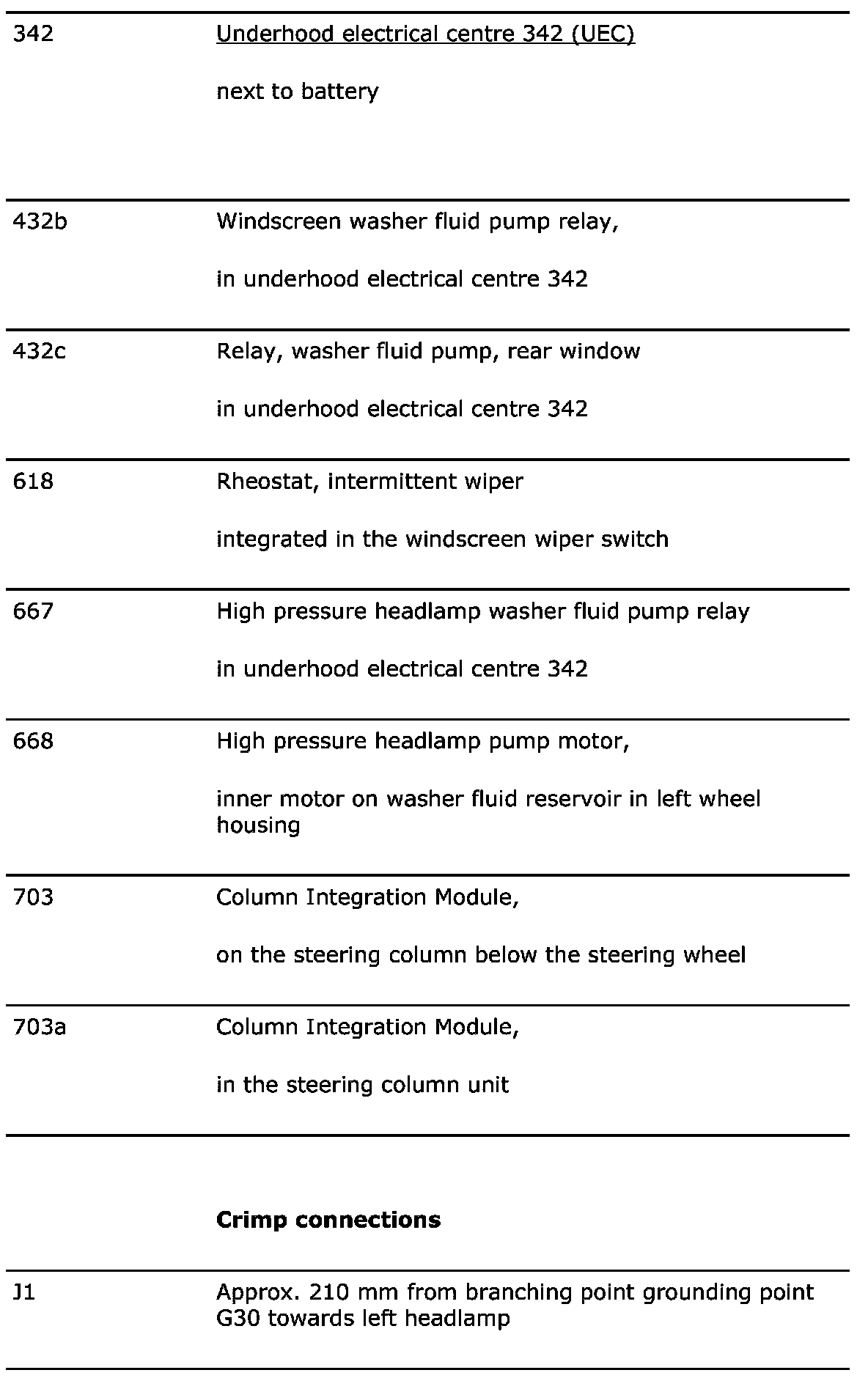

List Of Components (Part 2):

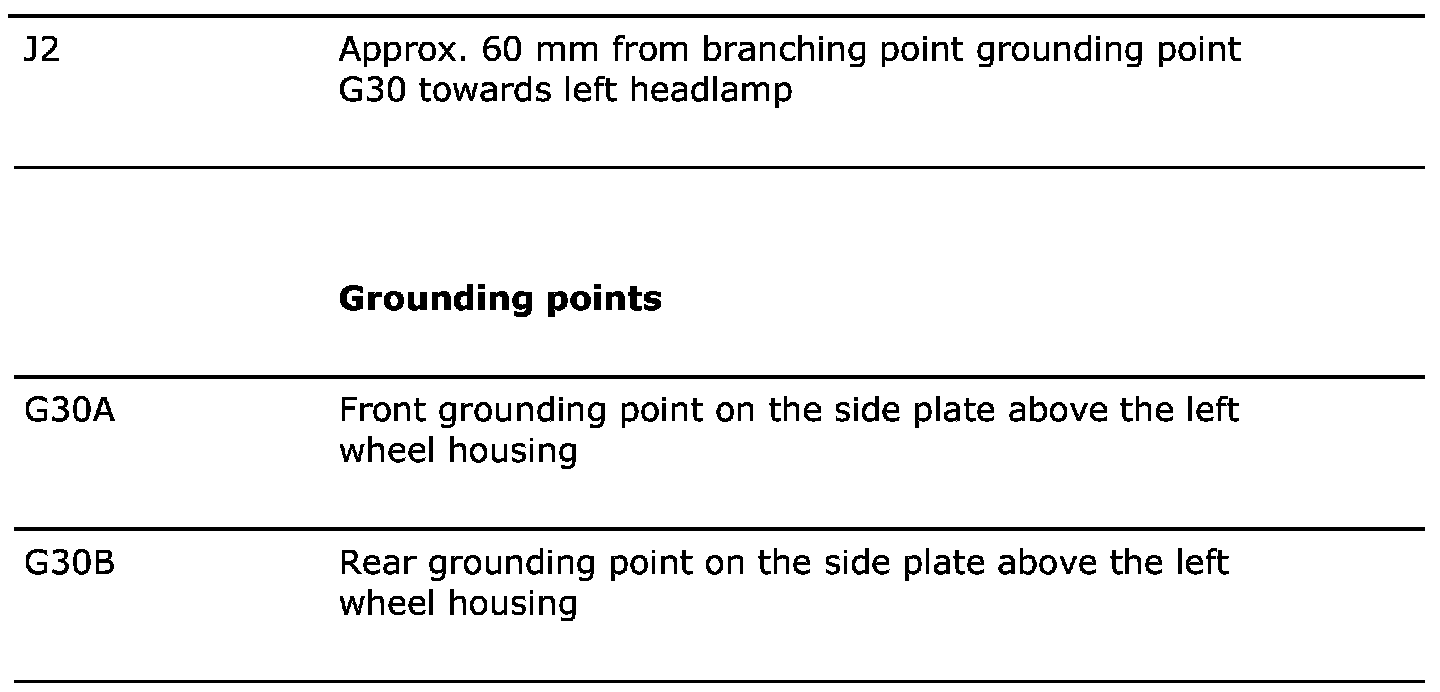

List Of Components (Part 3):
