Motor, Electrically Operated Window Lift, Front, Right-Hand (164FR)



Motor, Electrically Operated Window Lift, Front, Right-Hand (164FR)

Location: in the door

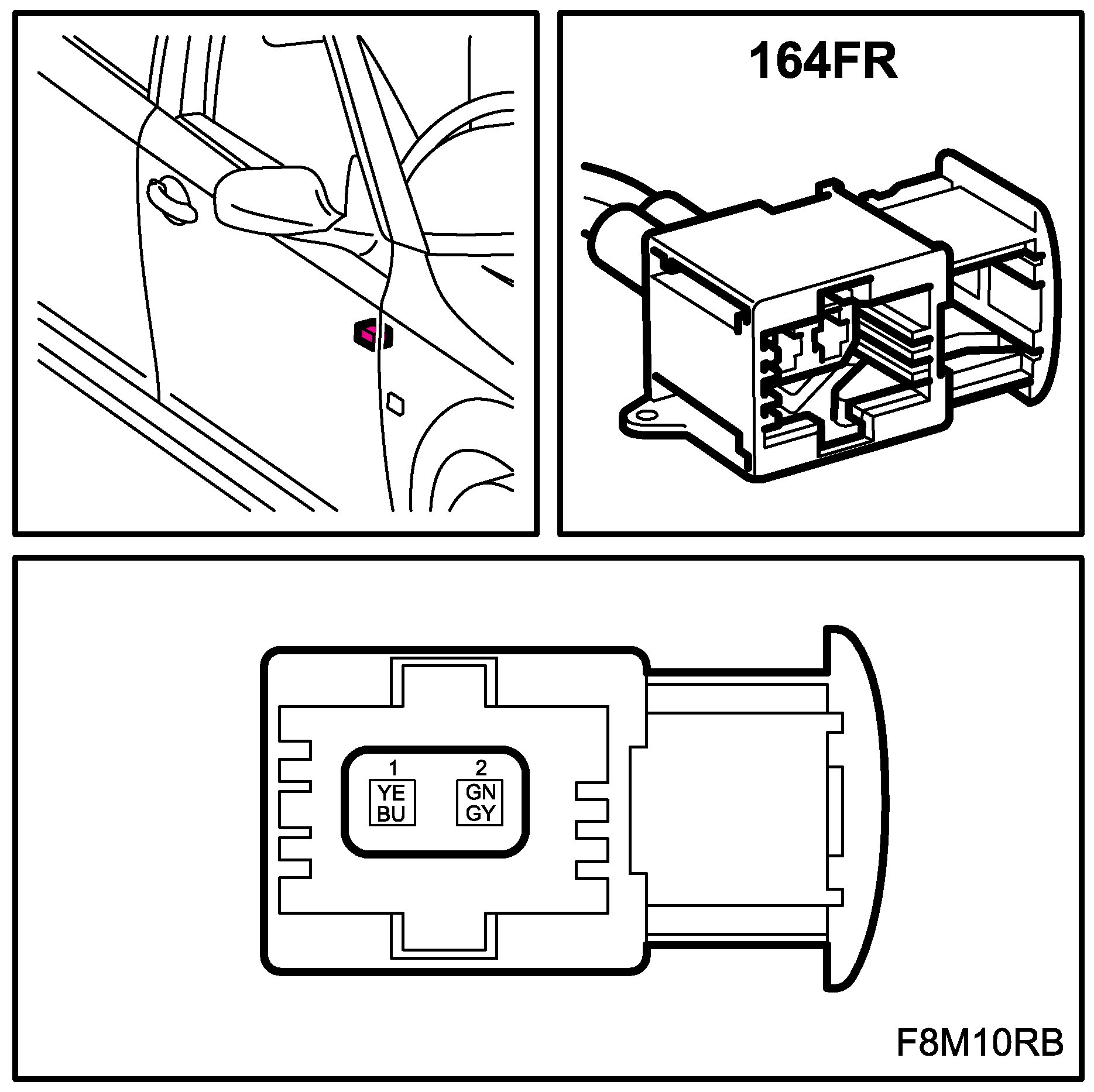

Without pinch protection


Motor, Electrically Operated Window Lift, Front, Right-Hand (164FR):

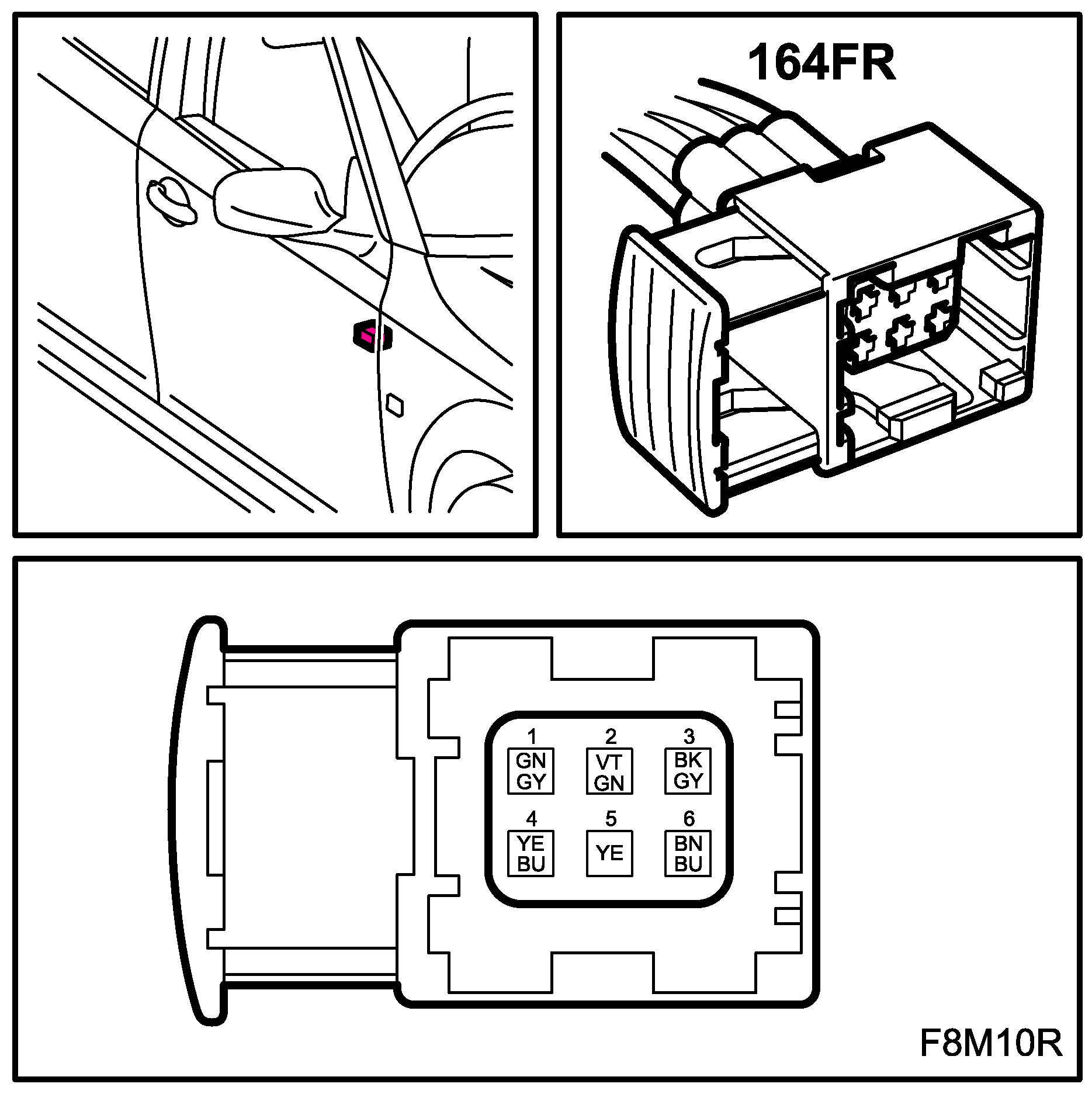

With pinch protection


Motor, Electrically Operated Window Lift, Front, Right-Hand (164FR):
