Drive Shaft Seal, Right-Hand

Drive shaft seal, right-hand

Changing in car

To remove
1. Remove the intermediate shaft. See Intermediate shaft or Intermediate shaft, Z19 or Intermediate shaft, B284.

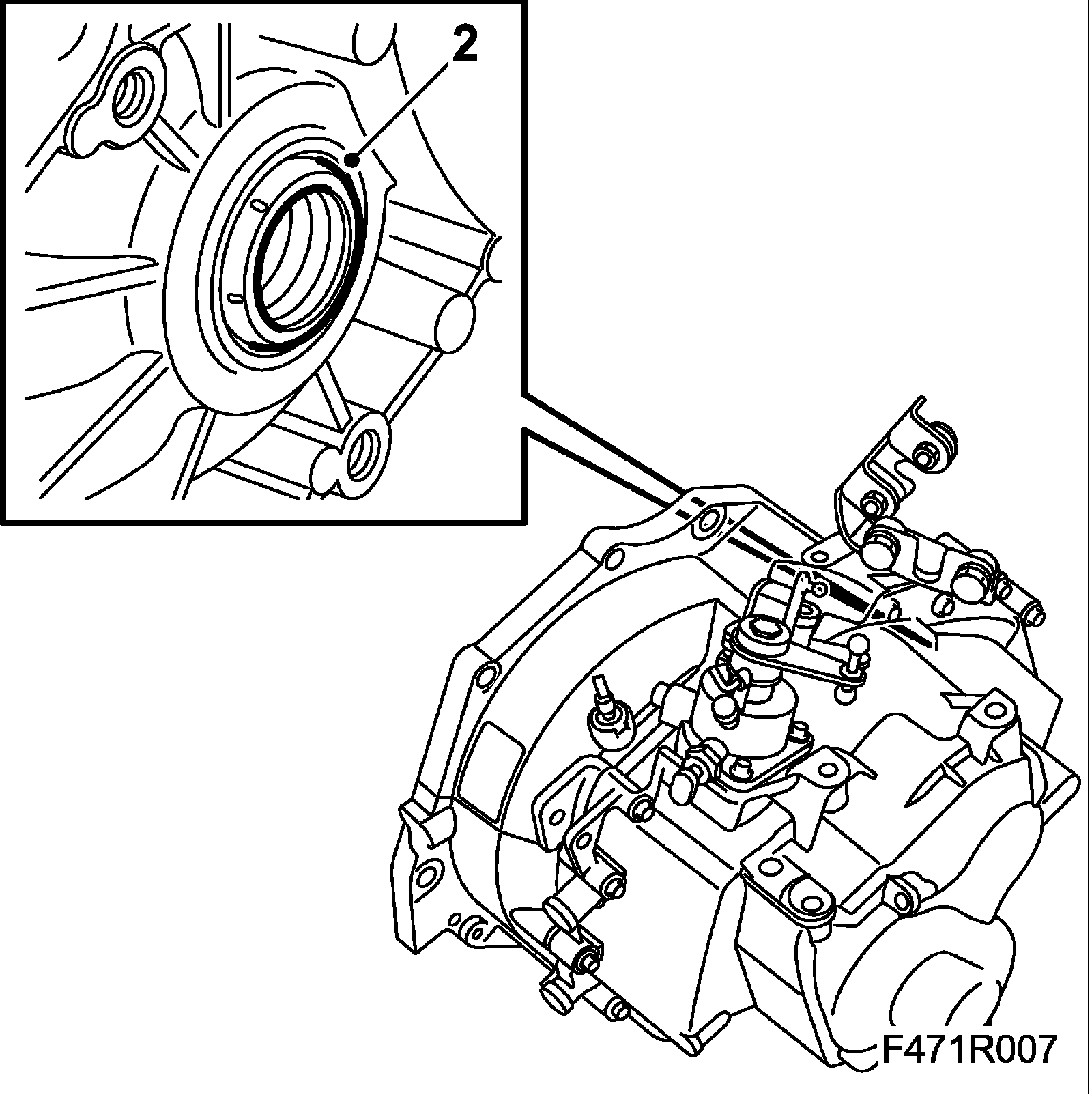

2. Remove the seal using a large screwdriver.

Note: Take care not to scratch the hole in the gearbox for the drive shaft seal.

To fit

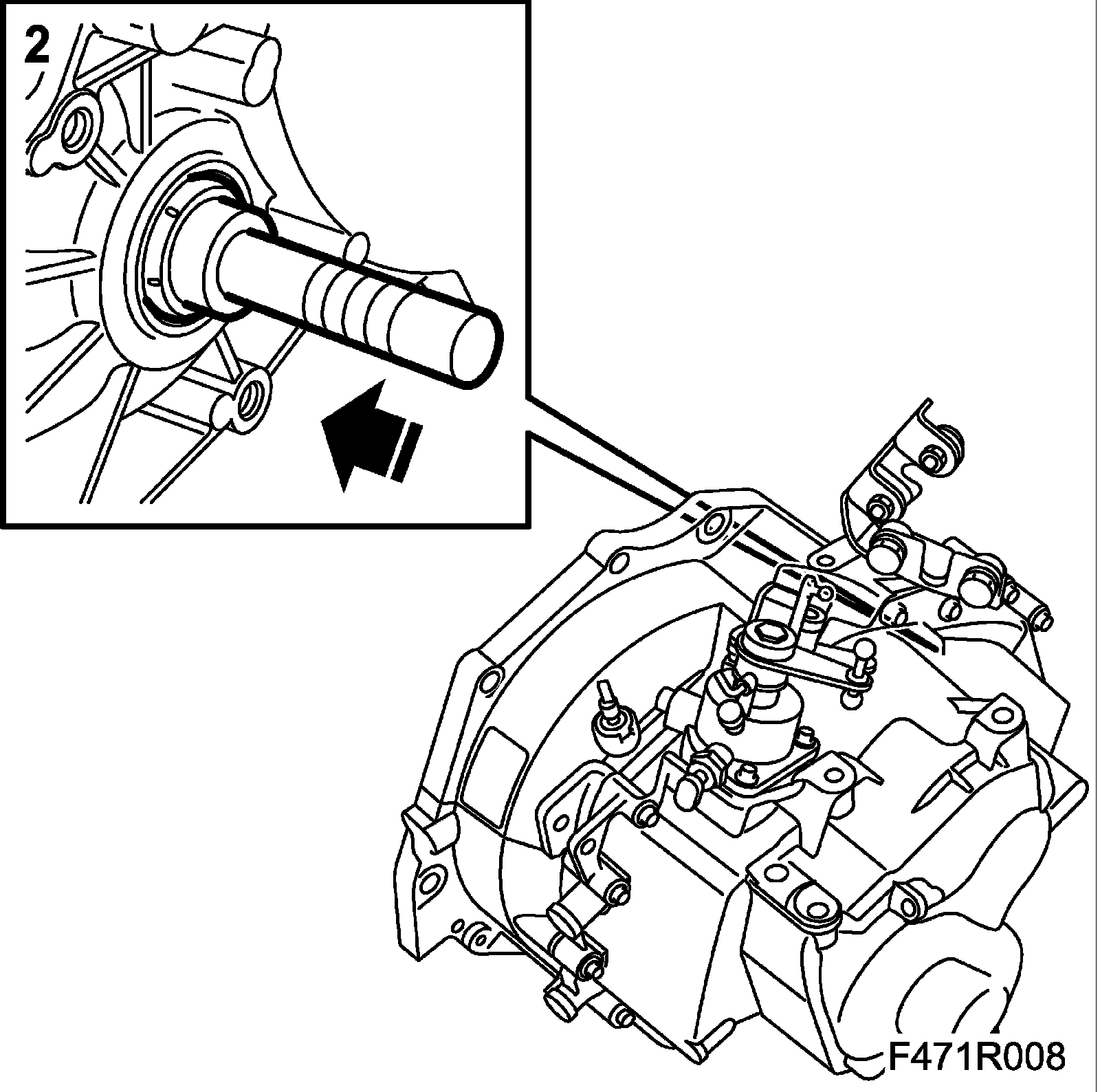

1. Knock in place the new seal using

Man: 87 92 657 Fitting drift, drive shaft seals.

Aut 6-speed: 32 025 025 Fitting drift, drive shaft seal





2. Fit the intermediate shaft. See Intermediate shaft or Intermediate shaft, Z19 or Intermediate shaft, B284.
