Flywheel: Service and Repair

Flywheel

To remove
1. Remove Gearbox assembly B207 or Gearbox assembly 6-speed, or Gearbox assembly B284.
2. Remove Clutch assembly

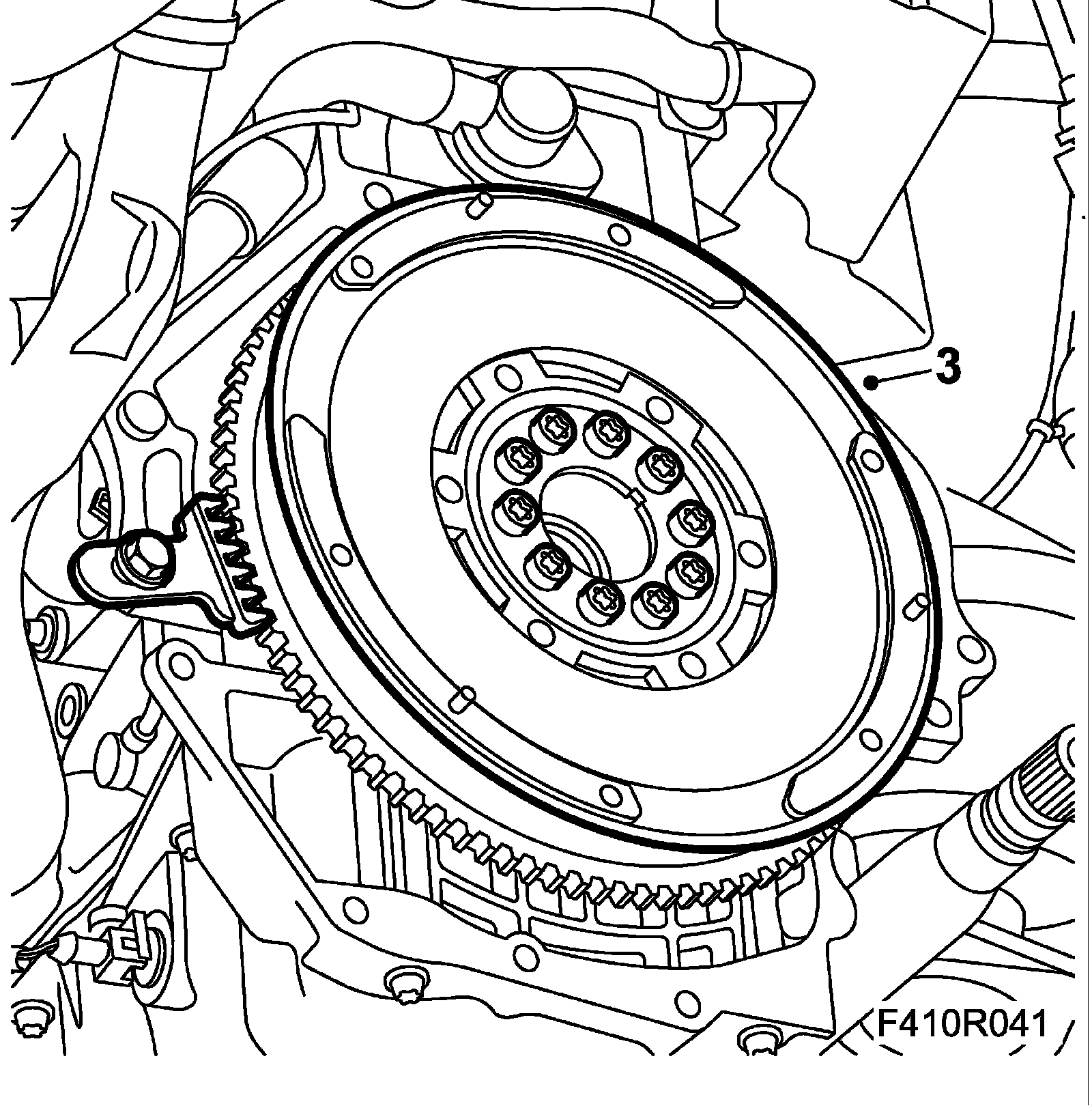

3. Remove the flywheel





To fit

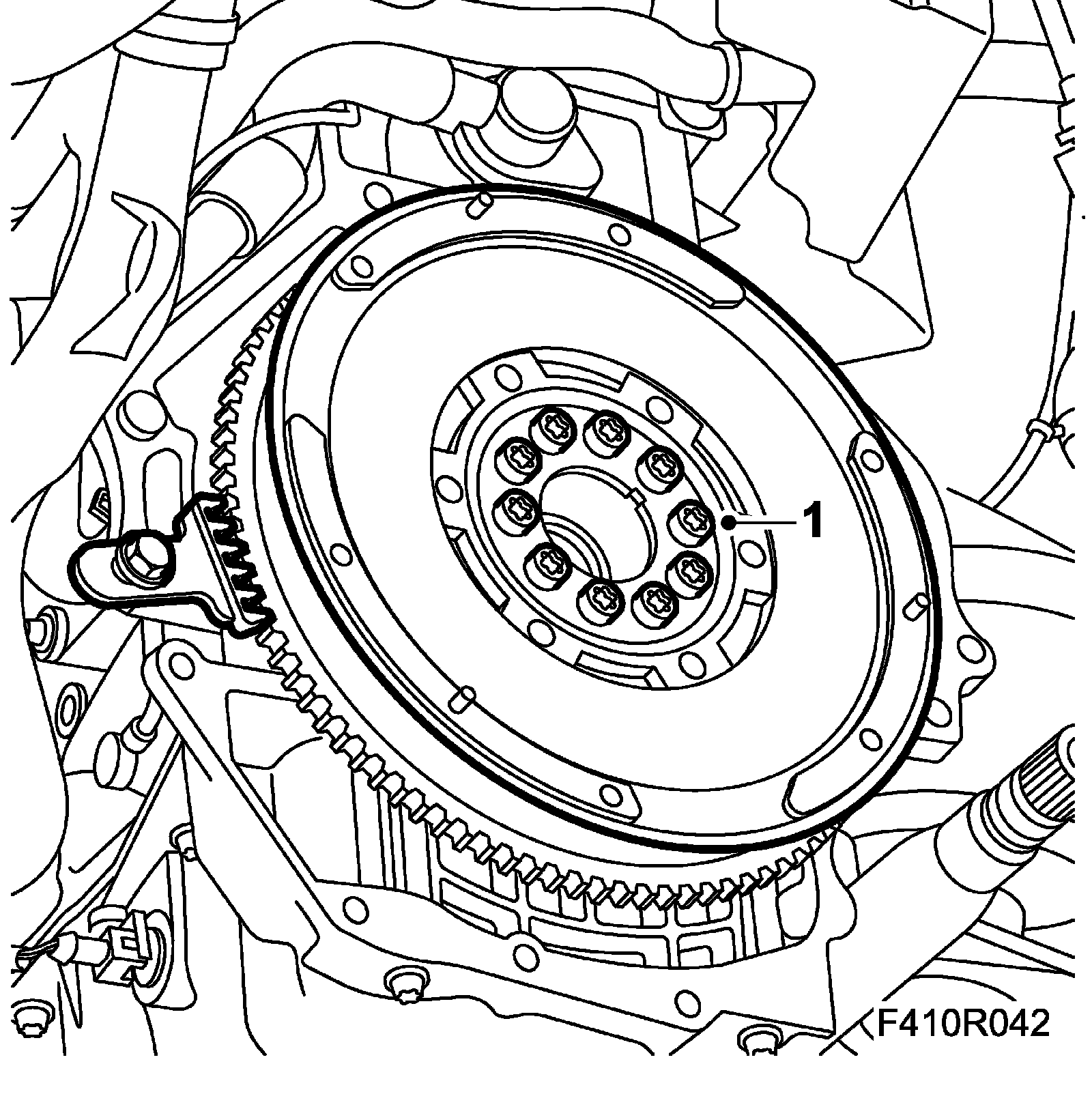

1. Fit the flywheel with new bolts. Use 74 96 292 Thread locking adhesive to the bolts. Tighten alternately.

Tightening torque, Z19 160 Nm (118 ft. lbs.)

Tightening torque, B207 65 Nm + 40° (48 ft. lbs. + 40°)

Tightening torque, B284 30 Nm + 45° (22 ft. lbs. + 45°)





2. Fit Clutch assembly.
3. Fit Gearbox assembly B207 or Gearbox assembly 6-speed, or Gearbox assembly B284.
