Oil Pump: Description and Operation

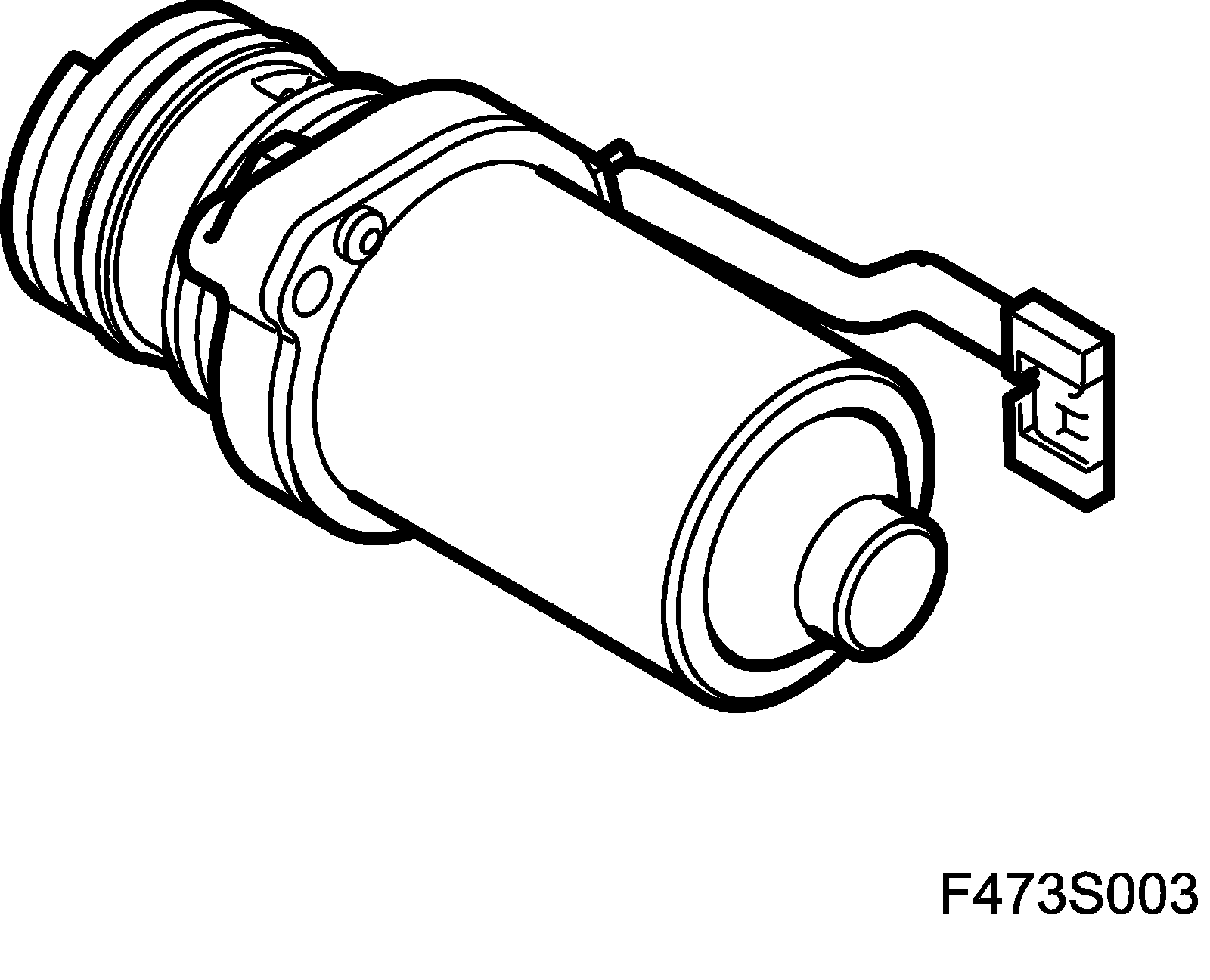

Engine, hydraulic pump, differential clutch (764)

Location

Integrated in the differential clutch.

Main function

To drive the hydraulic pump in the differential clutch.

Type

Electric motor of permanent magnet type.





Electrical connections

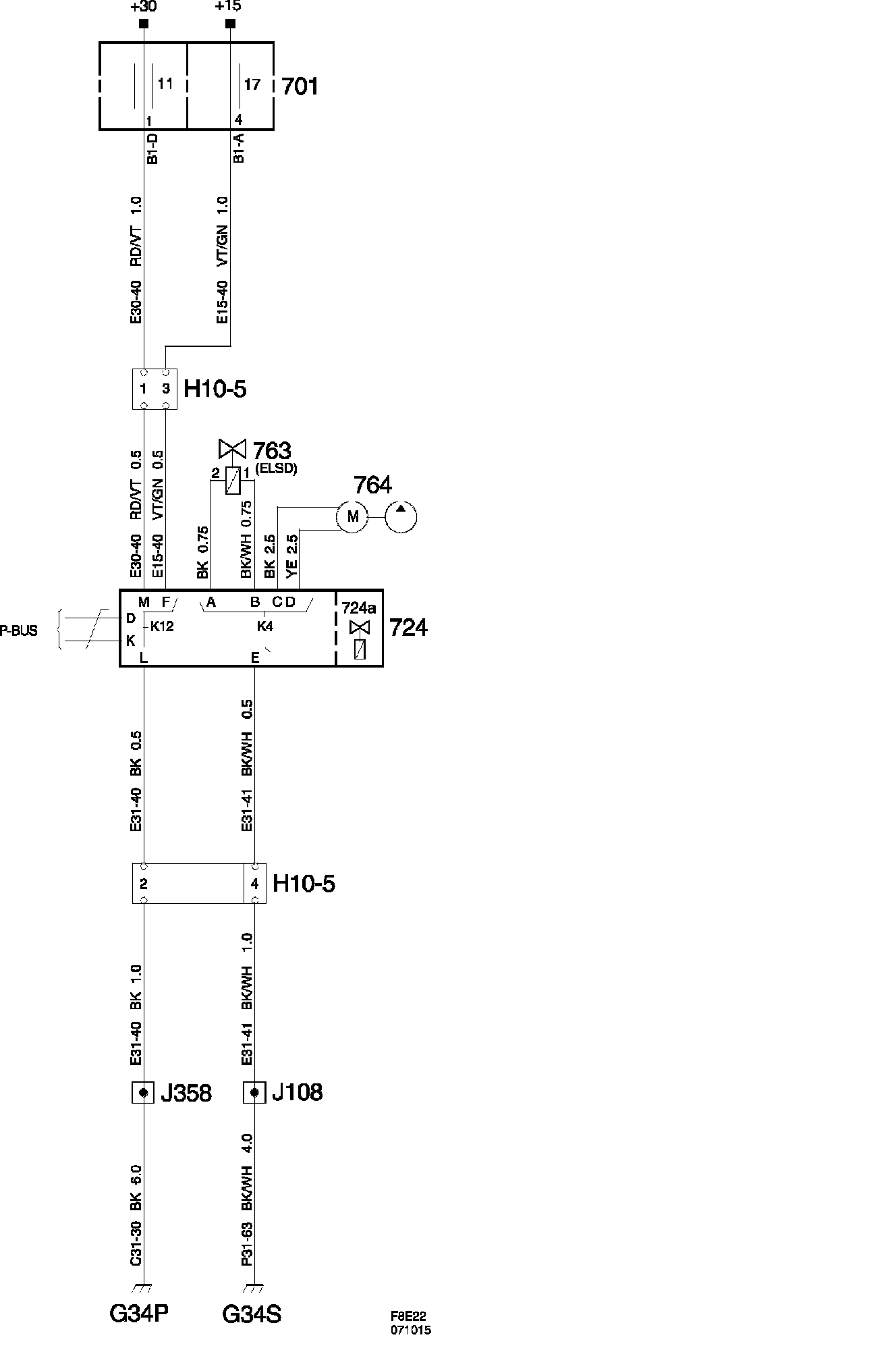

Diagram





Function

The motor drives a five cylinder axial piston pump in the pump housing which produces a working pressure of 27-32 bar.
