TCM With Gear Selector Position Sensor
TCM With Gear Selector Position Sensor
TCM
With Gear Selector Position Sensor

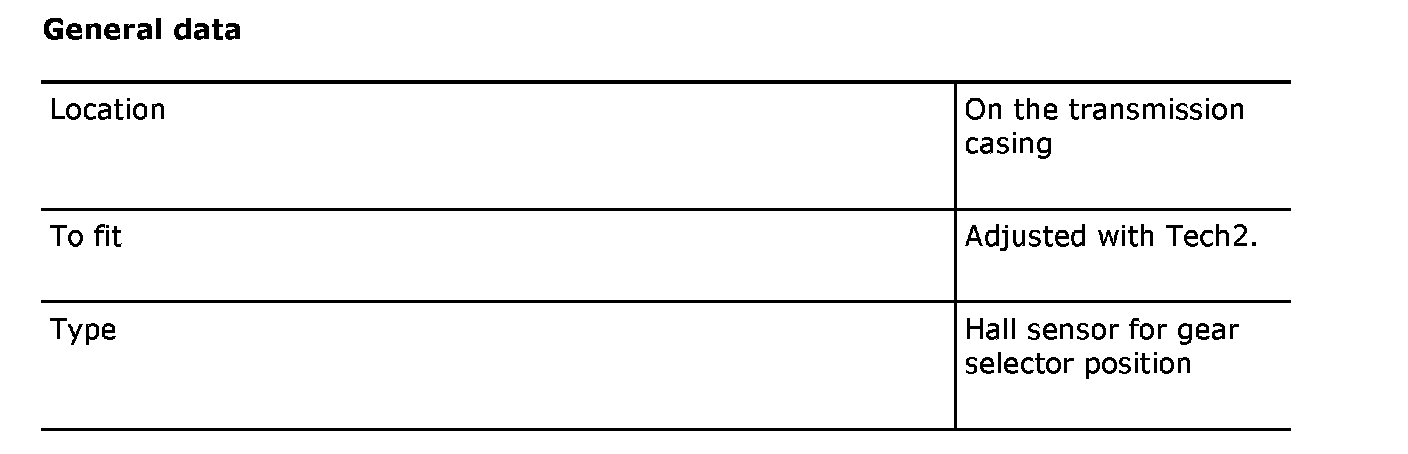

General Data:

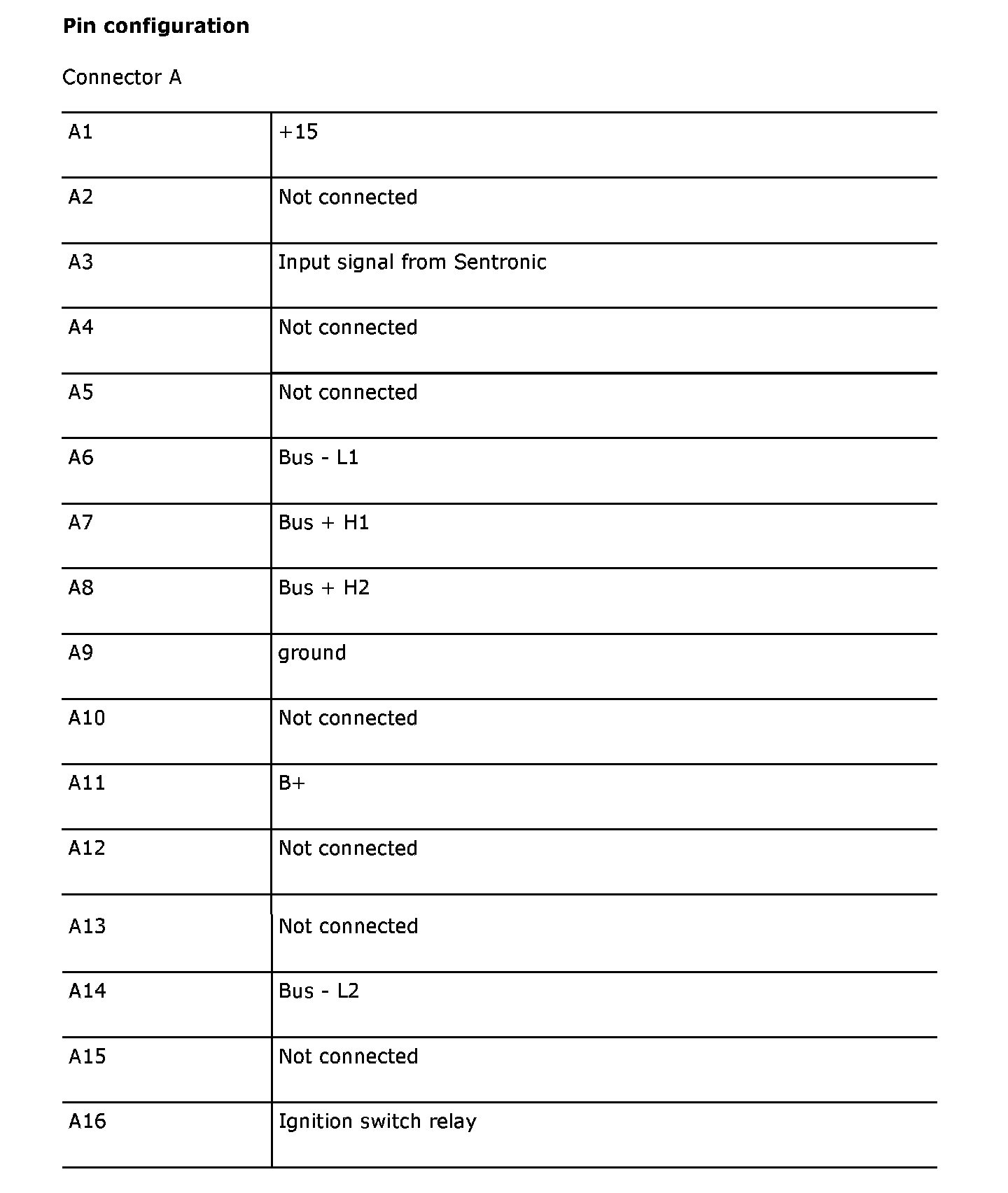

Connector A:

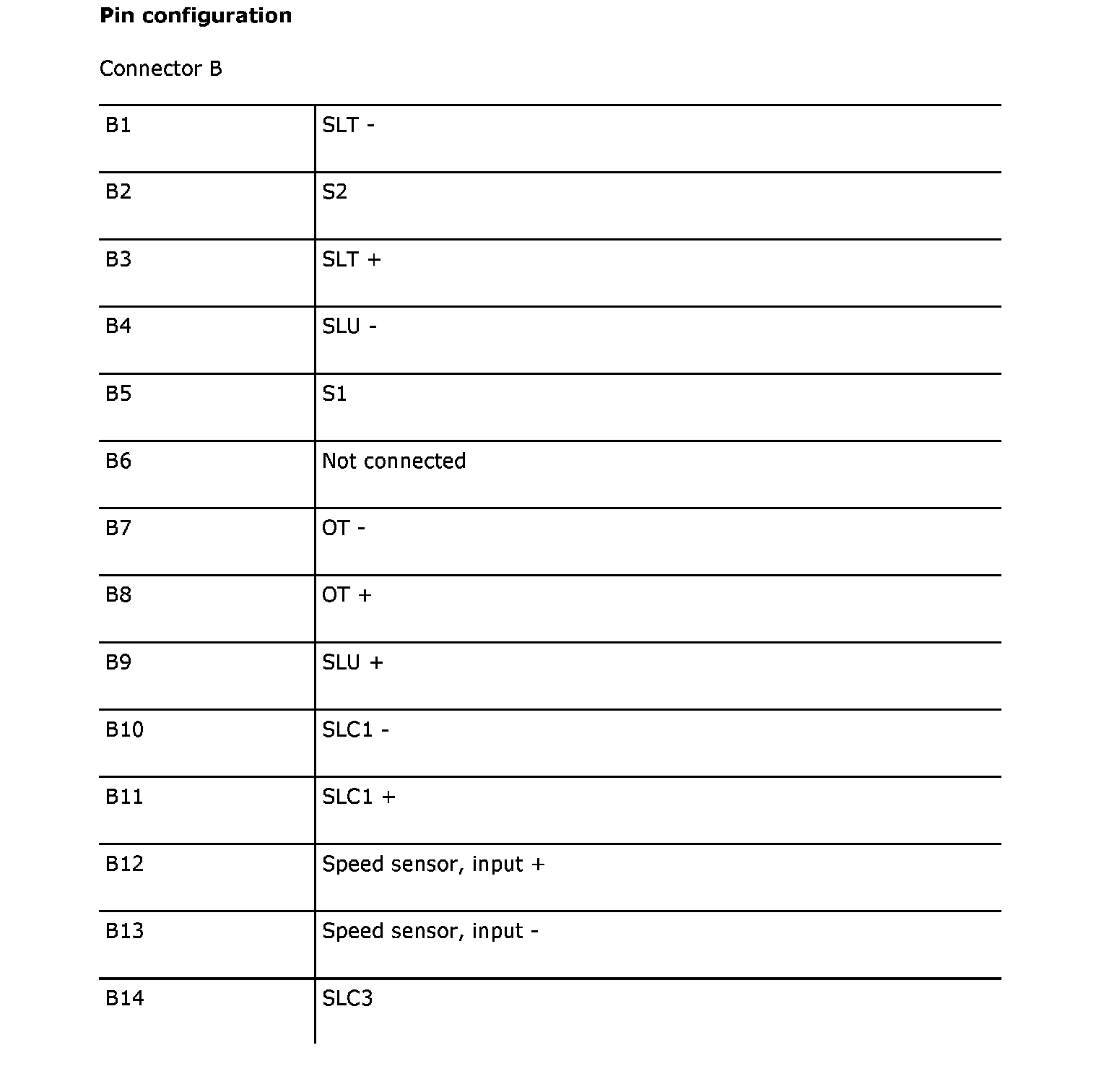

Connector B (part 1):

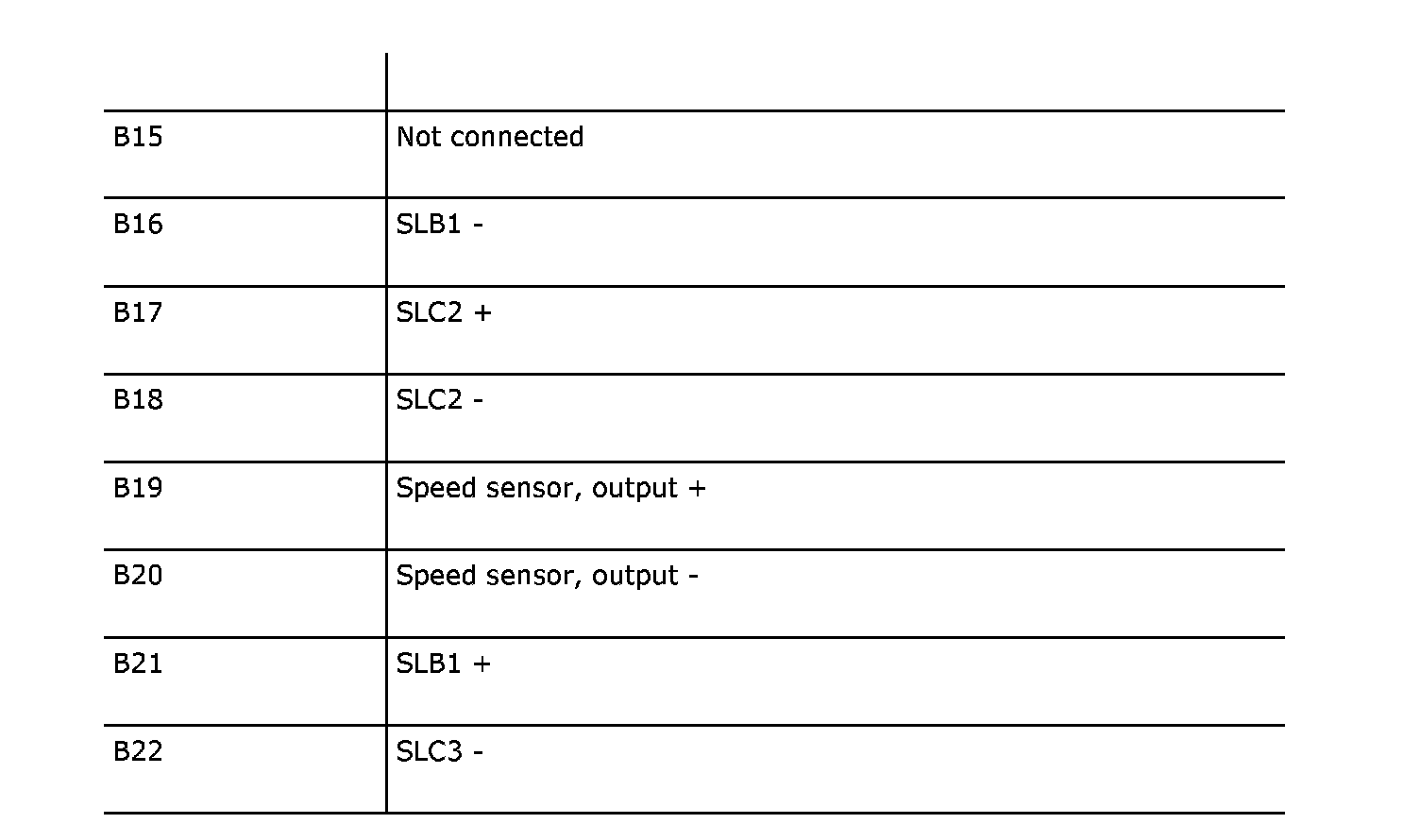

Connector B (part 2):

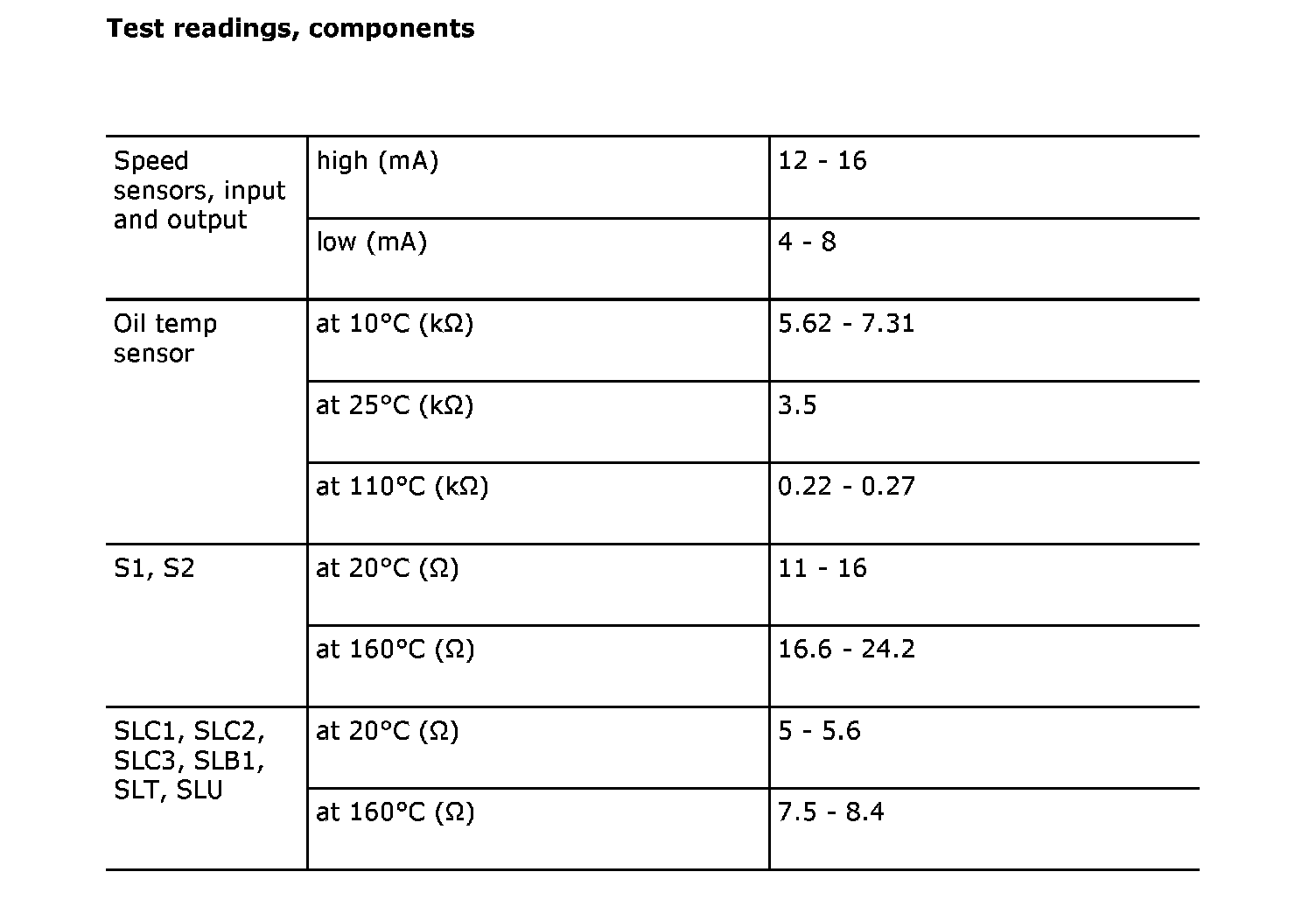

Test Readings, Components:
