6-Speed, AF 40

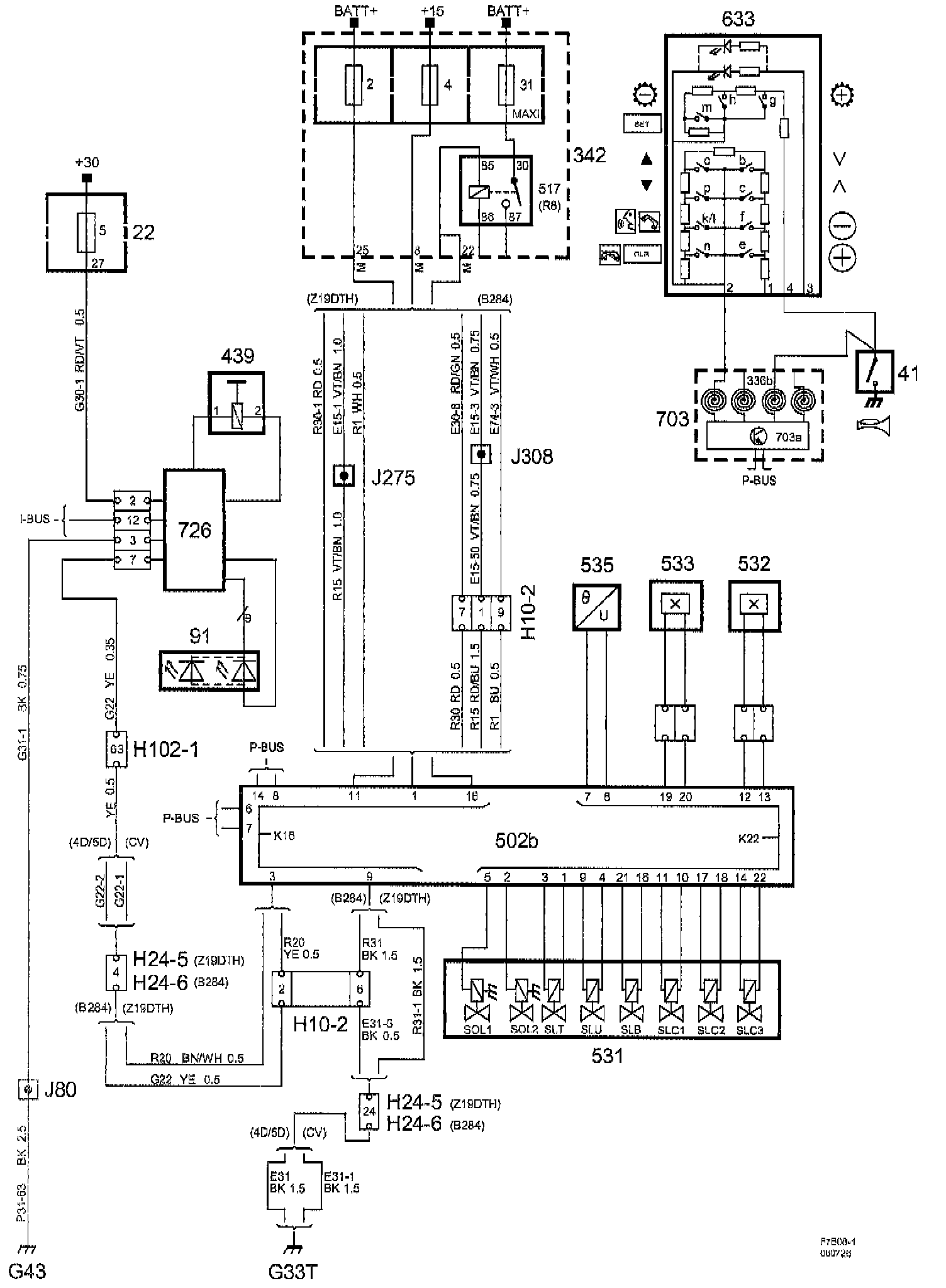

6 Speed AF40 Transmission Control System:

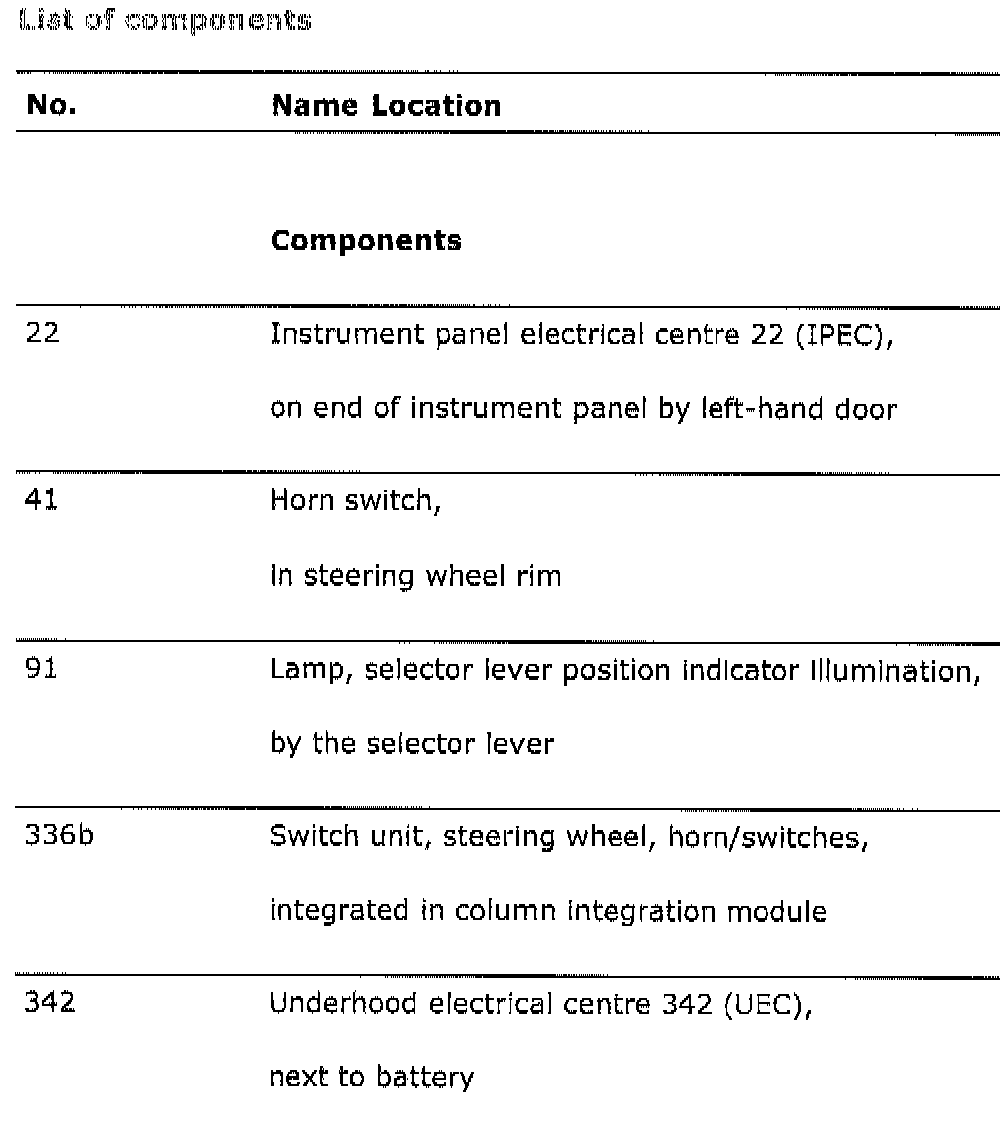

List Of Components (Part 1):

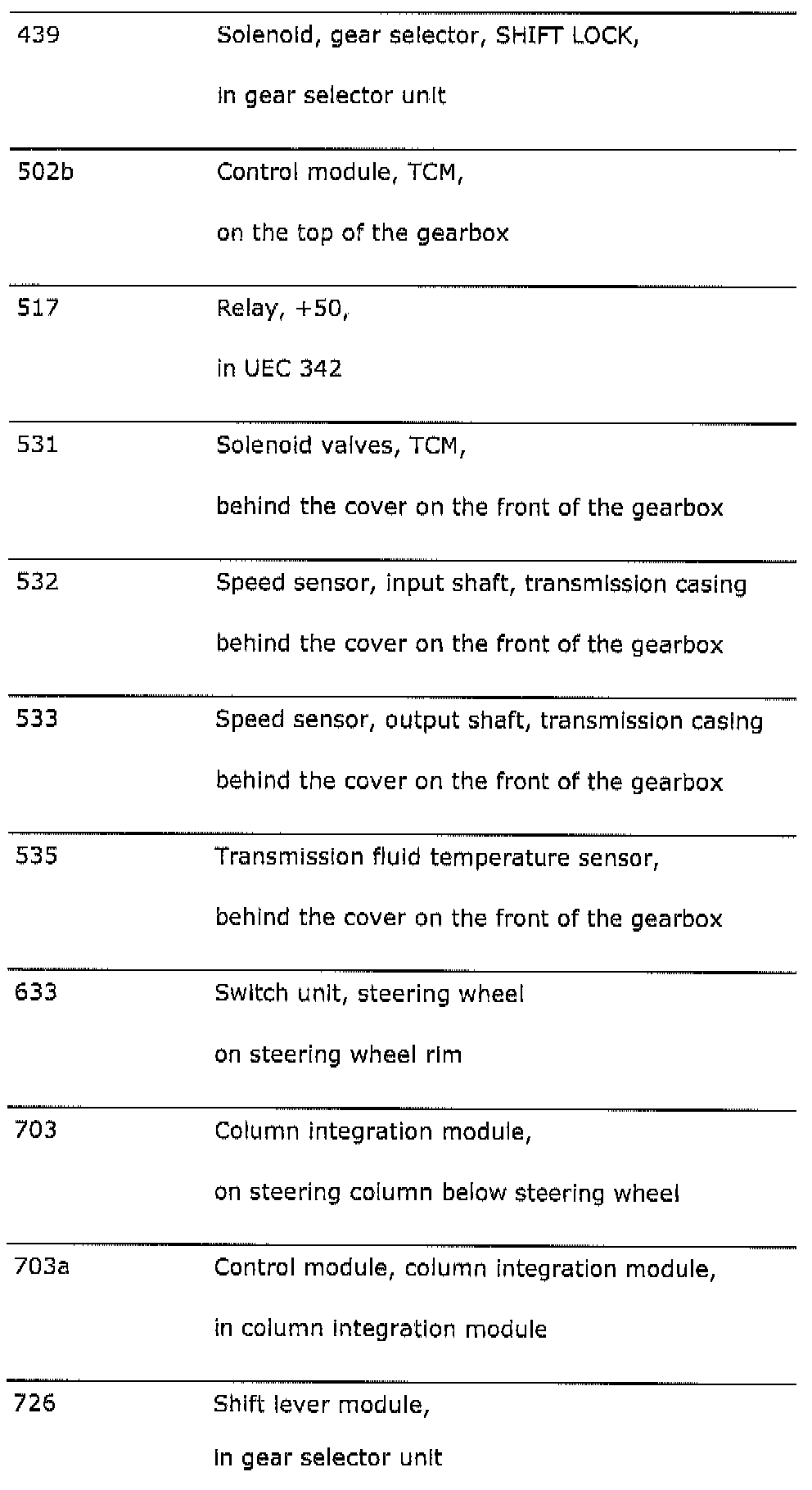

List Of Components (Part 2):

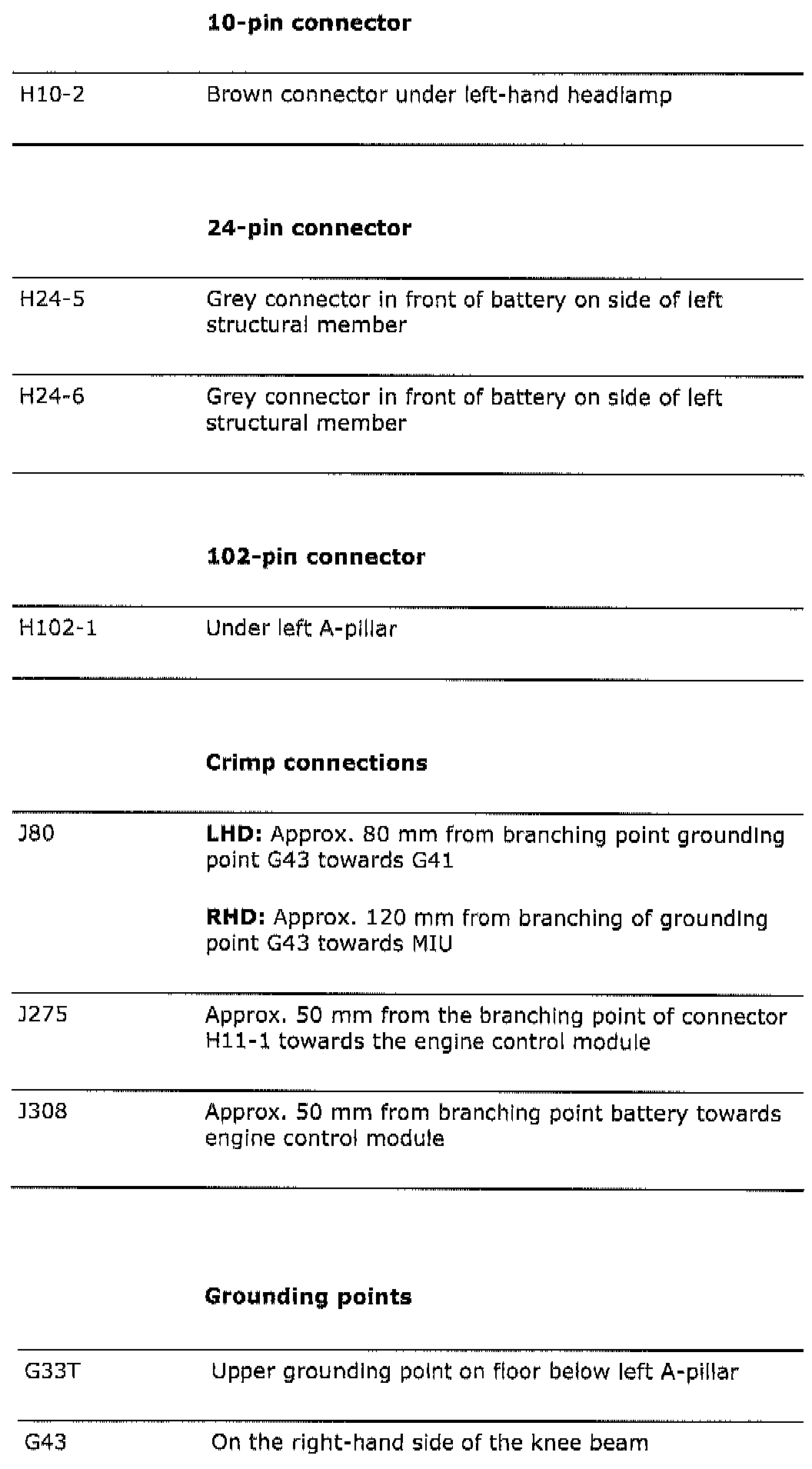

List Of Components (Part 3):
