Tires: Service and Repair

Tire with tire pressure sensor

To remove
^ Remove the tire using a tire fitting machine.

Note
It is also important to follow the instructions for the tire fitting machine.

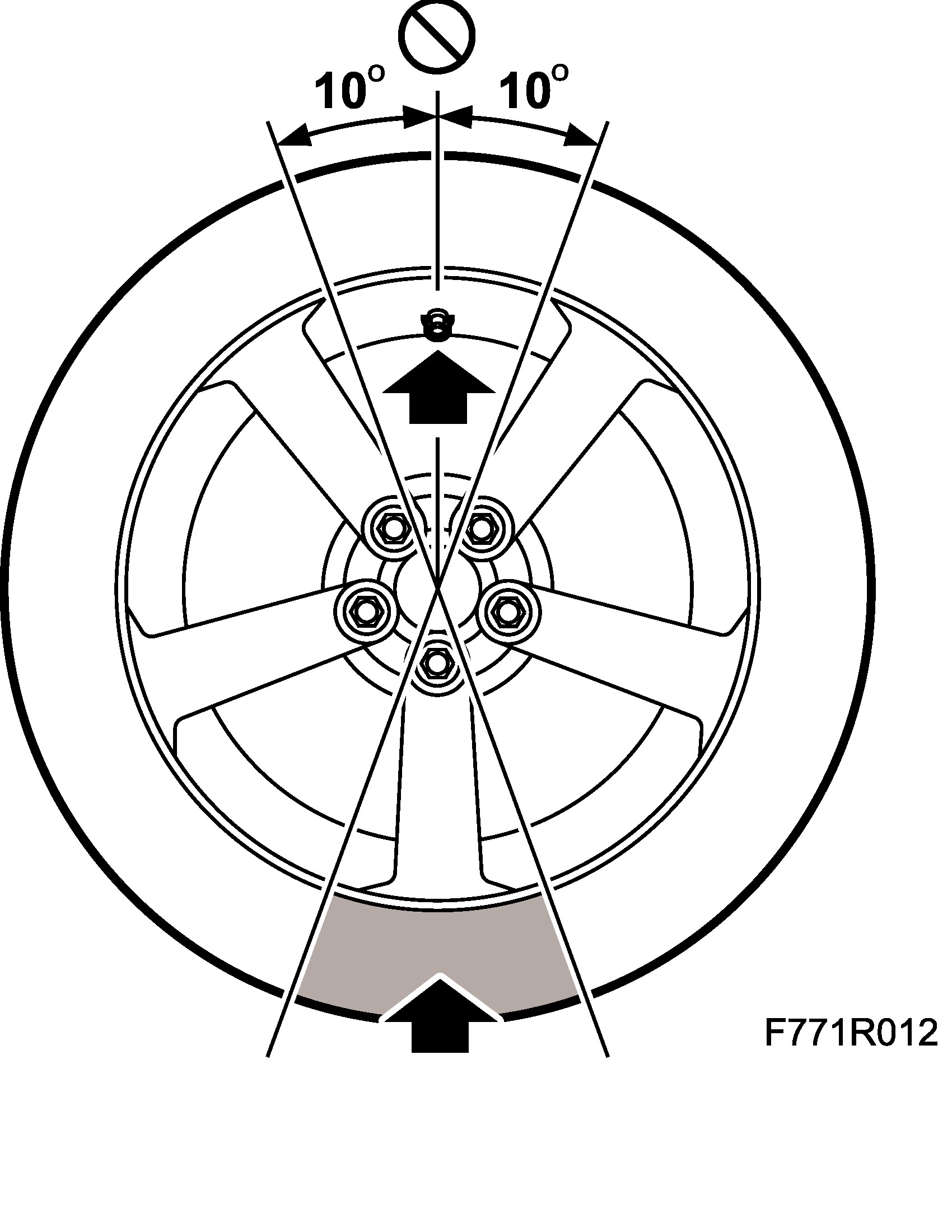

^ Do not apply the tire tool in an area ±10 degrees from the valve.





^ Start to remove opposite the valve.
^ Remove the rear side first.

To fit
^ Fit the tire using a tire fitting machine.

Note
It is also important to follow the instructions for the tire fitting machine.

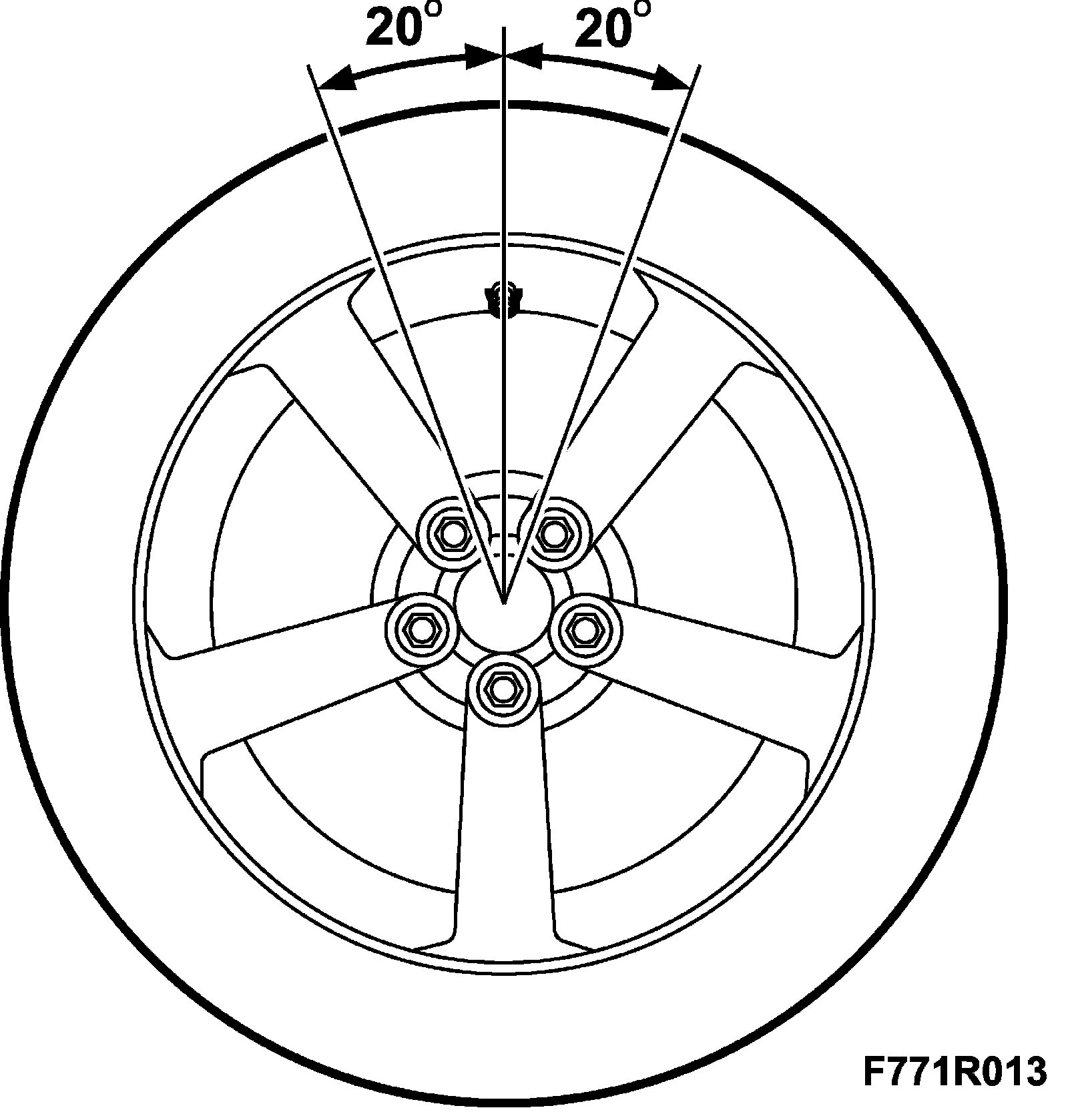

^ Start to fit around 20 degrees after the valve.





^ Finish fitting within an area 20 degrees from the valve.
^ Do not inflate the tire to a pressure higher than 7 bar.
