Control Arm Bushing: Adjustments

Suspension arm bush, rear, adjustment

Adjustment

Important
Use a track lift for the car in order to avoid damaging the bushing.

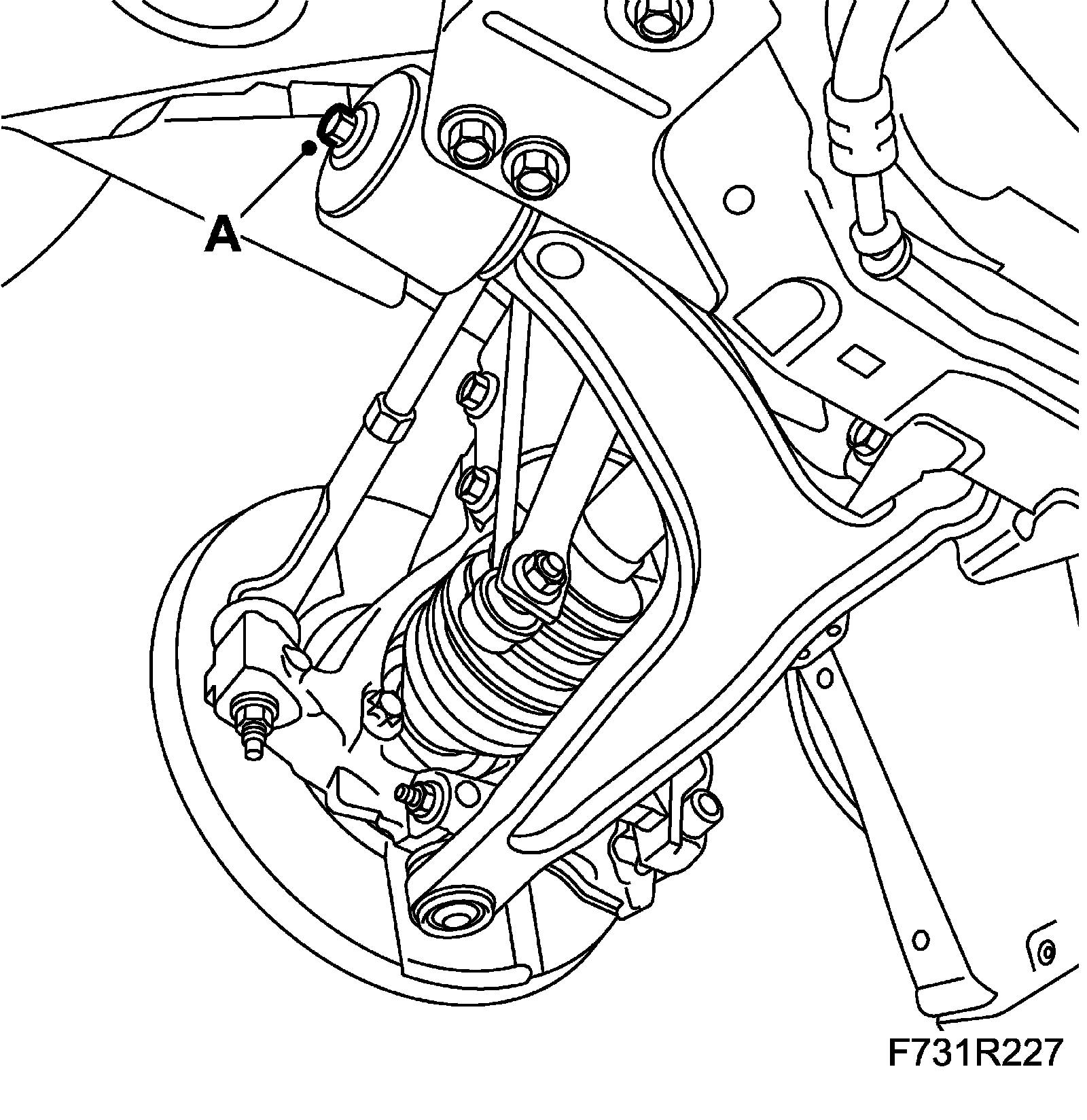

1. Remove the suspension arm bush screw (A) and replace it with a new one. Use Thread locking adhesive, Loctite 242.

Tightening torque 40 Nm + 30 degrees (30 ft. lbs. + 30 degrees)
