Tire Pressure Sensor: Service and Repair

Pressure sensor, tire pressure

To remove
1. Remove the wheel.
2. Remove the tire.

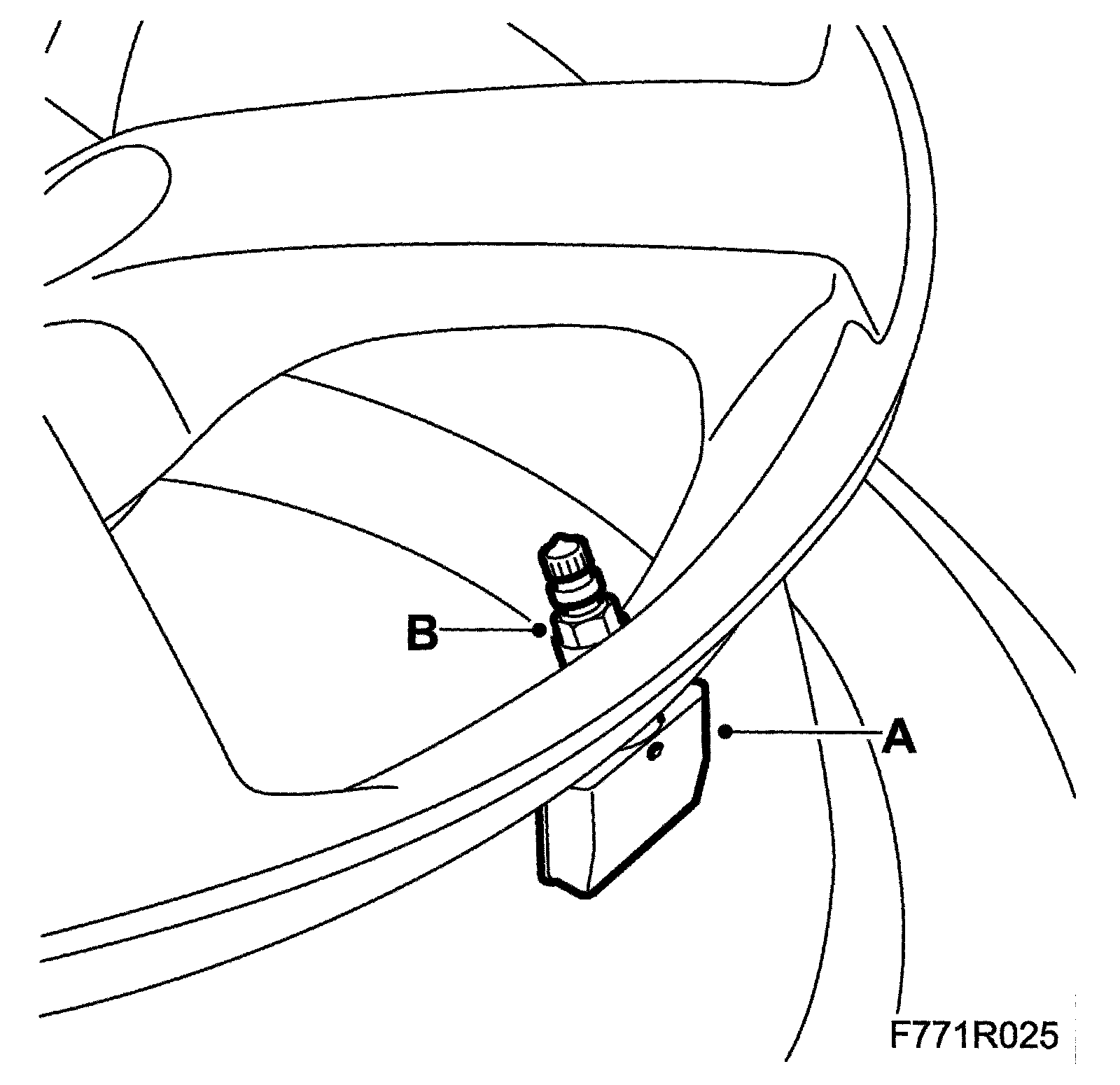

3. Remove the sensor (A) by undoing the nut (B), then lift out the sensor.





To fit
1. Fit the sensor with new rubber seal in the hole in the wheel rim.
2. Counterhold the sensor (A) when the nut (B) is fitted.

Tightening torque: 10 Nm (7.5 ft. lbs.)

3. Fit the tire.
4. Fit the Wheel.
5. Connect Tech2 and follow the instructions under Chassis - TPMS for programming the new pressure sensor.
