Power Steering Fluid Level Sensor/Switch: Description and Operation

Pressure switch, power steering fluid (739), B207

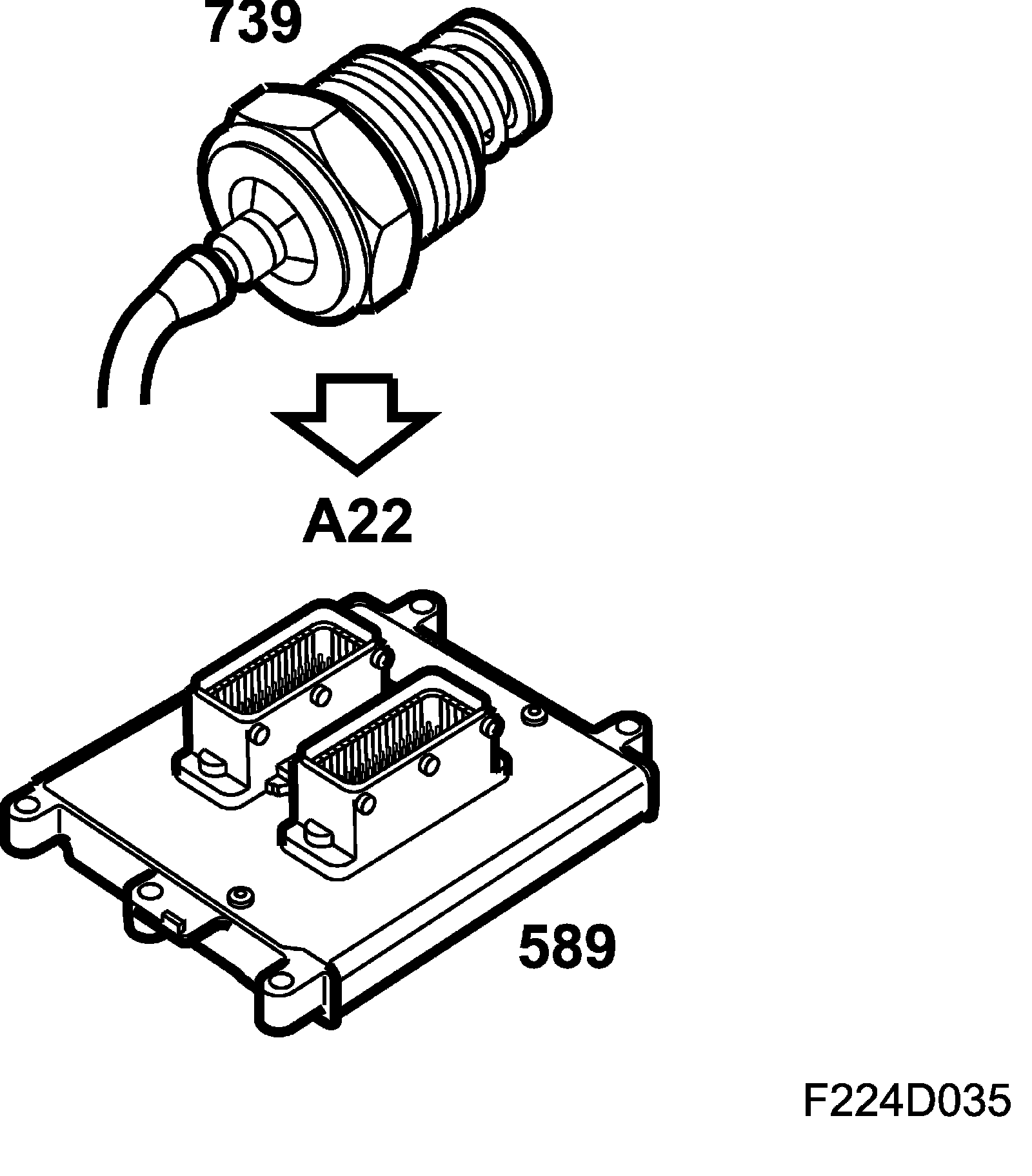

Location
Pressure switch, power steering fluid (739)

Main task
To inform ECM when great servo assistance is requested. If necessary, engine idling speed is increased.

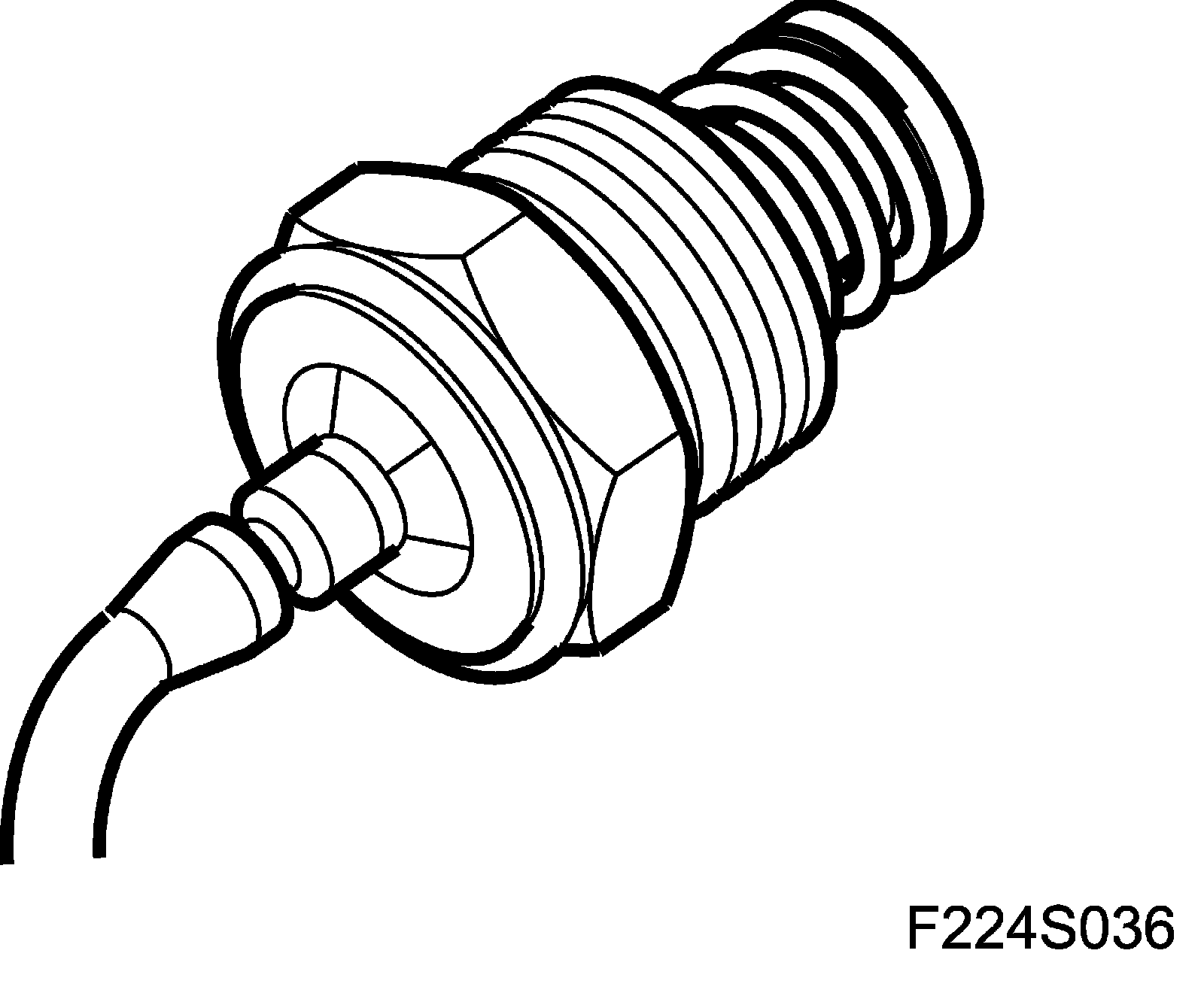

Type
Pressure-controlled, closing switch.

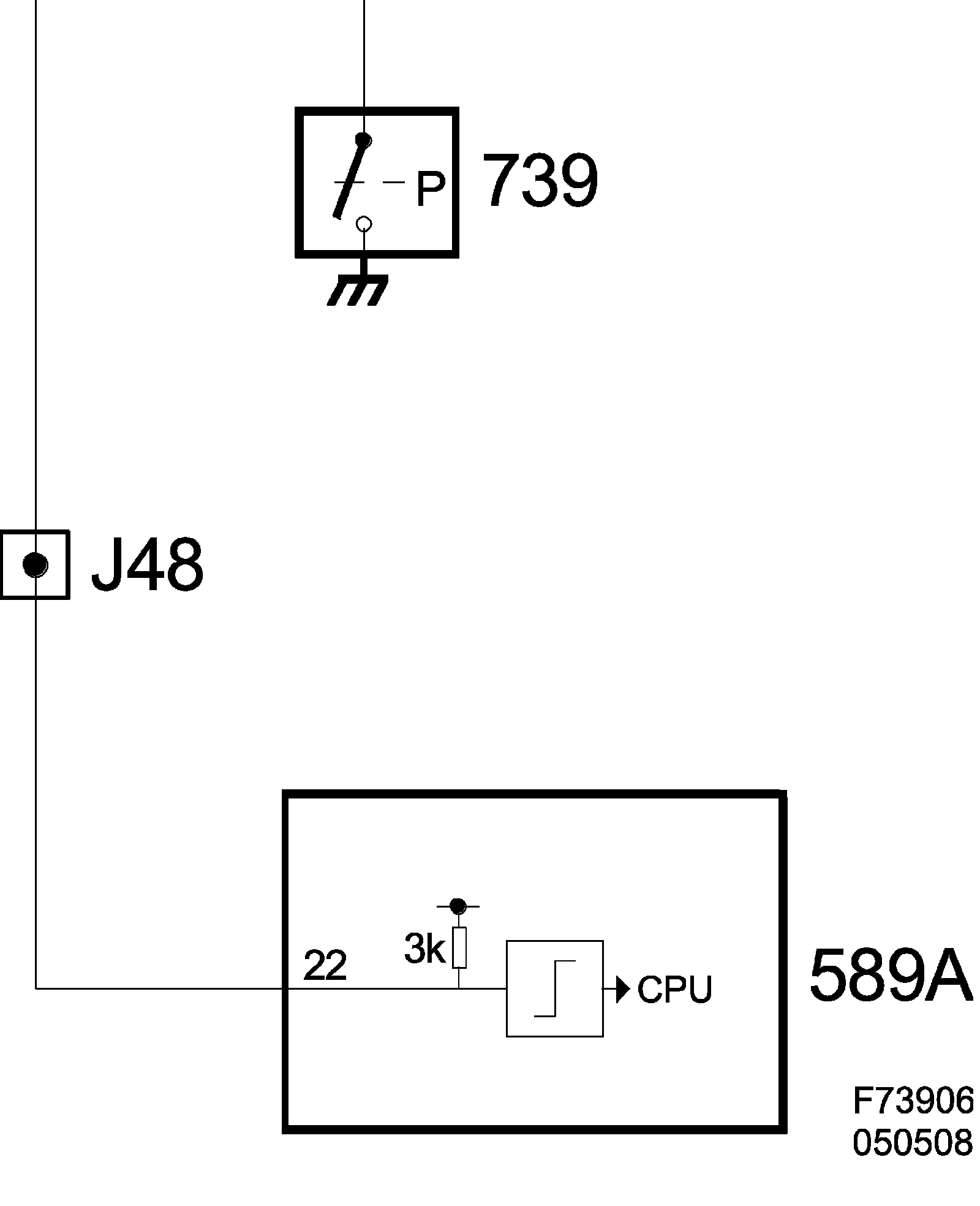

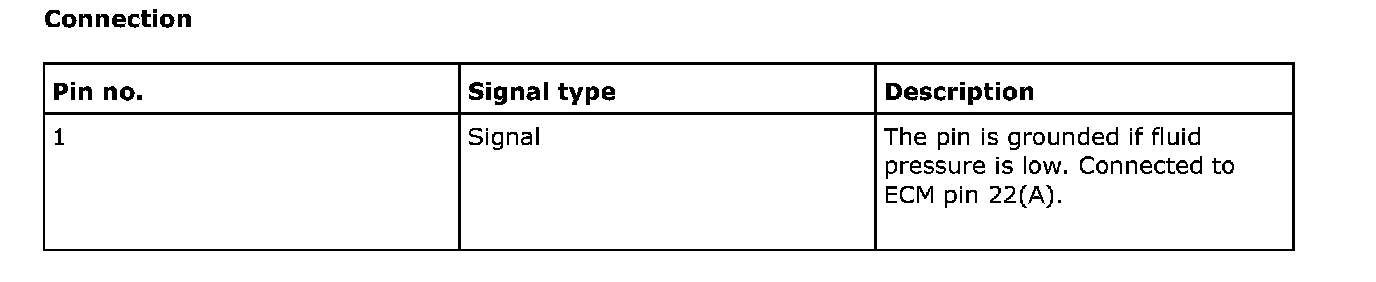

Connection
