Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation >> Starting System (SCL), Main Components

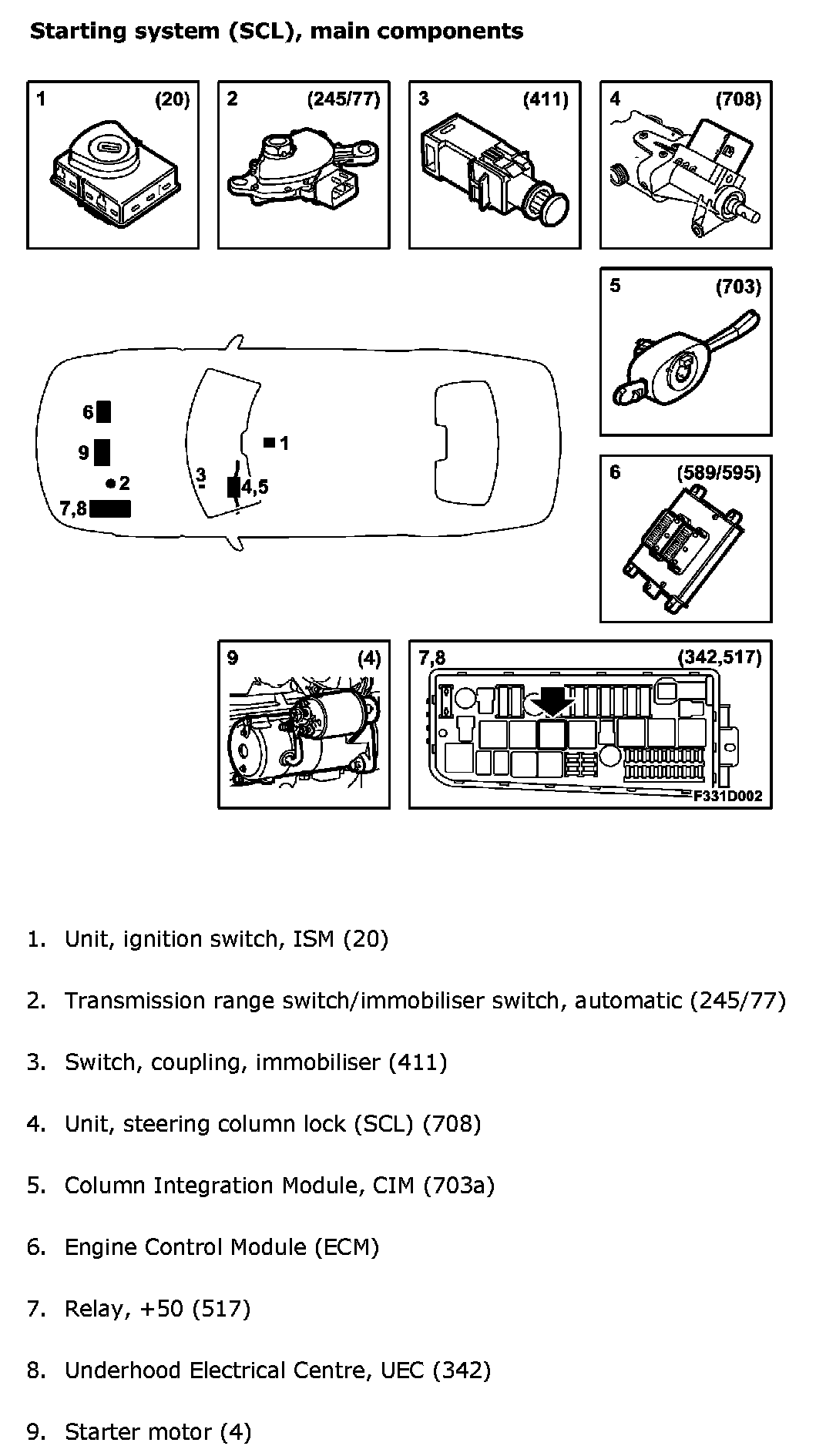

Starting System (SCL), Main Components

Starting System (SCL), Main Components:
