Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Starting and Charging >> Sensors and Switches - Starting and Charging >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

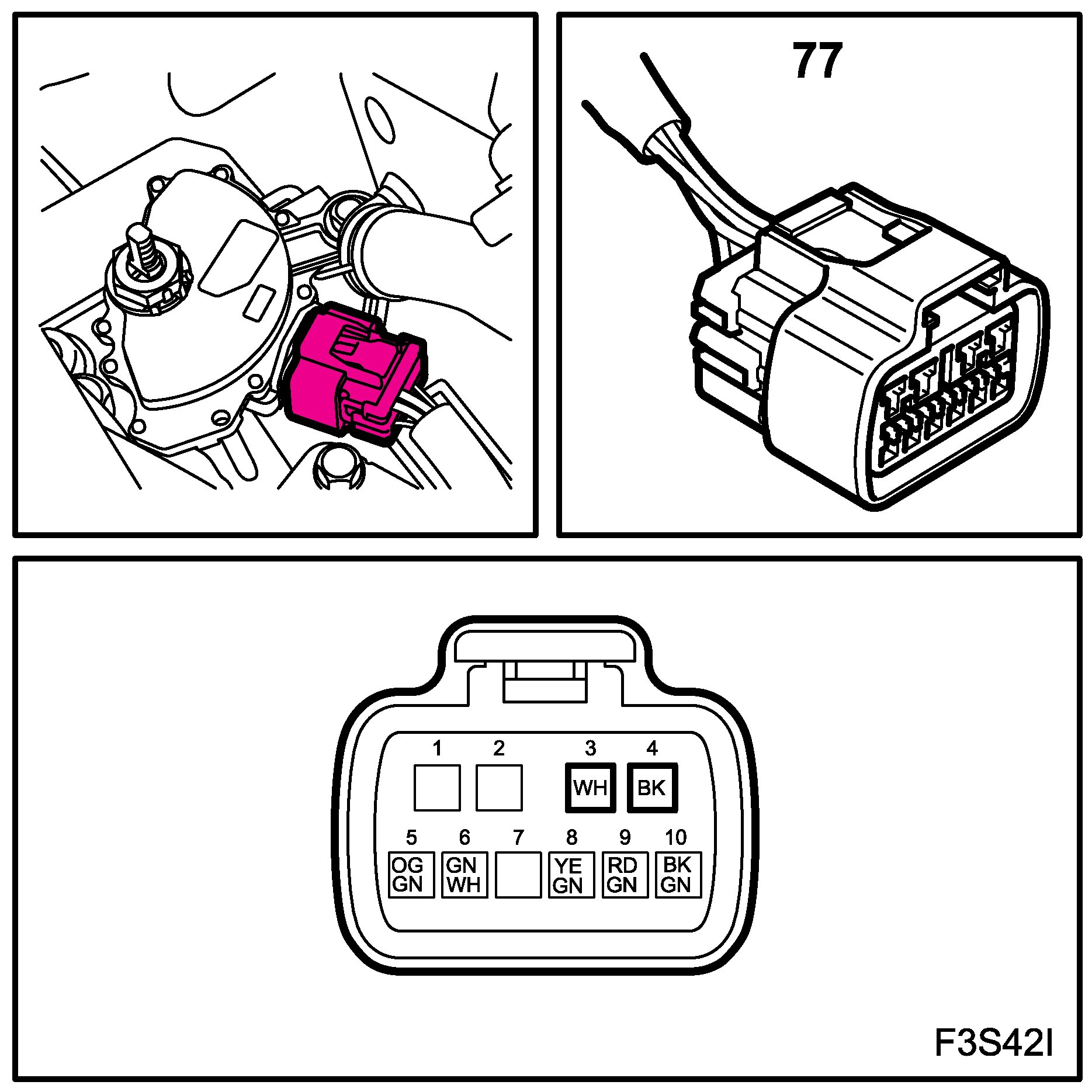

Start Inhibitor Switch, Automatic In 245 (77)

Location: In transmission range switch on transmission casing

Start Inhibitor Switch, Automatic In 245 (77):
