Fuse 5, Maxi-Fuse

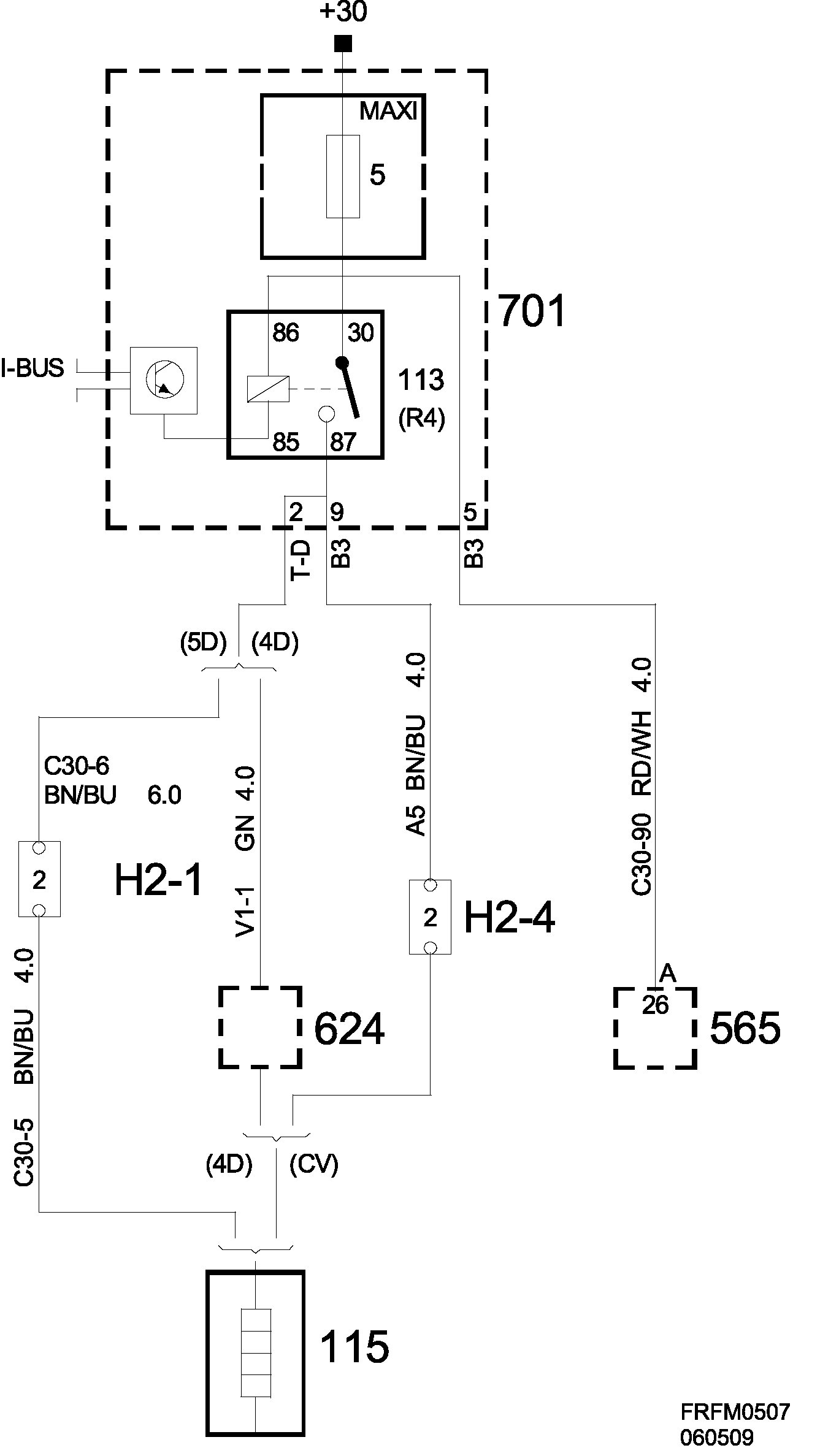

Fuse 5, Rear Electrical Centre 701, Maxi-fuse:

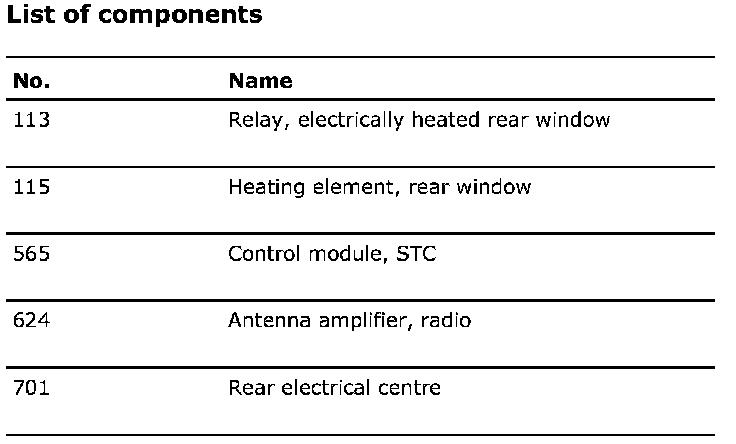

List Of Components:

power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
