Main Fuse Box 727 For B207, In Engine Bay

Main Fuse Box 727 For B207, In Engine Bay

Main Fuse Box 727 For B207, In Engine Bay:

Location
The electrical centre in front of the battery

Main task
Act as the electrical centre for the engine management system T8 as well as the petrol pump relay 102, which is located in the compartment under the right A-pillar.

Type
Electrical centre with relays, maxi and micro-fuses.

Connect
The electrical centre is integrated into the engine harness.

Power supply, main fuse box 727

Fuses

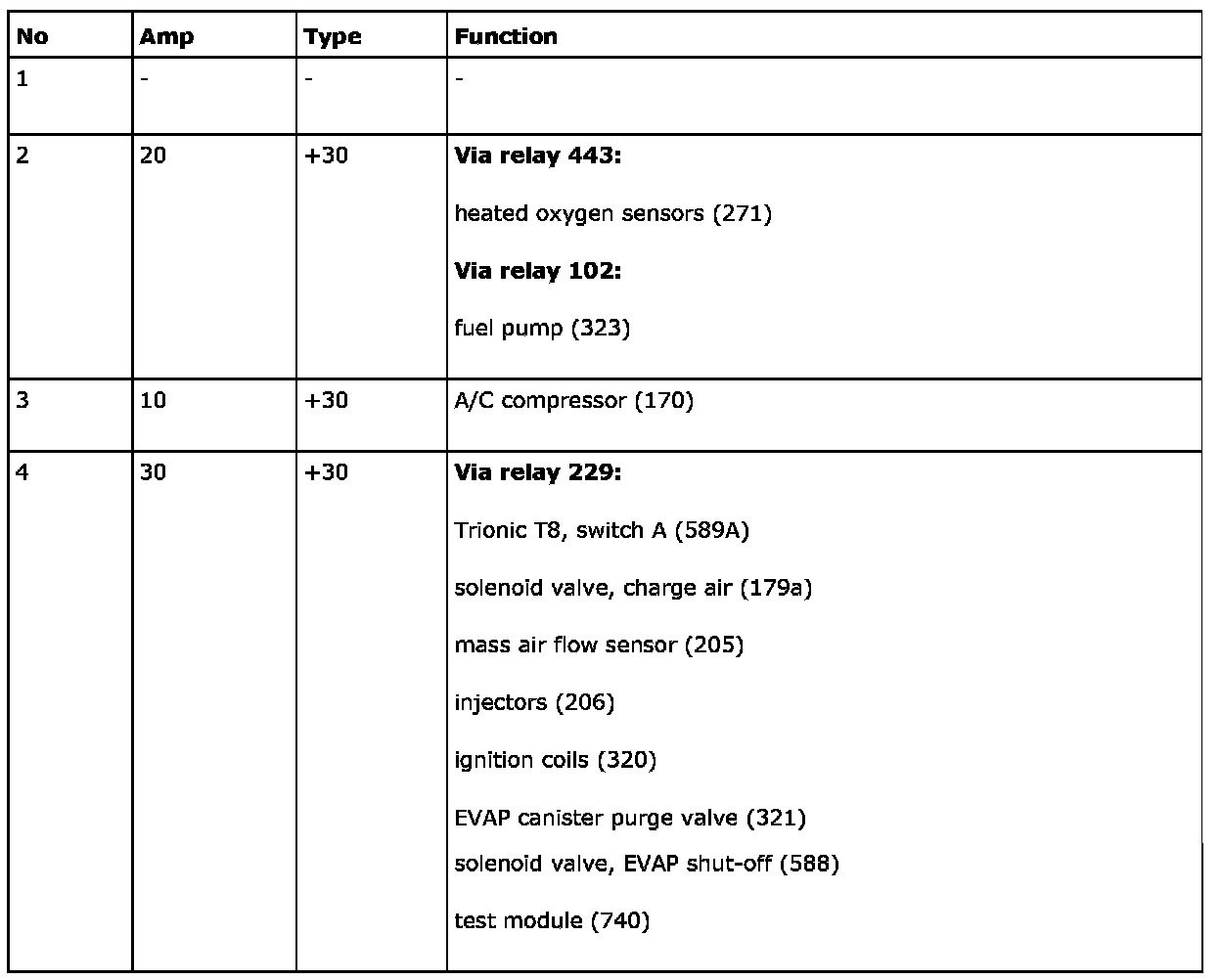

Fuses:

Relays

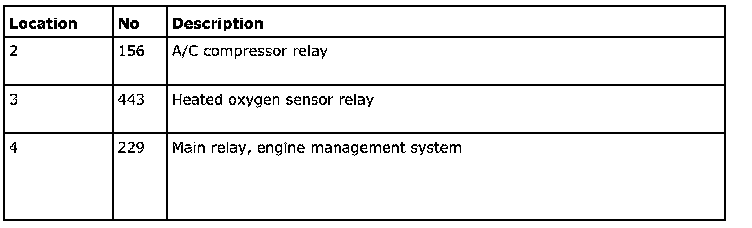

Relays:
