Rear Electrical Center 701 (REC)

Rear electrical center 701 (REC)

Location
The electrical center is located in the luggage compartment on the left-hand wheel housing.

Main task
Act as the electrical center for the rear of the car and the roof, and perform certain logic functions such as for the rear lighting.

Type

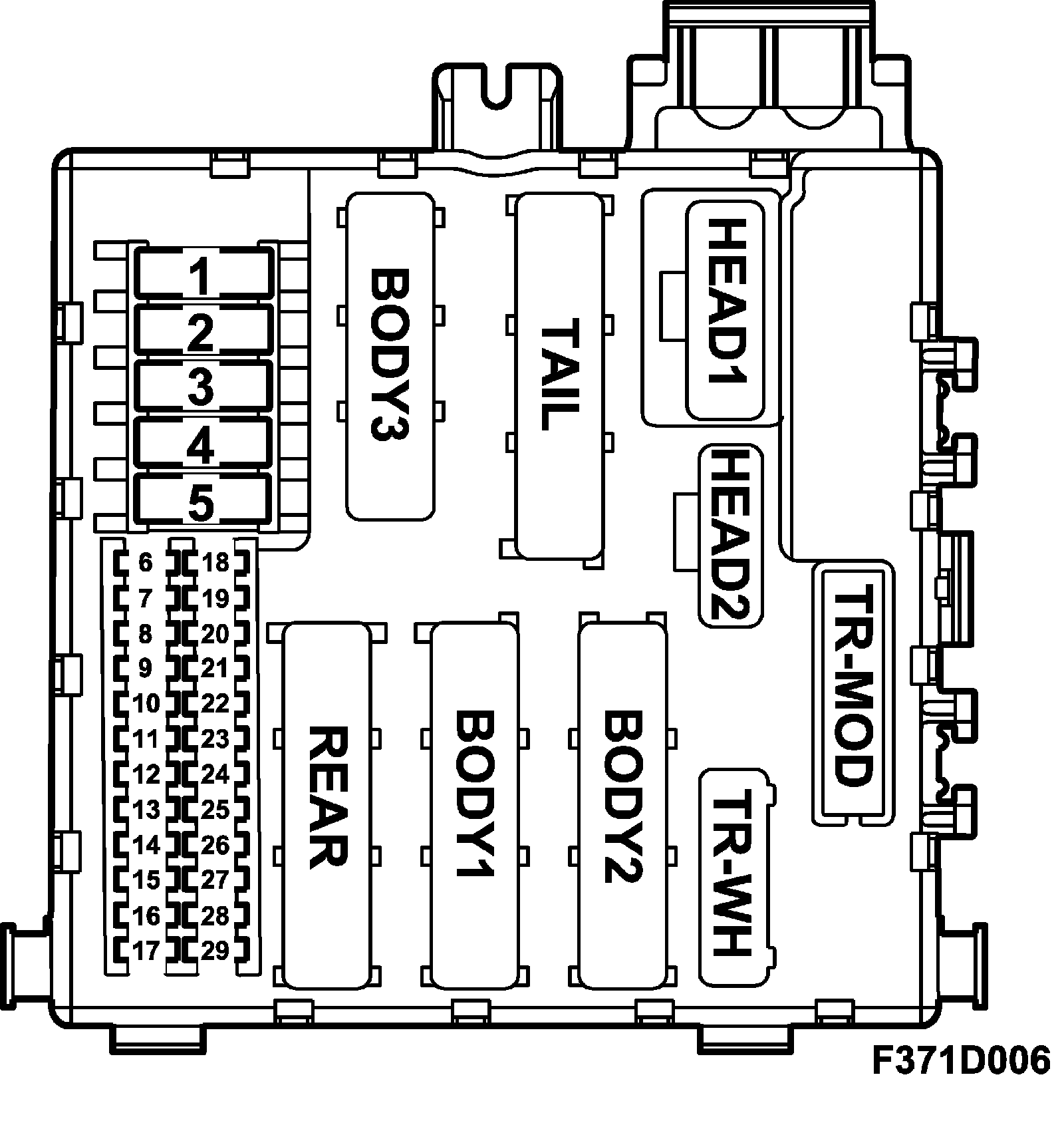

Electrical center with relays, Maxi and micro fuses and an integrated control module for logic functions. Wiring for a trailer connector is connected to the electrical center





Connect

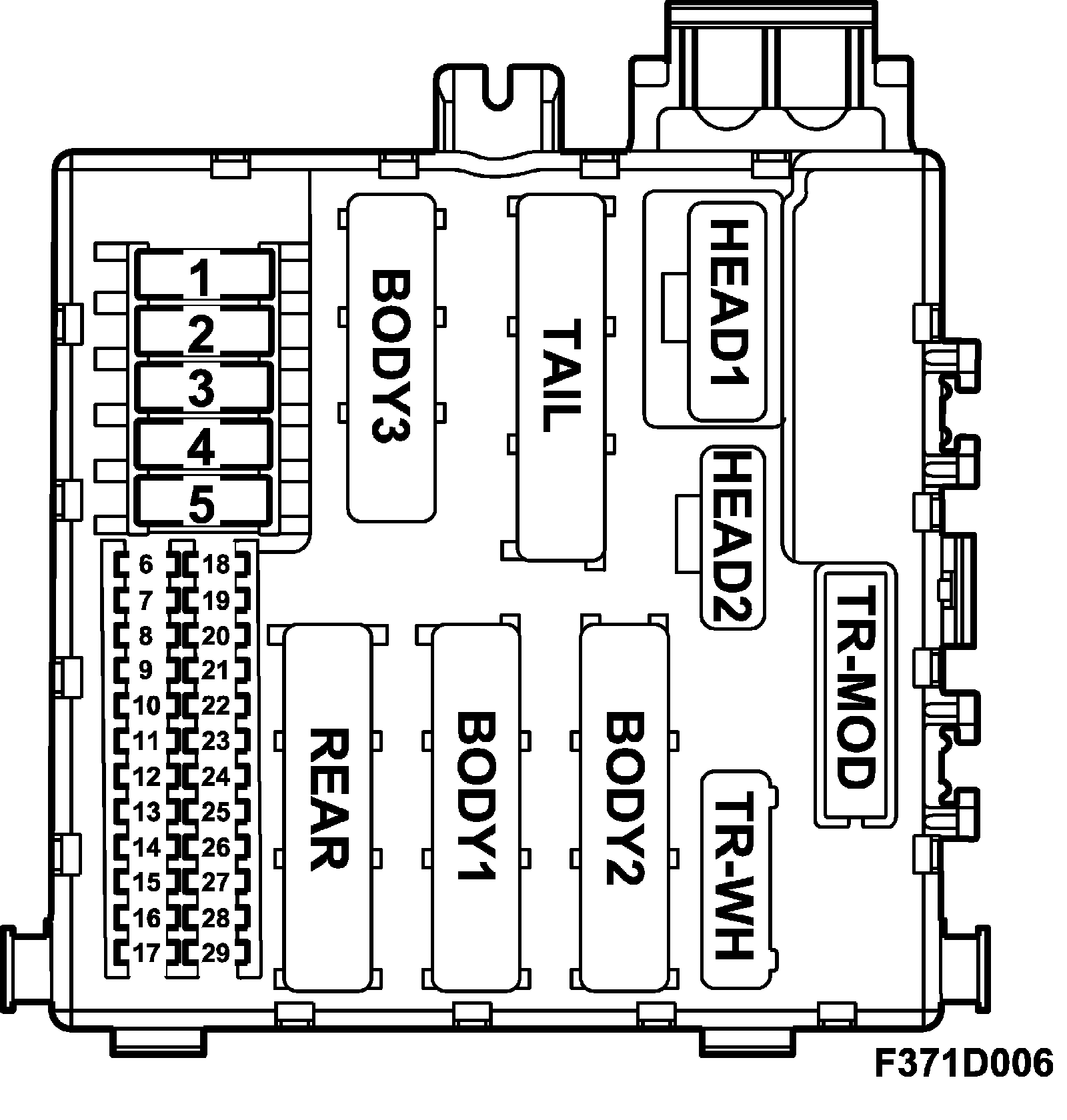

The electrical center is fed with a +30 supply from the engine bay electrical center (342) and grounded to grounding points G3 and G29. The electrical center is connected to the wiring harness via 7 connectors:

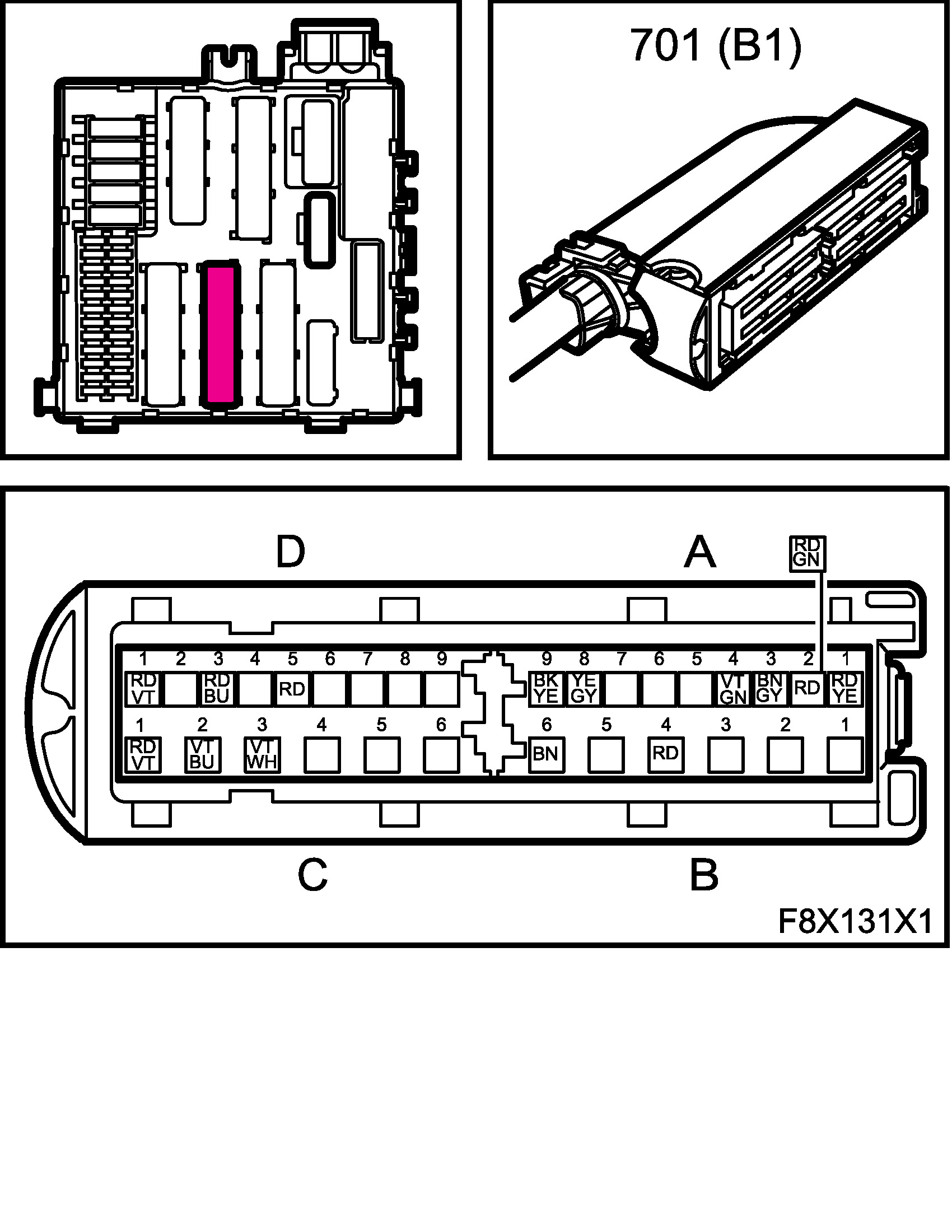

1. Body 1 (in diagram = B1) to main wiring harness

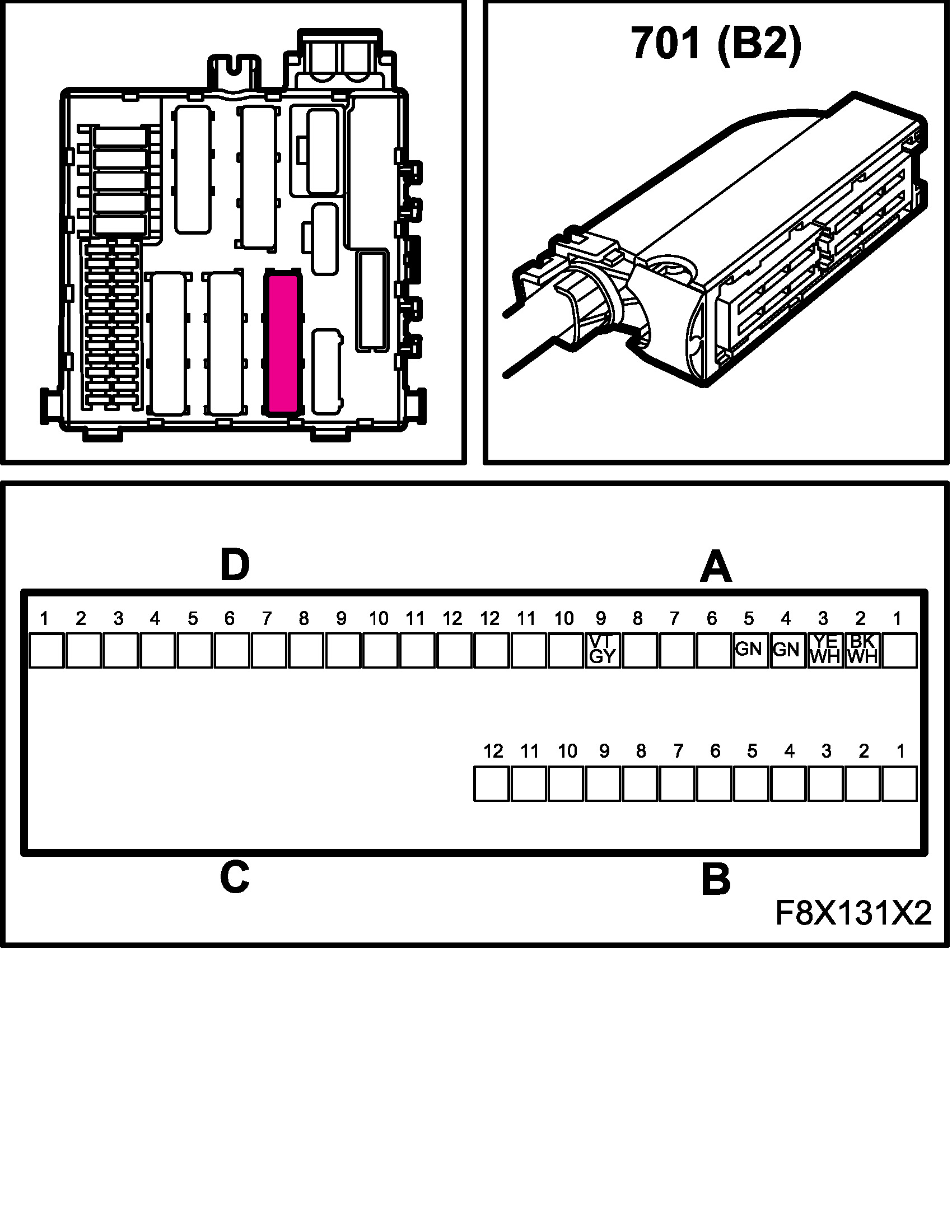

2. Body 2 (in diagram = B2) to main wiring harness

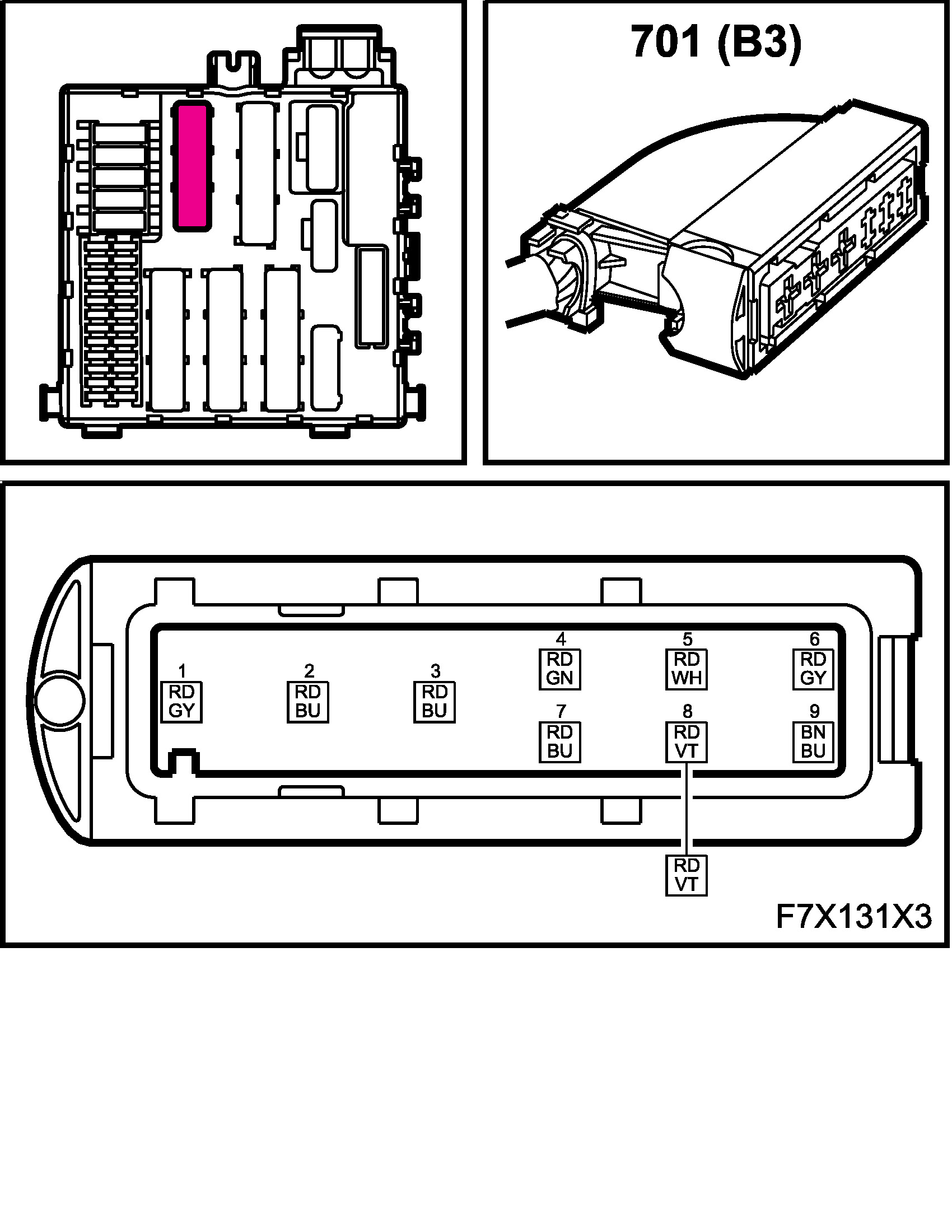

3. Body 3 (in diagram = B3) to main wiring harness

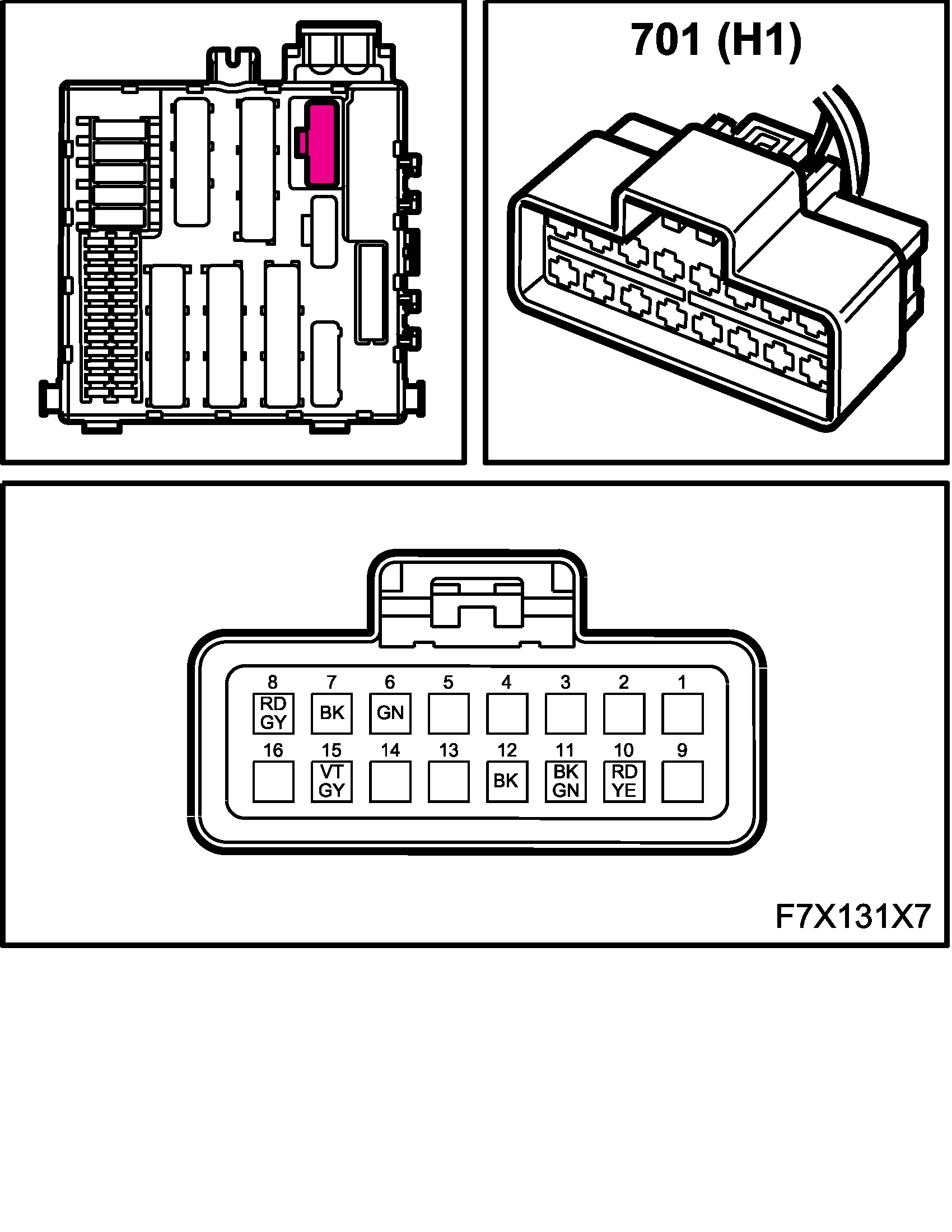

4. Head 1 (in diagram = H1) to roof wiring harness

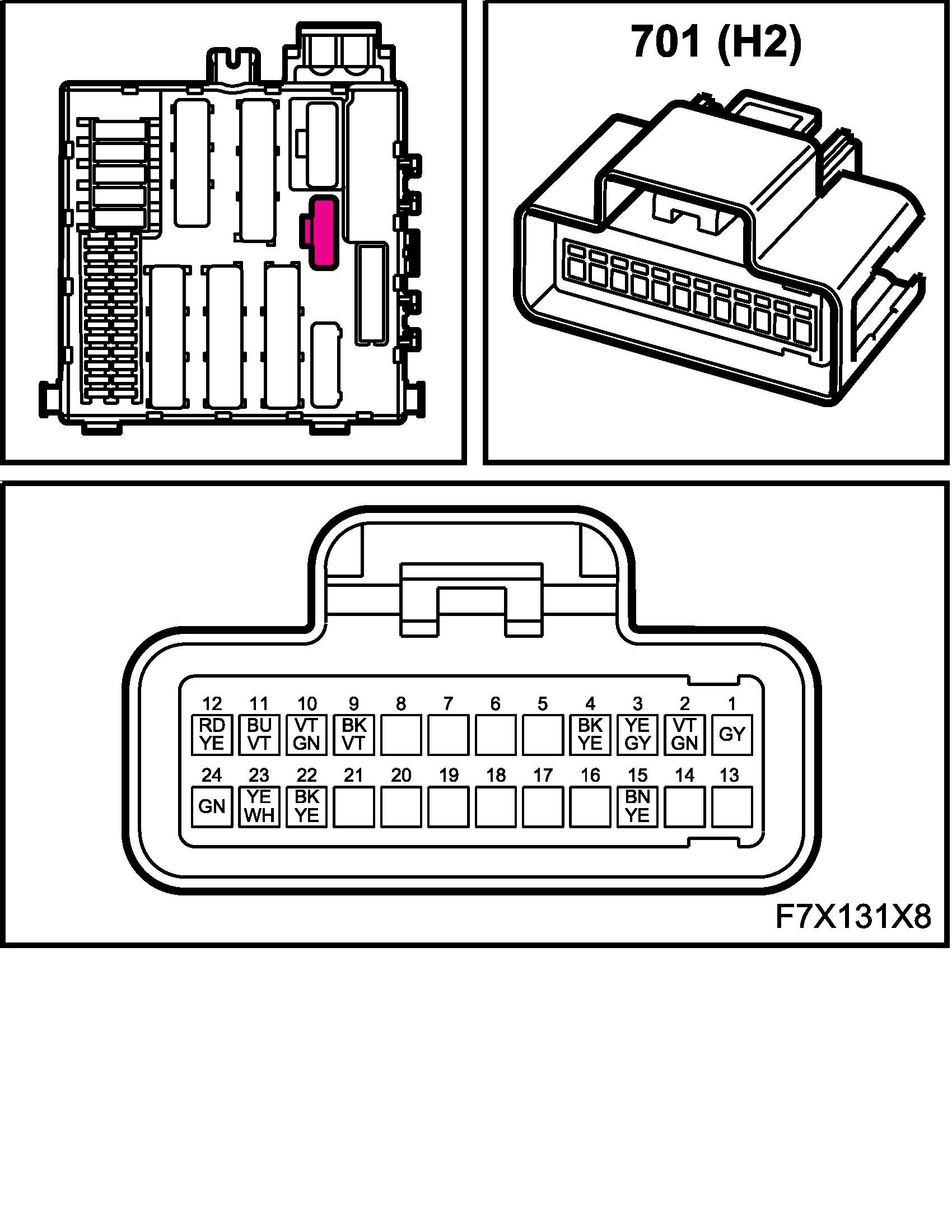

5. Head 2 (in diagram = H2)
4D/5D to roof harness
CV to main wiring harness

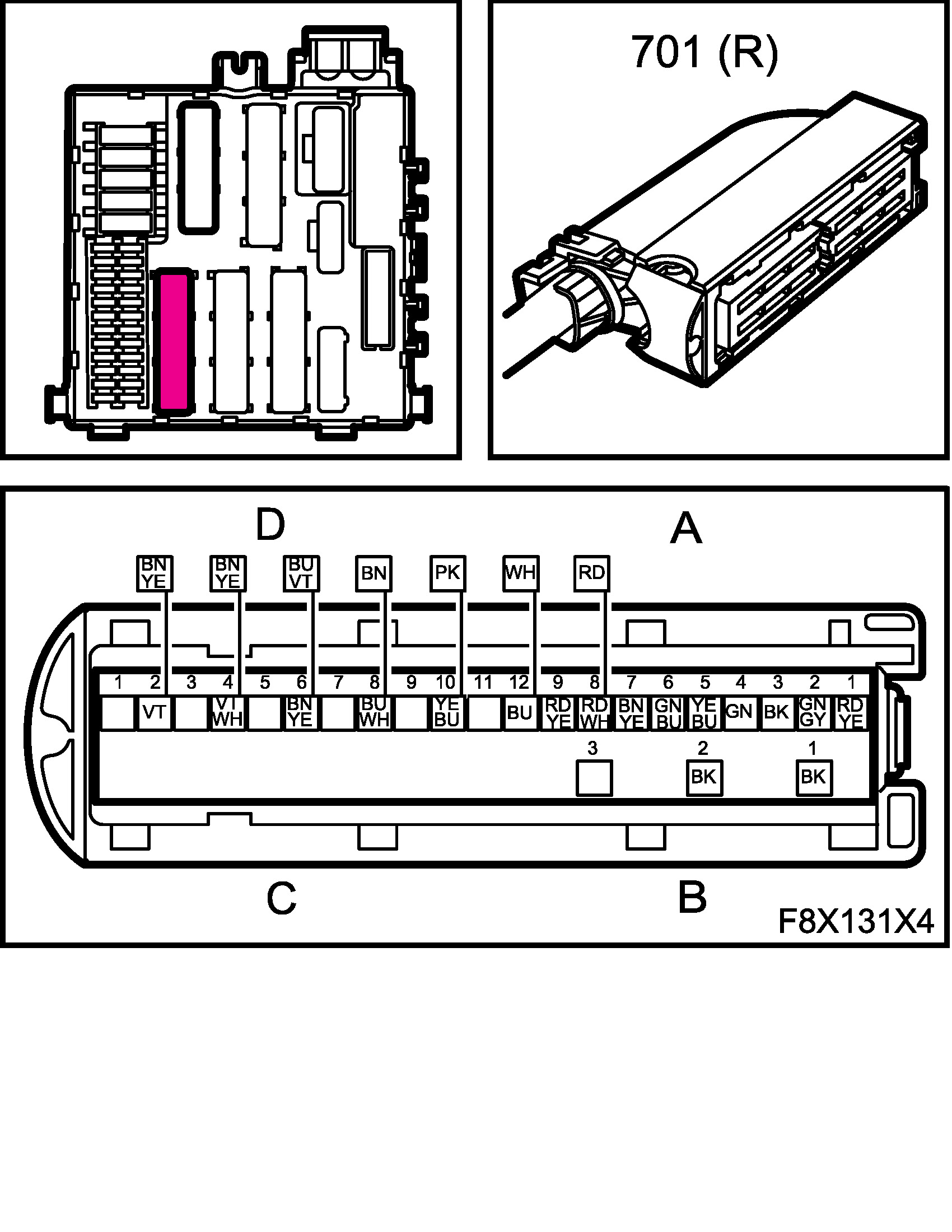

6. Rear (in diagram = R) to rear wiring harness

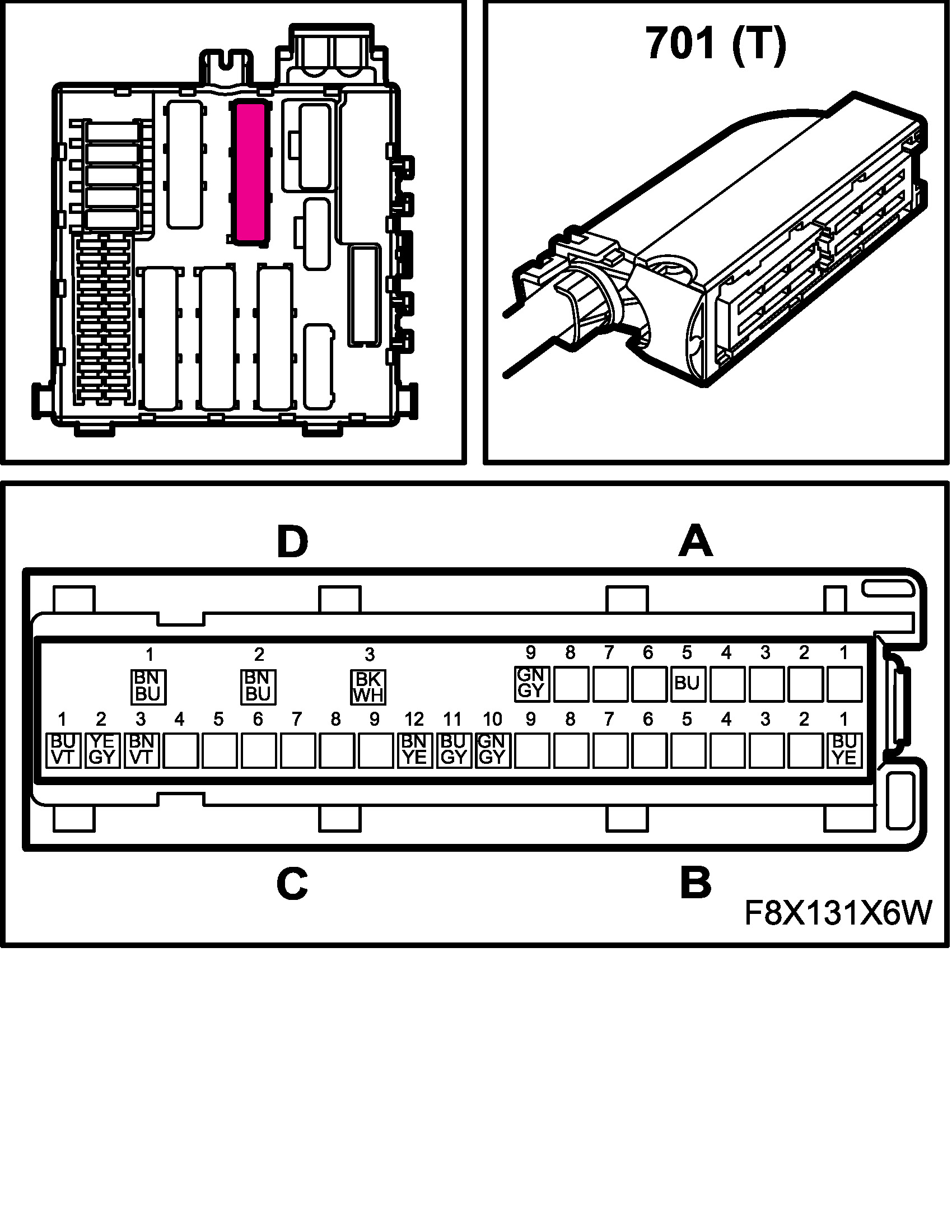

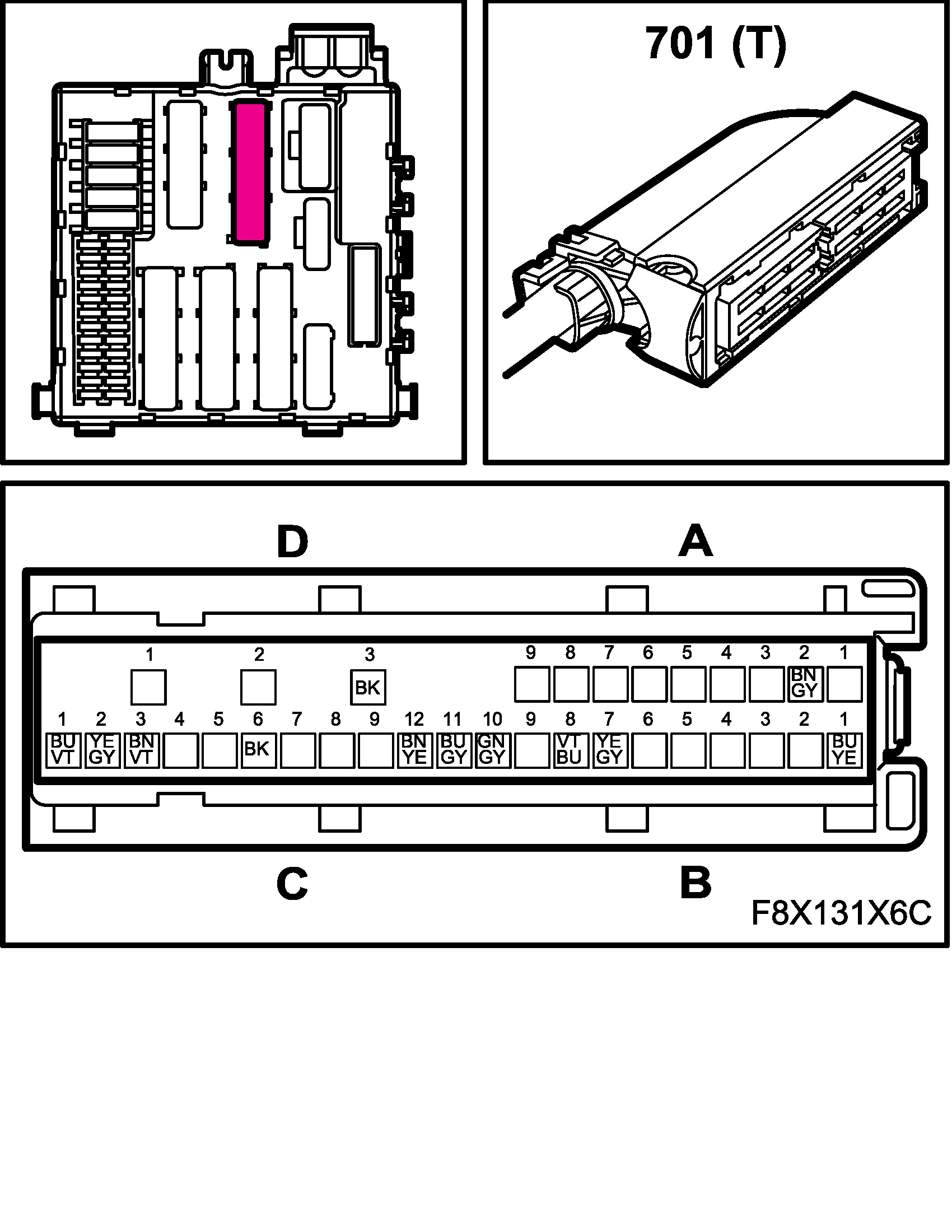

7. Tail (in diagram = T)

4D: to the main wiring harness





5D: to rear harness





CV: to rear harness





The connectors for the main and rear wiring harnesses each comprise four subconnectors, which are named A, B, C and D in the wiring diagrams, for example B1-B.

The TR-WH connector is used for a trailer connector. In some cases a special module, TR-MOD, is required.

The following current circuits are distributed by the electrical center

+30 power supply, rear electrical center

+15 power supply, rear electrical center

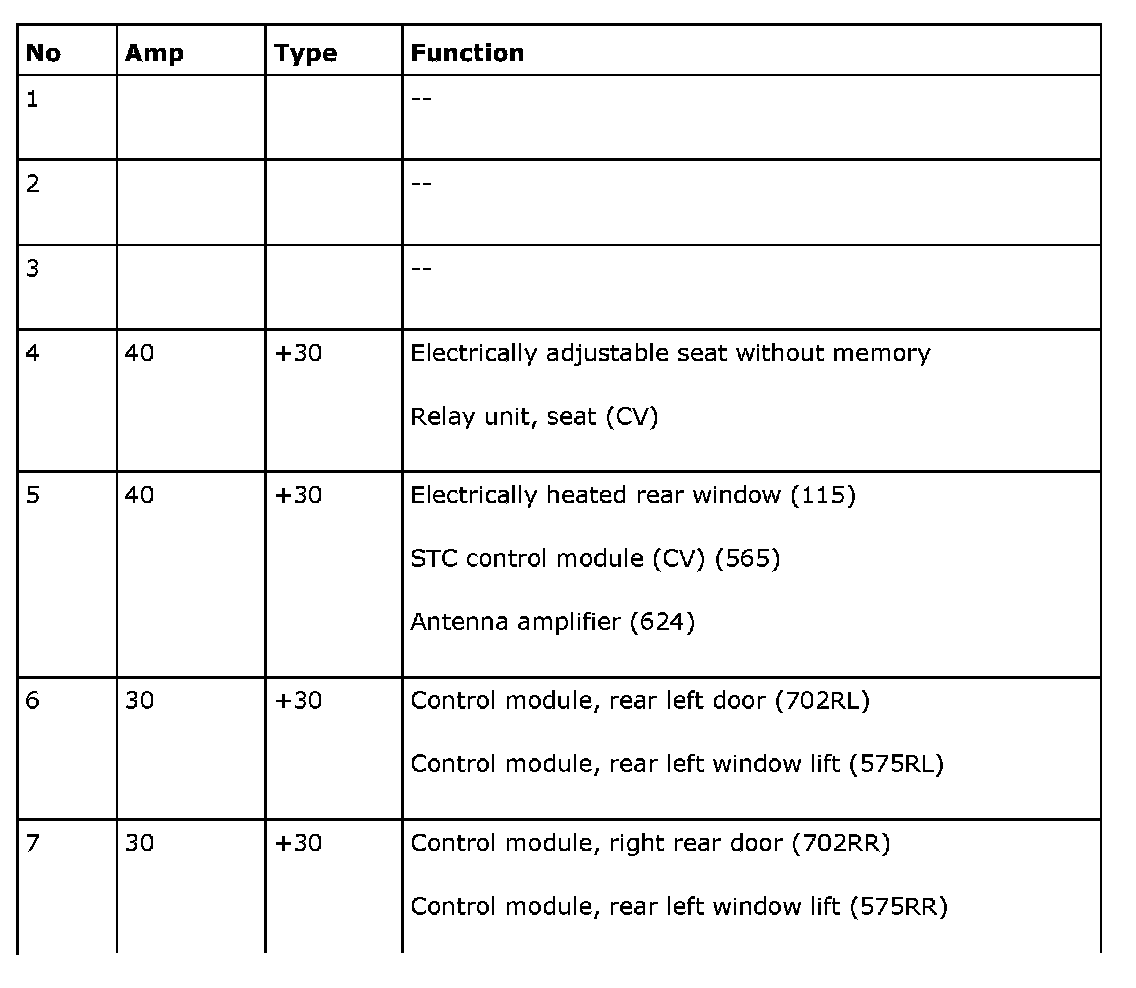

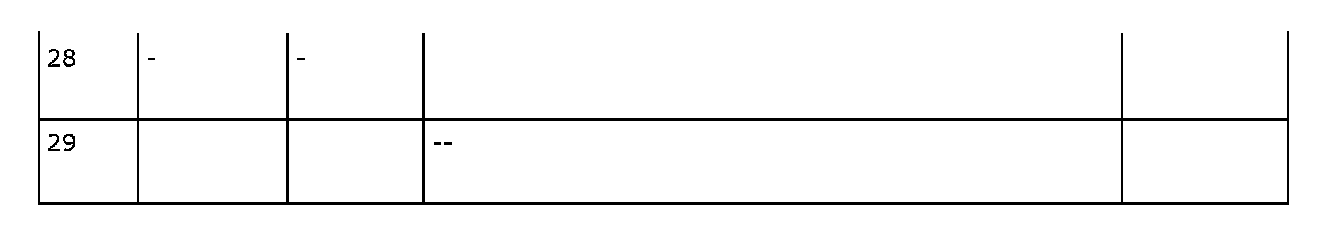

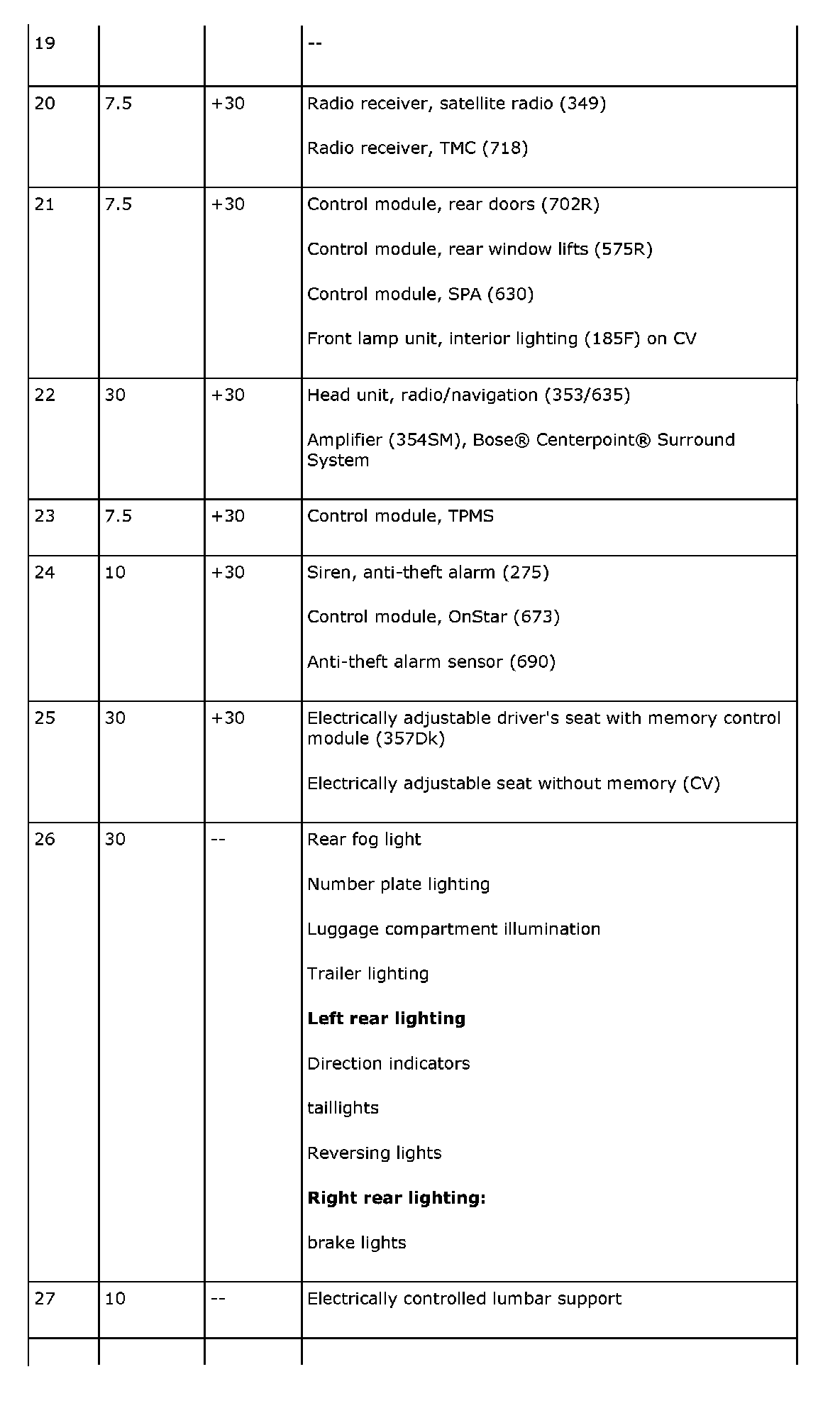

Fuses





The electrical center can contain a greater number of fuses than those listed below. In such cases, these are not connected to a wiring harness.

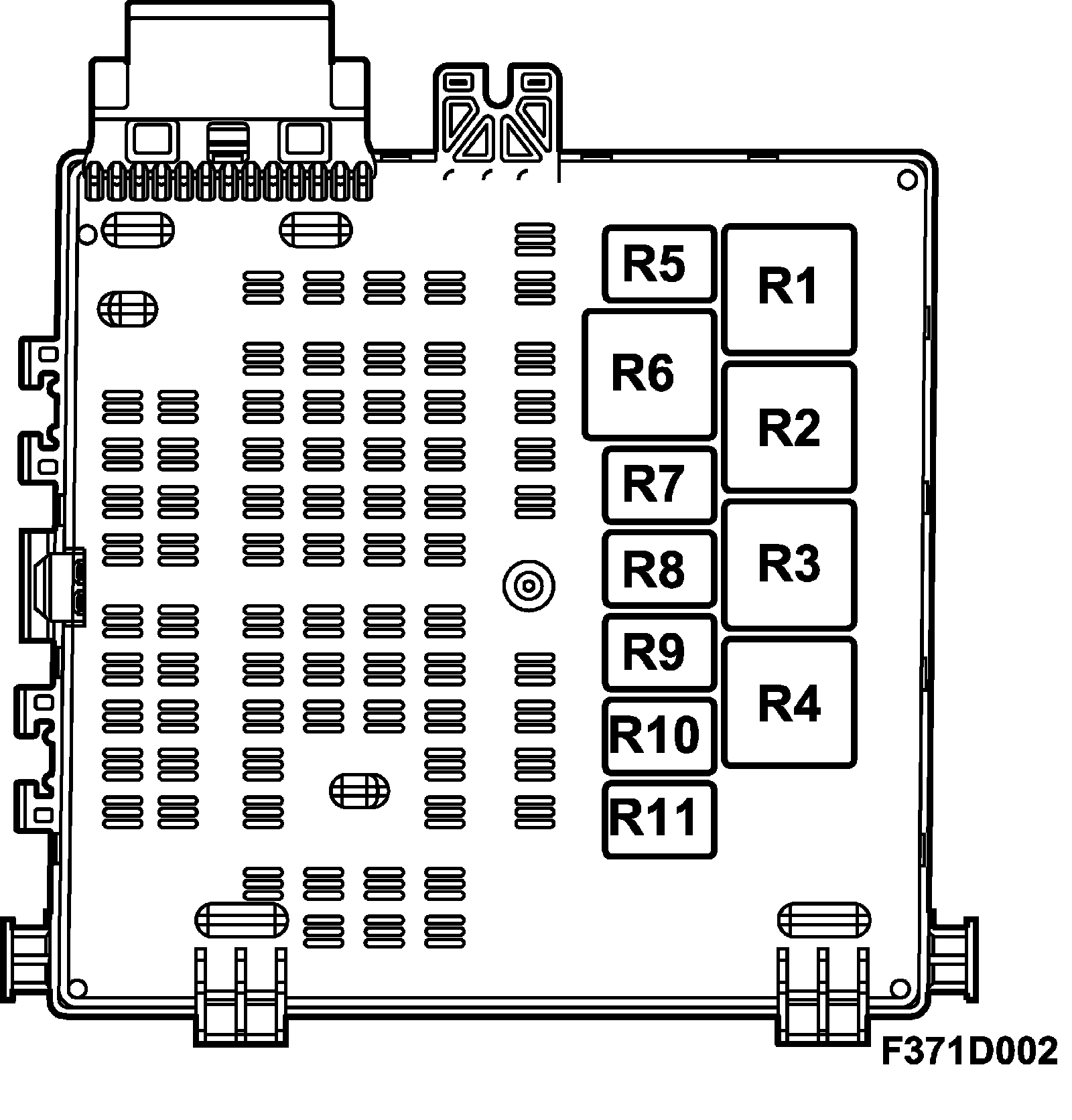

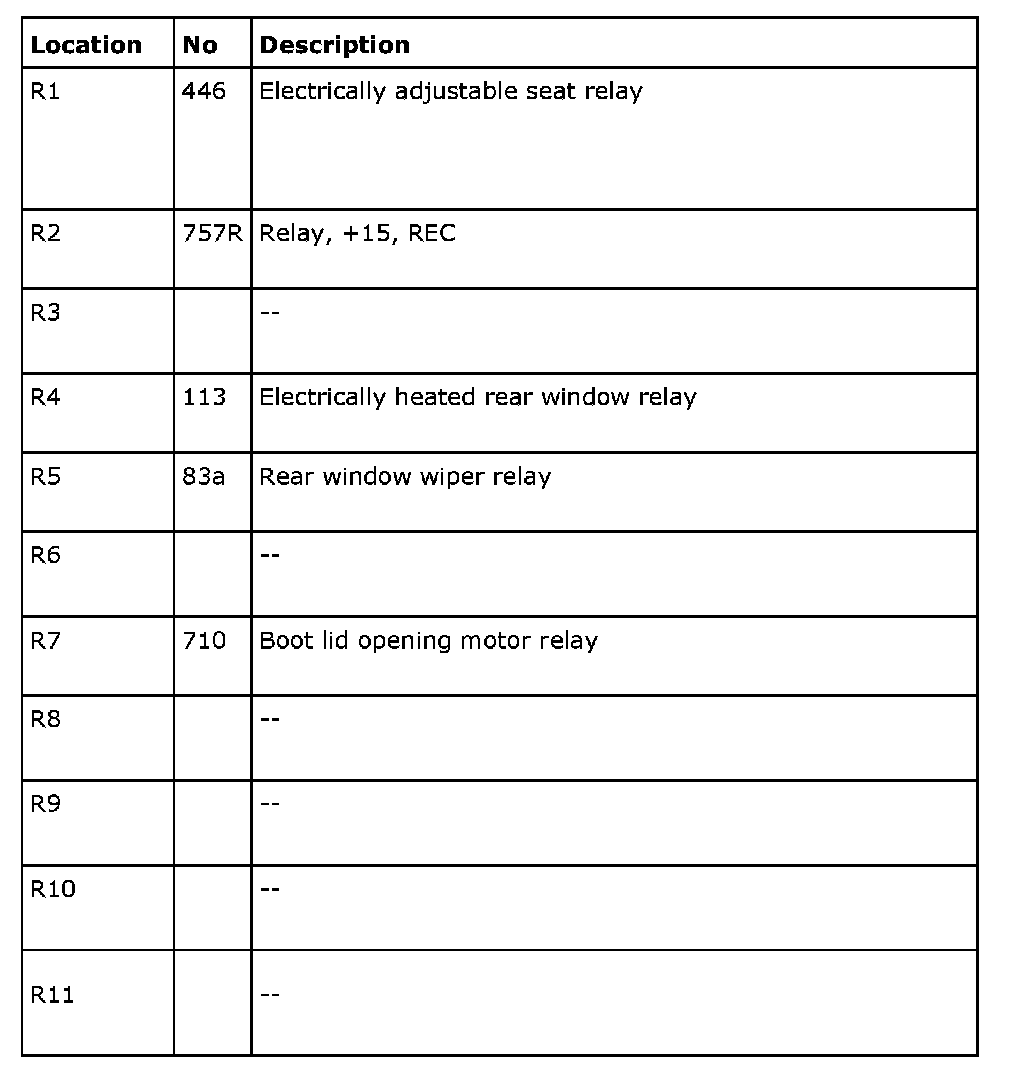

Relays





The electrical center can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.
