Crimp Connection J82, Instrument Harness
Crimp Connection J82, Instrument Harness
Location:
At connector H33-4 at right A-pillar

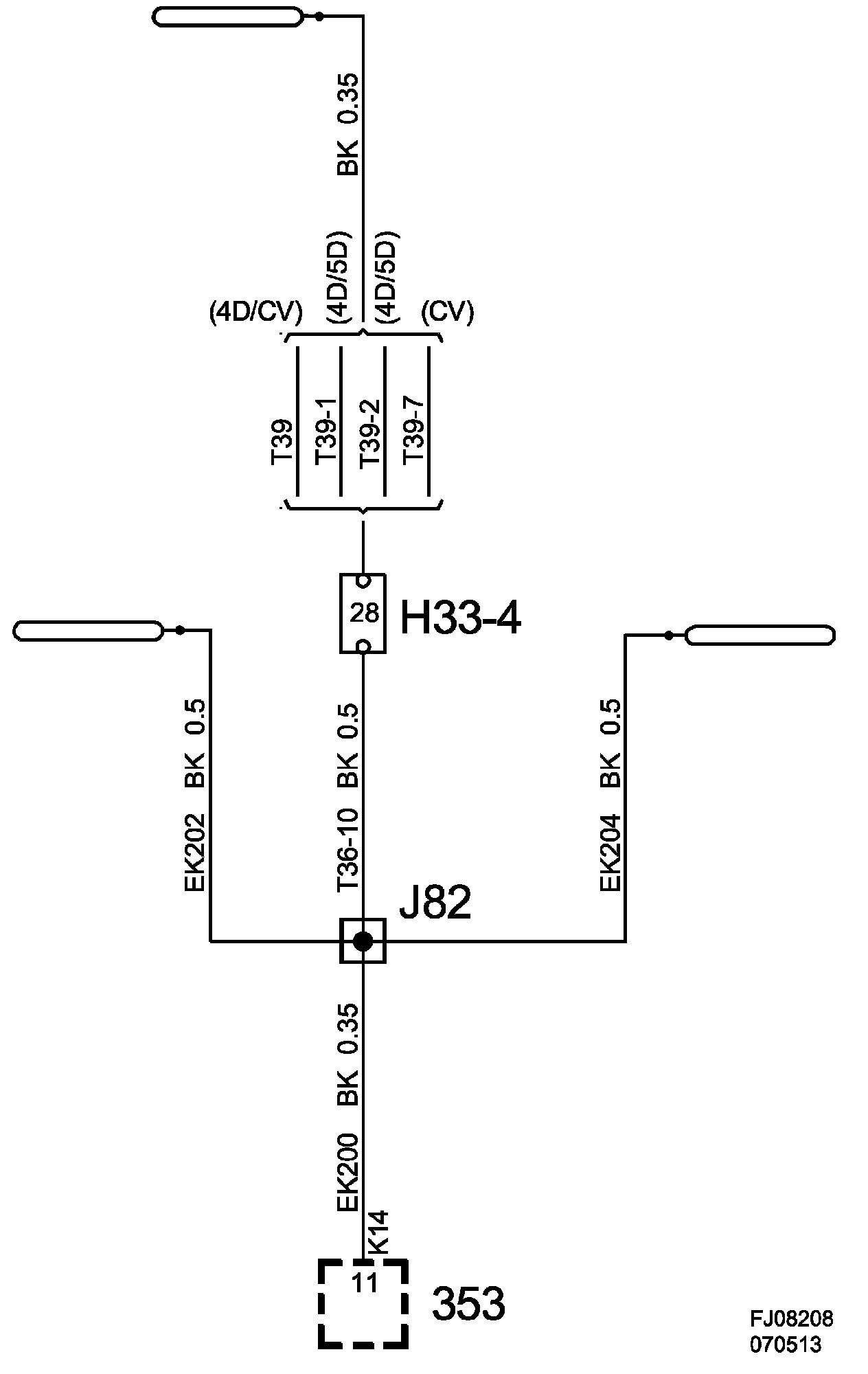

Crimp J82, Instrument Harness:

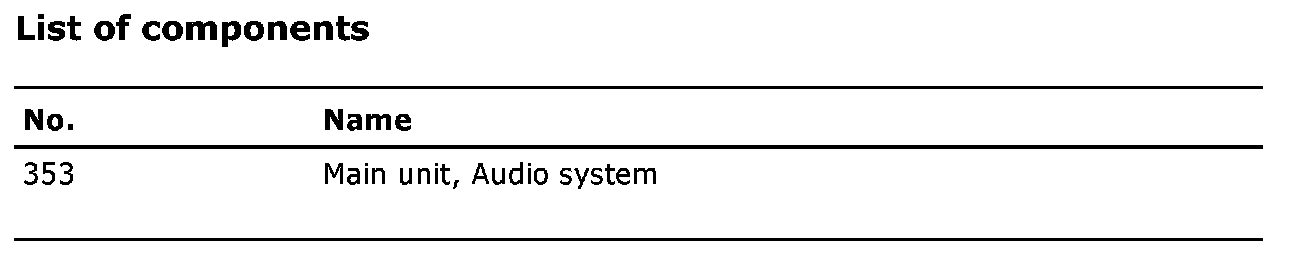

List Of Components:
