Crimp Connection J20, Front Harness



Location: Approx. 40 mm from branching of grounding point G30 towards the right headlamp

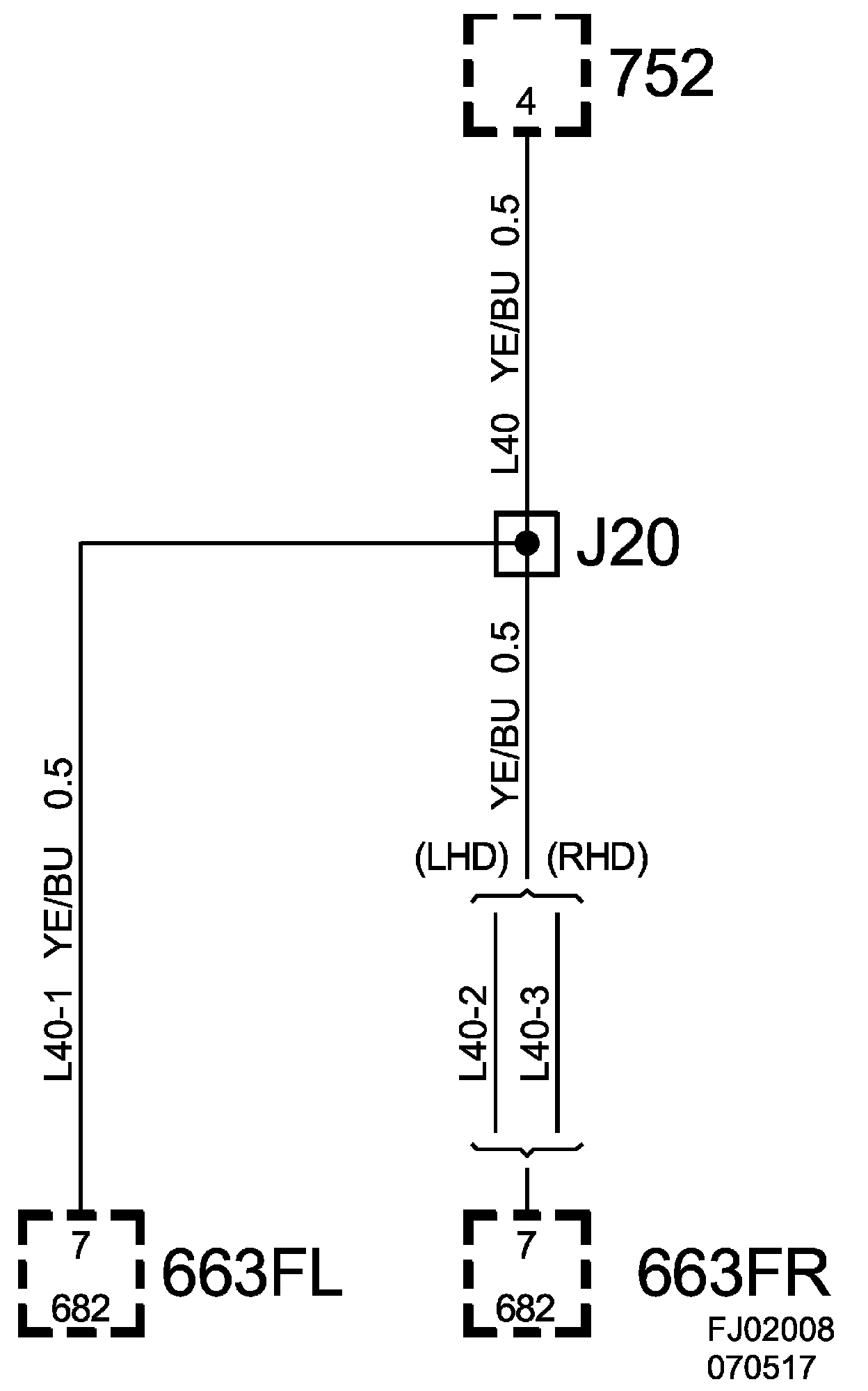

Crimp J20, Front Harness:

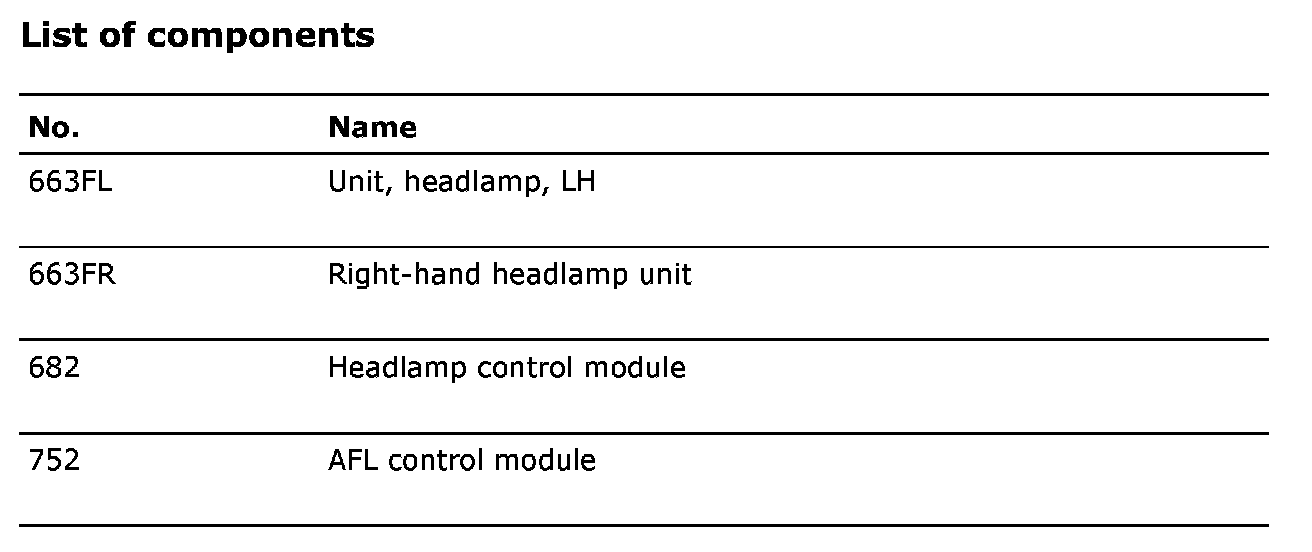

List Of Components:
