Crimp Connection J176, Climate Control Unit
Crimp Connection J176, Climate Control Unit
Location:
On the climate control unit

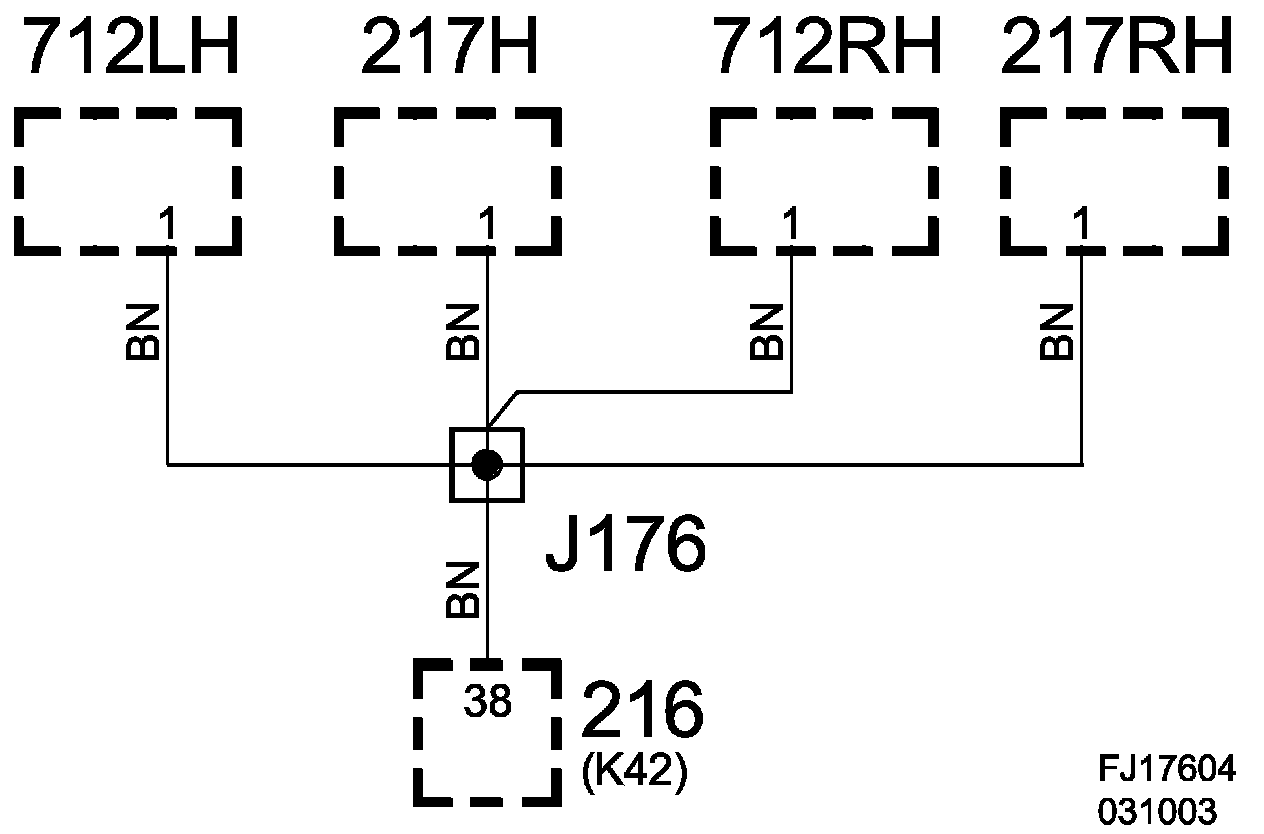

Crimp Connection J176, Climate Control Unit:

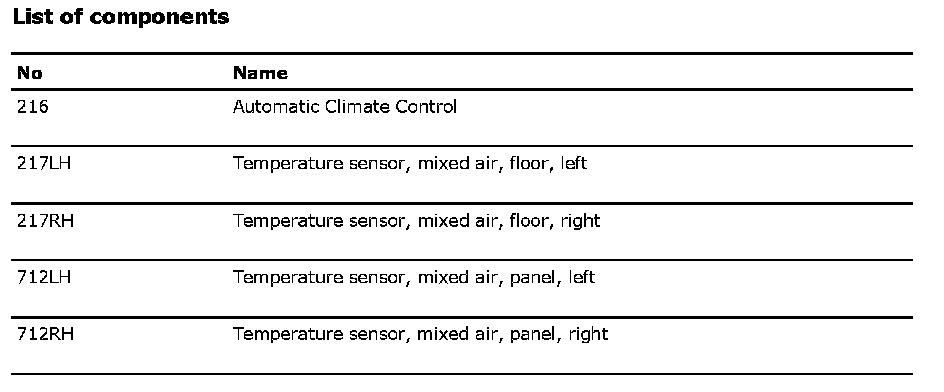

List Of Components:
