Crimp J48, Engine Harness

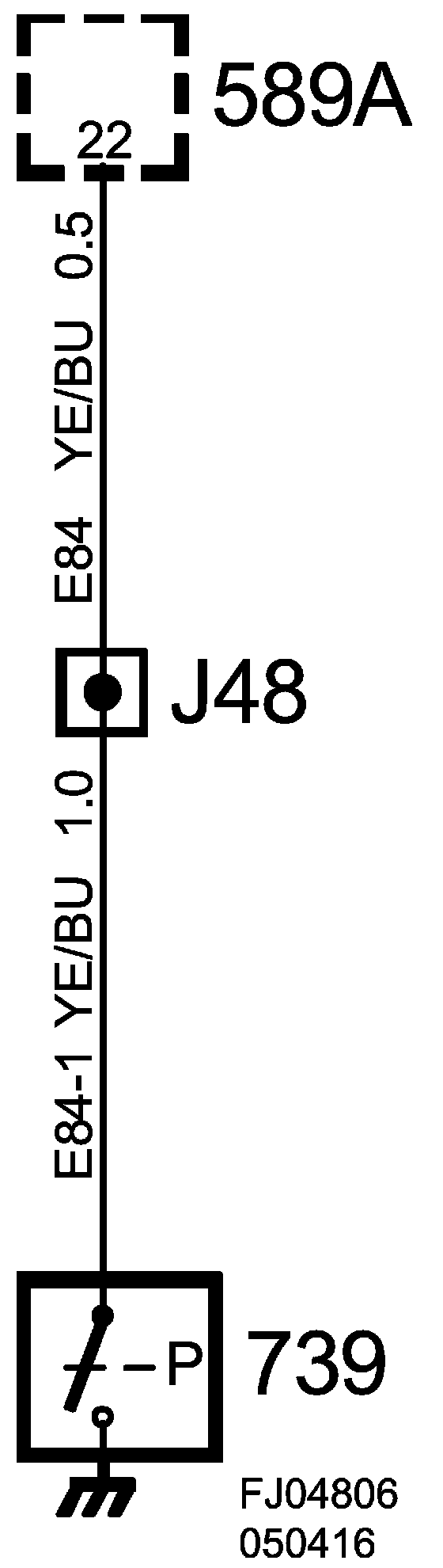

Crimp J48, Engine Harness, Trionic:

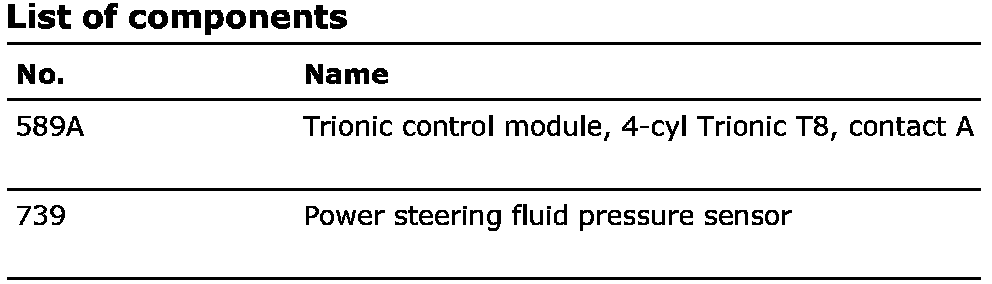

List Of Components:






Location: Approx. 80 mm from branching point ignition coil with integrated power amplifier for cylinder 4 towards the engine control module
