Crimp Connection J101, Main Harness

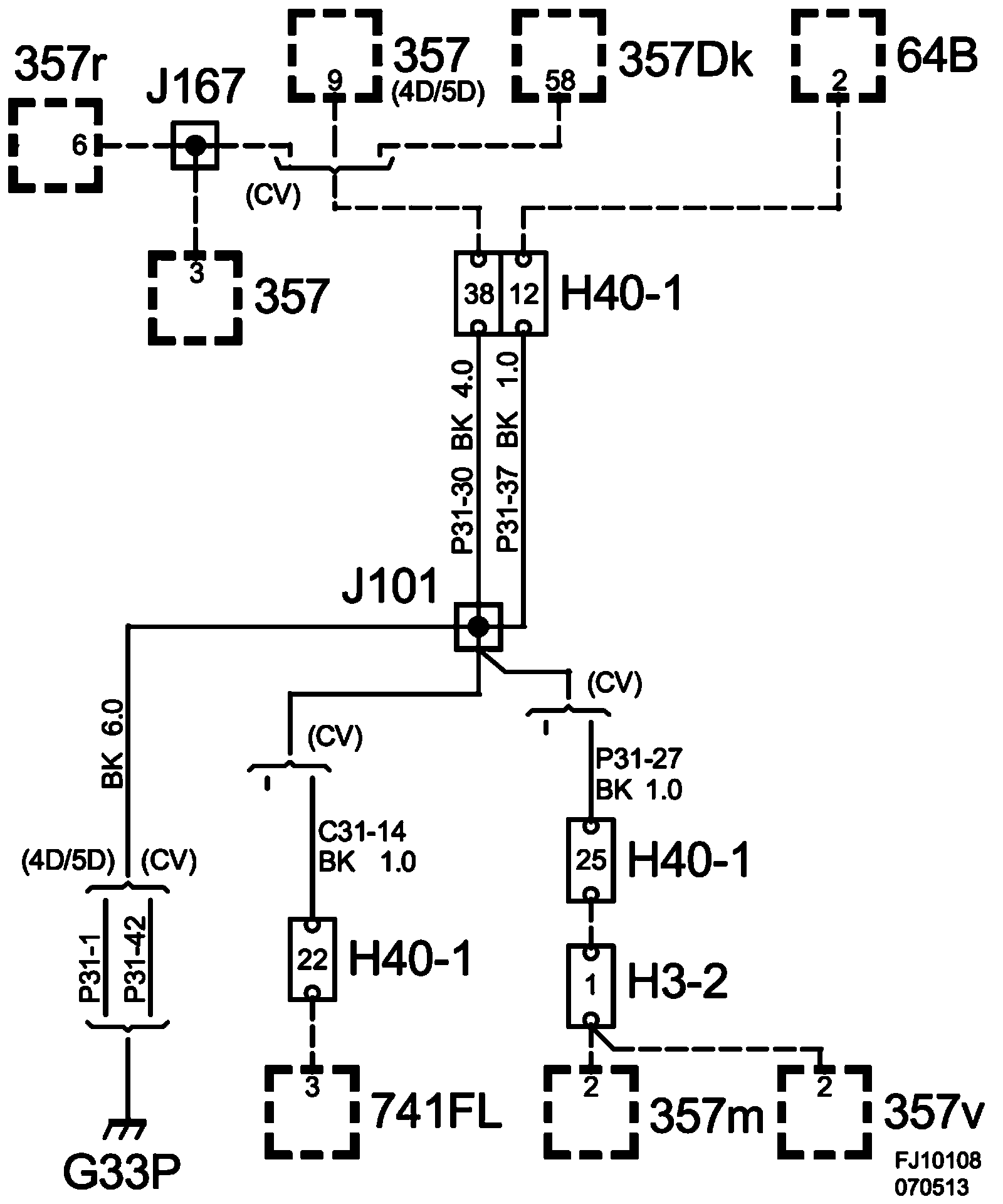

Crimp Connection J101, Main Harness:

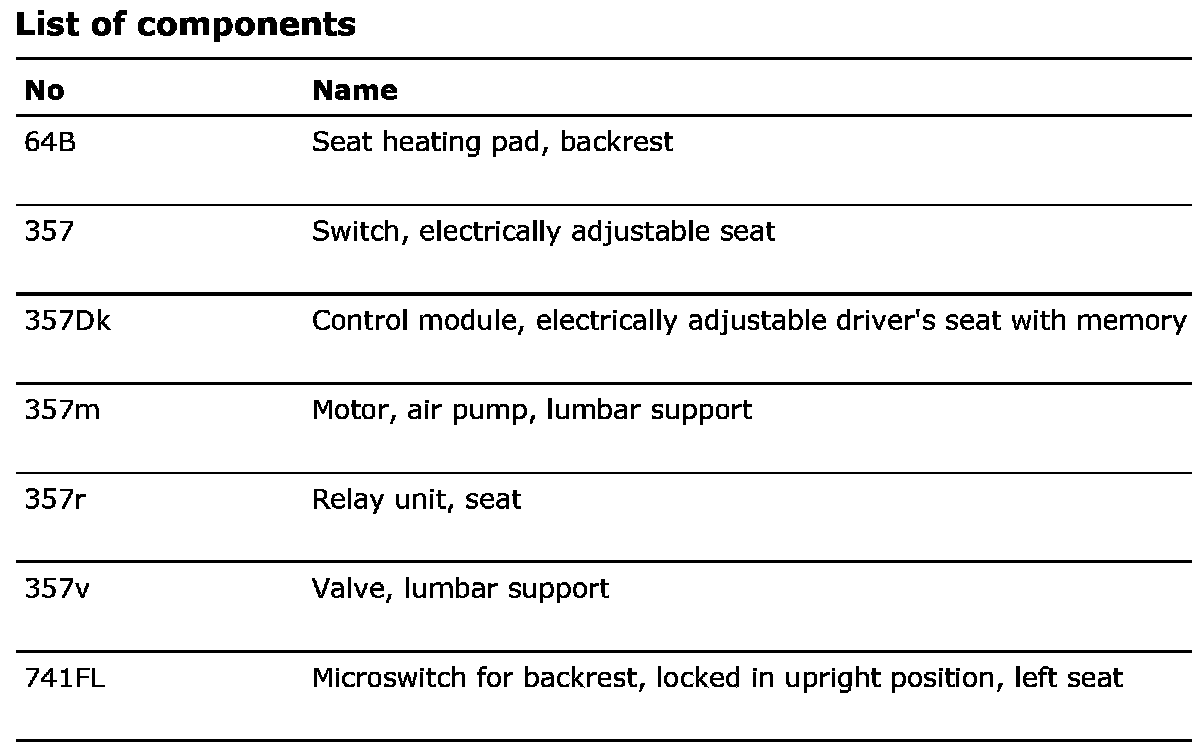

List Of Components:






Location: Approx. 280 mm from the left-hand seat connector

Crimp J167, seat harness
