Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod, Engine

Connecting Rod, Engine

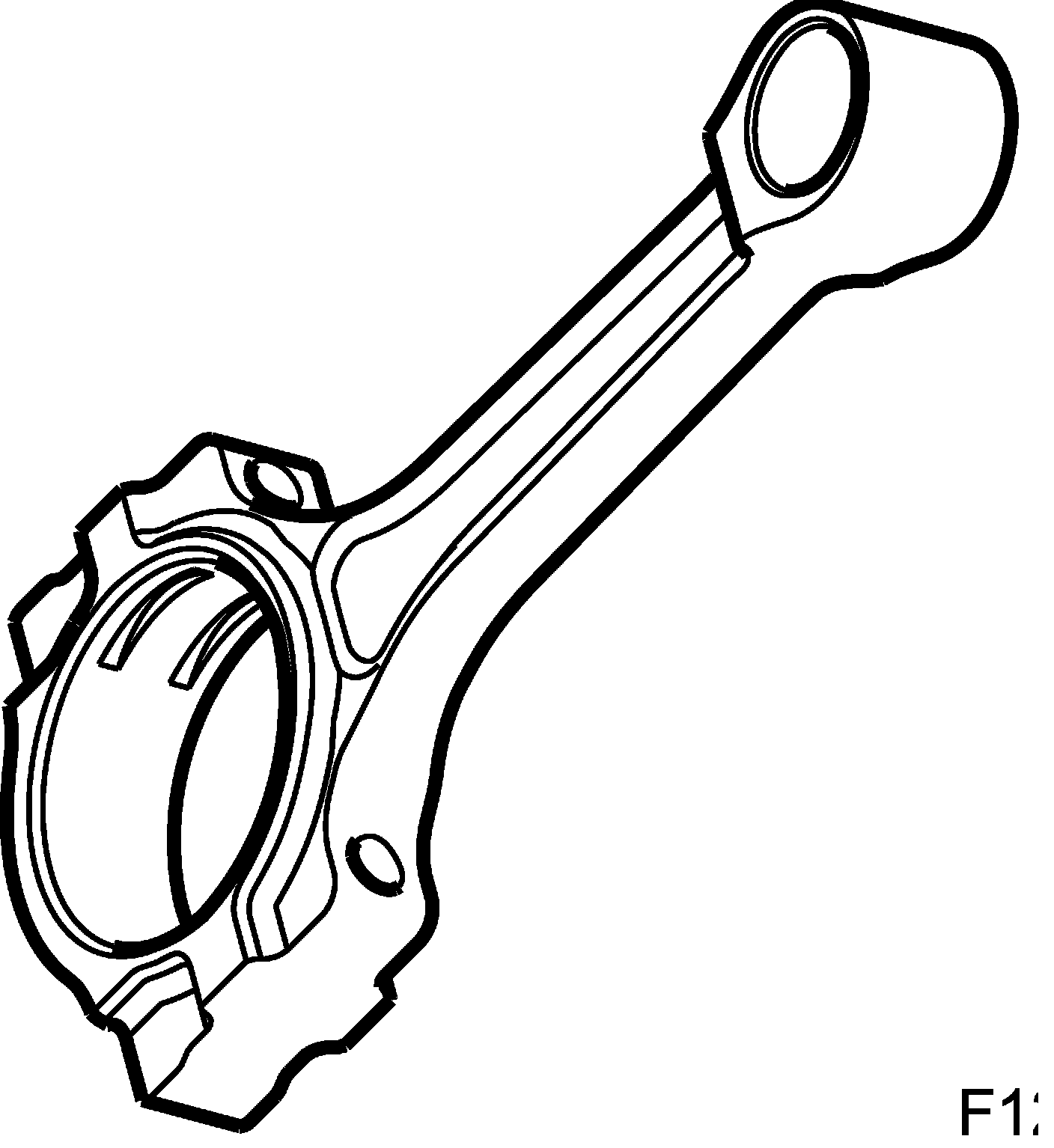

Connecting rods

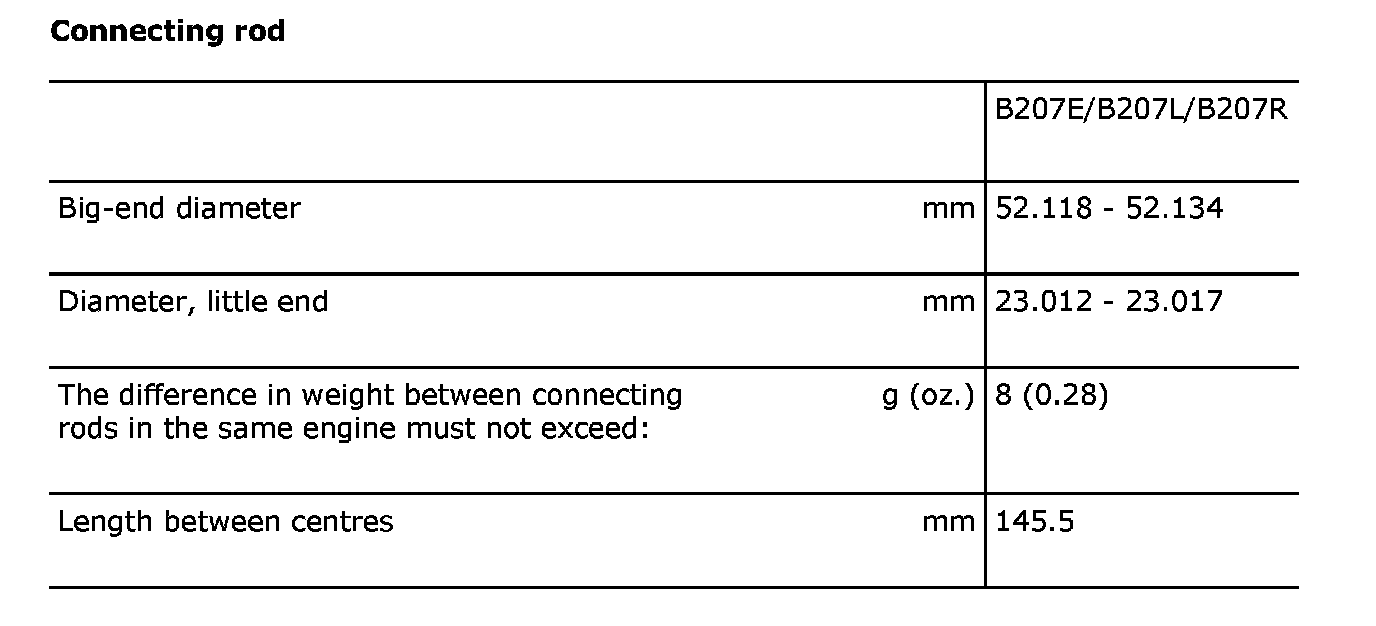

Connecting rod





Connecting rod bearing cap 25 Nm + 100 degrees (18 ft. lbs. + 100 degrees) M9
