Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> System Specifications >> Torque Specifications

Torque Specifications

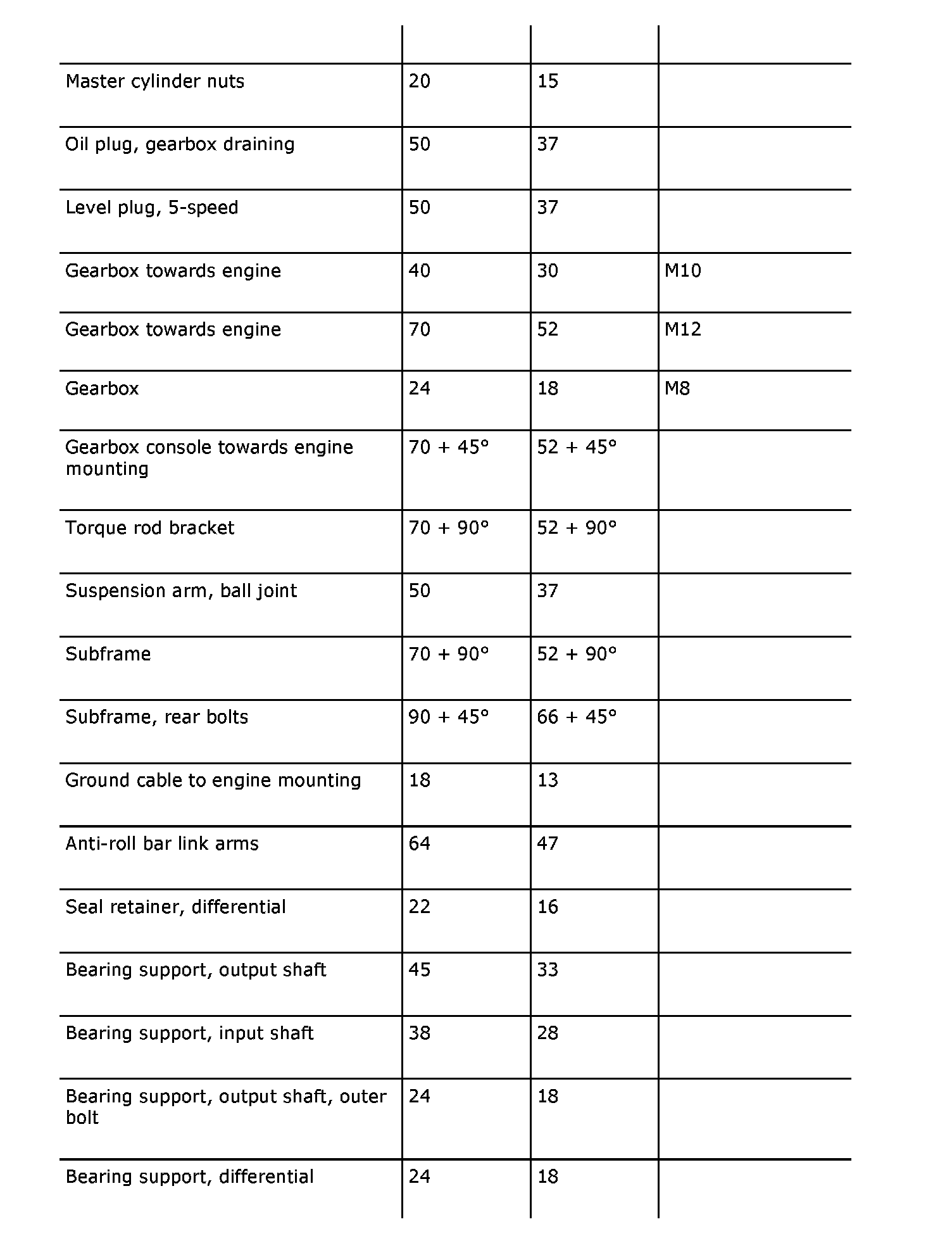

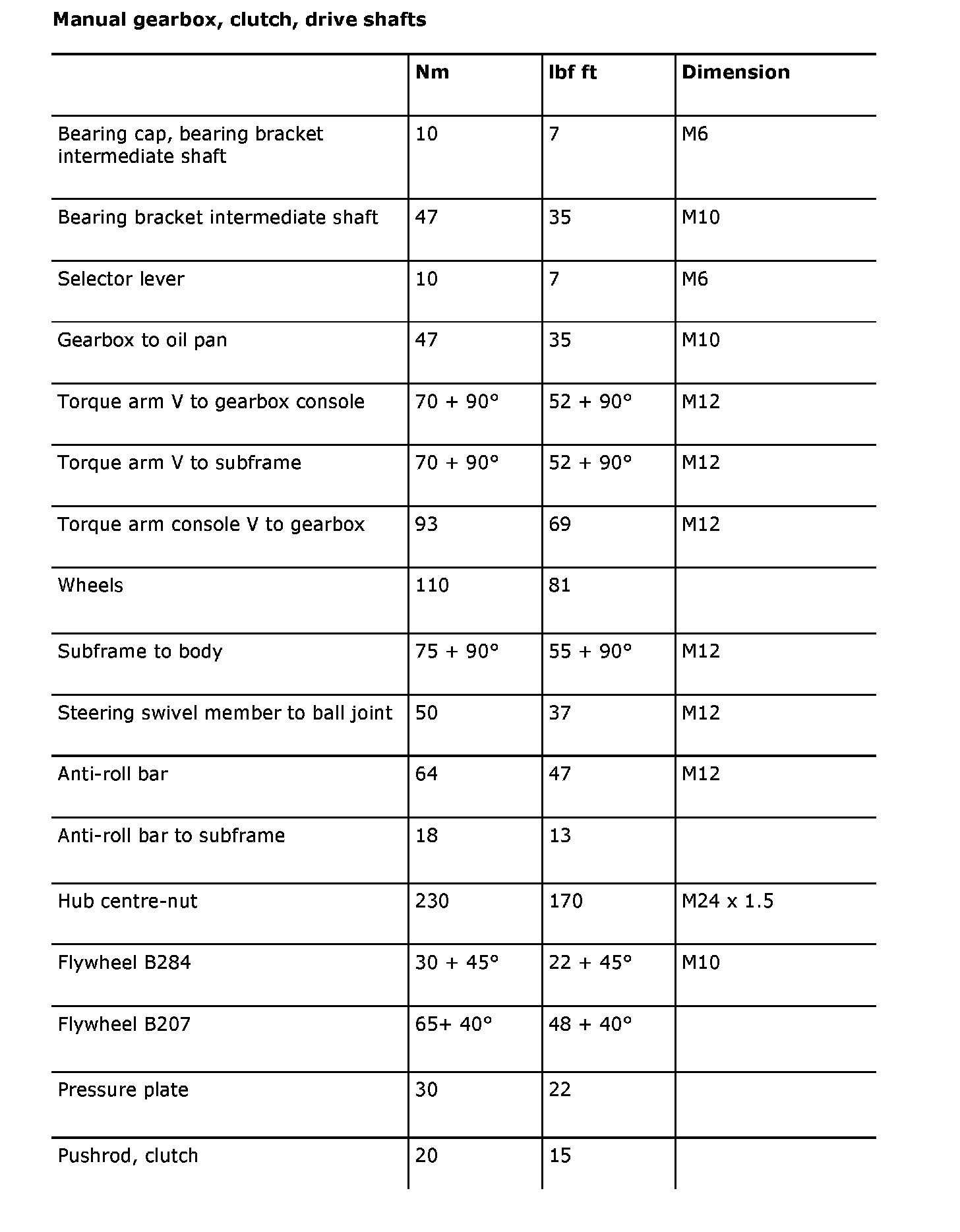

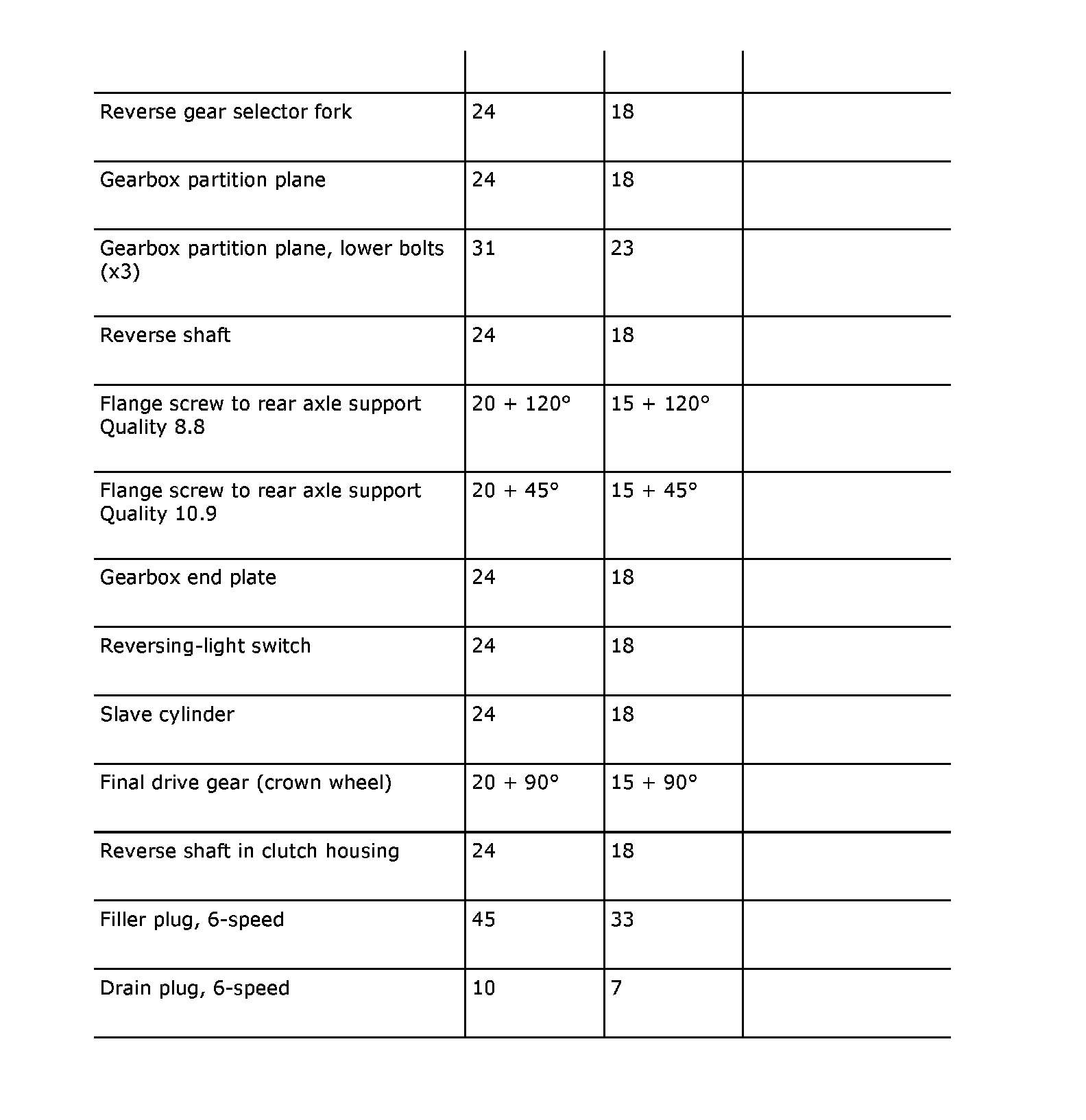

Tightening Torques (part 1):



Tightening Torques (part 2):



Tightening Torques (part 3):
