Home >> Saab >> 2009 >> 9-3 FWD (9440) L4-2.0L Turbo (B207R) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Transmission Position Sensor/Switch >> Specifications

Transmission Position Sensor/Switch: Specifications

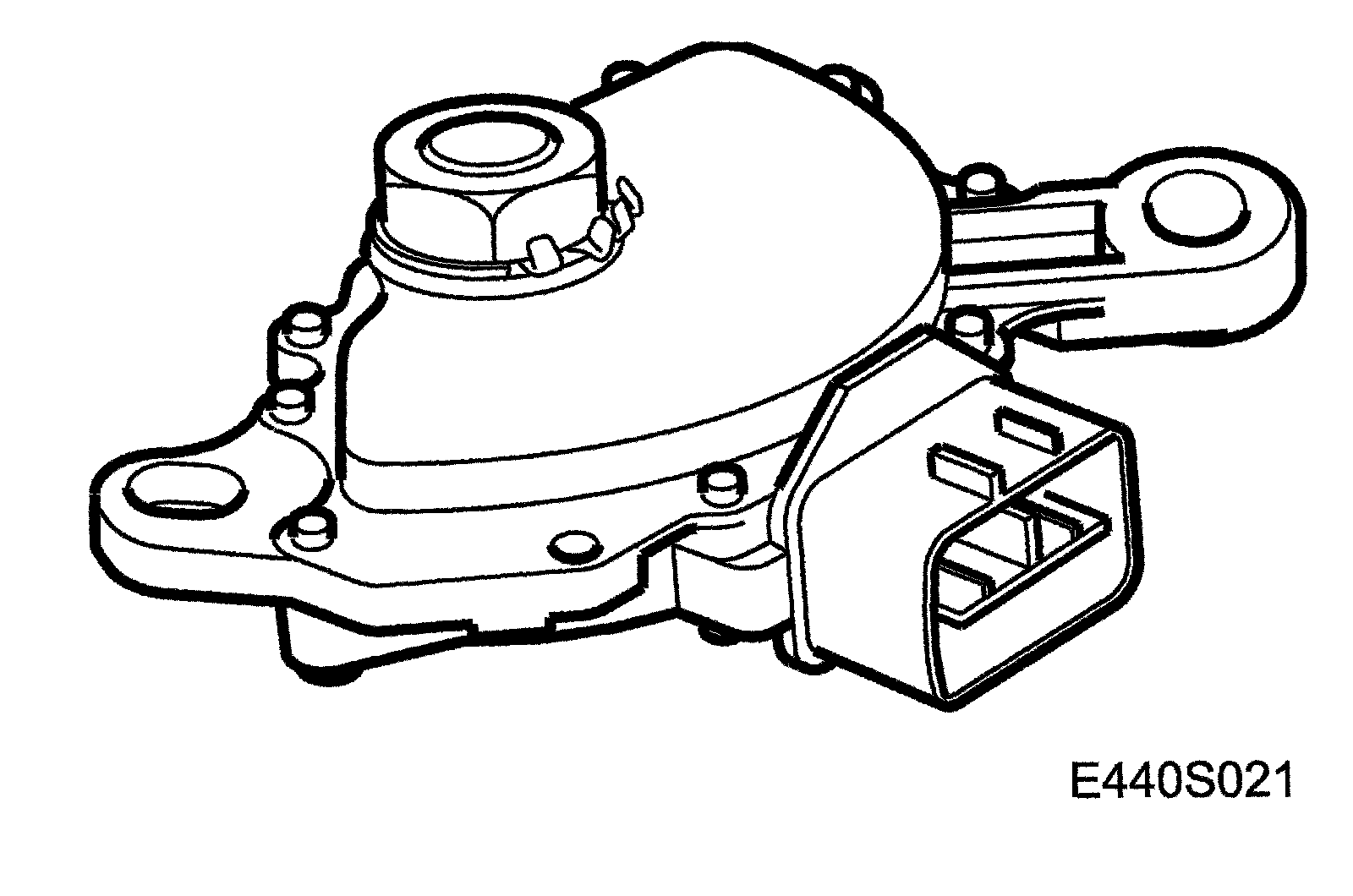

Gear selector position sensor

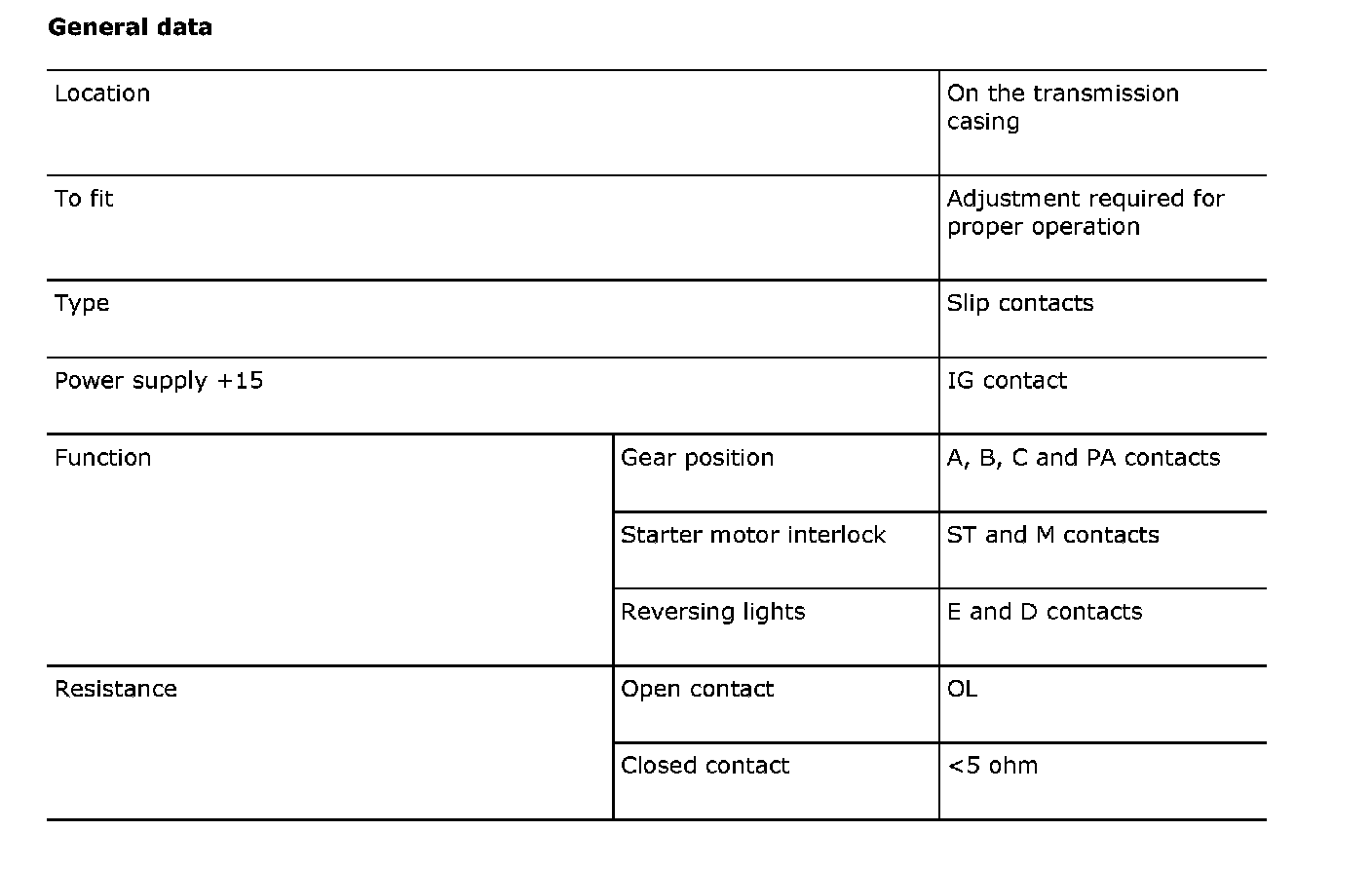

General data
