Load Angle Sensor, Rear

Load Angle Sensor, Rear

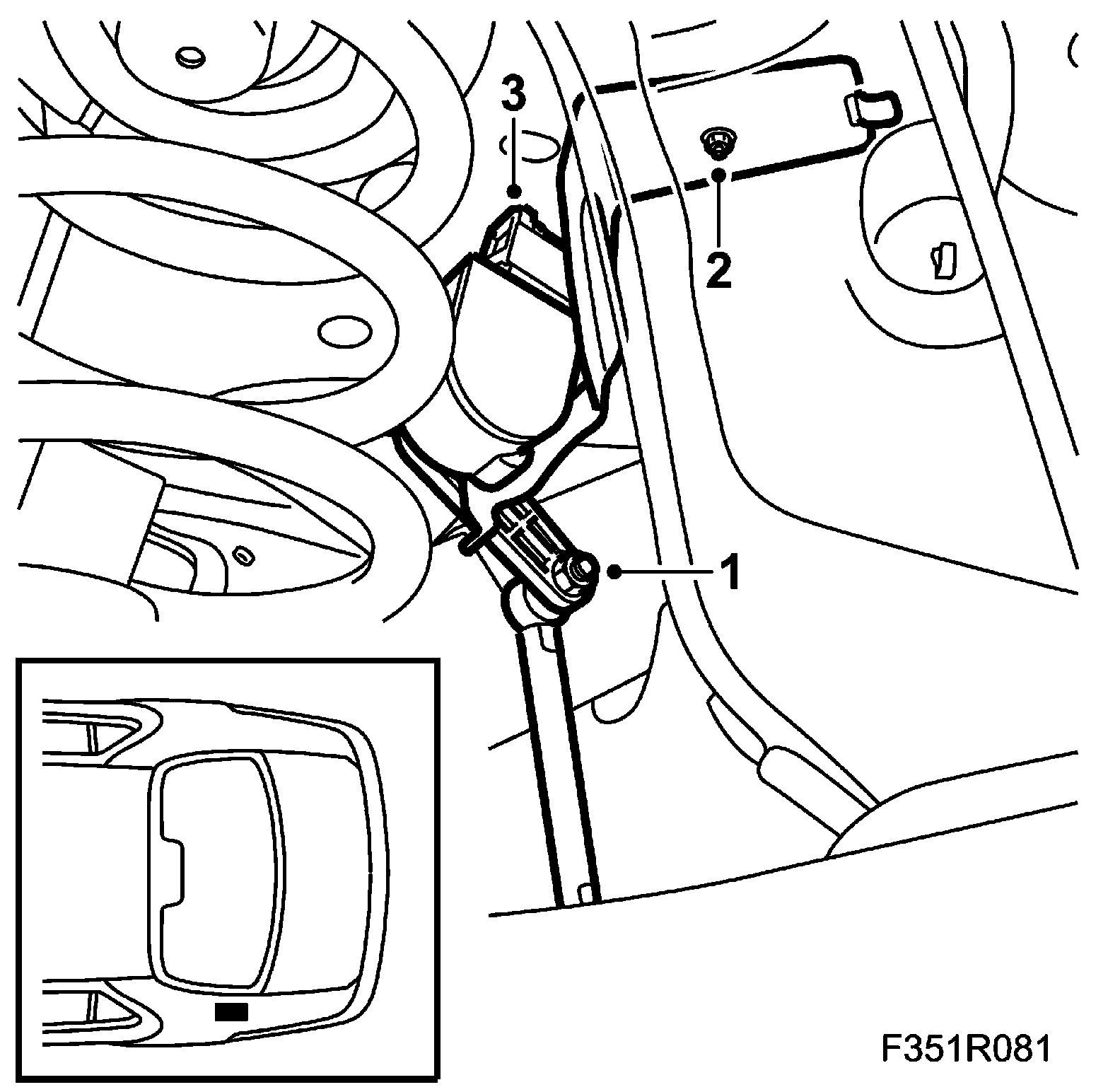

To remove
1. Release the upper ball section in the link arm.





2. Remove the console and sensor.
3. Separate connector.

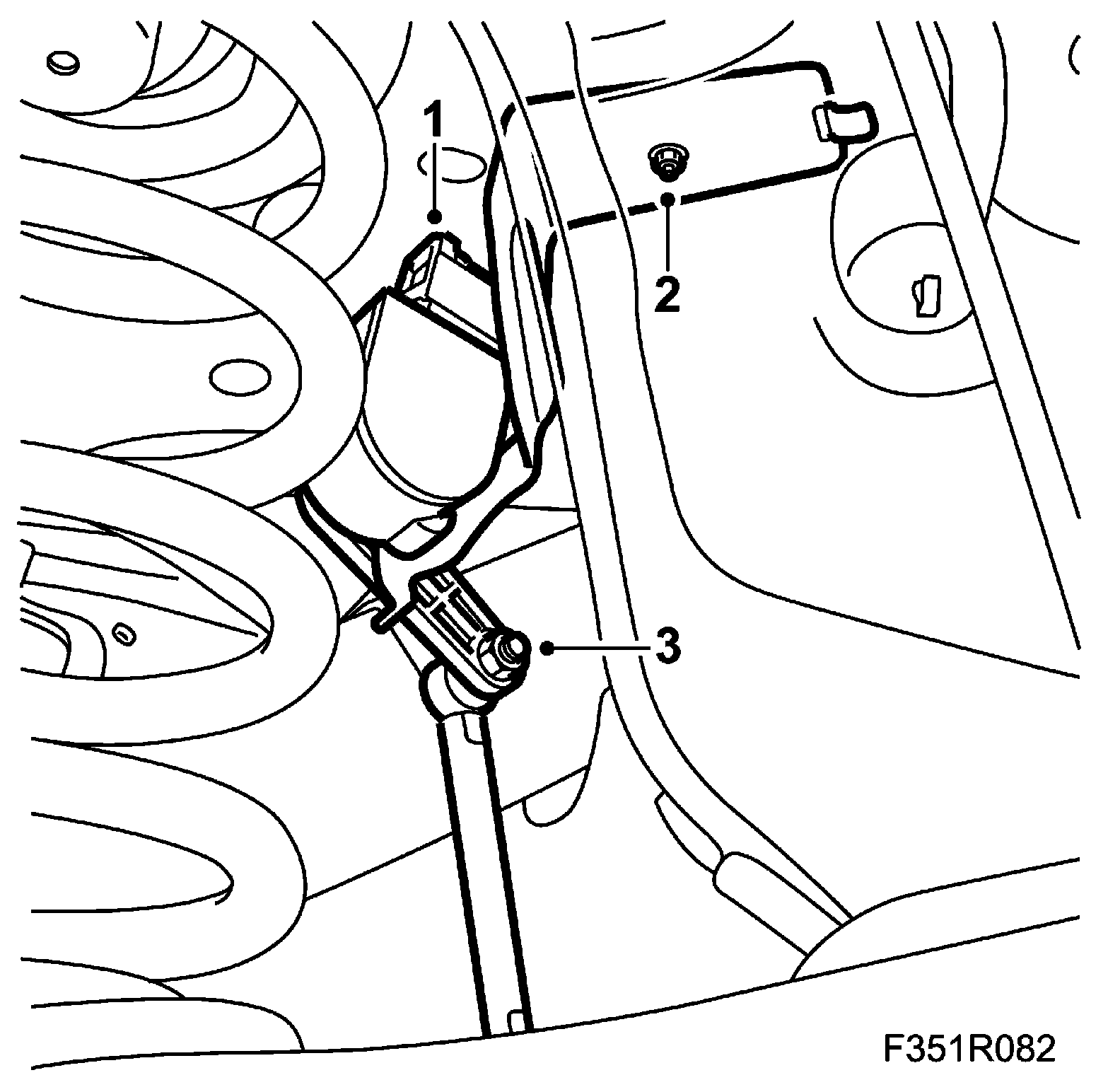

To fit
1. Plug in the connector.





2. Refit console with sensor.
Tightening torque up to and including M06 8 Nm (6 lbf ft)
Tightening torque from and including M07 10 Nm (7 lbf ft)

3. Refit upper ball section in link arm.
4. Carry out AHL control module calibration.
