Direction Indicators, Hazard Warning Lights, 4D/CV

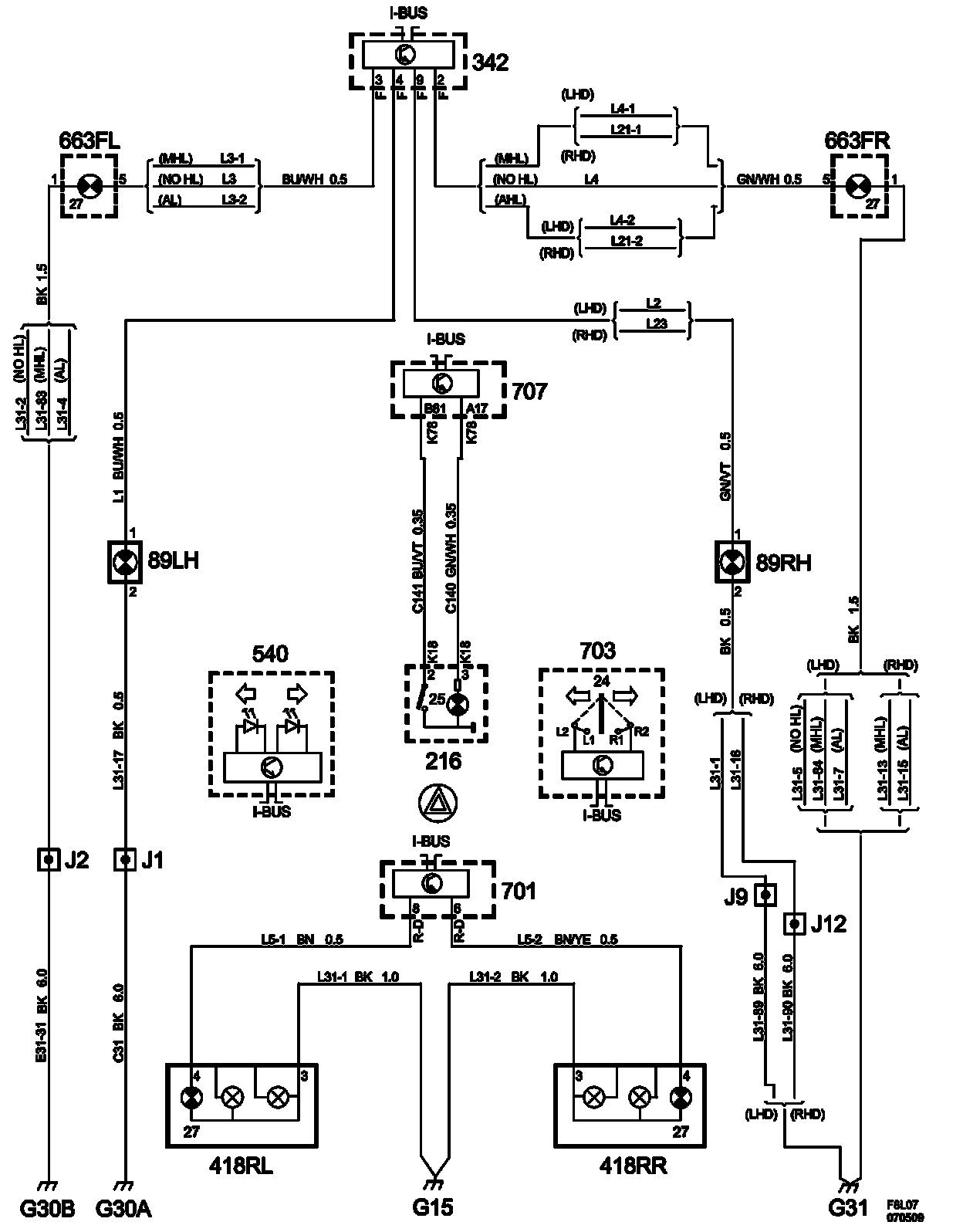

Direction Indicators, Hazard Warning Lights, 4D/CV:

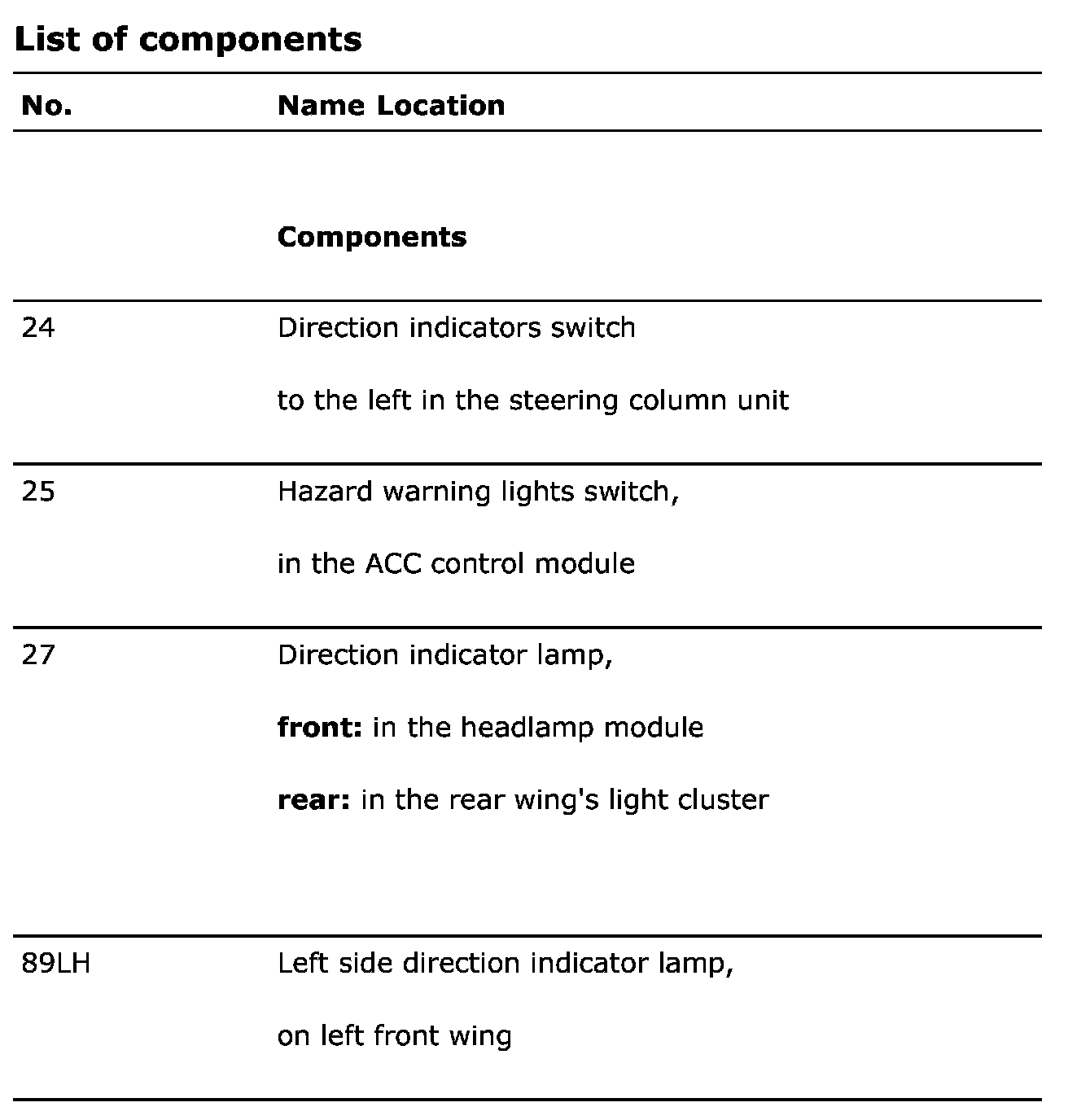

List Of Components (Part 1):

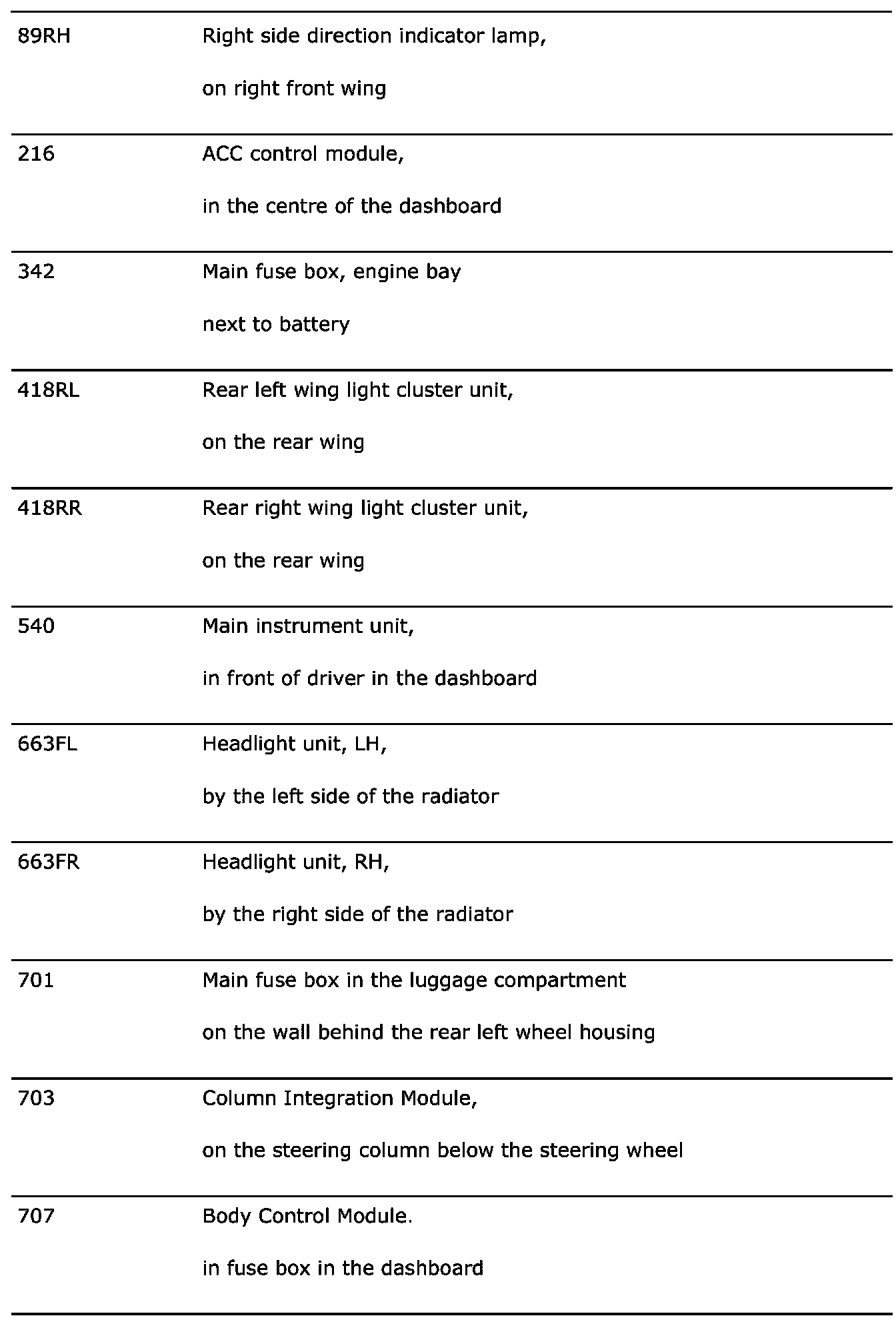

List Of Components (Part 2):

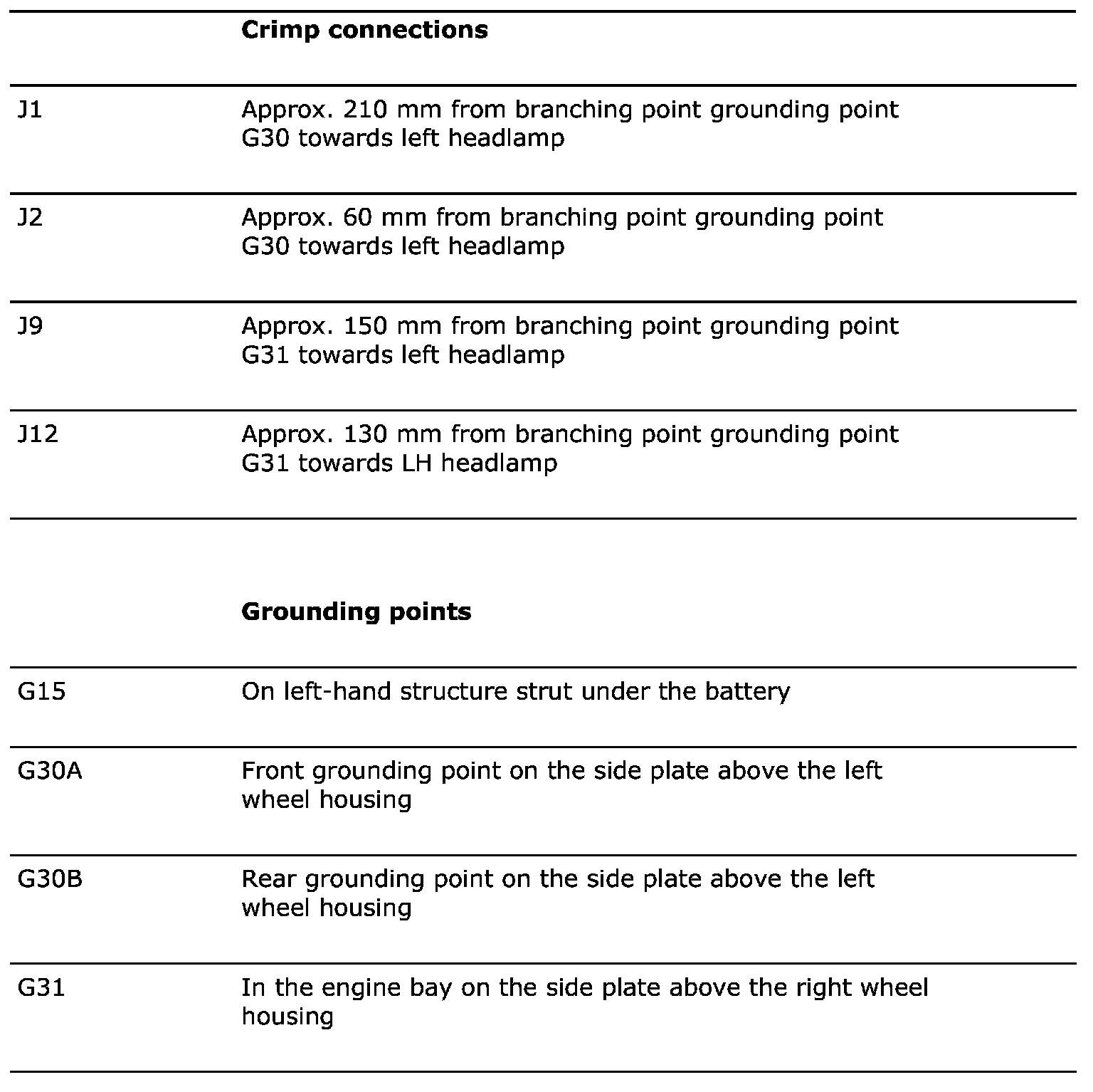

List Of Components (Part 3):
